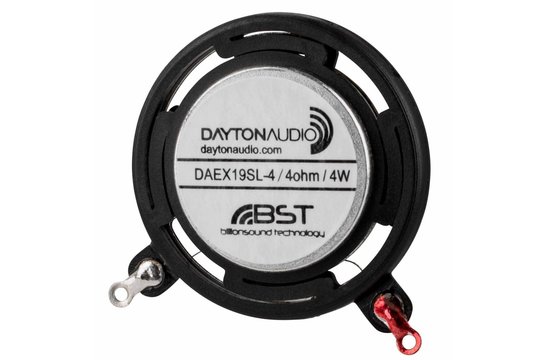

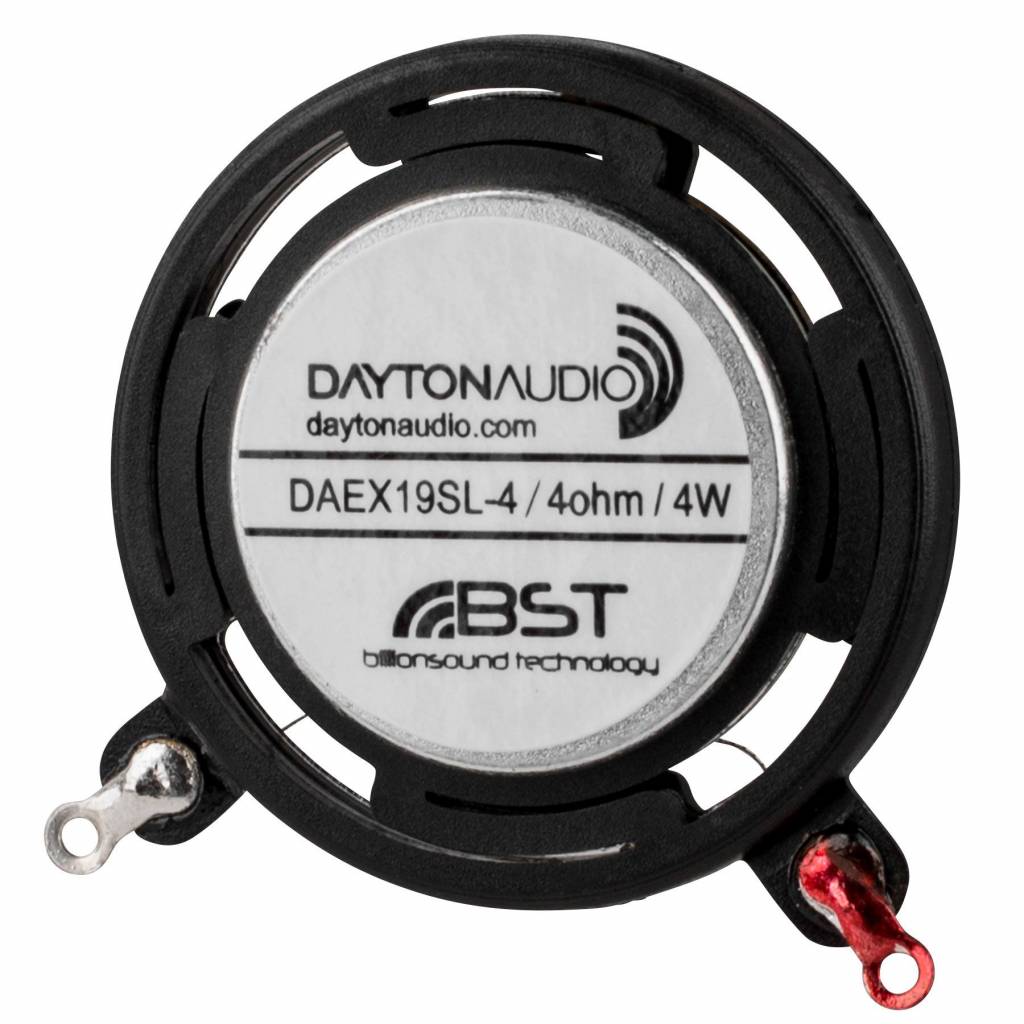

Dayton Audio DAEX19SL-4 Slimline Coin Type 19mm Exciter 4W 4 Ohm

Levertijd: 1 werkdag

  • Artikelcode: DAEX19SL-4
  • Voorraad: >10 Op voorraad

This tiny exciter packs one heck of a punch. Dayton Audio's DAEX19SL-4 4 ohm sound exciter can turn most light rigid surfaces into a speaker with a surprising amount of output. Perfect for adding audio to small toys, signs, and many other projects.

€ 8,45 Incl. 21% btw

  • Bestel 4 voor €8,03 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DAEX19SL-4 Slimline Coin Type 19mm Exciter 4W 4 Ohm

This tiny exciter packs one heck of a punch. Dayton Audio's DAEX19SL-4 4 ohm sound exciter can turn most light rigid surfaces into a speaker with a surprising amount of output. Perfect for adding audio to small toys, signs, and many other projects.



Highlights

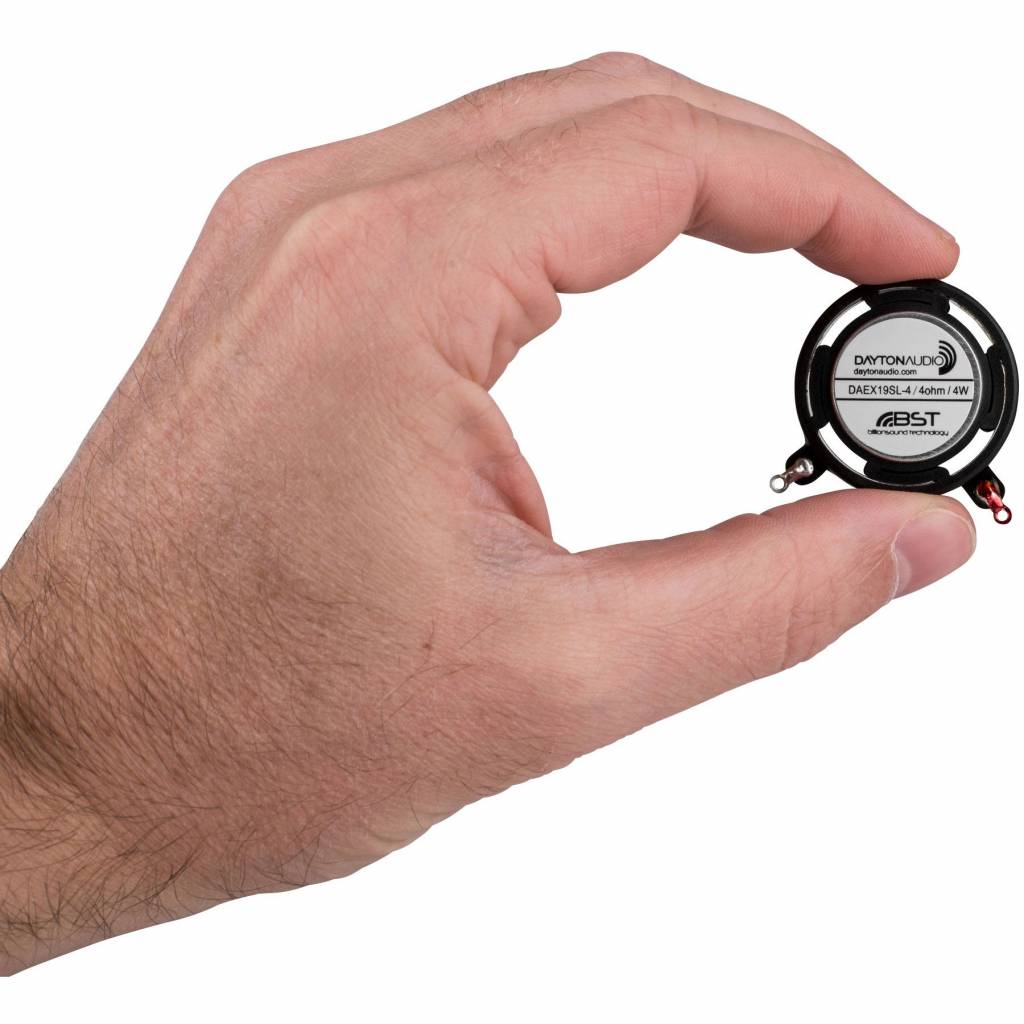

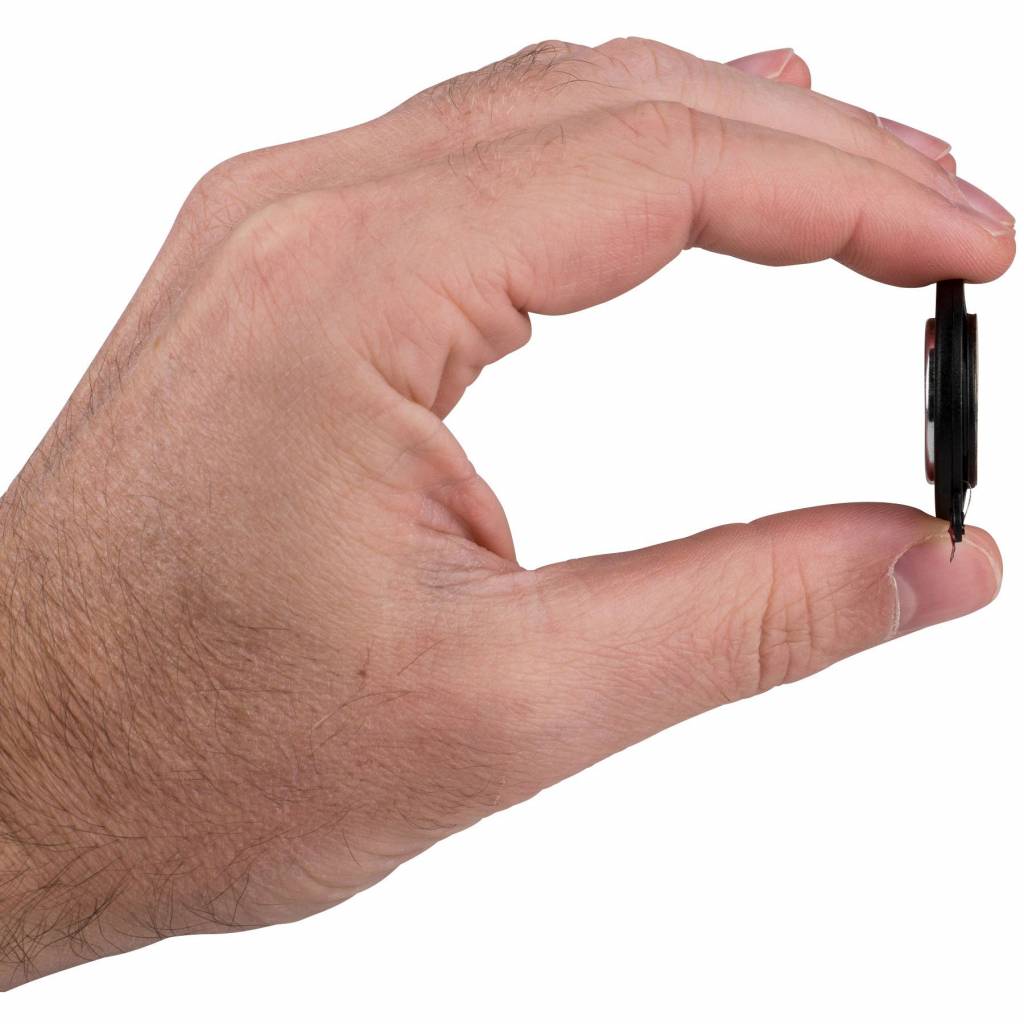

  • Only 1.3" diameter by 0.26" high, can be installed almost anywhere
  • Dual suspension for linear operation and lower distortion
  • 4-ohm impedance for use with small, Class D amplifiers
  • Pre-applied 3M™ VHB™ adhesive for quick, durable installation



Product details

Dayton Audio DAEX19SL-4 Slimline Coin Type 19mm Exciter 4W 4 Ohm

 Dayton Audio's 19 mm DAEX19SL-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in an extremely compact package for working with smaller surfaces in the minimum amount of space. This exciter's small size and weight enables audio reproduction in places never imagined: toys, signs, cabinet doors, etc... even windows!



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output.



To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Specificaties

Specificaties voor: DAEX19SL-4 Slimline Coin Type 19mm Exciter 4W 4 Ohm

  • Exciter type SPEC Exciter type Full range
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 4 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency Response SPEC Frequency Response -
  • Bekijk alle specificaties
  • Resonant Frequency (Fs) 426 Hz
  • DC Resistance (Re) 2.94 ohms
  • Voice Coil Inductance (Le) 0.01 mH
  • Total Q (Qts) -
  • Diaphragm Mass Inc. Airload (Mms) -
  • Mechanical Compliance of Suspension (Cms) -
  • BL Product (BL) -
  • Voice Coil Diameter 19 mm
  • Overall Outside Diameter 33 mm
  • Overall Depth 6.5 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 23 mm outside Ø, 16 mm inside Ø
  • # Mounting Holes -
  • Mounting type Self 3M VHB adhesive pre-applied mounting
  • Weight 13.5 grams

Documenten

Reviews

Gebruikers beoordelingen 2 / 5 Reviews: (1)

  • DM Door David M. aan 16-07-2019 10:56

    2 / 5

    I was hoping to use a few of these exciters mounted to a small piece of wood as part of a museum installation, but realized it is too weak for this project.
    Good product though. Maybe it would be helpful if you mentioned more detailed examples of applications in the exciter products specifications, like the usable thickness range for the various materials.
