Dayton Audio DAEX13CT Coin Type 13mm Exciter 3W 4/8 Ohm

Levertijd: 1 werkdag

  • Artikelcode: DAEX13CT-4
  • Voorraad: >10 Op voorraad

Take your product or project to the next level by turning it into a speaker! The DAEX13CT sound exciter, by Dayton Audio, is designed to turn small surfaces into a hidden sound source.

€ 5,45 Incl. 21% btw

  • Bestel 4 voor €5,18 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DAEX13CT Coin Type 13mm Exciter 3W 4/8 Ohm

Take your product or project to the next level by turning it into a speaker! The DAEX13CT sound exciter, by Dayton Audio, is designed to turn small surfaces into a hidden sound source.



Highlights

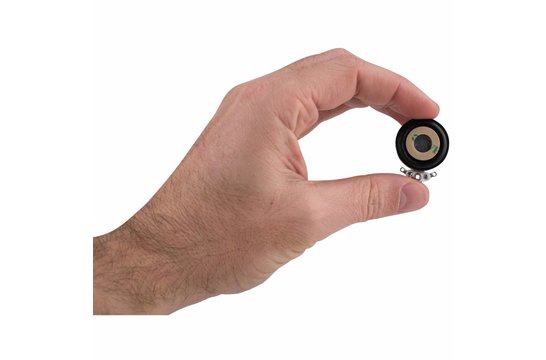

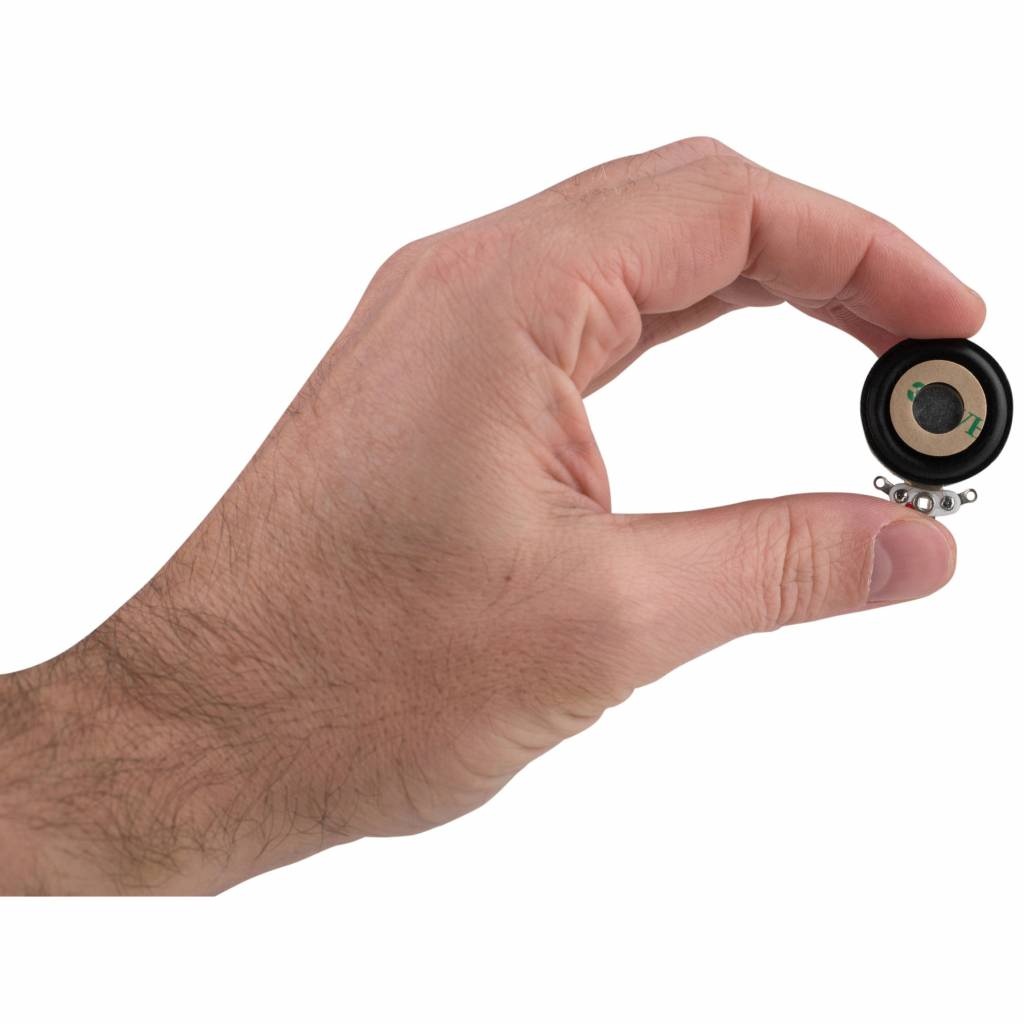

  • Super small size; just over an inch in diameter, about 3/8" high
  • Pre-applied 3M™ VHB™ adhesive for a quick, secure installation
  • Rare-earth neodymium motor
  • 4/8-ohm impedance for use with small, Class D amplifiers



Product details

Dayton Audio DAEX13CT Coin Type 13mm Exciter 3W 4/8 Ohm



Dayton Audio's 13 mm DAEX13CT coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Its 4/8-ohm nominal impedance facilitates the use of series and series-parallel wired arrays for a highly focused, minimum dispersion sound pattern.



To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Specificaties

Specificaties voor: DAEX13CT Coin Type 13mm Exciter 3W 4/8 Ohm

  • Exciter type SPEC Exciter type Full-Range Exciter
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 3 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. -
  • Impedance SPEC Impedance 4 or 8 ohms
  • Frequency Response SPEC Frequency Response -
  • Bekijk alle specificaties
  • Resonant Frequency (Fs) 650 Hz
  • DC Resistance (Re) 3.6 ohms
  • Voice Coil Inductance (Le) 0.04 mH at 1000 Hz
  • Total Q (Qts) 3.25
  • Diaphragm Mass Inc. Airload (Mms) 0.26 g
  • Mechanical Compliance of Suspension (Cms) 0.0002 mm/N
  • BL Product (BL) 1.12 Tm
  • Voice Coil Diameter 13 mm
  • Overall Outside Diameter 26.3 mm
  • Overall Depth 9.5 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 15.7 mm outside diameter
  • # Mounting Holes -
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 12.5 grams

Documenten

Reviews

Gebruikers beoordelingen 4.85 / 5 Reviews: (6)

  • RZ Door Robert Z. aan 03-03-2020 16:49

    4 / 5

    small size, but big sound, when glued to the right surface.
    Just don't expect much base...

  • MS Door Marcel S. aan 23-12-2019 17:44

    5 / 5

    Koper heeft geen omschrijving achtergelaten.

  • CV Door Chris V. aan 03-10-2019 12:32

    5 / 5

    No description was given

  • CV Door Chris V. aan 03-08-2019 11:44

    5 / 5

    Still experimenting .
    Good sound with corrugated cardboard .

  • JG Door Jorge G. aan 11-06-2019 13:58

    5 / 5

    No description was given

  • PG Door Peer G. aan 22-11-2017 16:43

    5 / 5

    This tiny little exciter is a very good soundmaker, if you have noch space for example in small electronic devices.
    Put it on the cover from the inside of your device and listen to an awesome good sound.
    There are no holes for sonic waves, needed for a standard speaker in the cover of your device.
    And so you are able to put everything f.e. in a waterproof case...but still listen to a good sound.
    Enything goes with such a tool!
    And on top it is really cheap!

    Best regards, Peer
