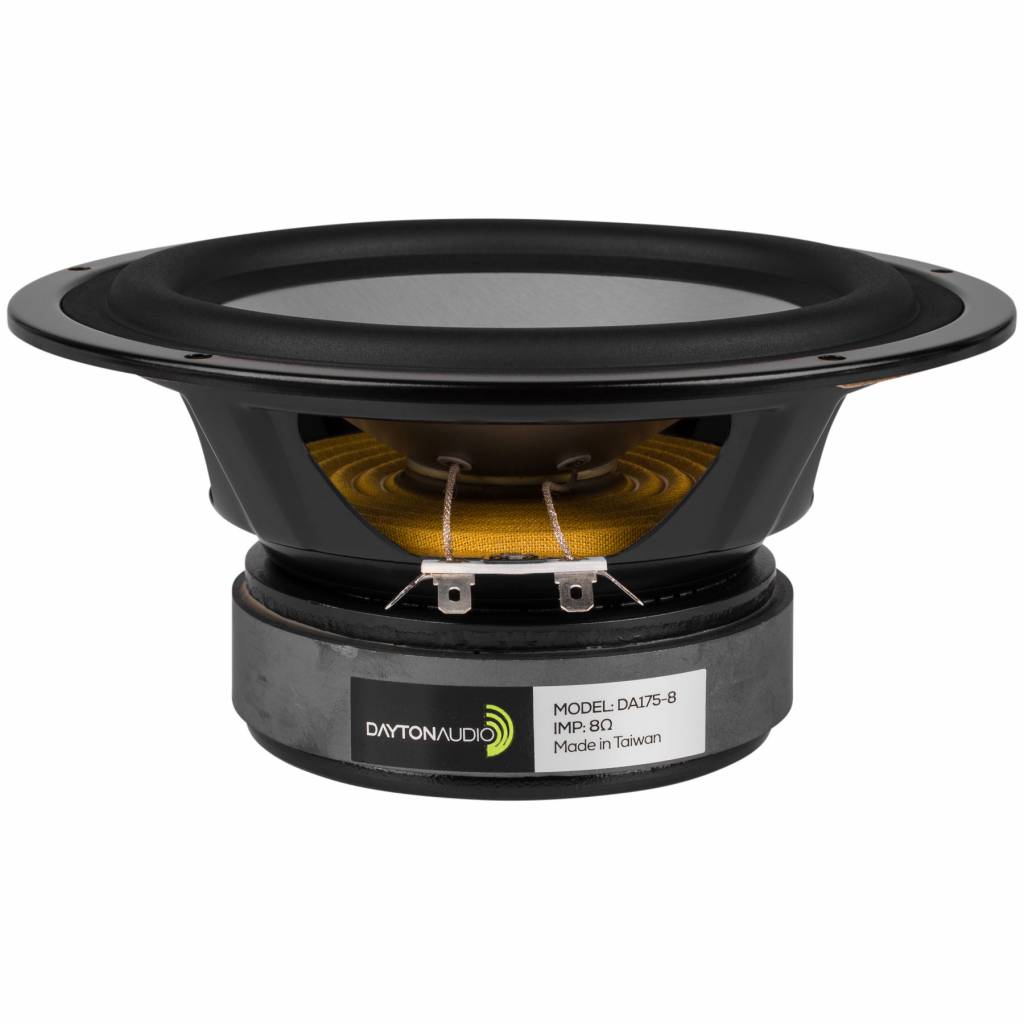

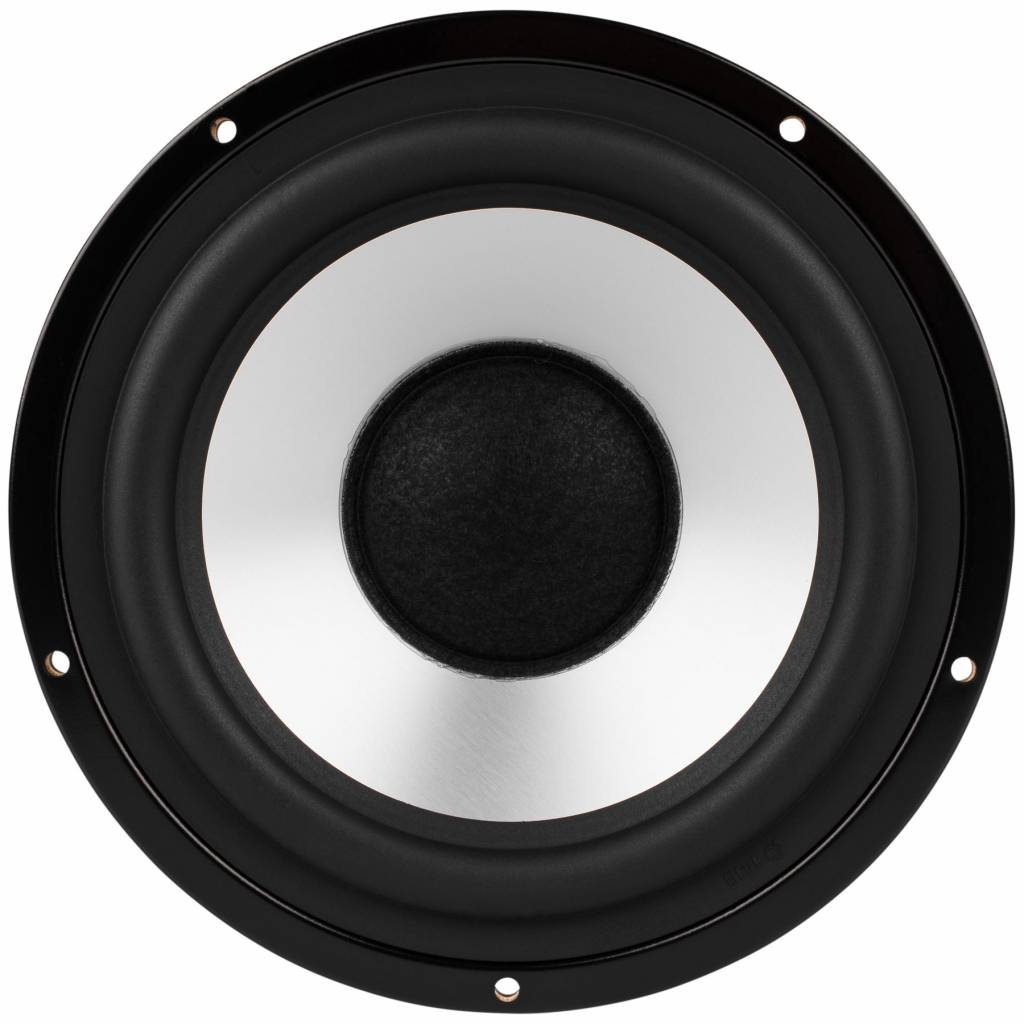

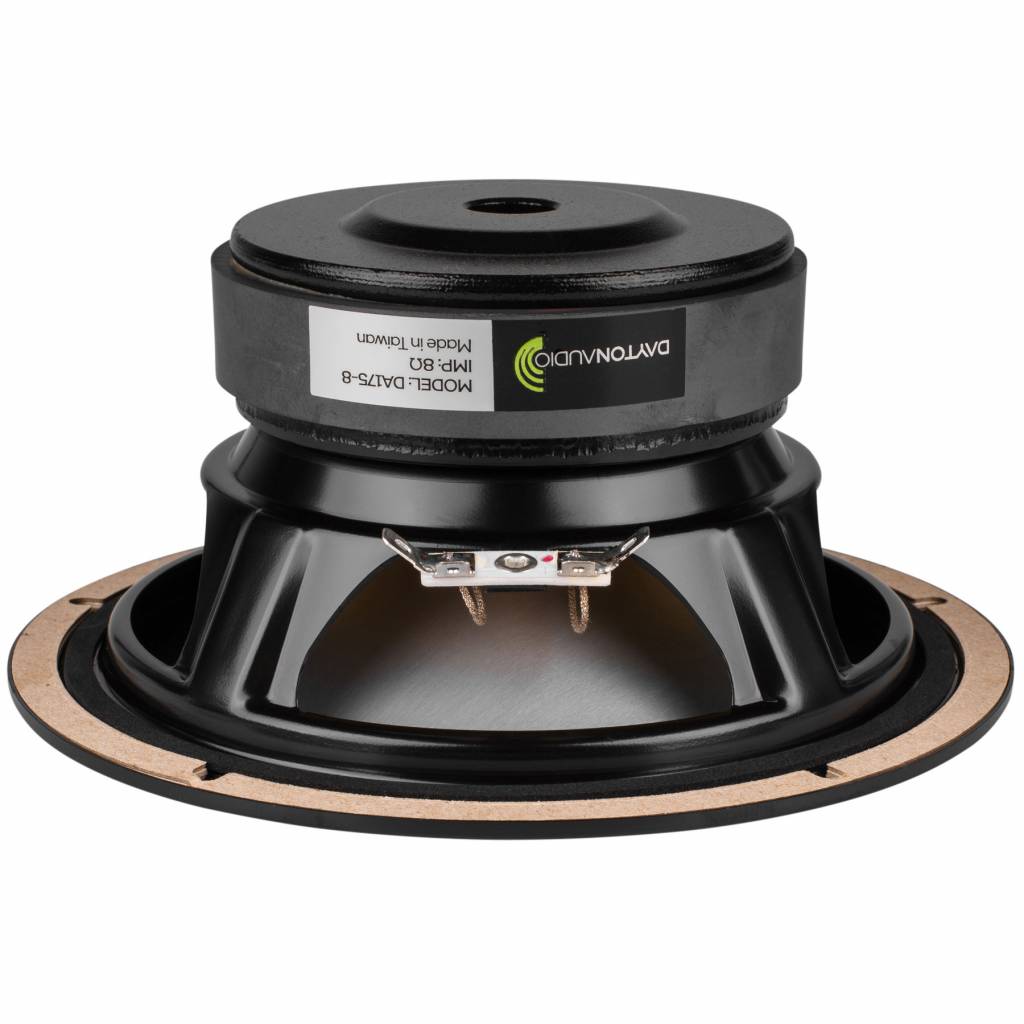

    Dayton Audio DA175-8 7" Aluminum Cone Woofer

    € 31,78€ 38,45 >10 Op voorraad: levertijd 1 werkdag
    7" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €36,53 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    7" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap.



    Highlights

    • Special composite dustcap
    • Stamped steel frame provides a very high-class and professional look
    • Aluminum cone offers a flat frequency response in the passband region with very low distortion



    Product details

    Dayton Audio DA175-8 7" Aluminum Cone Woofer



    7" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap. The cosmetic stamped steel frame provides a very high-class and professional look to your next speaker design. The aluminum cone offers a flat frequency response in the passband region with very low distortion.

    Specificaties

    Artikelnummer
    DA175-8
    Woofer Series
    Specialty Drivers Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    7"
    Power Handling (RMS)
    50 watts
    Power Handling (max)
    100 watts
    Impedance
    8 ohms
    Sensitivity
    85 dB @ 1W/1m
    Frequency Response
    35 - 10,000 Hz
    Voice Coil Diameter
    35 mm
    DC Resistance (Re)
    5.9 ohms
    Voice Coil Inductance (Le)
    1.14 mH
    Resonant Frequency (Fs)
    39.0 Hz
    Mechanical Q (Qms)
    3.31
    Electromagnetic Q (Qes)
    0.70
    Total Q (Qts)
    0.58
    Diaphragm Mass Inc. Airload (Mms)
    25.17g
    Mechanical Compliance of Suspension (Cms)
    0.66 mm/N
    Surface Area of Cone (Sd)
    132.7 cm²
    Volume of Displacement (Vd)
    56.4 cm³
    BL Product (BL)
    7.17 Tm
    Compliance Equivalent Volume (Vas)
    16.3 liters
    Maximum Linear Excursion (Xmax)
    4.25 mm
    Cone / Diaphragm Material
    Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    175.6 mm
    Overall Depth
    81.1 mm
    Baffle Cutout Diameter
    144 mm
    # Mounting Holes
    5
    Sealed Volume
    0.46 ft.³
    Sealed F3
    57 Hz
    Vented Volume
    1.2 ft.³
    Vented F3
    28 Hz

    Reviews

    5 from 5Based on 3 reviews
    Schrijf een review
    5 van 5
    This speaker has very high quality sound and unbelievable bass response , used 2 of this in a 3 ways DIY speakers, parallel connection, 2nd order crossover at 800hz. Highly recommended driver.
    Door Constantin P. on 7 Juni 2020
    5 van 5
    great product thank you
    Door peter l. on 30 Maart 2019
