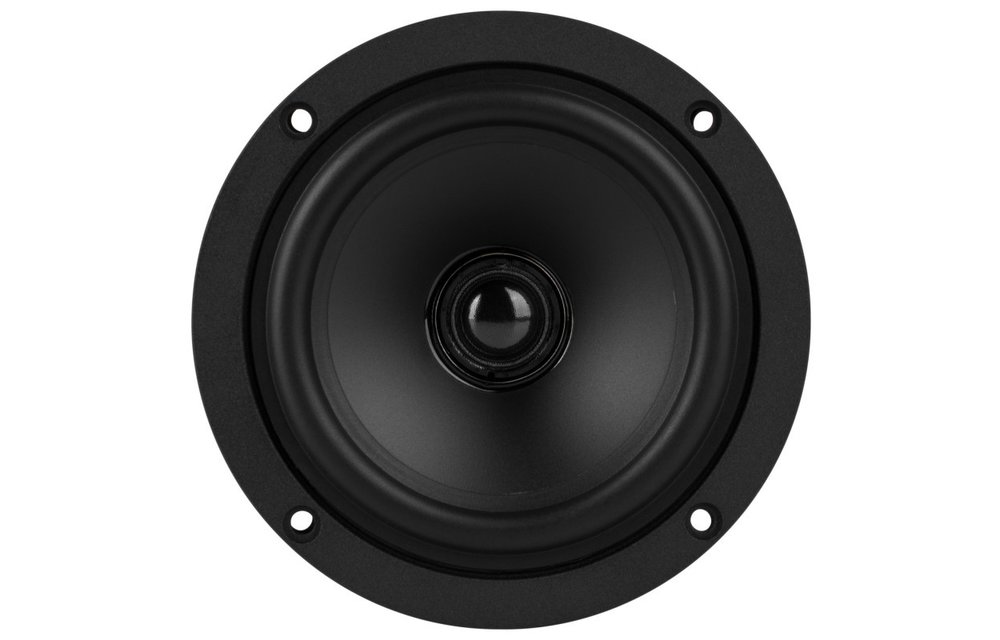

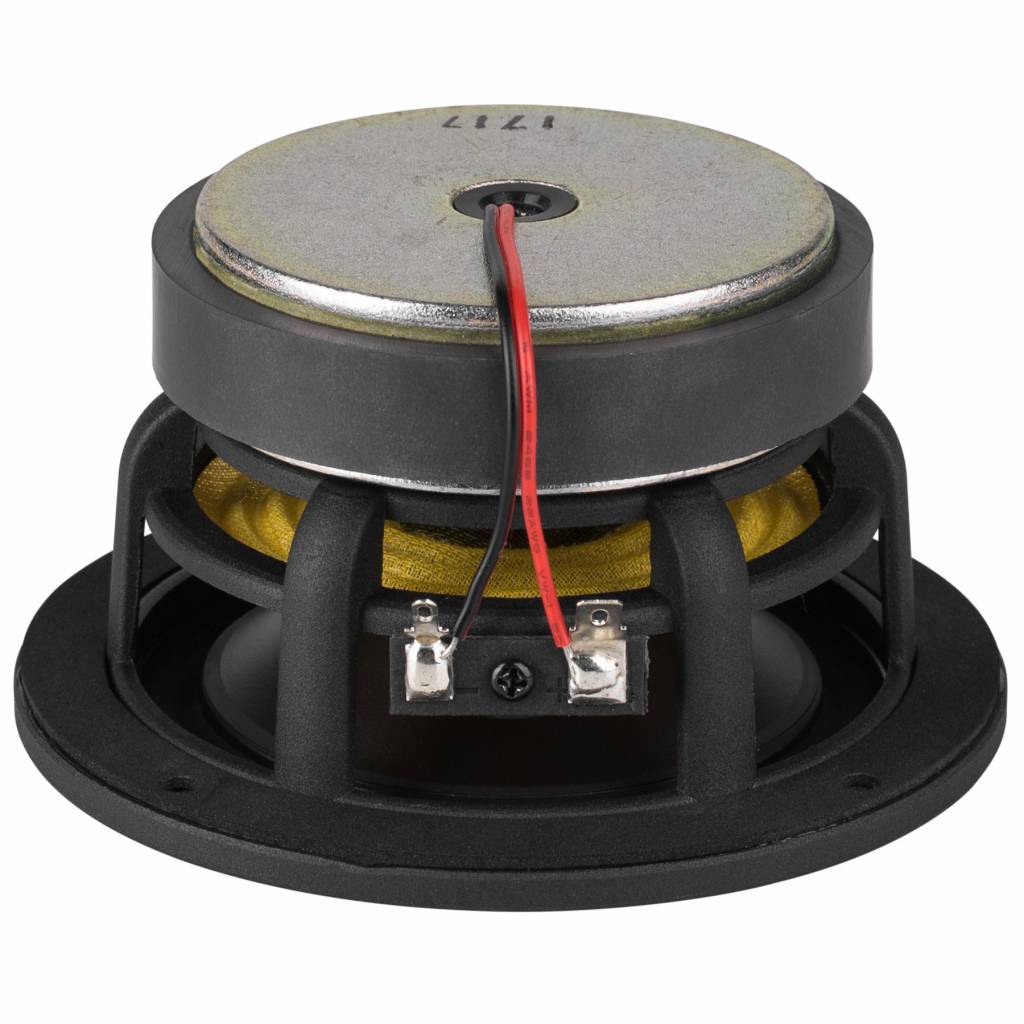

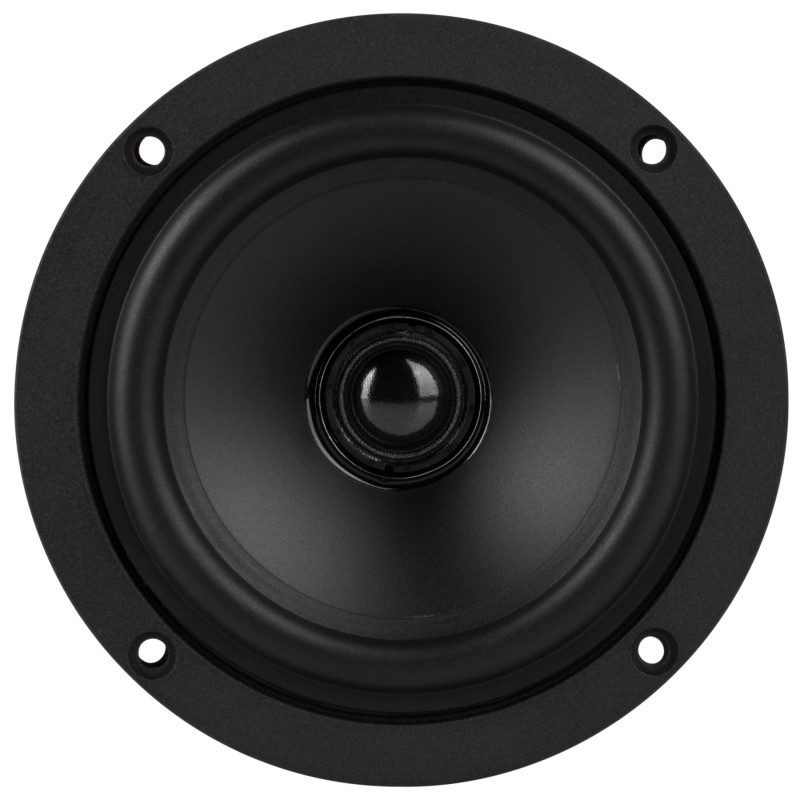

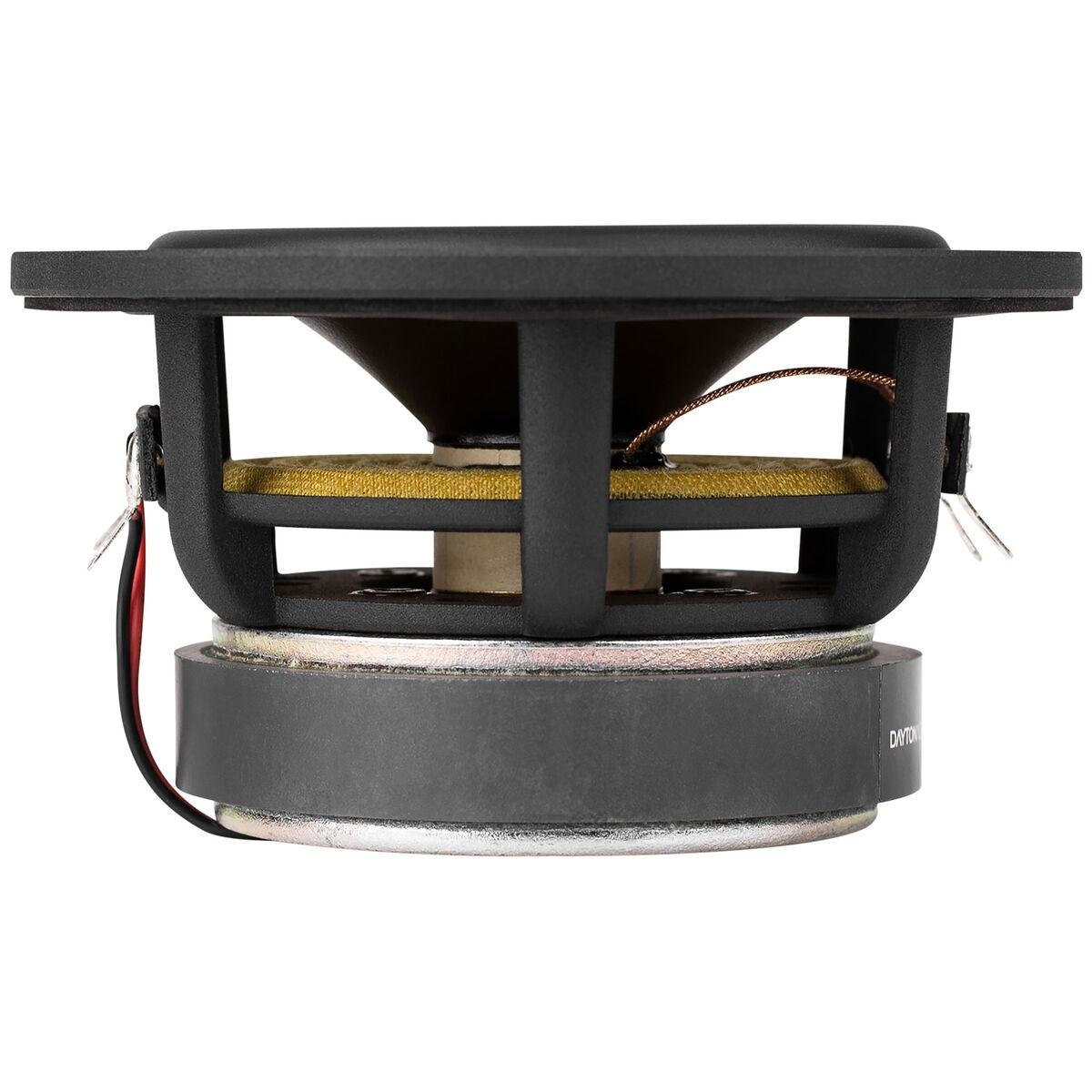

    Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

    € 39,95 3 Op voorraad: levertijd 1 werkdag
    With a natural sounding 3/4" soft dome tweeter concentrically mounted in a long throw poly cone 4" woofer Dayton Audio's CX120-8 will produce extremely smooth response on and off-axis while avoiding the phase and lobing issues associated with standard 2-w... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €37,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    With a natural sounding 3/4" soft dome tweeter concentrically mounted in a long throw poly cone 4" woofer Dayton Audio's CX120-8 will produce extremely smooth response on and off-axis while avoiding the phase and lobing issues associated with standard 2-way designs. This driver is perfect for compact designs, portable speakers, or even custom car audio systems.



    Highlights

    • Full-range with accurate bass and extended high frequency response
    • Coaxial mounted 3/4" silk dome tweeter
    • Open cast frame for improved air flow and minimal power compression
    • 4" curvilinear poly cone woofer with rubber half roll surround



    Product details

    Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm



    The Dayton Audio CX120-8 is a full-range coaxial loudspeaker providing high quality sound in a very compact format featuring a 4" curved linear poly cone woofer mated with a 3/4" silk dome tweeter. The poly cone woofer provides a good balance between stiffness, low mass and damping making for a very natural sounding driver with a smooth frequency response. The silk dome tweeter provides detailed and clear high frequencies with minimal distortion. In addition, the optimized tweeter placement and flaring reduces the phase issues with the woofer that is commonplace with even the BIG brand coaxes. Designed for use as a full-range in a small bookshelf speaker, an extended range (i.e. midrange/tweeter) driver in a 3-way system, or even car audio systems.



    4" Woofer:

    • 1" voice coil wound on an aluminum former for high power handling
    • Curved linear shaped poly cone provides a good balance between stiffness, low mass and damping making for a natural sounding driver with a smooth frequency response
    • Optimized rubber surround for reduced break up in the midrange band
    • Attractive rigid open cast frame cast frame to minimize reflections, resonances and improve air flow
    • High energy ceramic magnet for greater cone control and improved efficiency



    Specifications: • Power handling: 40 watts RMS/80 watts max • VCdia: 1" • Le: 0.62 mH • Impedance: 8 ohms • Re: 6.2 ohms • Frequency response: 90-5,500 Hz • Fs: 87.5 Hz • SPL: 88.5 dB 2.83V/1m • Vas: 0.10 cu. ft. (2.99 liters) • Qms: 2.89 • Qes: 0.57 • Qts: 0.48 • Xmax: 3.0 mm • Dimensions: Overall diameter: 4-3/4", Cutout diameter: 3-7/8", Depth: 2".



    3/4" Tweeter:

    • Silk dome provides detail and clarity of high frequencies
    • Coaxially mounted to pole piece of woofer cone
    • Optimized placement and trimmed flaring to reduce phase issue interaction with woofer
    • Strong neodymium magnet
    • Trimmed flared throat to minimize phase issues causing suck-out with woofer
    • High pass filter required (not included)



    Specifications: Power handling: 20 watts RMS/40 watts max • VCdia: 3/4" • Le: 0.04 mH @ 10 kHz • Impedance: 8 ohms • Re: 5.6 ohms • Frequency response: 4,500-20,000 Hz • Fs: 2745 Hz • SPL: 89.2 dB 2.83V/1m • Qms: 2.20 • Qes: 7.91 • Qts: 1.72.

    Specificaties

    Artikelnummer
    CX120-8
    Woofer Series
    Coaxial
    Woofer Type
    Coaxial
    Nominal Diameter
    4"
    Power Handling (RMS)
    40 watts
    Power Handling (max)
    80 watts
    Impedance
    8 ohms
    Sensitivity
    88.5 dB 2.83V/1m
    Frequency Response
    90 to 20,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    6.22 ohms
    Voice Coil Inductance (Le)
    0.63 mH
    Resonant Frequency (Fs)
    87.5 Hz
    Mechanical Q (Qms)
    2.89
    Electromagnetic Q (Qes)
    0.57
    Total Q (Qts)
    0.48
    Diaphragm Mass Inc. Airload (Mms)
    4.82g
    Mechanical Compliance of Suspension (Cms)
    0.765 mm/N
    Surface Area of Cone (Sd)
    52.51 cm²
    BL Product (BL)
    5.08 Tm
    Compliance Equivalent Volume (Vas)
    3.0 liters
    Maximum Linear Excursion (Xmax)
    3.0 mm
    Cone / Diaphragm Material
    Polypropylene
    Surround Material
    Rubber
    Voice Coil Wire Material
    CCA
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    4.75"
    Overall Depth
    3.875"
    Baffle Cutout Diameter
    4.313"
    # Mounting Holes
    4
    Sealed Volume
    0.046 ft.³
    Sealed F3
    156 Hz
    Vented Volume
    0.147 ft.³
    Vented F3
    80 Hz

    Reviews

    5 from 5Based on 5 reviews
    Schrijf een review
    5 van 5
    Nice and resolving rivers. I have not noticed the IMD issues that many warn about using coaxials. Using them in a 1.6 liter sealed enclosure with a subwoofer.
    Imaging and separation is some of the best I have heard and the frequency response is nice and even with a simple 3 component crossover. These drivers in the right enclosure sound very "high-end".
    Door Felix on 4 Januari 2021
    5 van 5
    very detailed sound from this speaker even at loud volumes. Was surprised by the clarity. Suitable for small to medium size speakers and does exceptionally well in portable projects since it eliminates the need for a midrange woofer and tweeter. So basically less components and no crossover needed. Only bad thing is that it isn’t available as a 4 ohm version.
    Door Johan Gustafsson on 31 Juli 2020
