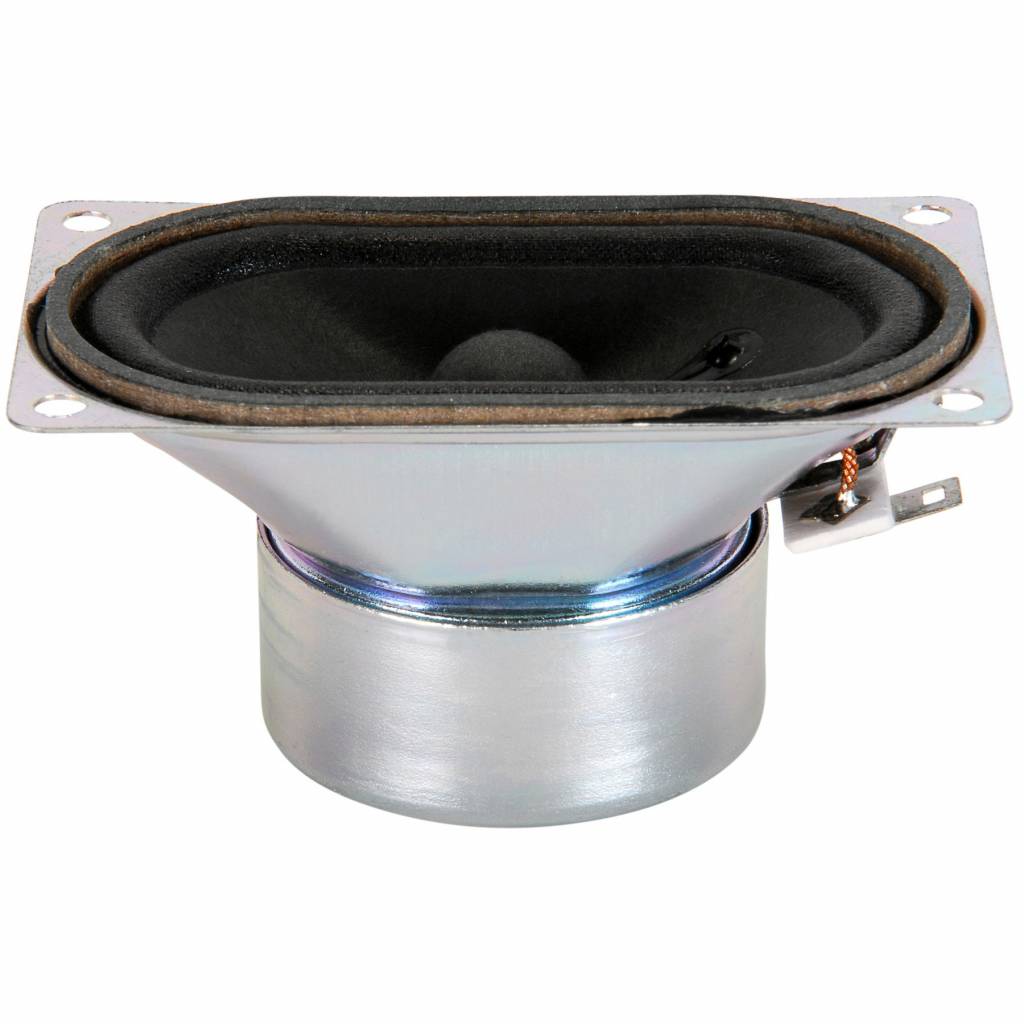

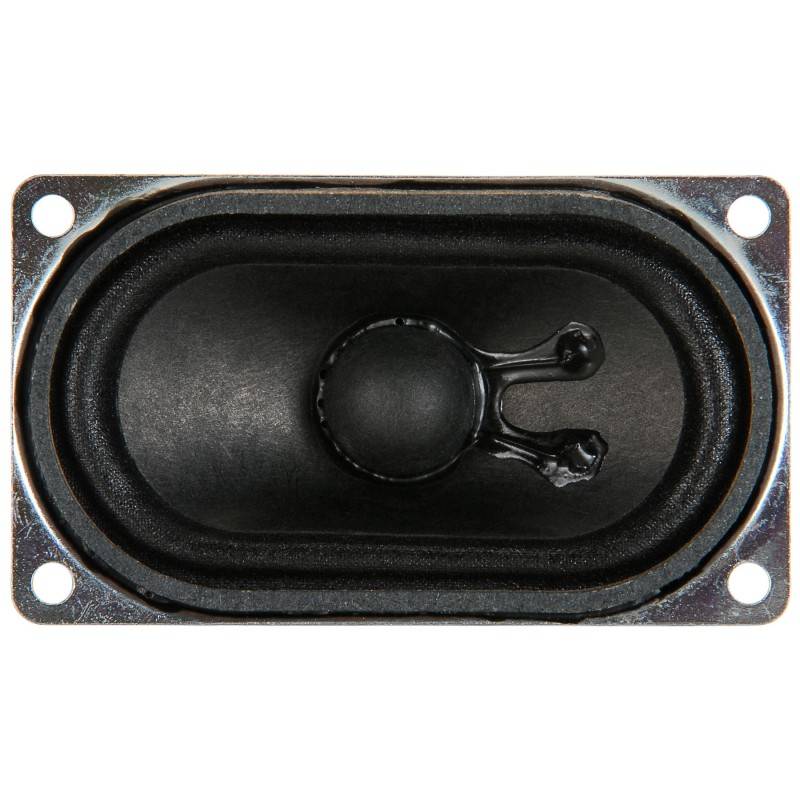

Dayton Audio CE70-40P-8 1-5/8" x 2-3/4" Full Range Driver

Levertijd: 1 werkdag

  • Artikelcode: CE70-40P-8
  • Voorraad: 6 Op voorraad

Dayton Audio’s CE70-40P-8 is an economical small full-range driver that features a narrow racetrack shape, a shielded ceramic magnet motor, a paper cone, a front gasket, and a steel frame. 8 ohm impedance.

€ 5,95 Incl. 21% btw

  • Bestel 4 voor €5,65 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio CE70-40P-8 1-5/8" x 2-3/4" Full Range Driver

Dayton Audio’s CE70-40P-8 is an economical small full-range driver that features a narrow racetrack shape, a shielded ceramic magnet motor, a paper cone, a front gasket, and a steel frame. 8 ohm impedance.



Highlights

  • Paper cone with fabric roll surround for high efficiency
  • Rugged stamped steel closed back frame for reduced driver interaction in shared enclosures
  • Shielded ceramic magnet motor



Product details

Dayton Audio CE Series CE70-40P-8 1-5/8" x 2-3/4" Full Range Driver

Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.

The CE70-40P-8 features a ‘racetrack’ design that maximizes cone area for high output while fitting into narrow spaces. Its high-quality design features a paper cone, coated fabric surround, textile spider, shielded ceramic motor, and a rectangular steel frame with mounting lobes for conventional mounting.

Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8”) to 90 mm (3-1/2”) in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

Specificaties

Specificaties voor: CE70-40P-8 1-5/8" x 2-3/4" Full Range Driver

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. CE Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Full-range
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 1" x 2"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 3 Watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 6 Watts
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 83 dB 2.83V/1m
  • Frequency Response 300 to 18,000 Hz
  • Voice Coil Diameter 0.51"
  • Magnet Weight
  • DC Resistance (Re) 6.6 ohms
  • Voice Coil Inductance (Le) 0.28 mH
  • Resonant Frequency (Fs) 419 Hz
  • Mechanical Q (Qms) 3.82
  • Electromagnetic Q (Qes) 9.92
  • Total Q (Qts) 2.76
  • Diaphragm Mass Inc. Airload (Mms) 0.82g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.18 mm/N
  • Surface Area of Cone (Sd) 13.25 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 1.2 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 0.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper
  • Surround Material Cloth
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded Yes
  • Overall Outside Diameter 1.62" x 2.80"
  • Overall Depth 1.38"
  • Baffle Cutout Diameter 1.41" x 2.58"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
