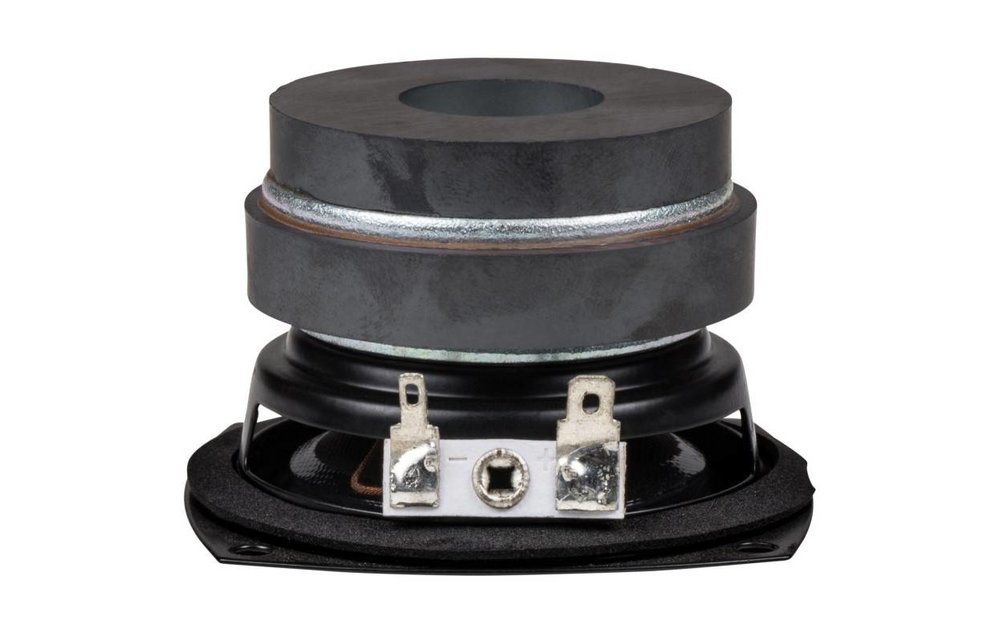

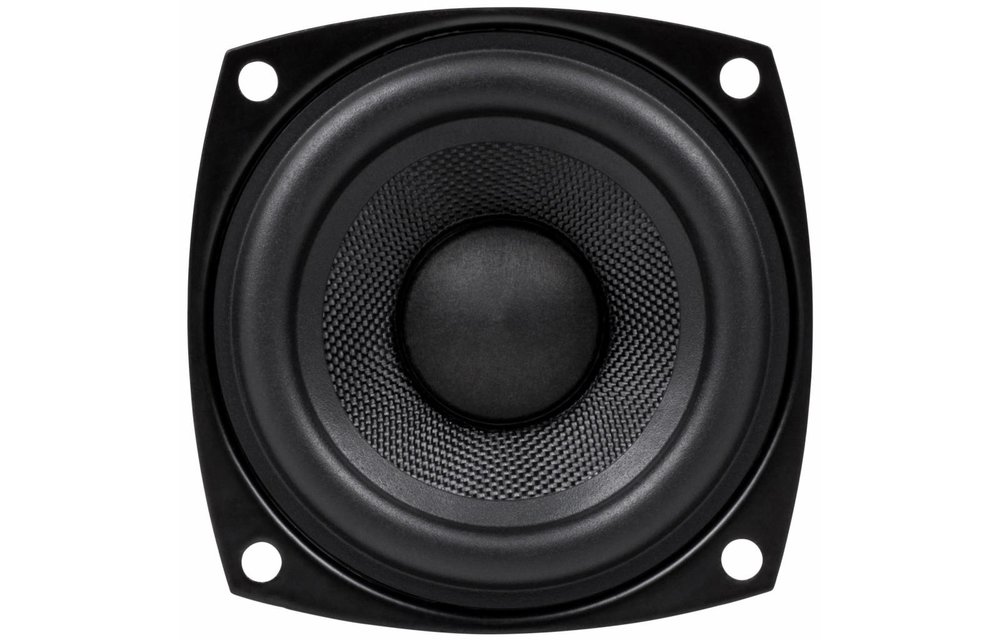

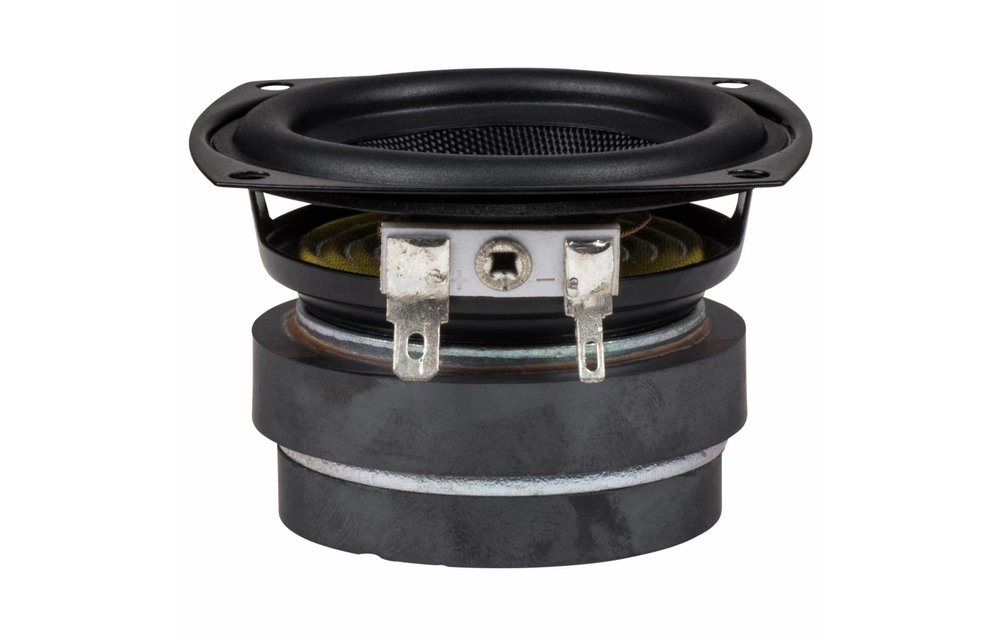

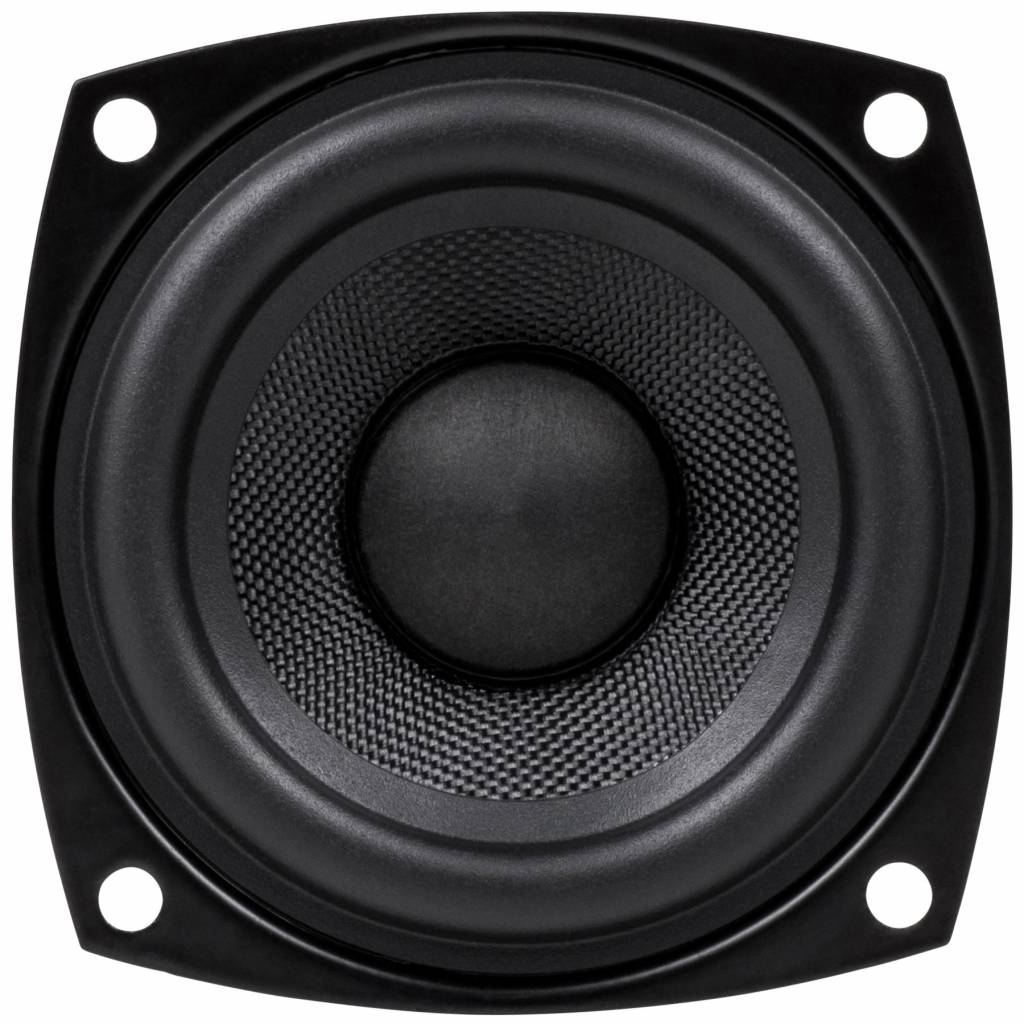

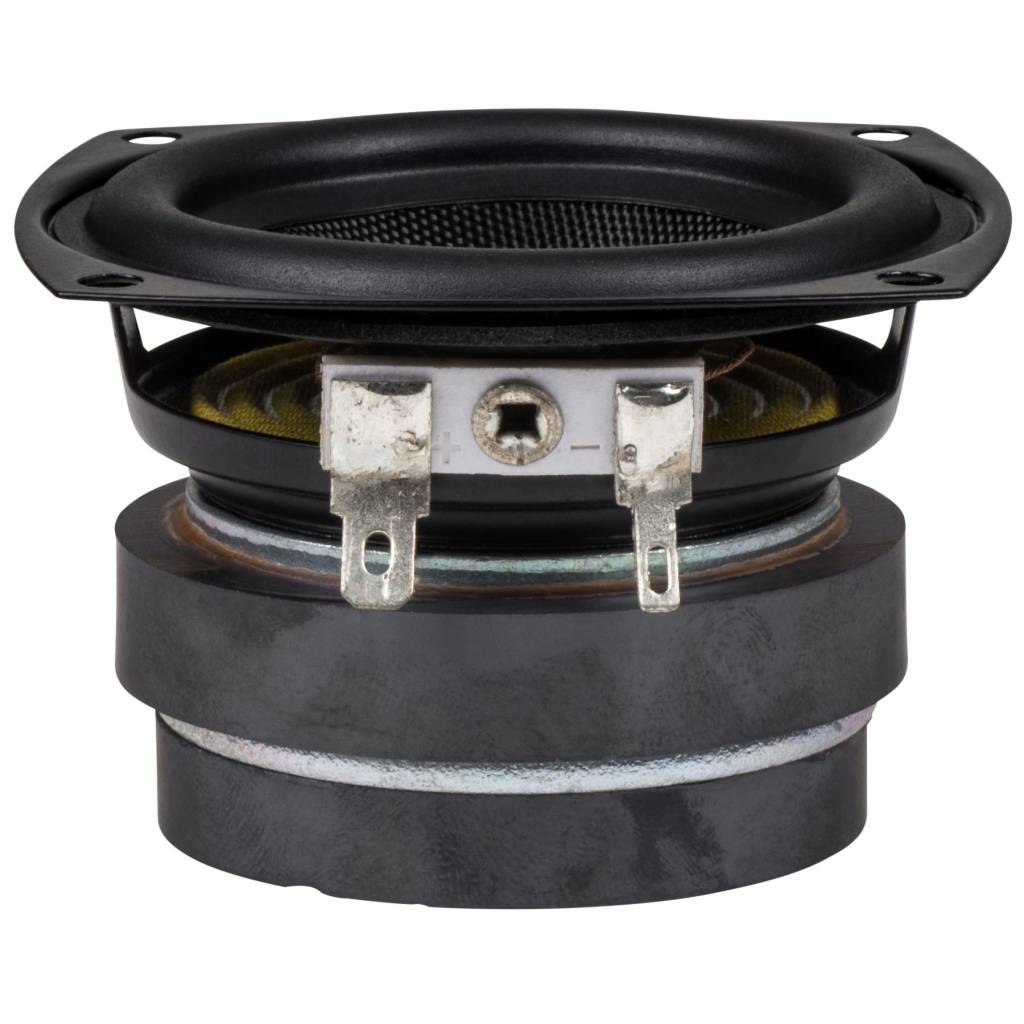

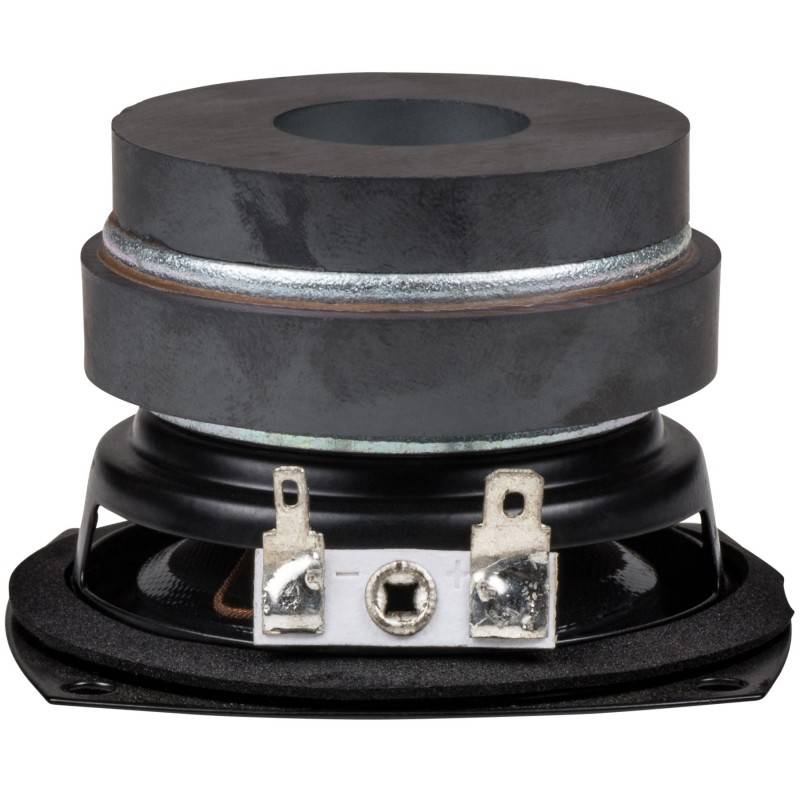

Dayton Audio CE65W-8 2-1/2" Shielded Extended Range Driver

Levertijd: 1 werkdag

  • Artikelcode: CE65W-8
  • Voorraad: >10 Op voorraad

The economical, compact CE65W-8 extended-range woofer from Dayton Audio features a woven glass-fiber cone, rubber surround, and ferrite magnet motor assembly with shielding magnet. It offers great performance in a variety of small music-oriented audio sys

€ 6,45 Incl. 21% btw

  • Bestel 4 voor €6,13 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio CE65W-8 2-1/2" Shielded Extended Range Driver

The economical, compact CE65W-8 extended-range woofer from Dayton Audio features a woven glass-fiber cone, rubber surround, and ferrite magnet motor assembly with shielding magnet. It offers great performance in a variety of small music-oriented audio systems.



Highlights

  • Usable as a full-range driver or small woofer
  • Woven glass fiber cone for excellent sonic detail
  • Robust, compact design
  • Shielded magnet for use near sensitive electronic parts



Product details

Dayton Audio CE Series CE65W-8 2-1/2" Shielded Extended Range Driver 8 Ohms

Dayton Audio's CE65W-8 2-1/2" shielded extended range driver excels in wide-range speaker or "mini-woofer" applications. The woven fiberglass cone and rubber surround provide a wide operating frequency range, enabling this driver to be used as either a woofer or full-range driver. Its bucking magnet provides video shielding for operation near legacy CRT monitors without causing magnetic interference, and the stamped frame and cotton spider ensure reliable, properly aligned operation for years. It is the perfect choice for multimedia applications, line arrays, or compact hi-fi loudspeakers.

The Commercial Engineering (CE) Series drivers from Dayton Audio provide engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects. Multiple types and styles are available within the CE Series family of drivers, to suit a wide spectrum of engineering requirements

Specificaties

Specificaties voor: CE65W-8 2-1/2" Shielded Extended Range Driver

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. CE Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Full-range/Midwoofer
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 2-1/2"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 7 Watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 15 Watts
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 83 dB 2.83V/1m
  • Frequency Response 105 to 16,000 Hz
  • Voice Coil Diameter 0.75"
  • Magnet Weight
  • DC Resistance (Re) 6.9 ohms
  • Voice Coil Inductance (Le) 0.51 mH
  • Resonant Frequency (Fs) 105 Hz
  • Mechanical Q (Qms) 3.85
  • Electromagnetic Q (Qes) 1.43
  • Total Q (Qts) 0.99
  • Diaphragm Mass Inc. Airload (Mms) 1.91g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.91 mm/N
  • Surface Area of Cone (Sd) 21.24 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 2.73 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 2 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Fiberglass
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded Yes
  • Overall Outside Diameter 3.28"
  • Overall Depth 1.78"
  • Baffle Cutout Diameter 2.32"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3

Documenten

Reviews

Gebruikers beoordelingen 5 / 5 Reviews: (3)

  • MH Door Martin H. aan 13-05-2020 14:01

    5 / 5

    No description was given

  • GG Door geert greveling aan 20-04-2019 21:31

    5 / 5

    Oude computer speakertjes vervangen. Klinkt fantastisch voor deze prijs. Behoorlijke power.

  • MV Door Marc V. aan 12-02-2019 11:10

    5 / 5

    Very nice for the price
