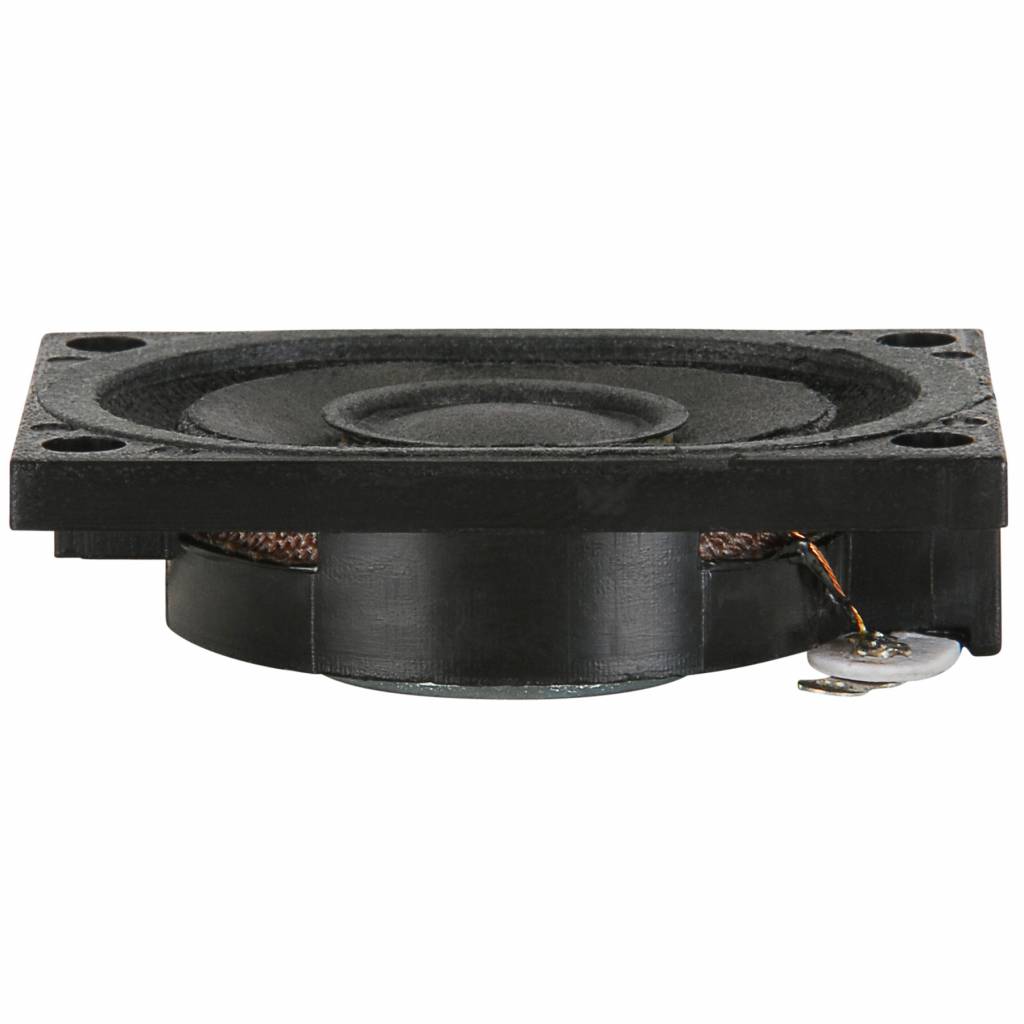

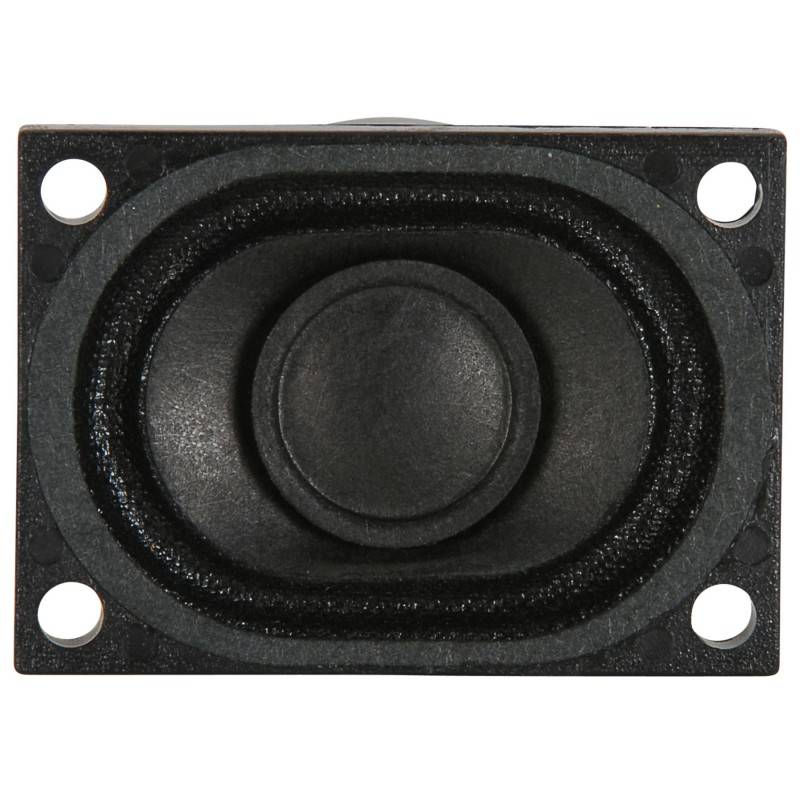

    Dayton Audio CE40-28P-8 1-1/8" x 1-1/2" Mini Speaker

    € 4,45 7 Op voorraad: levertijd 1 werkdag
    Dayton Audio’s CE40-28P-8 is an economical mini speaker that features a high-output neodymium motor, a lightweight paper cone, a front gasket, and a molded plastic frame drilled for conventional mounting. 8 ohm impedance.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €4,23 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Dayton Audio’s CE40-28P-8 is an economical mini speaker that features a high-output neodymium motor, a lightweight paper cone, a front gasket, and a molded plastic frame drilled for conventional mounting. 8 ohm impedance.



    Highlights

    • Racetrack-shaped paper cone with fabric surround
    • Slim design for narrow and shallow profile installation
    • High-energy neodymium motor



    Product details

    Dayton Audio CE Series CE40-28P-8 1-1/8" x 1-1/2" Mini Speaker

    Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.

    Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

    The CE40-20P-8 is a slim driver that’s perfect for applications that require its shallow profile and rectangular shape. Its high-quality design features a paper cone, fabric surround, textile spider, high-performance neodymium motor, and an injection-molded frame that’s drilled for conventional mounting.

    Specificaties

    Artikelnummer
    CE40-28P-8
    Woofer Series
    CE Series
    Woofer Type
    Full-range
    Nominal Diameter
    1" x 2"
    Power Handling (RMS)
    2 Watts
    Power Handling (max)
    4 Watts
    Impedance
    8 ohms
    Sensitivity
    75 dB 2.83V/1m
    Frequency Response
    550 to 15,000 Hz
    Voice Coil Diameter
    0.5"
    DC Resistance (Re)
    7 ohms
    Voice Coil Inductance (Le)
    0.26 mH
    Resonant Frequency (Fs)
    608 Hz
    Mechanical Q (Qms)
    3.96
    Electromagnetic Q (Qes)
    9.87
    Total Q (Qts)
    2.83
    Diaphragm Mass Inc. Airload (Mms)
    0.37g
    Mechanical Compliance of Suspension (Cms)
    0.18 mm/N
    Surface Area of Cone (Sd)
    5.28 cm²
    BL Product (BL)
    1.03 Tm
    Maximum Linear Excursion (Xmax)
    0.1 mm
    Cone / Diaphragm Material
    Paper
    Surround Material
    Cloth
    Magnet Material
    Neodymium
    Overall Outside Diameter
    1.13" x 1.57"
    Overall Depth
    0.45"
    Baffle Cutout Diameter
    0.97" x 1.32"
