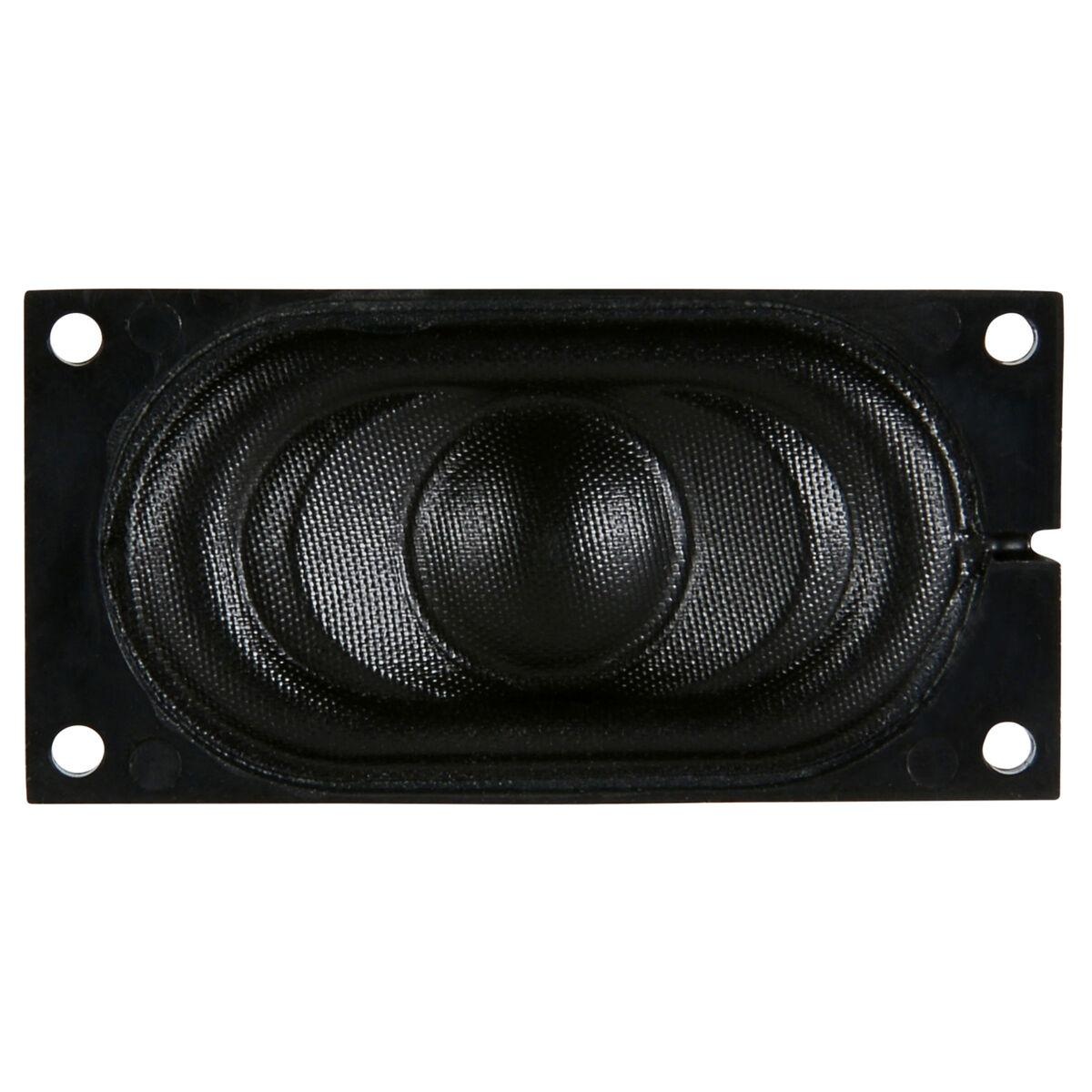

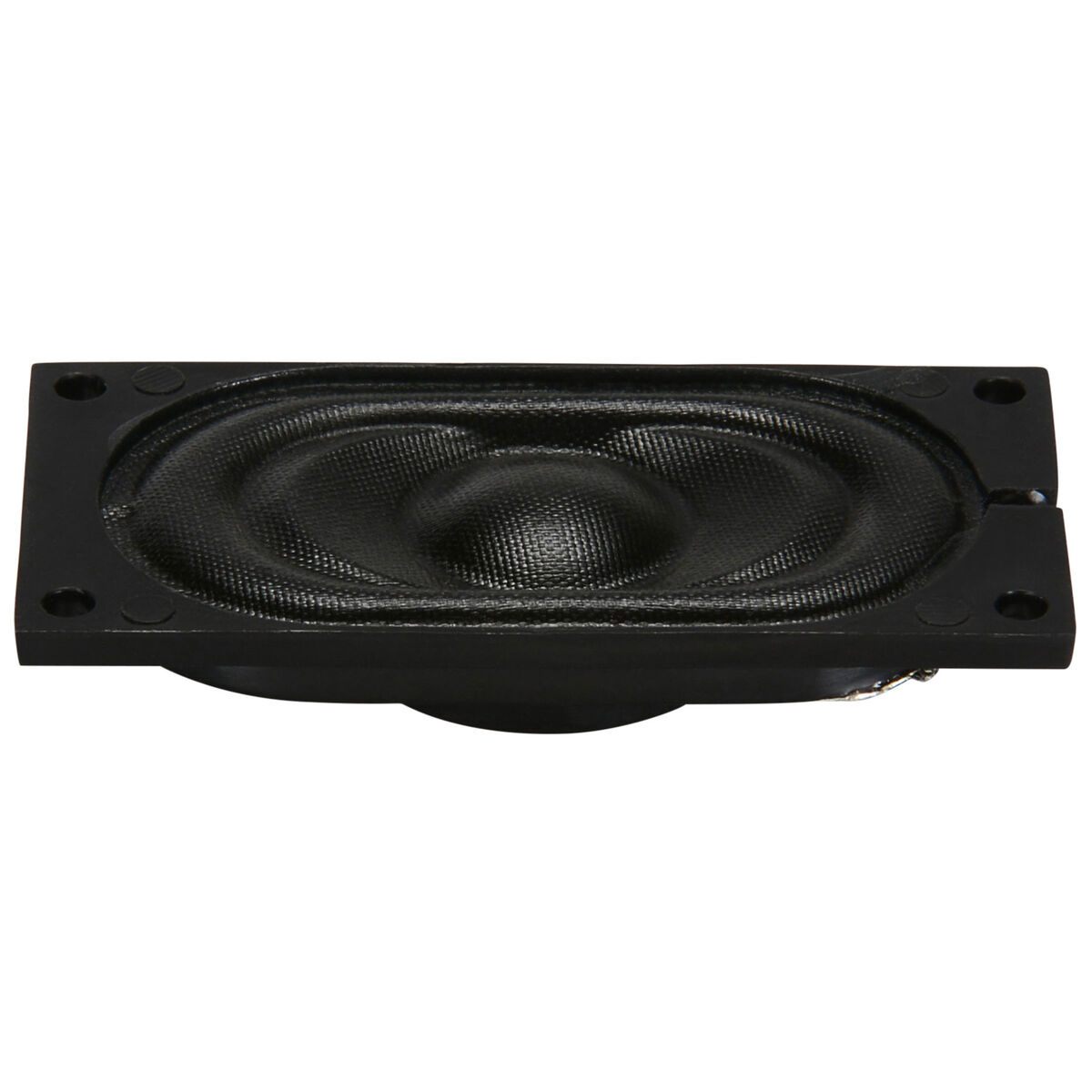

    Dayton Audio CE40-20F-8 1-1/2" x 3/4" Mini Speaker

    € 3,95 7 Op voorraad: levertijd 1 werkdag
    Dayton Audio’s CE40-20F-8 is a unique mini-speaker featuring a treated fabric diaphragm for smooth, natural sound with excellent self-damping. Try it as a mini-tweeter!... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €3,75 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Dayton Audio’s CE40-20F-8 is a unique mini-speaker featuring a treated fabric diaphragm for smooth, natural sound with excellent self-damping. Try it as a mini-tweeter!



    Highlights

    • Lightweight treated fabric diaphragm
    • Rugged plastic frame with 4 holes for easy mounting
    • Powerful neodymium magnet
    • Use as a tweeter or extended range driver



    Product details

    Dayton Audio CE Series CE40-20F-8 1-1/2" x 3/4" Mini Speaker 8 Ohm



    The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.



    The Dayton Audio CE40-20F-8 is a compact rectangular mini-speaker featuring a racetrack-shaped, coated fabric diaphragm for extremely low resonance and excellent detail from a small driver. The highly damped diaphragm is an excellent choice for use as an extended-range mini speaker in laptops and flat-screen displays, or as a mini-tweeter to complement small woofers.

    Specificaties

    Artikelnummer
    CE40-20F-8
    Nominal Diameter
    1" x 2"
    Power Handling (RMS)
    1 Watts
    Power Handling (max)
    2 Watts
    Impedance
    8 ohms
    Sensitivity
    76 dB 2.83V/1m
    Frequency Response
    500 to 20,000 Hz
    Voice Coil Diameter
    0.50"
    DC Resistance (Re)
    6.76 ohms
    Voice Coil Inductance (Le)
    0.36 mH
    Resonant Frequency (Fs)
    695 Hz
    Mechanical Q (Qms)
    1.67
    Electromagnetic Q (Qes)
    11.91
    Total Q (Qts)
    1.46
    Diaphragm Mass Inc. Airload (Mms)
    0.11g
    Mechanical Compliance of Suspension (Cms)
    0.47 mm/N
    Surface Area of Cone (Sd)
    3.5 cm²
    BL Product (BL)
    0.53 Tm
    Maximum Linear Excursion (Xmax)
    0.1 mm
    Cone / Diaphragm Material
    Soft Dome
    Surround Material
    Cloth
    Overall Outside Diameter
    1.57" x 0.78"
    Overall Depth
    0.23"
    Baffle Cutout Diameter
    1.40" x 0.74"
    # Mounting Holes
    4
