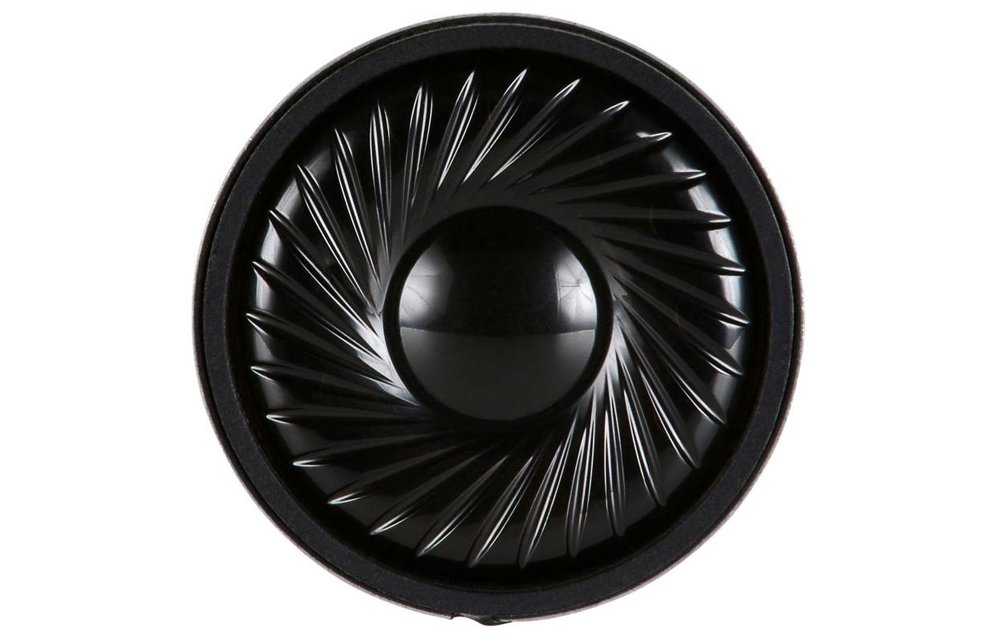

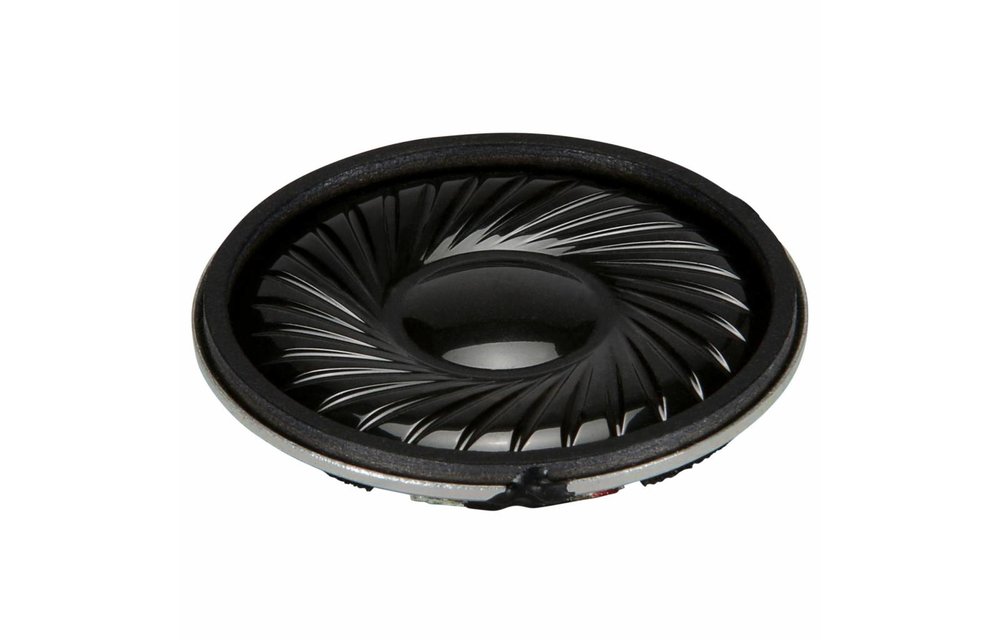

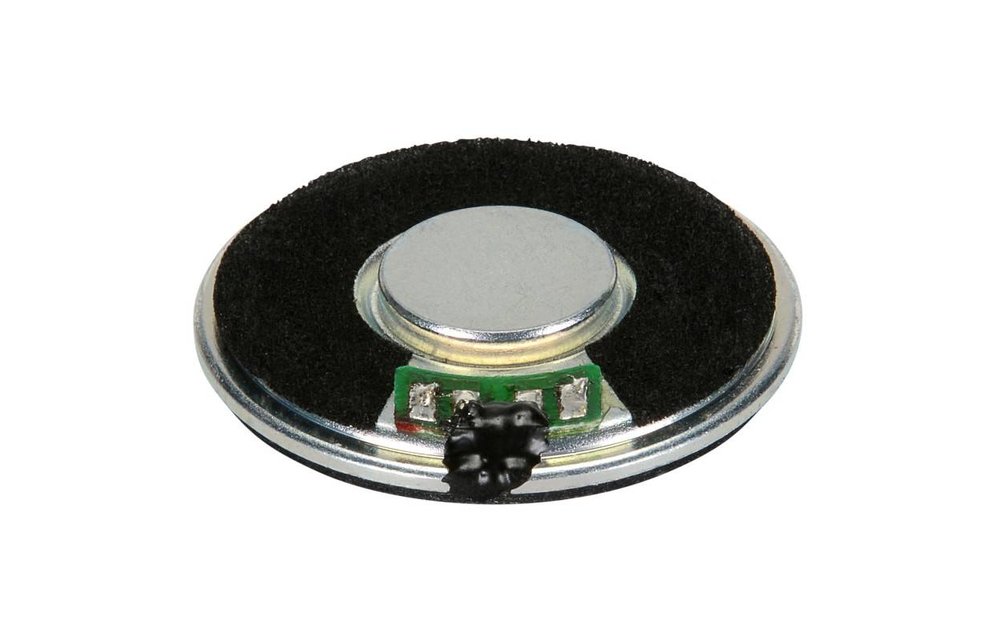

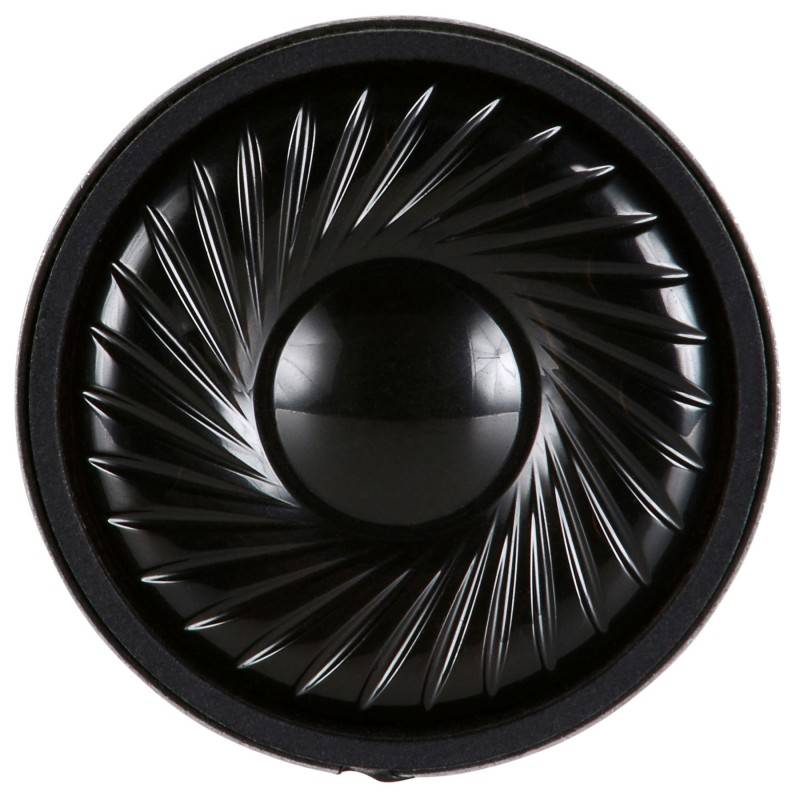

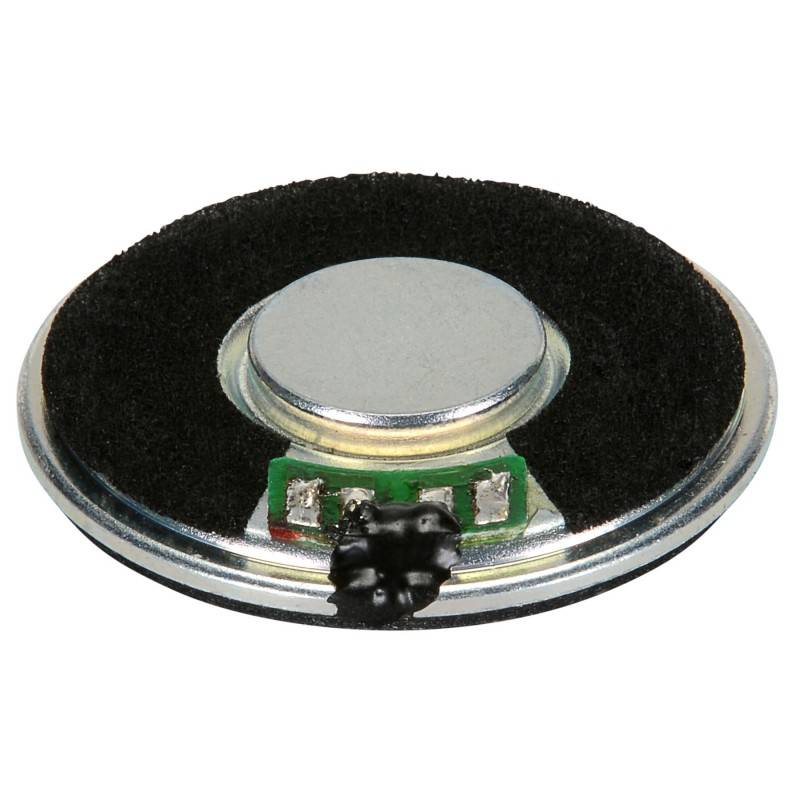

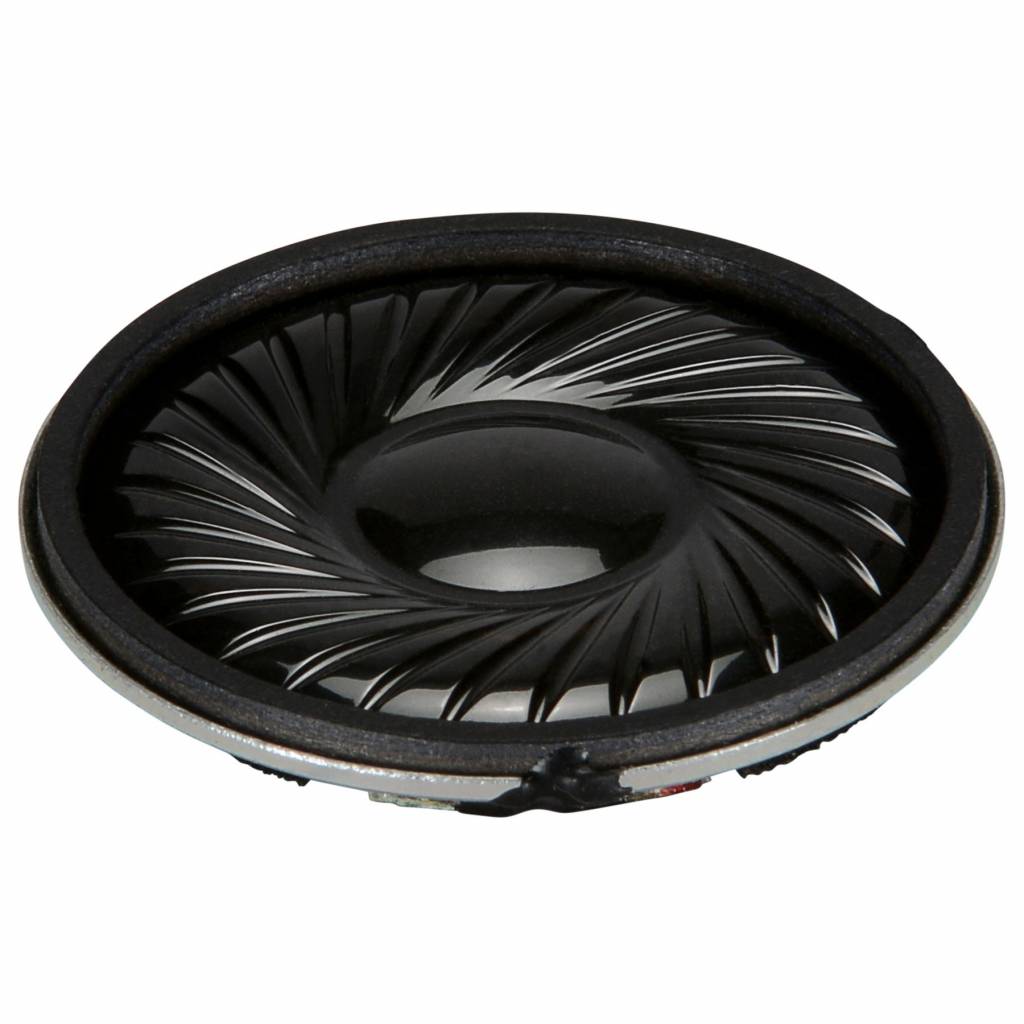

    Dayton Audio CE38MB-32 1-1/2" Mini Speaker Black

    € 3,51€ 4,25 8 Op voorraad: levertijd 1 werkdag
    The CE38MB-32 from Dayton Audio is a versatile mini speaker with a black Mylar diaphragm and a 32 ohm impedance, which makes it a great replacement driver for headphones. Features a lightweight and powerful neodymium magnet, and a steel frame.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €4,04 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The CE38MB-32 from Dayton Audio is a versatile mini speaker with a black Mylar diaphragm and a 32 ohm impedance, which makes it a great replacement driver for headphones. Features a lightweight and powerful neodymium magnet, and a steel frame.



    Highlights

    • Lightweight mylar diaphragm
    • Rugged steel frame with front gasket
    • Powerful neodymium magnet
    • Suitable for headphone applications
    • 32 ohm impedance



    Product details

    Dayton Audio CE Series CE38MB-32 1-1/2" Mini Speaker Black 32 Ohm

    The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

    Featuring a smooth-sounding and feather-light Mylar diaphragm and high 32 ohm impedance, the CE38MB-32 driver is the perfect replacement driver for headphones. The 32 ohm impedance makes it an easy load for the integrated headphone amplifier in most portable music devices and phones, while the 38mm frame replaces most 40 mm nominal size headphone drivers. It’s also a great fit for other low-power mini speaker applications, such as electronic toys, speakerphones, and intercoms.



    Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

    Specificaties

    Artikelnummer
    CE38MB-32
    Woofer Series
    CE Series
    Woofer Type
    Full-range
    Nominal Diameter
    1-1/2"
    Power Handling (RMS)
    0.25 Watts
    Power Handling (max)
    0.50 Watts
    Impedance
    32 ohms
    Sensitivity
    78 dB 1W/1m
    Frequency Response
    137 to 20,000 Hz
    Voice Coil Diameter
    0.5"
    DC Resistance (Re)
    31.98 ohms
    Voice Coil Inductance (Le)
    1.31 mH
    Resonant Frequency (Fs)
    137.9 Hz
    Mechanical Q (Qms)
    0.66
    Electromagnetic Q (Qes)
    1.15
    Total Q (Qts)
    0.42
    Diaphragm Mass Inc. Airload (Mms)
    0.06g
    Mechanical Compliance of Suspension (Cms)
    21.3 mm/N
    Surface Area of Cone (Sd)
    4.9 cm²
    BL Product (BL)
    1.32 Tm
    Maximum Linear Excursion (Xmax)
    0.1 mm
    Cone / Diaphragm Material
    Poly / Mylar Diaphragm
    Basket / Frame Material
    Steel
    Magnet Material
    Neodymium
    Overall Outside Diameter
    1.57"
    Overall Depth
    0.22"
    Baffle Cutout Diameter
    1.4"

    Reviews

    3 from 5Based on 1 reviews
    Schrijf een review
    3 van 5
    Deze passen perfect in mijn 3D geprinte hoofdtelefoon spijtig genoeg kon ik op de website geen kabel bestellen.
    Door Laurent M. on 17 Februari 2021
