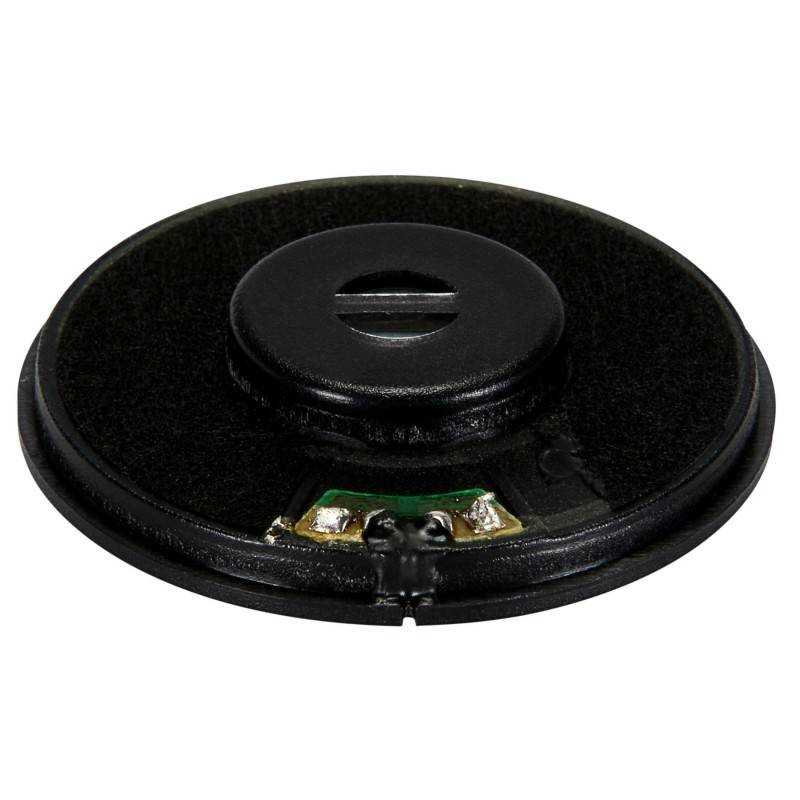

    Dayton Audio CE38M-8 1-1/2" Mini Speaker

    € 4,25 4 Op voorraad: levertijd 1 werkdag
    Dayton Audio’s CE38M-8 is a lightweight and versatile mylar-diaphragm mini speaker with a rugged plastic frame and neodymium magnet. It’s a great choice for new design or replacement use in headphones, kiosks, electronic games, or portable electronics.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €4,04 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Dayton Audio’s CE38M-8 is a lightweight and versatile mylar-diaphragm mini speaker with a rugged plastic frame and neodymium magnet. It’s a great choice for new design or replacement use in headphones, kiosks, electronic games, or portable electronics.



    Highlights

    • Lightweight mylar diaphragm
    • Rugged molded plastic frame
    • Powerful neodymium magnet
    • Light weight, low cost



    Product details

    Dayton Audio CE Series CE38M-8 1-1/2" Mini Speaker 8 Ohm

    The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

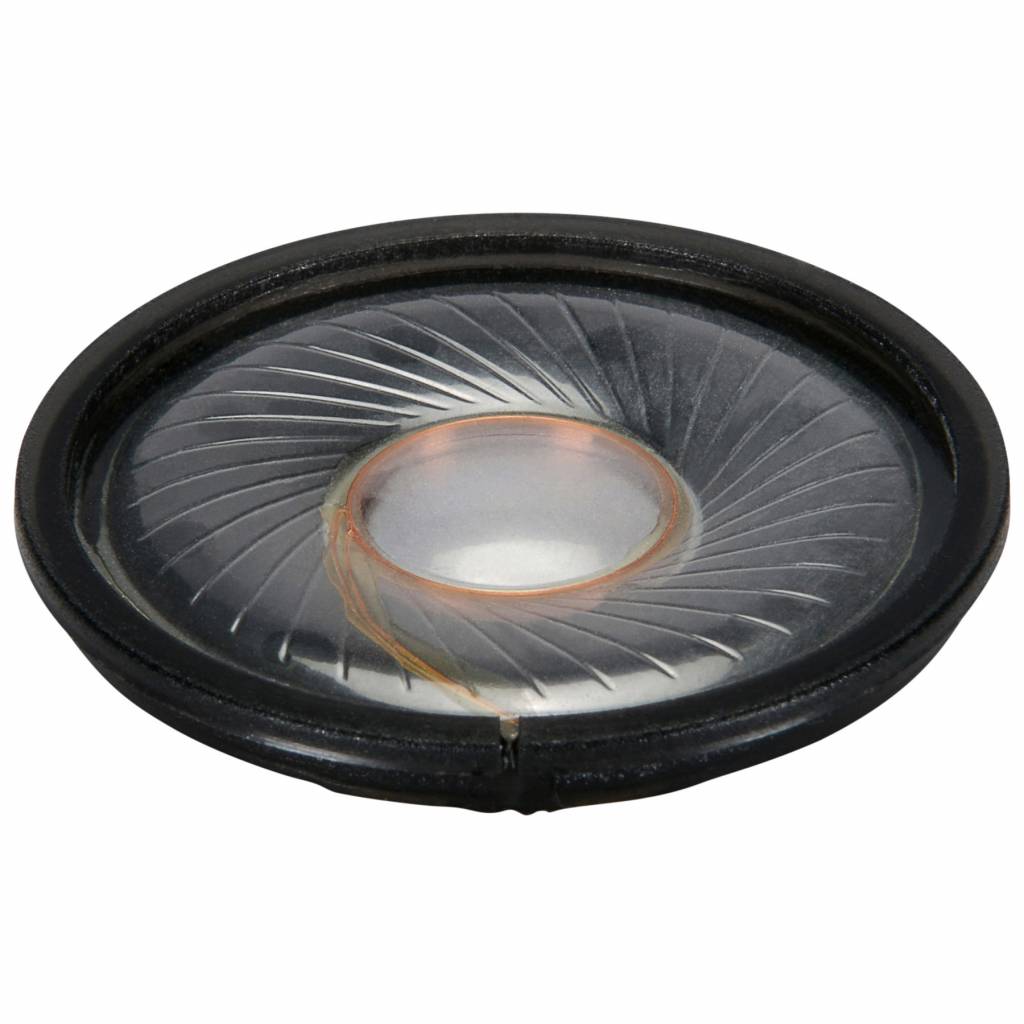

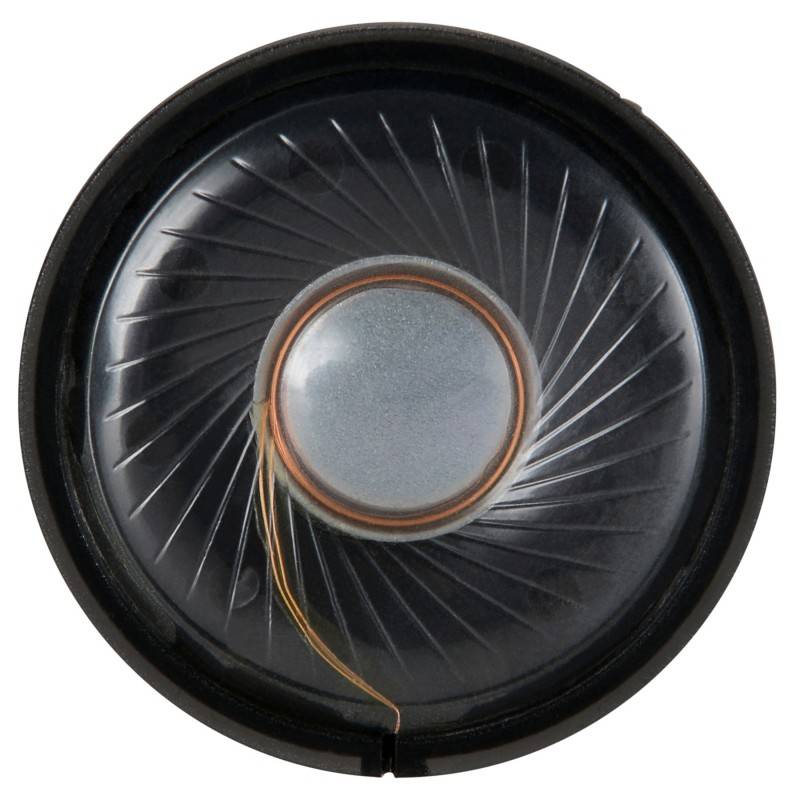

    The Dayton Audio CE38M-8 1-1/2” mini speaker features a feather-light and smooth-sounding Mylar diaphragm and a lightweight injection-molded plastic frame, making it great for portable electronics and headphones. The high sensitivity also enables it to be used as a speaker in kiosks, intercoms, displays, or electronic games, and the 8-ohm impedance works with most small audio amplifiers or line-level outputs. The round frame can be press-fit or glued in place.



    Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

    Specificaties

    Artikelnummer
    CE38M-8
    Woofer Series
    CE Series
    Woofer Type
    Full-range
    Nominal Diameter
    1-1/2"
    Power Handling (RMS)
    0.25 Watts
    Power Handling (max)
    0.50 Watts
    Impedance
    8 ohms
    Sensitivity
    75 dB 2.83V/1m
    Frequency Response
    190 to 20,000 Hz
    Voice Coil Diameter
    0.5"
    DC Resistance (Re)
    7.72 ohms
    Voice Coil Inductance (Le)
    0.172 mH
    Resonant Frequency (Fs)
    191.8 Hz
    Mechanical Q (Qms)
    1.591
    Electromagnetic Q (Qes)
    4.453
    Total Q (Qts)
    1.172
    Diaphragm Mass Inc. Airload (Mms)
    0.07g
    Mechanical Compliance of Suspension (Cms)
    9.68 mm/N
    Surface Area of Cone (Sd)
    4.9 cm²
    BL Product (BL)
    0.39 Tm
    Maximum Linear Excursion (Xmax)
    0.1 mm
    Cone / Diaphragm Material
    Poly / Mylar Diaphragm
    Magnet Material
    Neodymium
    Overall Outside Diameter
    1.65"
    Overall Depth
    0.3"
    Baffle Cutout Diameter
    1.45"
