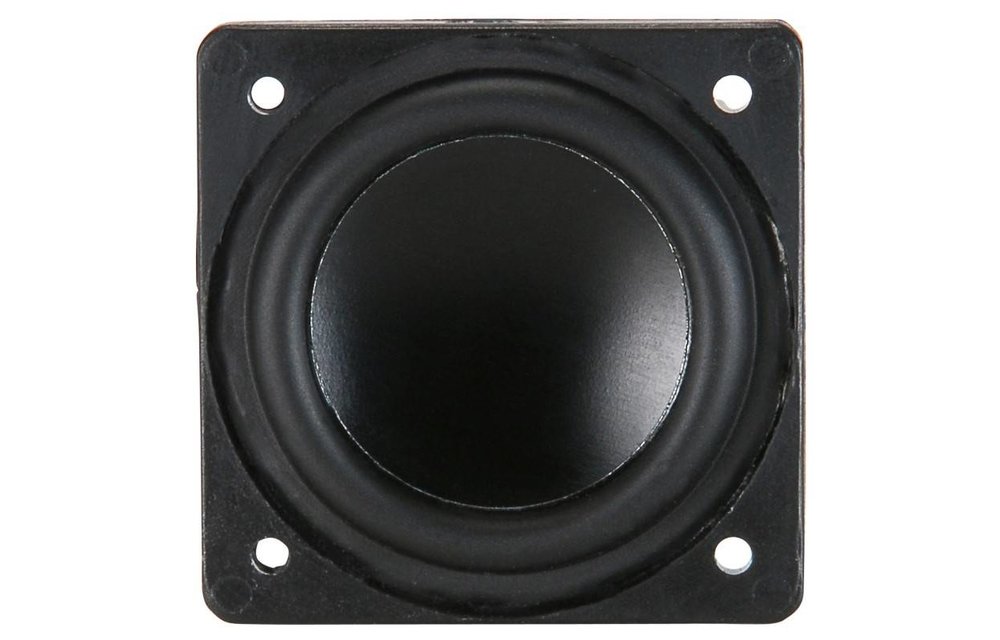

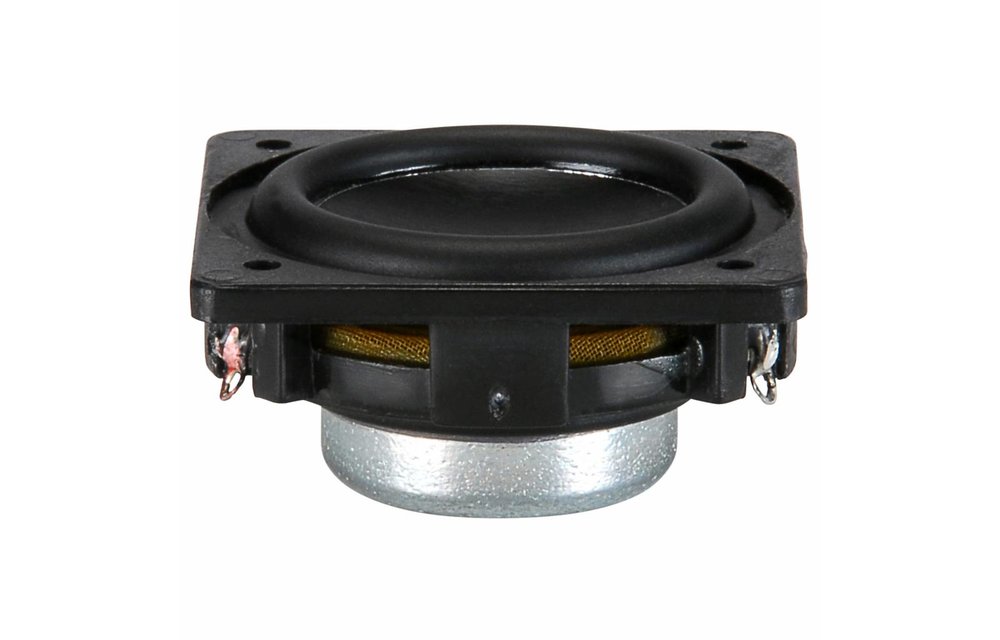

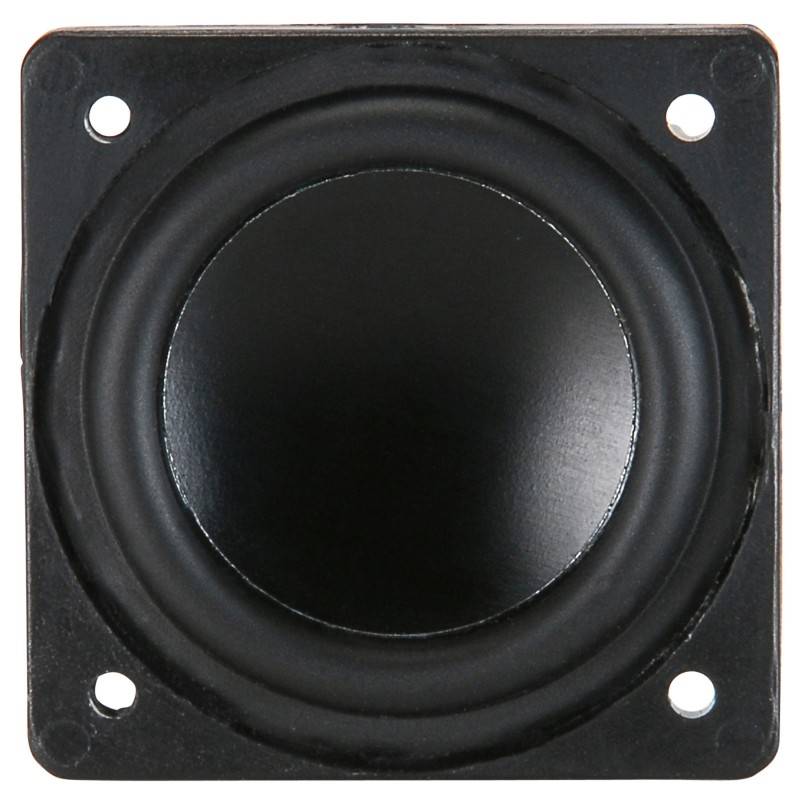

Dayton Audio CE32A-8 1-1/4" Mini Speaker

Levertijd: 1 werkdag

  • Artikelcode: CE32A-8
  • Voorraad: >10 Op voorraad

Great-looking and great-sounding, the CE32A-8 miniature speaker driver from Dayton Audio has the goods in a surprisingly small package. Its high-quality design has big-speaker features like an elegant black-anodized aluminum cone, rubber surround, and a n

€ 4,95 Incl. 21% btw

  • Bestel 4 voor €4,70 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio CE32A-8 1-1/4" Mini Speaker

Great-looking and great-sounding, the CE32A-8 miniature speaker driver from Dayton Audio has the goods in a surprisingly small package. Its high-quality design has big-speaker features like an elegant black-anodized aluminum cone, rubber surround, and a neodymium motor. 8 ohm impedance.



Highlights

  • Elegant black-anodized aluminum diaphragm
  • Rubber surround and textile spider for low distortion
  • High-energy double neodymium magnet motor



Product details

Dayton Audio CE Series CE32A-8 1-1/4" Mini Speaker 8 Ohm

Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.

The CE32A-8 provides features you’d expect from a much larger driver, in a size that’s perfect for miniature applications that require wide dispersion and rich, natural sound. Its high-quality design features an elegant black-anodized concave aluminum diaphragm, rubber surround, textile spider, high-output neodymium motor, and a square injection-molded frame drilled for conventional mounting.

Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

Specificaties

Specificaties voor: CE32A-8 1-1/4" Mini Speaker

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. CE Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Full-range
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 1"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 2 Watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 4 Watts
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 77.9 dB 2.83V/1m
  • Frequency Response 240 to 20,000 Hz
  • Voice Coil Diameter 0.5"
  • Magnet Weight
  • DC Resistance (Re) 7.18 ohms
  • Voice Coil Inductance (Le) 0.29 mH
  • Resonant Frequency (Fs) 274 Hz
  • Mechanical Q (Qms) 2.84
  • Electromagnetic Q (Qes) 1.25
  • Total Q (Qts) 0.87
  • Diaphragm Mass Inc. Airload (Mms) 0.52g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.69 mm/N
  • Surface Area of Cone (Sd) 3.92 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 2.2 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 0.7 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminum
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 1.26"
  • Overall Depth 0.57"
  • Baffle Cutout Diameter 1.24"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
