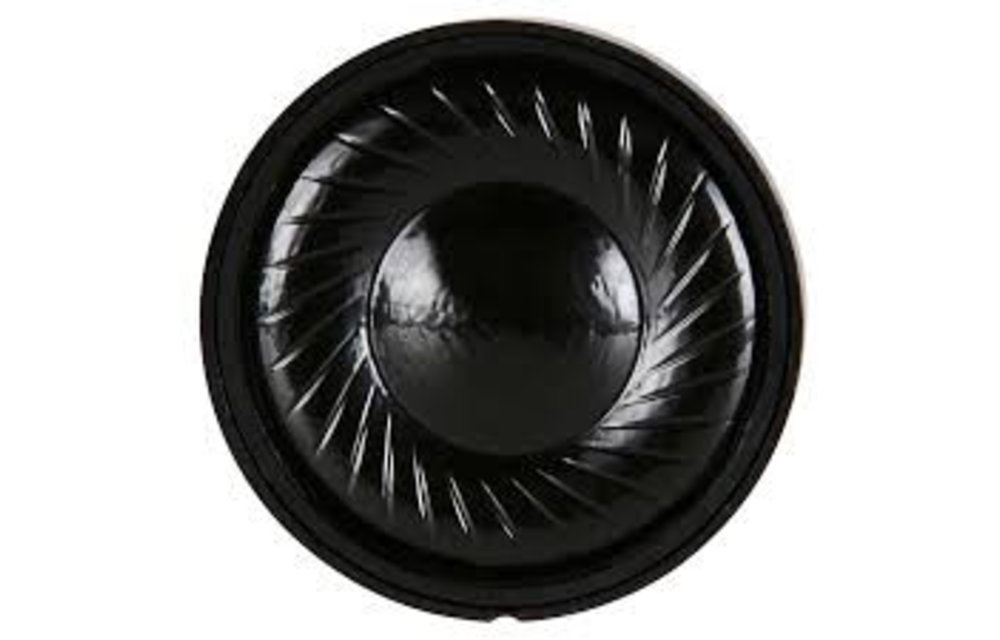

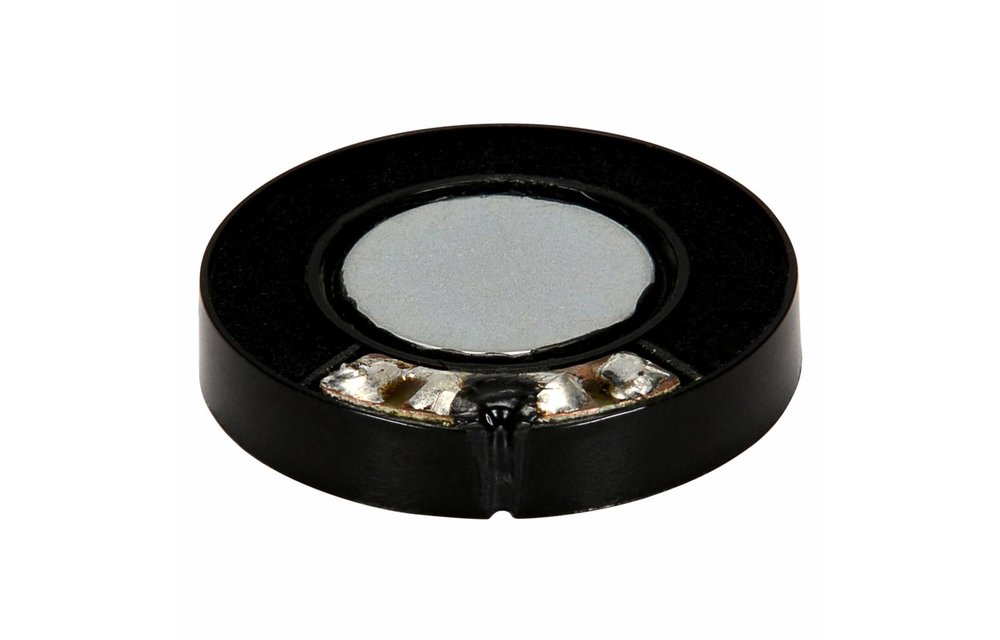

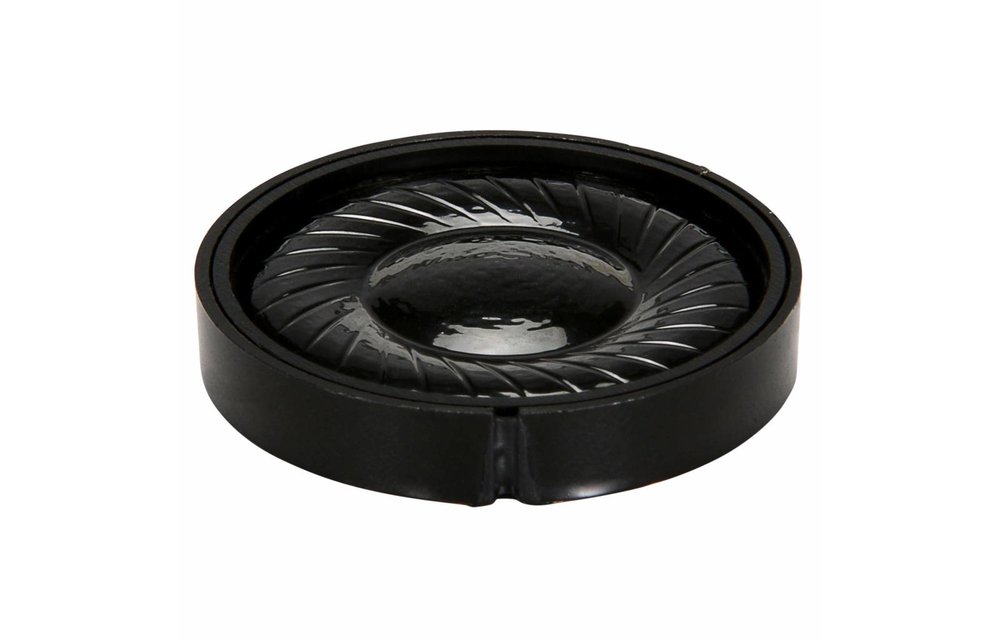

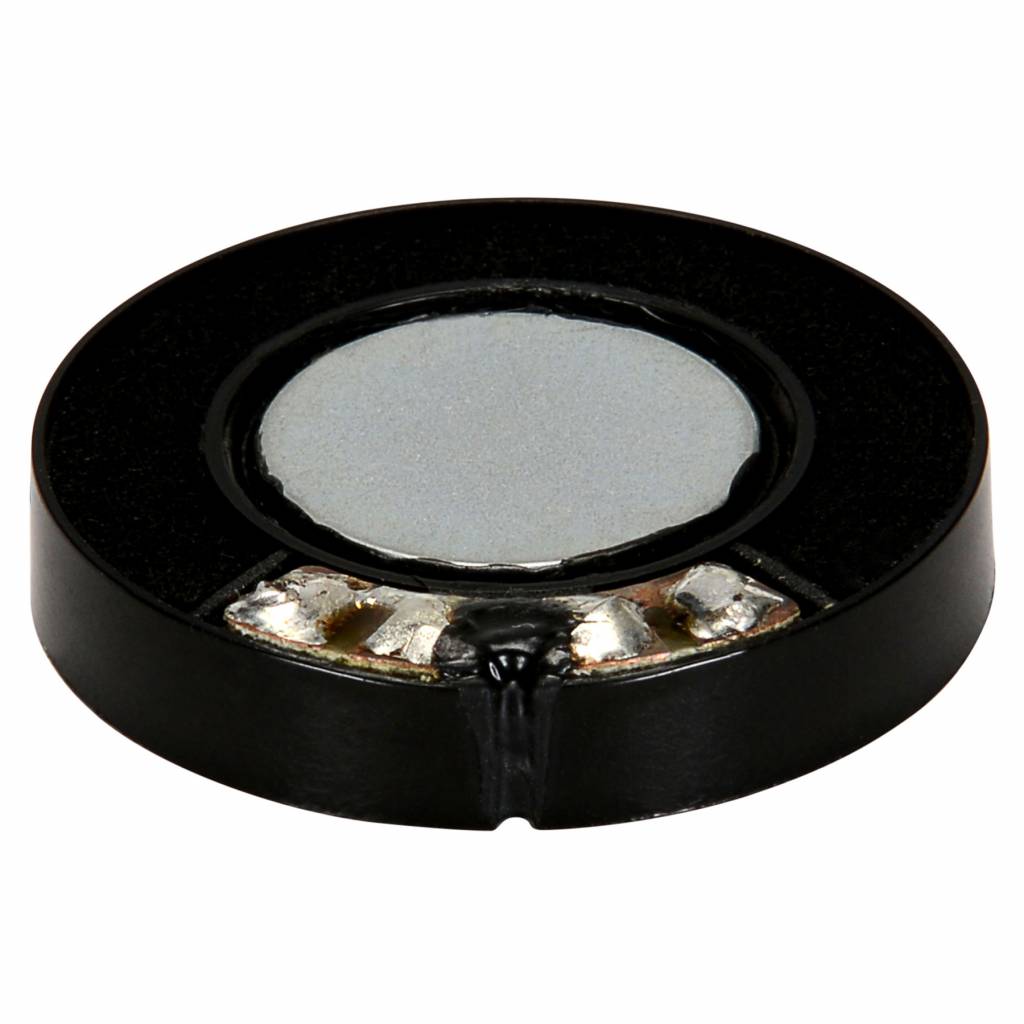

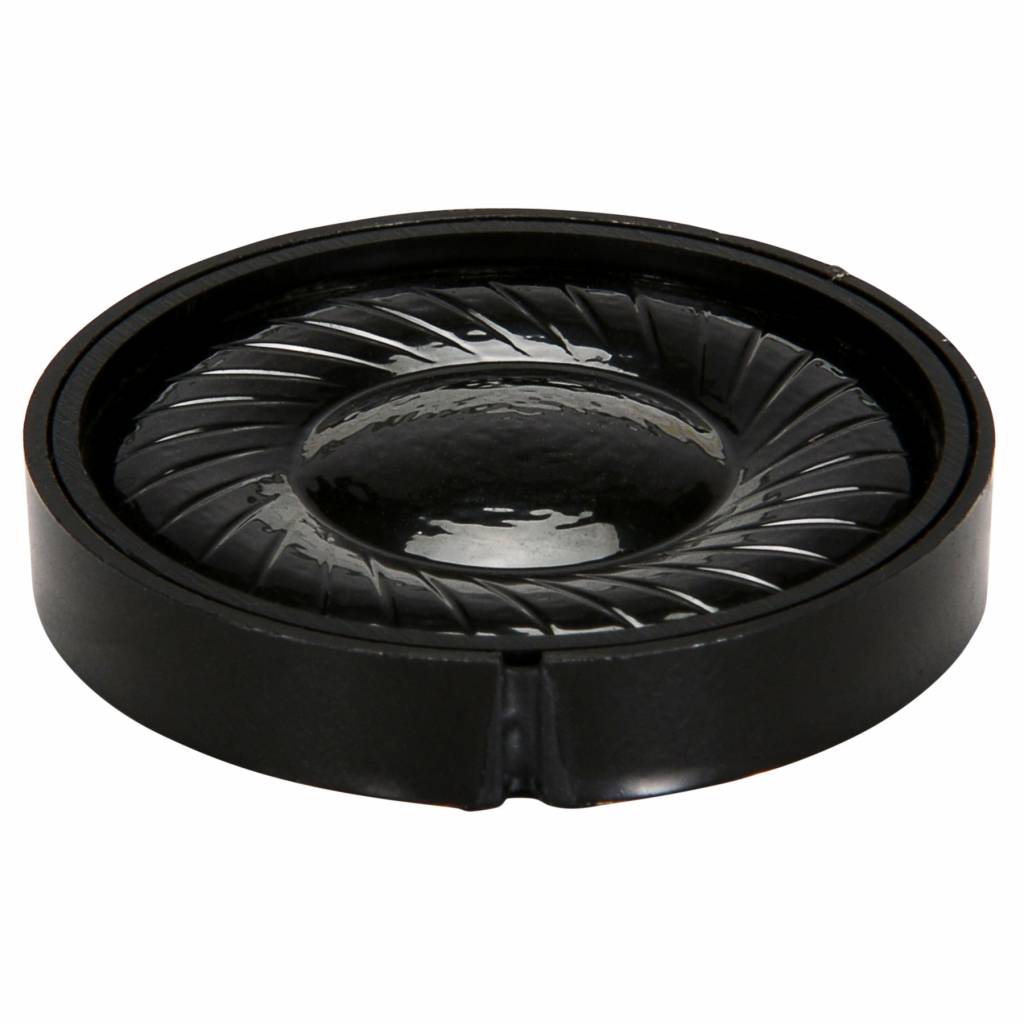

    Dayton Audio CE30MB-16B 1-1/4" Mini Speaker

    € 3,45 7 Op voorraad: levertijd 1 werkdag
    The Dayton Audio CE30MB-16B is a compact headphone-style mini speaker with a black Mylar diaphragm and 16 ohm impedance.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €3,28 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Dayton Audio CE30MB-16B is a compact headphone-style mini speaker with a black Mylar diaphragm and 16 ohm impedance.



    Highlights

    • Lightweight headphone-style mylar diaphragm
    • Rugged plastic frame with raised edge for mounting
    • Powerful neodymium magnet
    • Suitable for headphone applications
    • 16 ohm impedance



    Product details

    Dayton Audio CE Series CE30MB-16B 1-1/4" Mini Speaker Black 16 Ohm

    The Commercial Engineering (CE) series of speaker drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

    The Dayton Audio CE30MB-16A is a compact, high-efficiency "headphone-style" mini speaker with a lightweight Mylar diaphragm and extended frequency range. It’s a rugged choice for adding audio to inexpensive headphones, electronic toys, and portable electronics.



    Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

    Specificaties

    Artikelnummer
    CE30MB-16B
    Woofer Series
    CE series
    Nominal Diameter
    1"
    Power Handling (RMS)
    0.5 Watts
    Power Handling (max)
    1.0 Watts
    Impedance
    16 ohms
    Sensitivity
    77 dB 1W/1m
    Frequency Response
    400 to 5,000 Hz
    Voice Coil Diameter
    0.5"
    DC Resistance (Re)
    15.7 ohms
    Voice Coil Inductance (Le)
    1.35 mH
    Resonant Frequency (Fs)
    401 Hz
    Mechanical Q (Qms)
    2.55
    Electromagnetic Q (Qes)
    5.28
    Total Q (Qts)
    1.72
    Diaphragm Mass Inc. Airload (Mms)
    0.05g
    Mechanical Compliance of Suspension (Cms)
    3.23 mm/N
    Surface Area of Cone (Sd)
    3.1 cm²
    BL Product (BL)
    0.60 Tm
    Maximum Linear Excursion (Xmax)
    0.1 mm
    Cone / Diaphragm Material
    Poly / Mylar Diaphragm
    Magnet Material
    Neodymium
    Overall Outside Diameter
    1.17"
    Overall Depth
    0.20"
    Baffle Cutout Diameter
    1.04"
