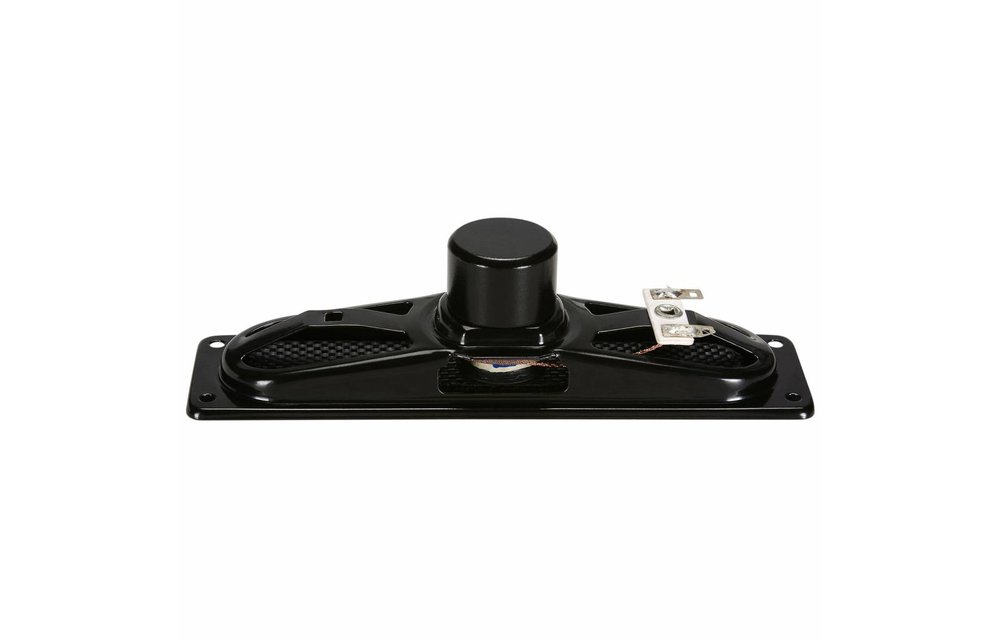

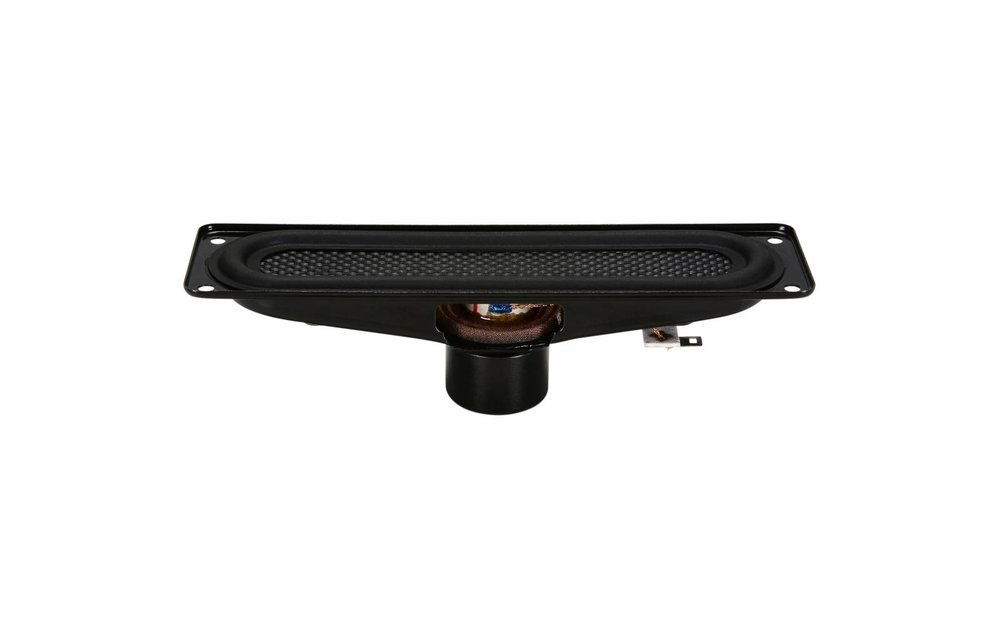

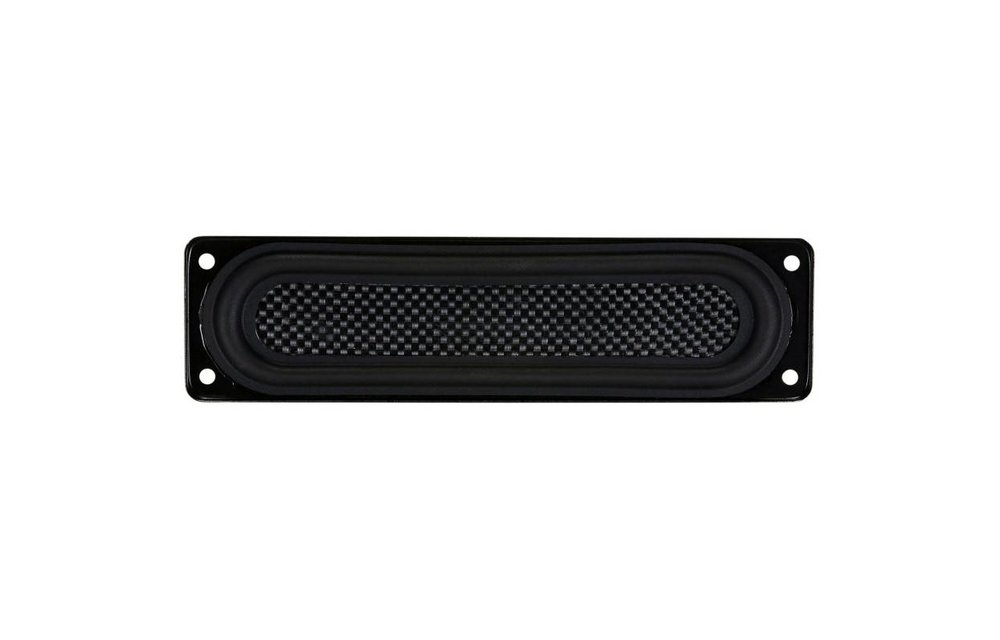

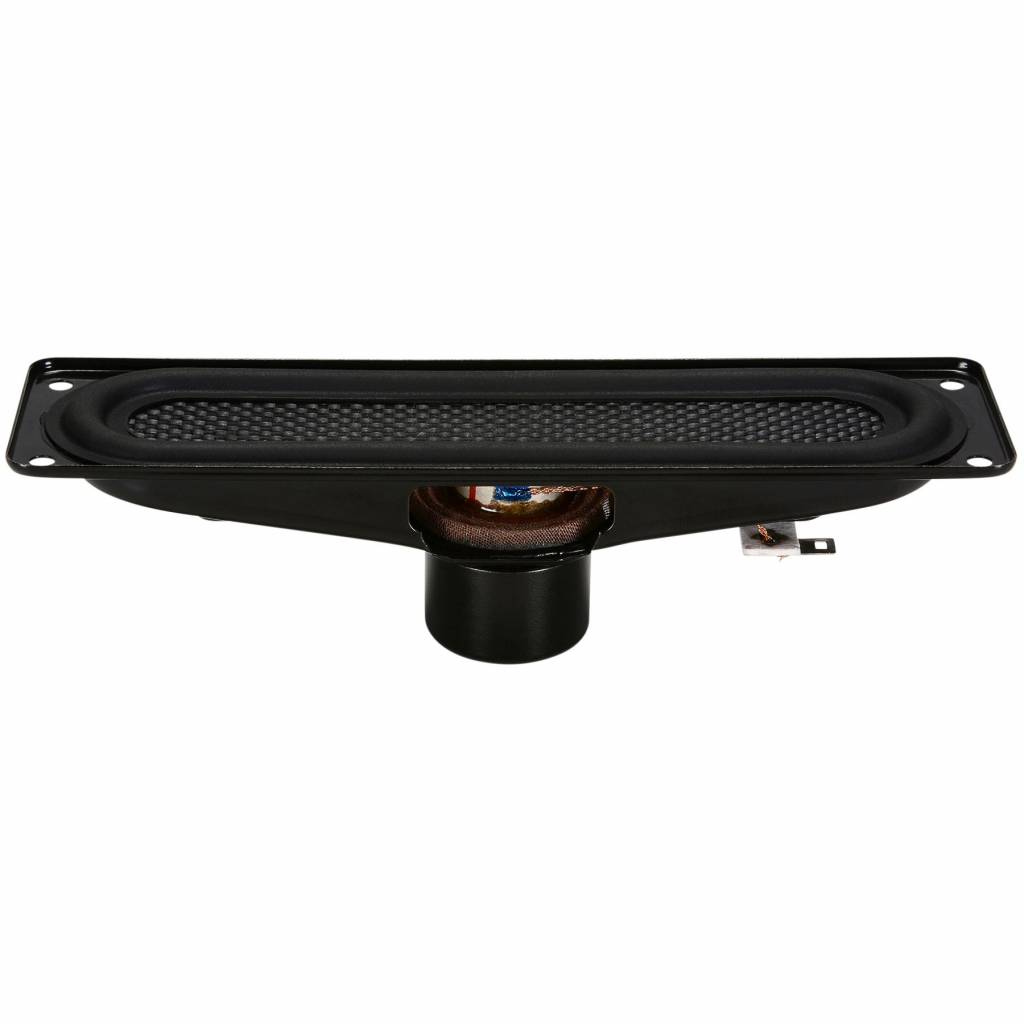

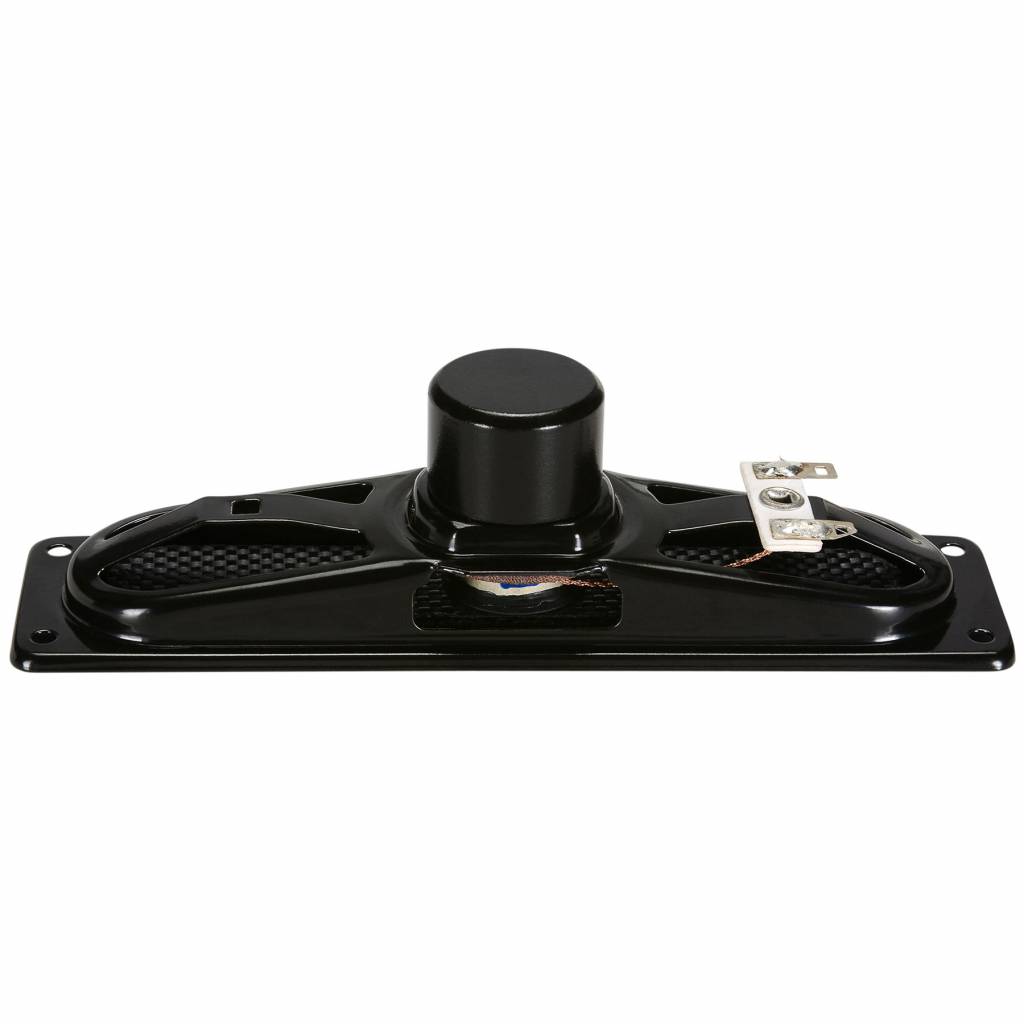

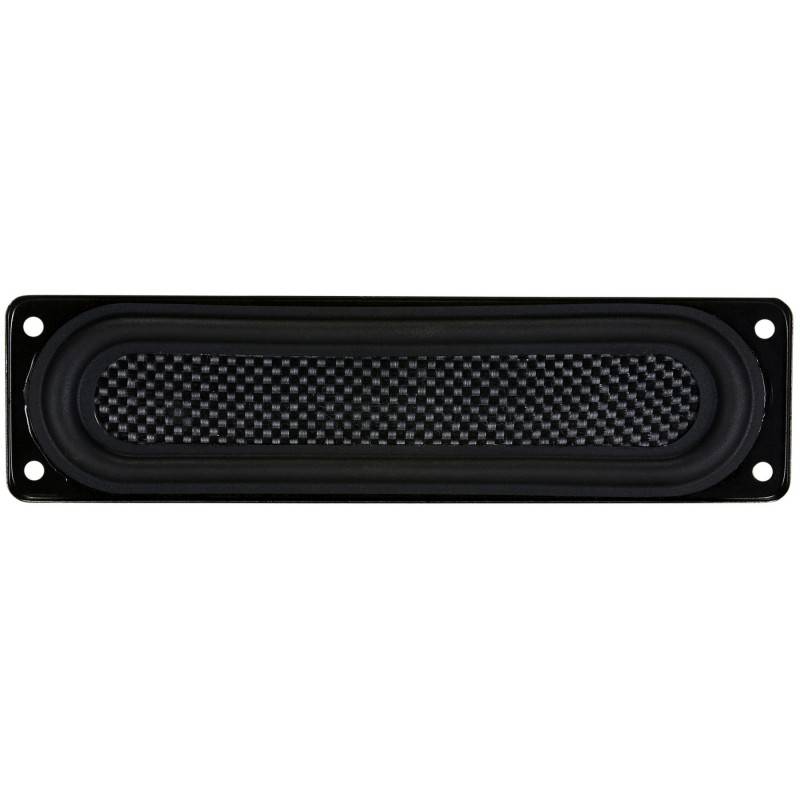

Dayton Audio CE140-30S-8 1" x 5" Extended Range Driver 8 Ohm

Levertijd: 1 werkdag

  • Artikelcode: CE140-30S-8
  • Voorraad: 4 Op voorraad

The CE140-30S-8 by Dayton Audio is a 1" x 5" tall-aspect-ratio extended range driver with a flat sandwich-construction diaphragm and a compact neodymium motor, for applications requiring a very narrow format yet wide-bandwidth driver.

€ 13,45 Incl. 21% btw

  • Bestel 4 voor €12,78 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio CE140-30S-8 1" x 5" Extended Range Driver 8 Ohm

The CE140-30S-8 by Dayton Audio is a 1" x 5" tall-aspect-ratio extended range driver with a flat sandwich-construction diaphragm and a compact neodymium motor, for applications requiring a very narrow format yet wide-bandwidth driver.



Highlights

  • Tall aspect ratio flat diaphragm for wide dispersion
  • Compact neodymium magnet structure
  • Low profile stamped steel frame
  • Copper voice coil on vented Kapton former
  • Suitable as a mid-woofer or extended range driver



Product details

Dayton Audio CE Series CE140-30S-8 1" x 5" Extended Range Driver 8 Ohm

The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

The Dayton Audio CE140-30S-8 is a 1" x 5" driver for applications requiring a narrow format, yet wide bandwidth. The flat diaphragm uses a sandwich construction composed of woven glass fiber skins over a paper honeycomb core, for an excellent combination of stiffness and damping – often difficult to achieve in a flat diaphragm. The compact neodymium motor provides long-throw performance in a small form factor, enabling the driver frame to be only 1.4" wide.

The rugged, low-profile stamped steel frame features screw mounting holes for simplified installation. Use the CE140-30S-8 as a wide-bandwidth driver, or as a narrow-format midwoofer driver for high-fidelity music.

Specificaties

Specificaties voor: CE140-30S-8 1" x 5" Extended Range Driver 8 Ohm

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. CE Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Full-range
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 1" x 5"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 10 Watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 20 Watts
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 76 dB 2.83V/1m
  • Frequency Response 100 to 8,500 Hz
  • Voice Coil Diameter 0.75"
  • Magnet Weight
  • DC Resistance (Re) 7.75 ohms
  • Voice Coil Inductance (Le) 0.78 mH
  • Resonant Frequency (Fs) 105 Hz
  • Mechanical Q (Qms) 4.64
  • Electromagnetic Q (Qes) 1.35
  • Total Q (Qts) 2.76
  • Diaphragm Mass Inc. Airload (Mms) 5.08g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.47 mm/N
  • Surface Area of Cone (Sd) 25.1 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 4.34 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 2 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Fiberglass
  • Surround Material Fiberglass
  • Voice Coil Wire Material
  • Voice Coil Former Kapton® / Polyimide
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 5.4" x 1.5"
  • Overall Depth 1.4"
  • Baffle Cutout Diameter 4.88" x 1.19"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
