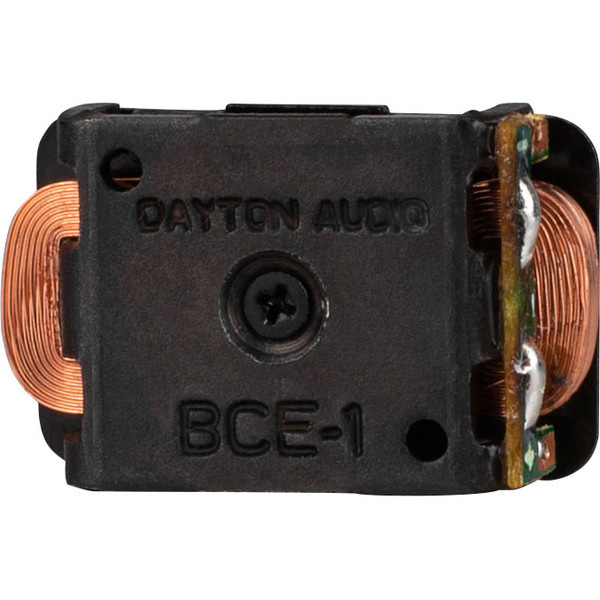

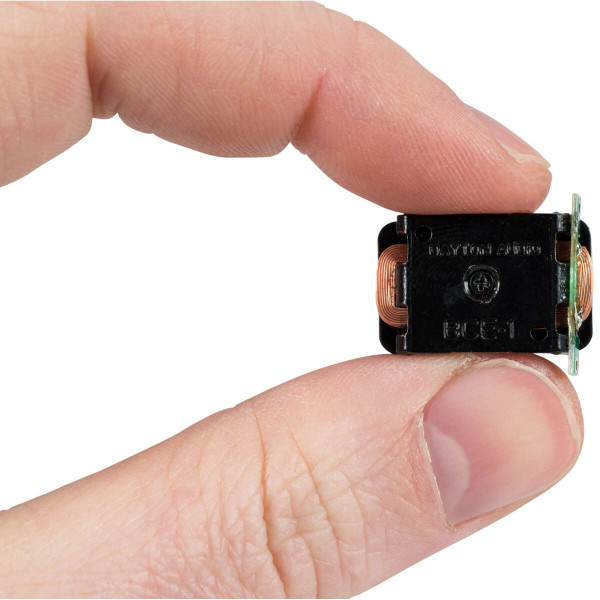

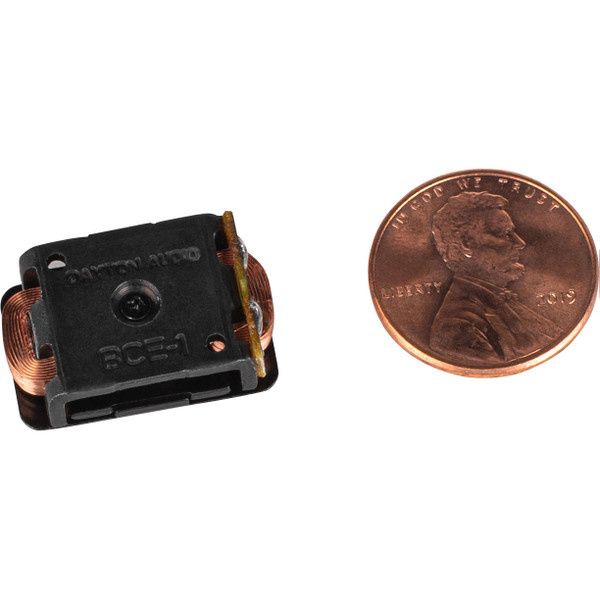

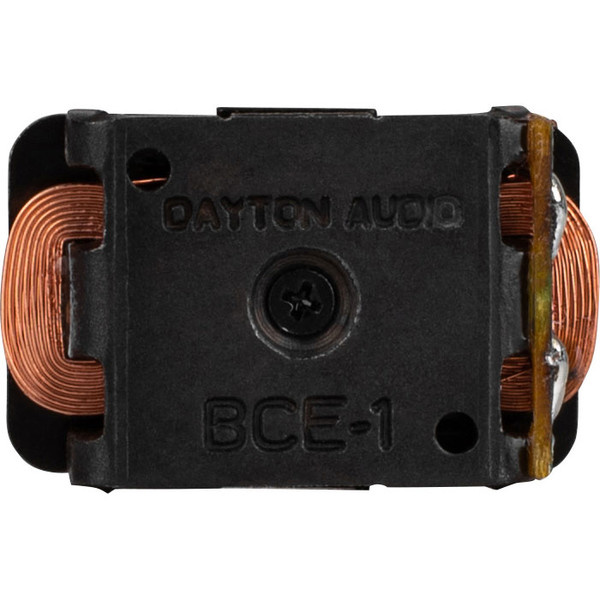

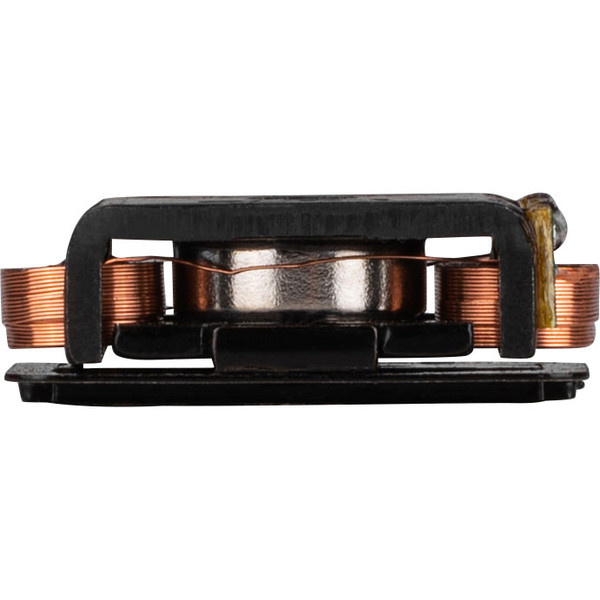

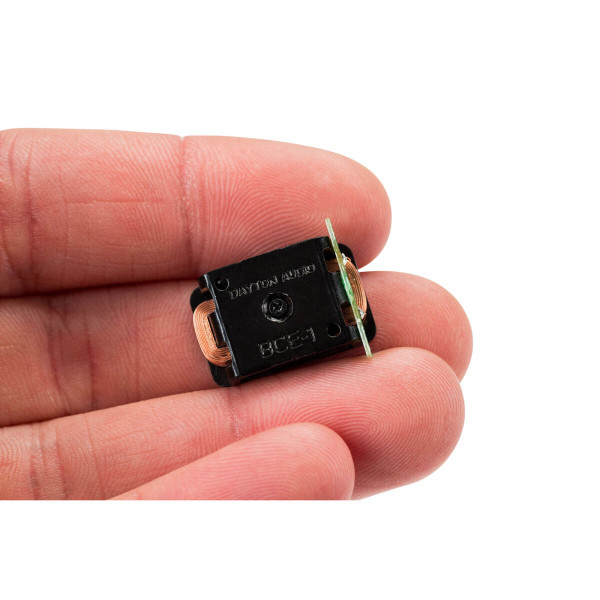

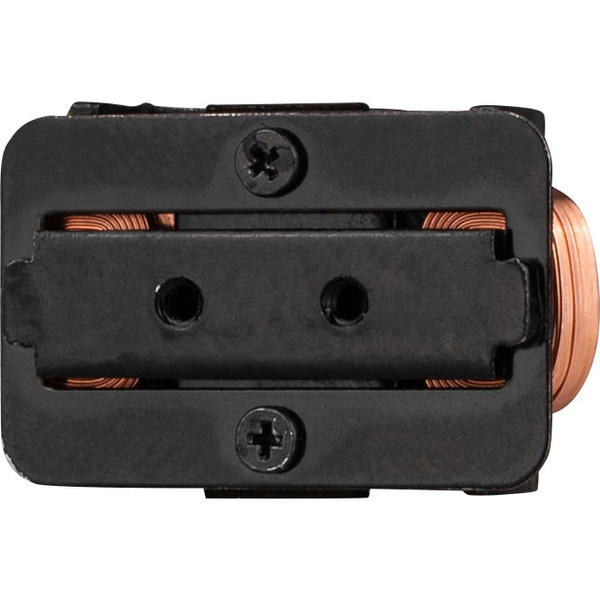

Dayton Audio BCE-1 22 x 14mm Bone Conducting Exciter

Levertijd: 1 werkdag

  • Artikelcode: BCE-1
  • Voorraad: >10 Op voorraad

Dayton Audio BCE exciters produce sound through direct vibration of the bones in the head or are capable of converting surfaces into speakers via vibration when placed on materials such as desks, walls, doors, and many other materials.

€ 13,95 Incl. 21% btw

  • Bestel 4 voor €13,25 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio BCE-1 22 x 14mm Bone Conducting Exciter

Dayton Audio BCE exciters produce sound through direct vibration of the bones in the head or are capable of converting surfaces into speakers via vibration when placed on materials such as desks, walls, doors, and many other materials.



Highlights

  • Creates sound using bone conduction
  • Leaves ears free for increased listener safety
  • Can be used as a mini tactile transducer when attached to substrates
  • Wide 300 to 19,000 Hz frequency response
  • 4 ohm impedance with 1W power handling



Product details

Dayton Audio BCE-1 22 x 14mm Bone Conducting Exciter



Unlike conventional transducers that use moving air to produce sound around you, Dayton Audio BCEs (bone conducting exciters) convert the electrical signal into mechanical vibrations so clean, that the brain interprets the vibrating stimulus as excellent sound. Listener's ears are left free to remain aware of their surroundings, increasing personal safety.



When used against materials such as cardboard, wood, steel, and plastics, the BCE operates much like a surface exciter, capable of moving mass to produce robust sound output; much like an invisible speaker! BCEs are excellent for unique OEM sound applications and for the experimenter, where conventional speakers and exciters cannot be used due to size constraints.



Note: The frequency response is given when used as a bone conducting transducer. This will change when attached to a substrate, and different substrate materials will have different frequency responses. Polarity is indicated by a small half-moon above the positive solder point.





To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters White Paper.

Specificaties

Specificaties voor: BCE-1 22 x 14mm Bone Conducting Exciter

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 1 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 2 watts
  • Impedance SPEC Impedance 4 ohms
  • Frequency Response SPEC Frequency Response 300 - 19,000 Hz
  • Bekijk alle specificaties
  • Resonant Frequency (Fs) 2100 Hz
  • DC Resistance (Re) 4 ohms
  • Voice Coil Inductance (Le) 0.56 mH at 10,000 Hz
  • Total Q (Qts) -
  • Diaphragm Mass Inc. Airload (Mms) -
  • Mechanical Compliance of Suspension (Cms) -
  • BL Product (BL) -
  • Voice Coil Diameter -
  • Overall Outside Diameter -
  • Overall Depth 7.5 mm
  • Overall Dimensions (L x W x H) 21.6 x 14.5 x 7.9 mm
  • Adhesive dimensions -
  • # Mounting Holes 2
  • Mounting type -
  • Weight -
