APR10 Passive Radiator

€99,95

Toevoegen aan winkelwagen

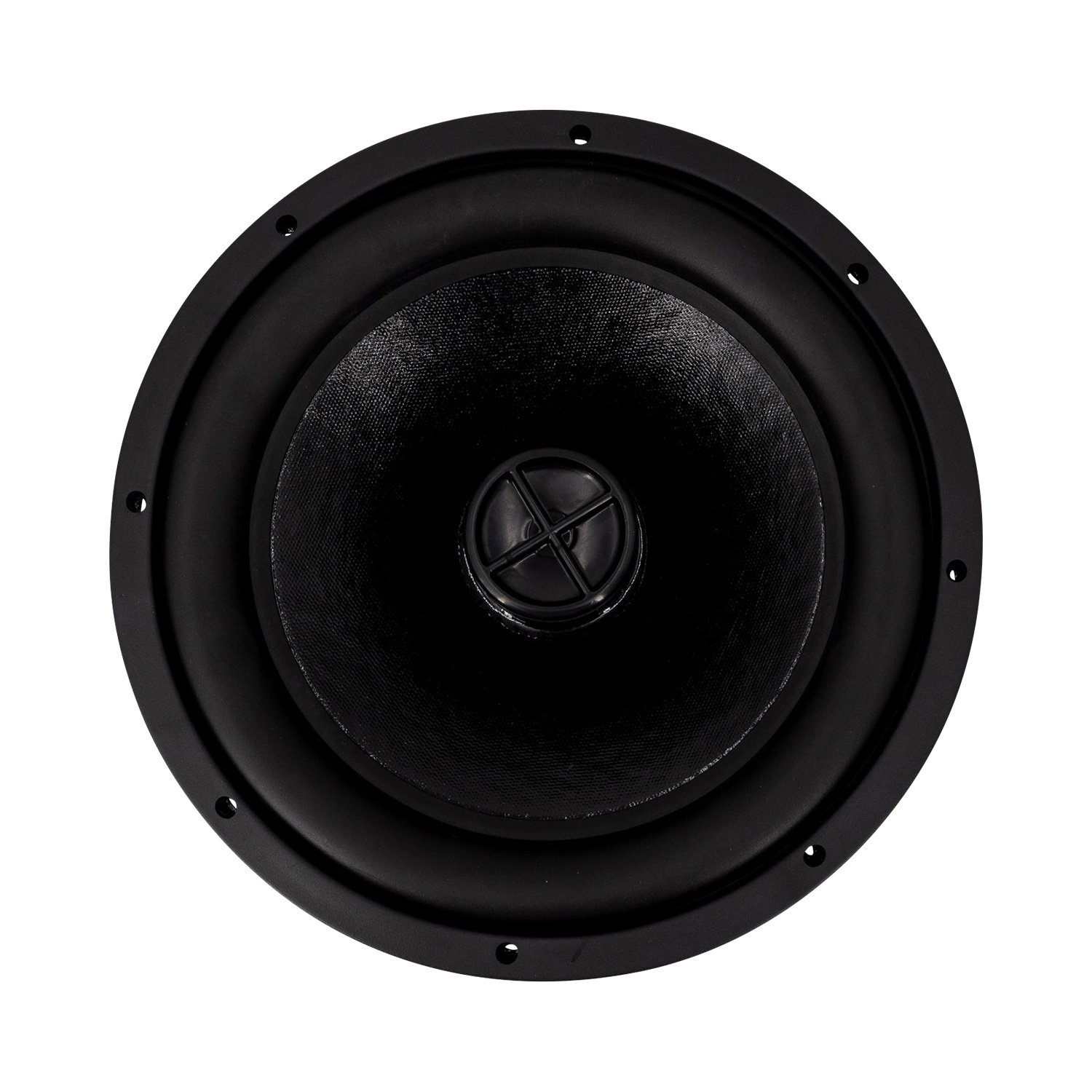

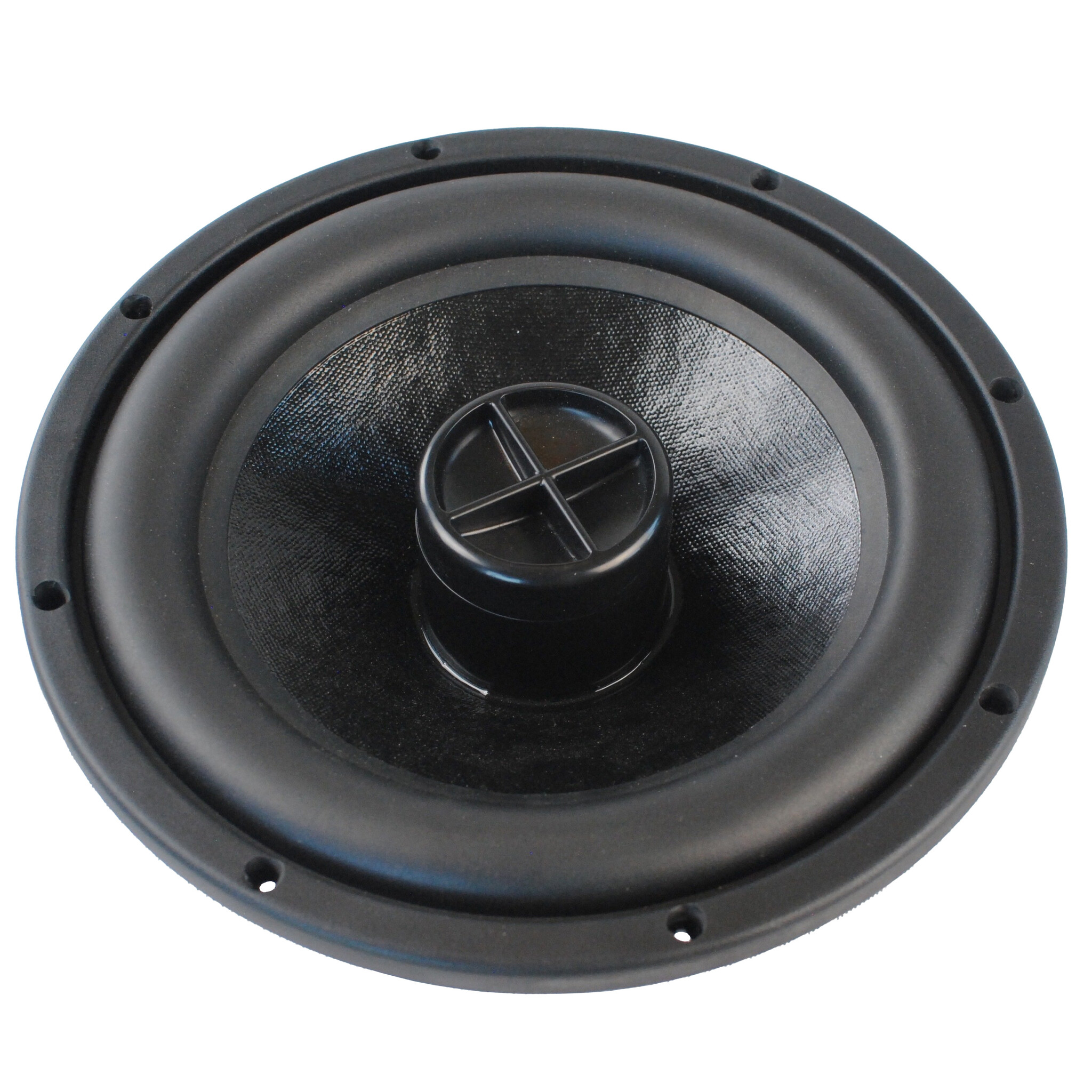

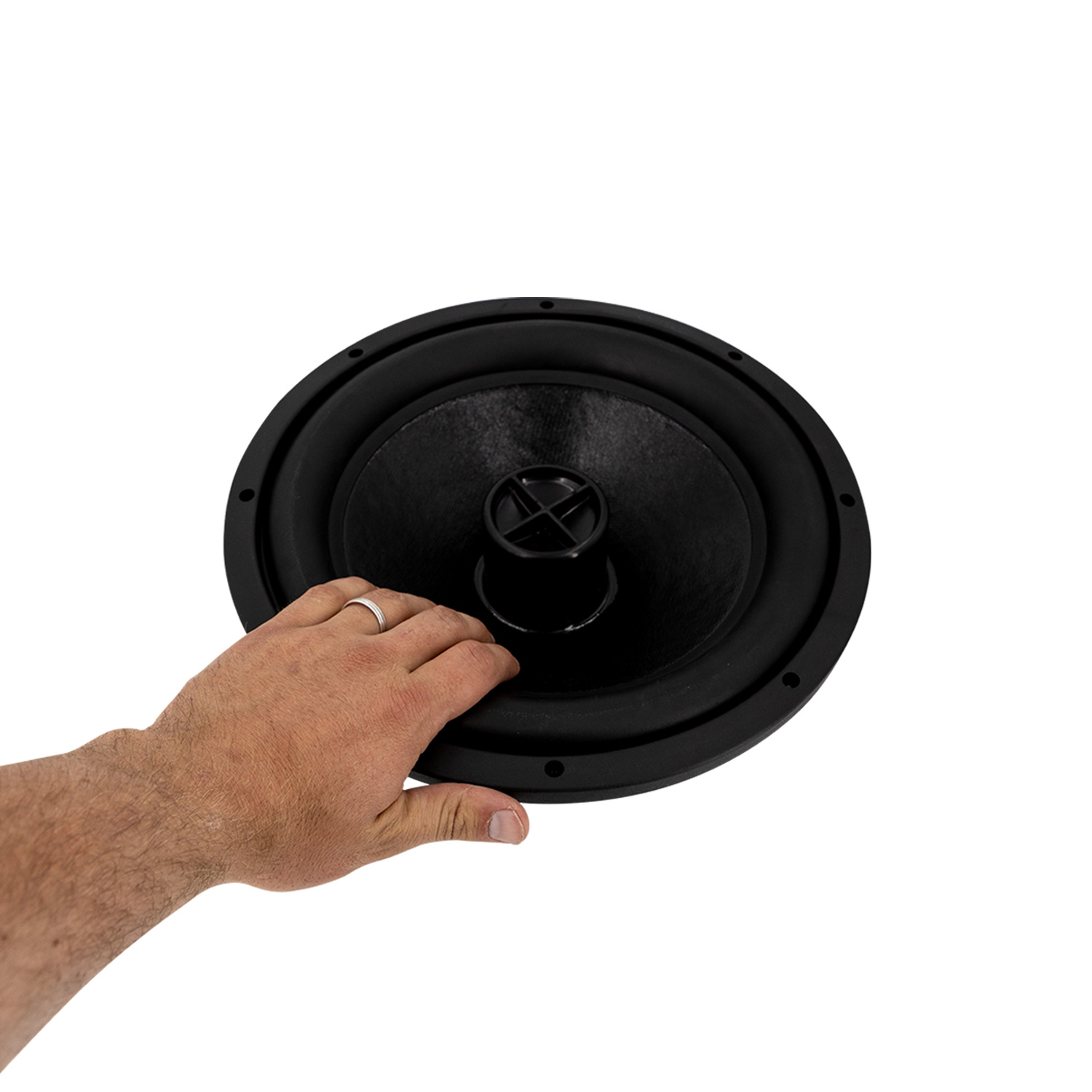

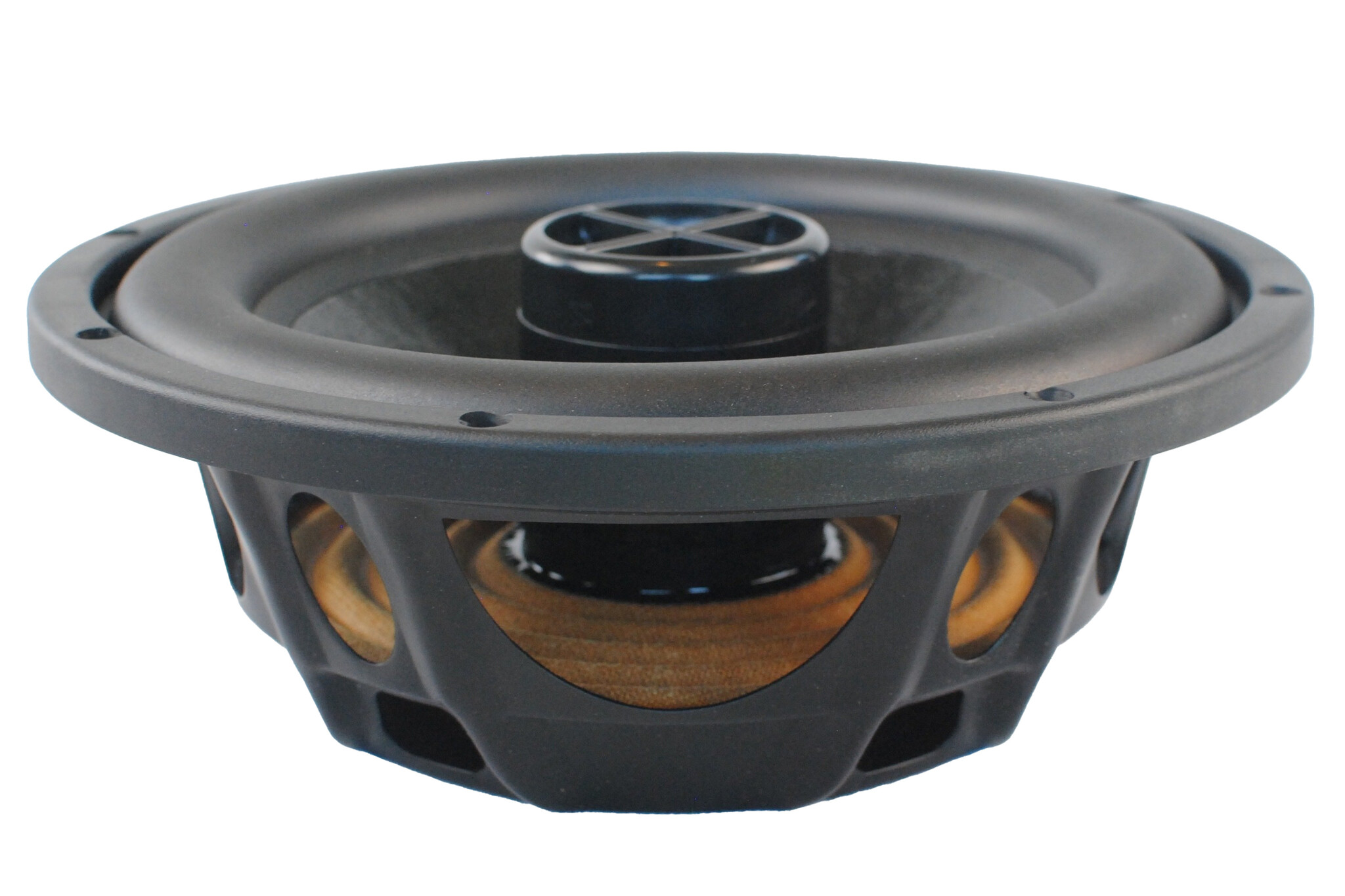

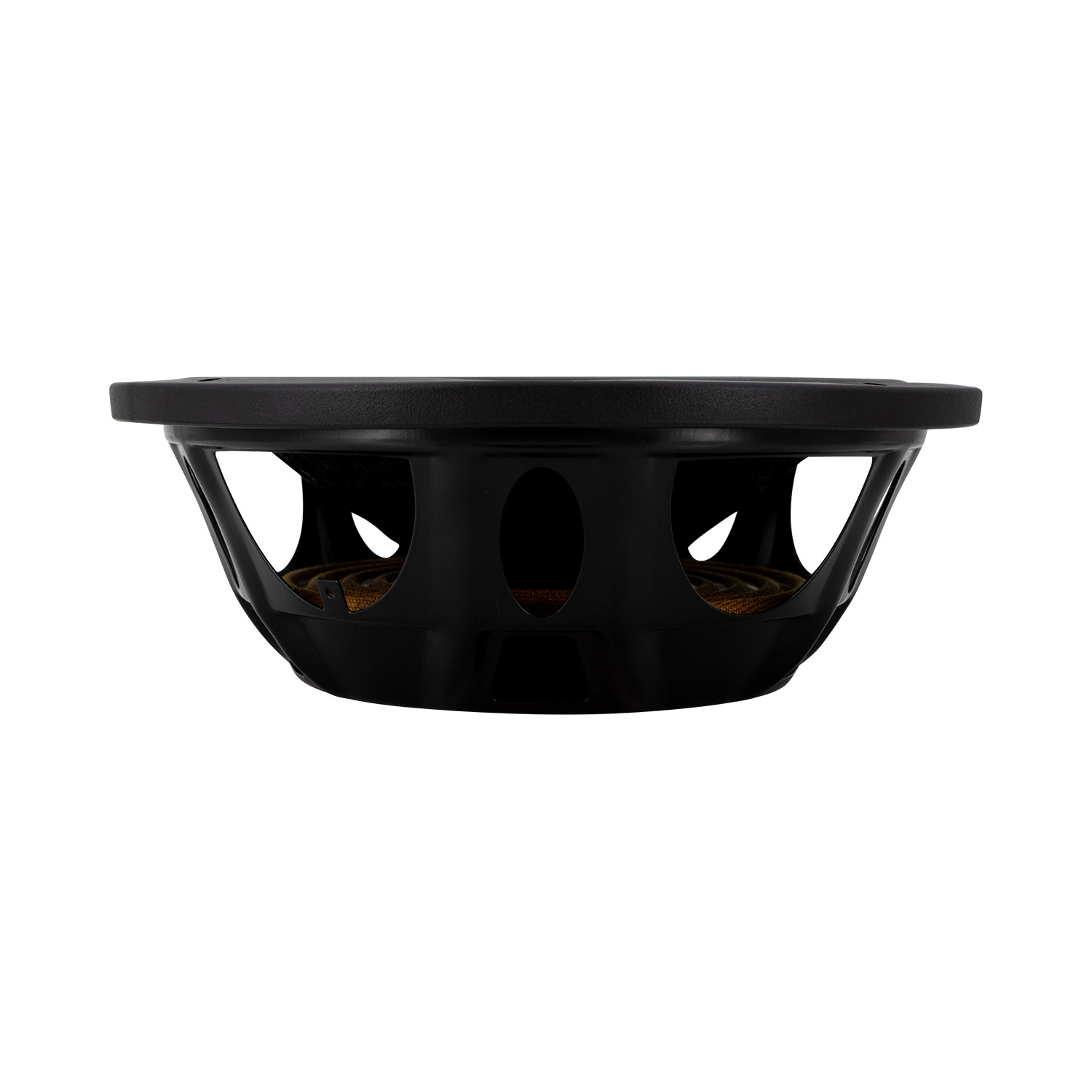

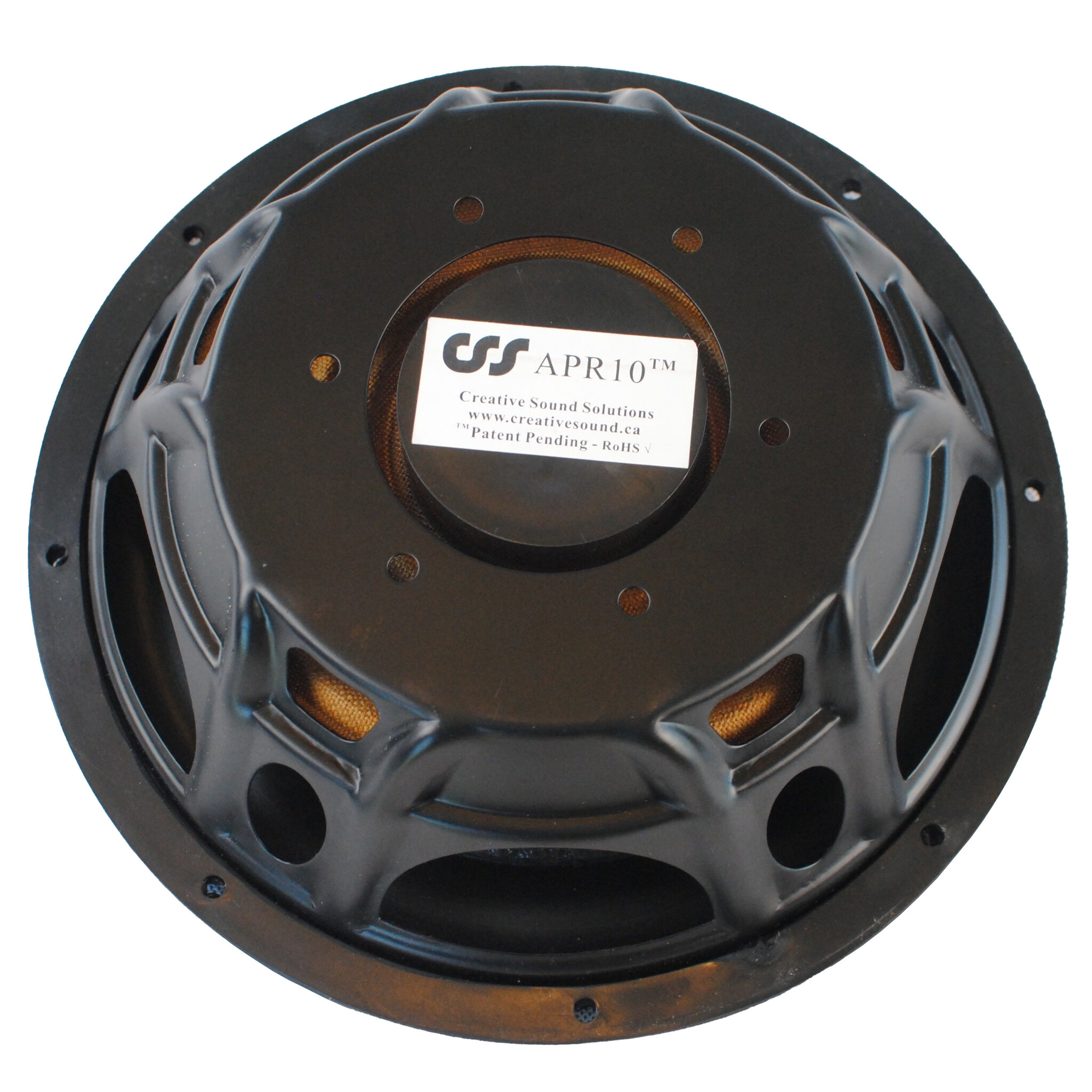

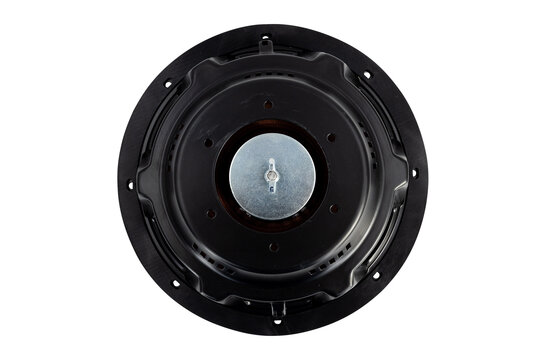

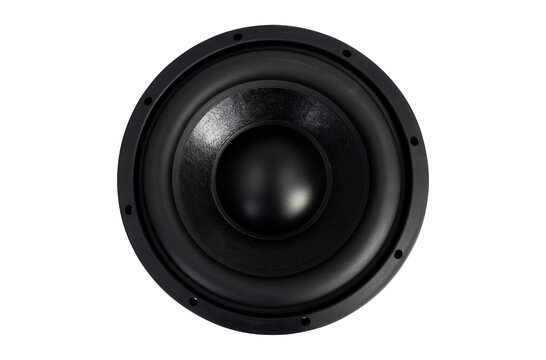

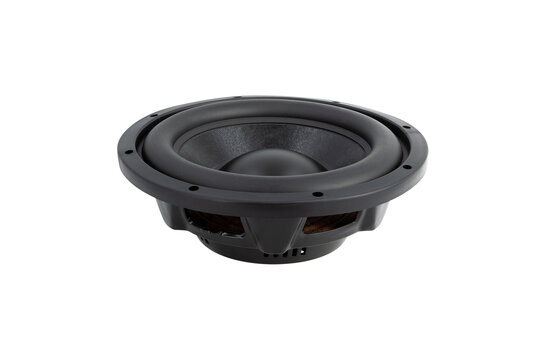

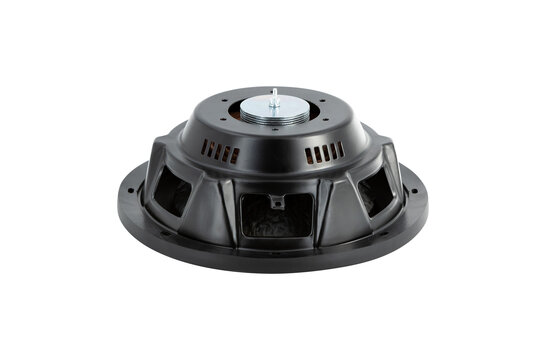

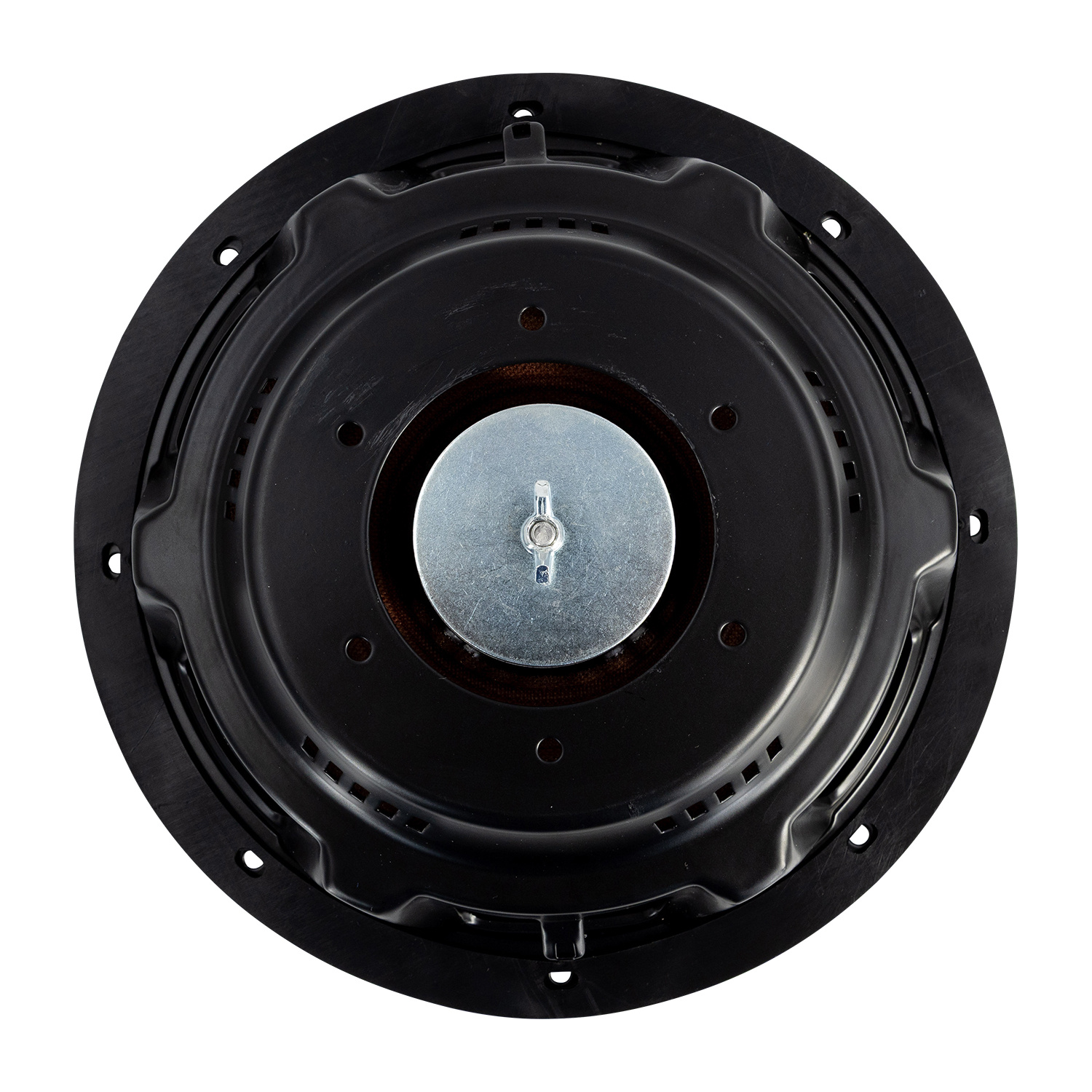

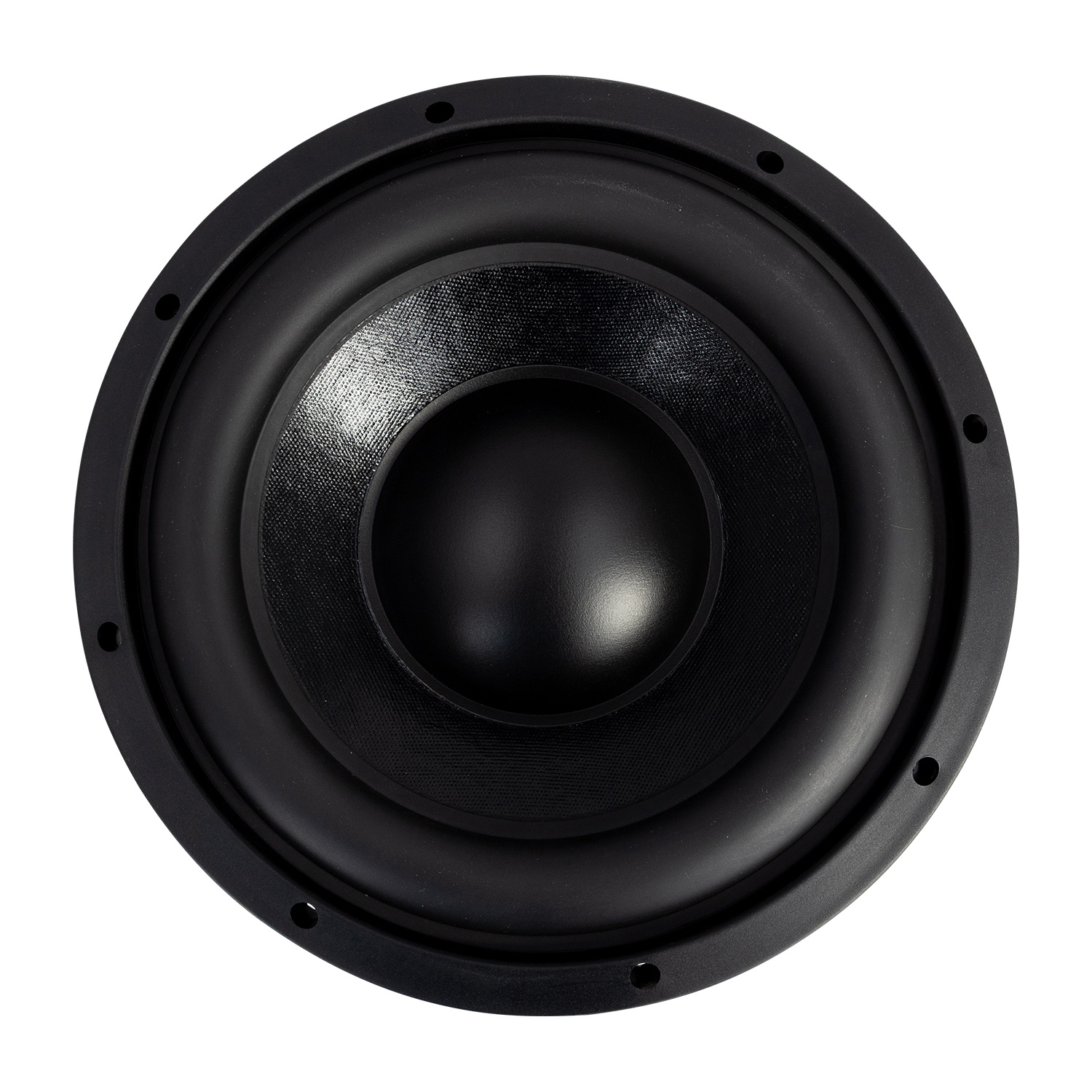

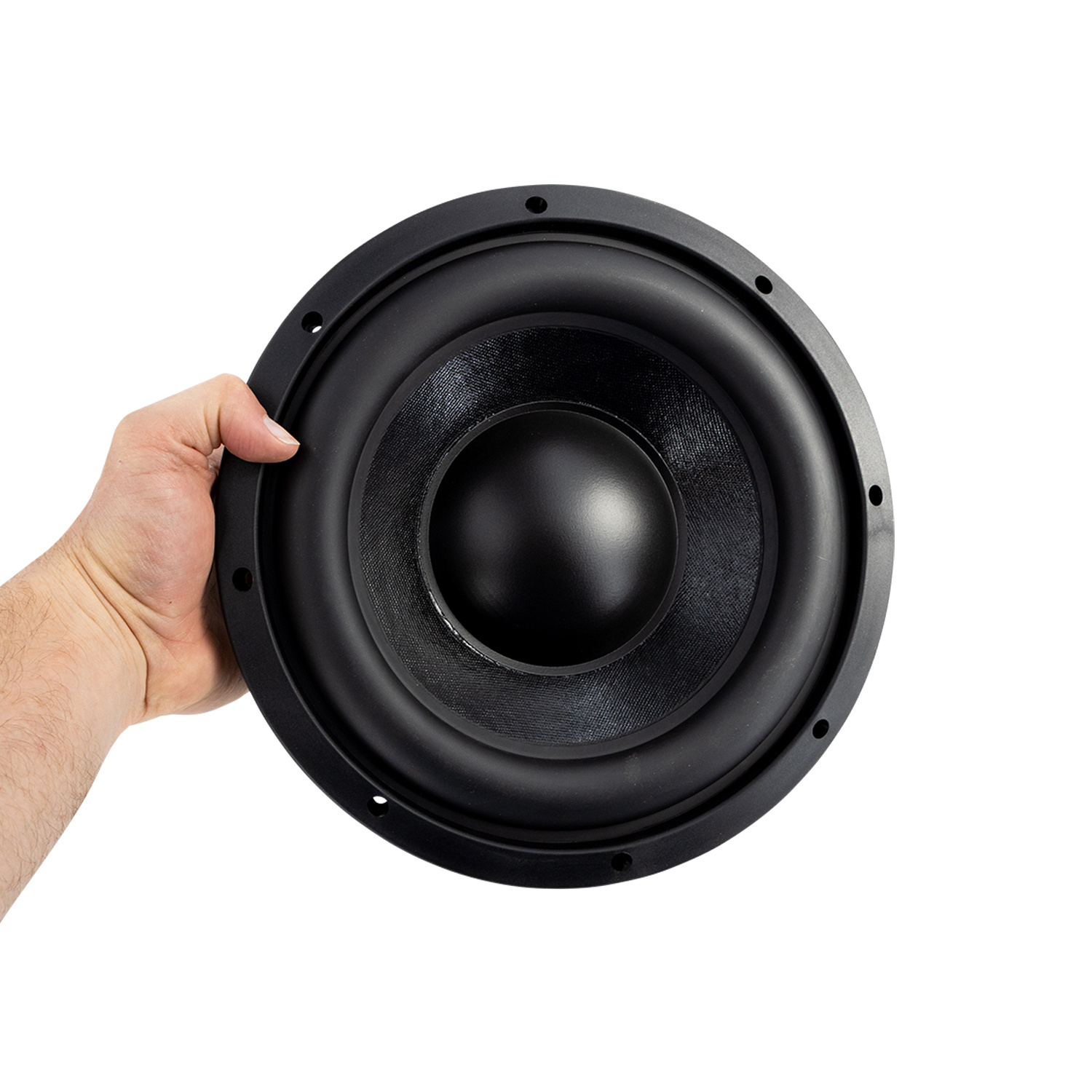

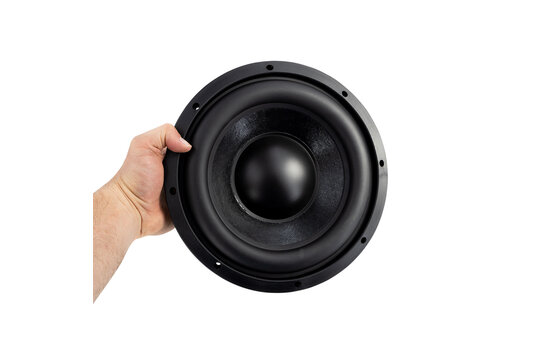

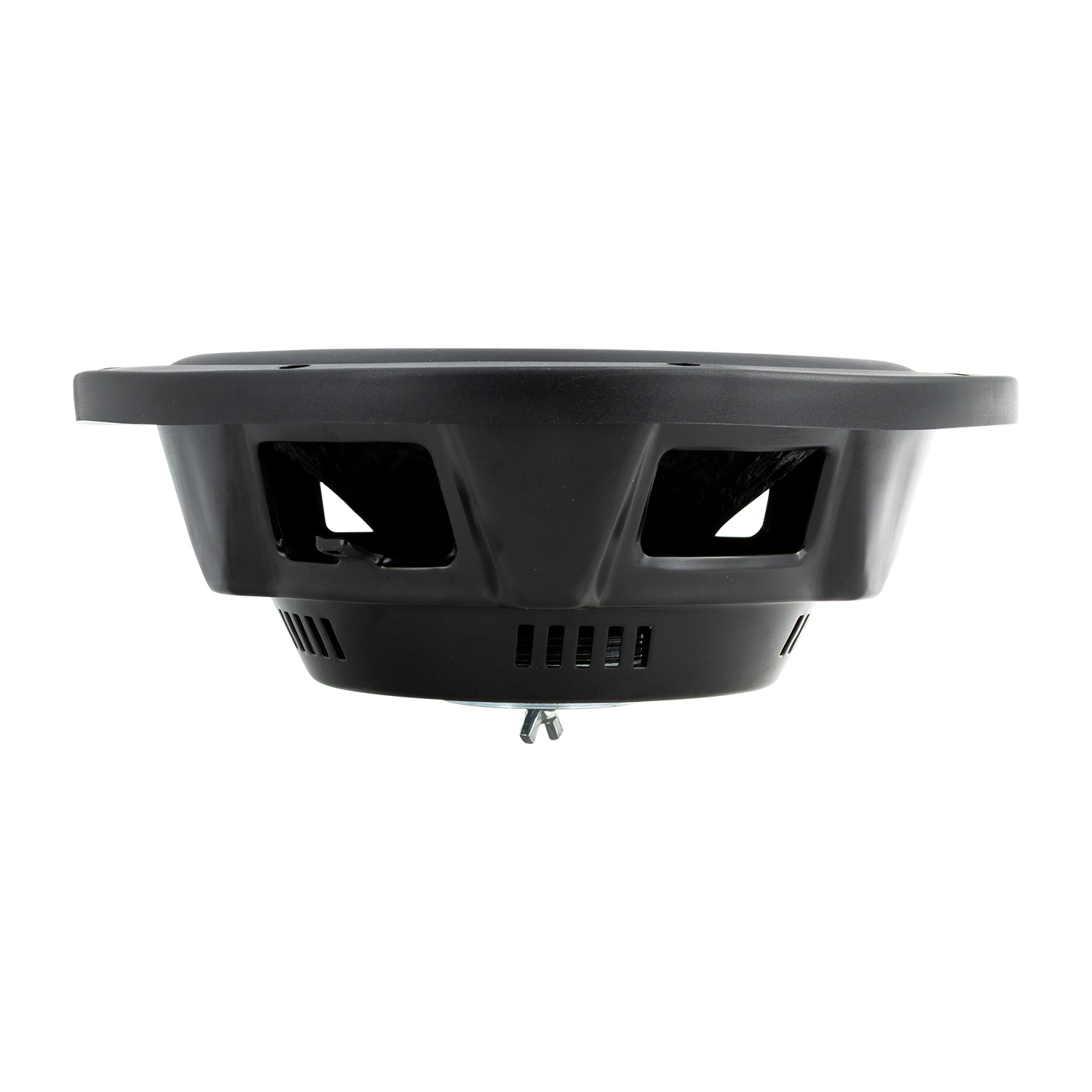

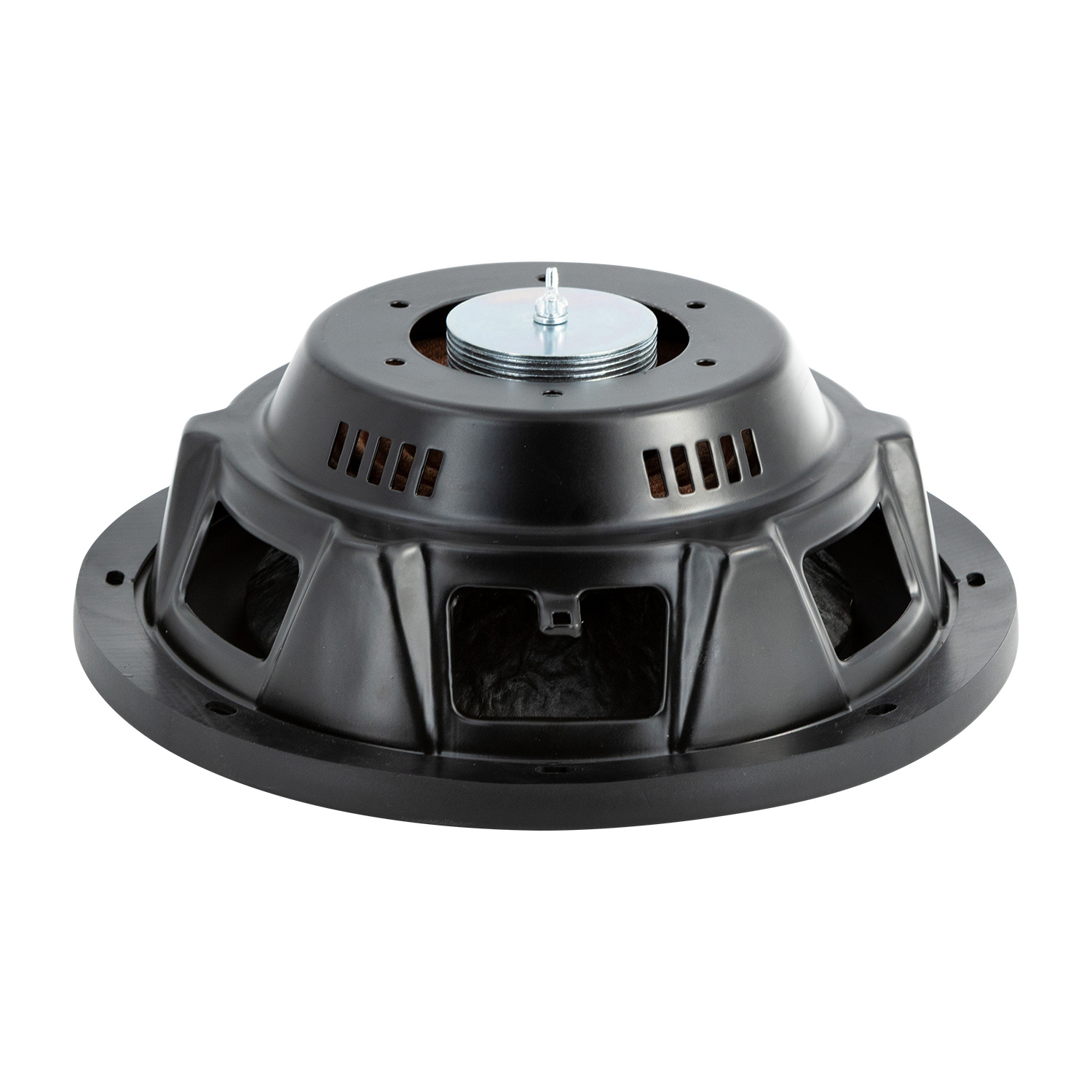

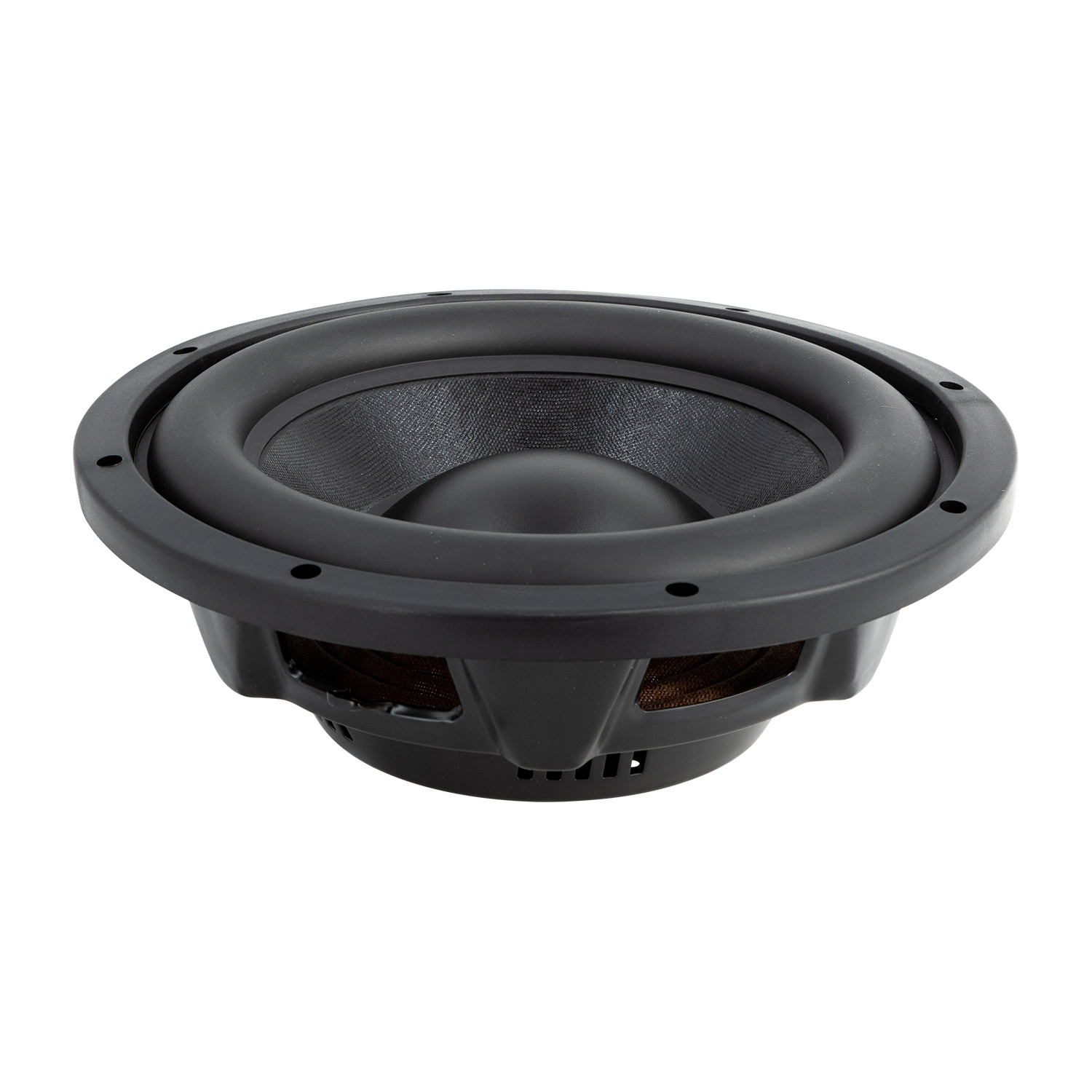

CSS APR10 Passive Radiator

Name: CSS APR10 Passive Radiator
Brand: CSS
SKU: APR10
Price: 99.95 EUR
Availability: BackOrder

0 reviews

Merk: CSS

Toon alle Passive radiator

Passive | 10''

€ 82,60€ 99,95 Niet op voorraad8 verwacht op 24-05-2024

Backorder

Gratis verzonden (NL & BE)
Nu besteld, dinsdag bezorgd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Productomschrijving

The CSS APR10 is a specialized passive radiator designed to elevate the bass performance of speaker enclosures. Unlike traditional ports, which can introduce unwanted noise, the APR10 provides an alternative solution. Its purpose is to enhance low-frequency response without compromising on sound quality. Whether you’re building a custom speaker or retrofitting an existing one, the APR10 offers flexibility in tuning and performance.

Highlights

Effective Radiating Area (Sd): 320 cm²
Mechanical Compliance (Cms): 0.48 mm/N
Equivalent Volume (Vap): 67 Liters
Moving Mass (Mmp): 66 grams
Resonant Frequency (Fs): 28 Hz
Maximum Excursion (Xmech): 26 mm
Maximum Moving Mass: 1200 grams
Minimum Resonant Frequency (with full 1200g): 6.7 Hz

Product details

CSS APR10 Passive Radiator

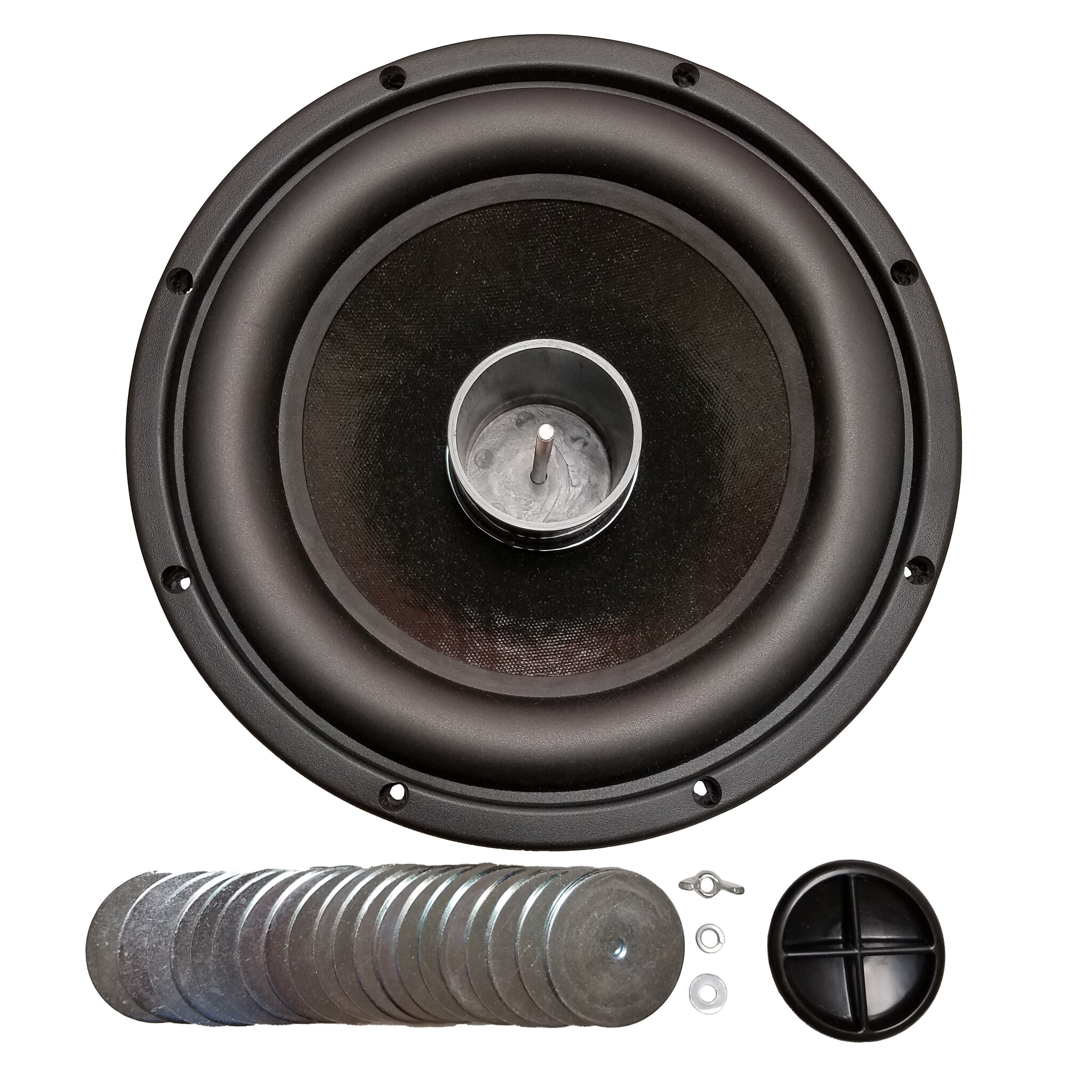

The CSS APR10 is a 10-inch passive radiator, a component used in subwoofer enclosures to enhance bass response. Unlike traditional speakers, passive radiators lack a motor and rely on the movement of air within the enclosure. This allows for a sealed enclosure design, which can provide tighter bass and a more compact size compared to ported enclosures. The APR10's low-loss construction ensures efficient vibration, while its patent-pending front mount system simplifies weight adjustment for optimal subwoofer tuning. This passive radiator is particularly well-suited for projects utilizing high-powered subwoofers thanks to its ample excursion capabilities.
