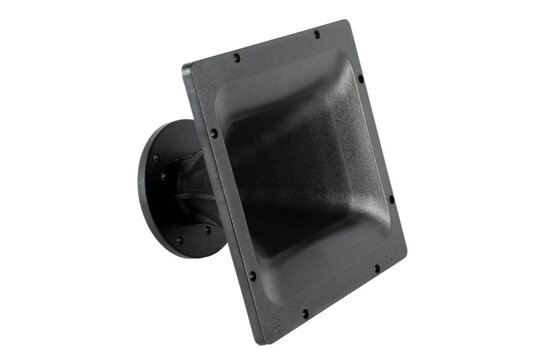

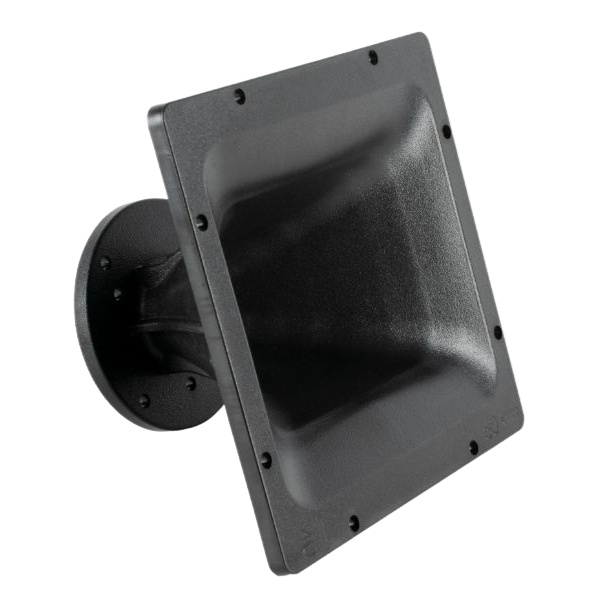

        TD-164P Exponential Horn 60x40 cm

        Beyma TD-164P Exponential Horn 60x40 cm

        €21,45

        3 Op voorraad

        Toevoegen aan winkelwagen

        Beyma TD-164P Exponential Horn 60x40 cm

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Beyma
        Toon alle Nieuwe producten
        TD-164P Exponential Horn 60x40 cm
        € 17,73€ 21,45 3 Op voorraad
        • -5% Bestel 4 voor slechts € 20,38 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        TD-164P Exponential Horn 60x40 cm

        Productomschrijving Beyma TD-164P Exponential Horn

        The Beyma TD-164P is a compact constant directivity horn tailored for 1” compression drivers. Its FEM-optimized flare and lightweight yet rugged polycarbonate construction make it a reliable solution for high-frequency sound dispersion in compact loudspeaker systems.



        Highlights of the Beyma TD-164P

        • Designed for 1” (25.4 mm) compression driver throat diameter
        • 60° horizontal and 40° vertical nominal coverage angles
        • Reinforced polycarbonate body with rotatable square layout
        • FEM-optimized flare for accurate and controlled directivity



        Product details Beyma TD-164P

        Beyma TD-164P Constant Directivity Horn



        The Beyma TD-164P is a high-performance constant directivity horn engineered to deliver smooth dispersion and consistent sound pressure levels when paired with 1” compression drivers. It features a 60° horizontal by 40° vertical coverage pattern and is optimized for a frequency range of 1–16 kHz. The flare geometry is developed through Finite Element Method (FEM) simulations to ensure accurate beam control and minimal distortion. Constructed from durable reinforced polycarbonate, the horn has a compact form factor (160 x 160 x 100 mm) and weighs only 0.28 kg, making it ideal for lightweight cabinet applications. The square shape allows for flexible, rotatable mounting, while its dual mounting pattern—three M5 holes on a 57 mm circle and four M5 holes on a 76.2 mm circle—ensures compatibility with a wide range of compression drivers. With a cut-off frequency of 1500 Hz and a directivity index of 10.5 dB, the TD-164P is well-suited for use in portable PA systems, stage monitors, or any application requiring controlled high-frequency dispersion in a compact footprint.

        Toon meer

        Specificaties

        Artikelnummer
        TD-164P
        EAN
        8435469056602
        Tweeter type
        Constant Directivity Horn
        Cone / Dome Diameter
        To be used with 1” compression drivers.
        Totale buitendiameter
        160 x 160 mm
        Montagegatdiameter
        139 x 139 mm
        Diepte
        100 mm
        Bevestigingstype
        8 Screws, 5.5 mm

        Toon meer
