        CD-1114Fe Compression Driver

        Beyma CD-1114Fe Compression Driver

        €99,95

        2 Op voorraad

        Toevoegen aan winkelwagen

        Beyma CD-1114Fe Compression Driver

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Beyma
        Toon alle Nieuwe producten
        1.4" | 8 Ω

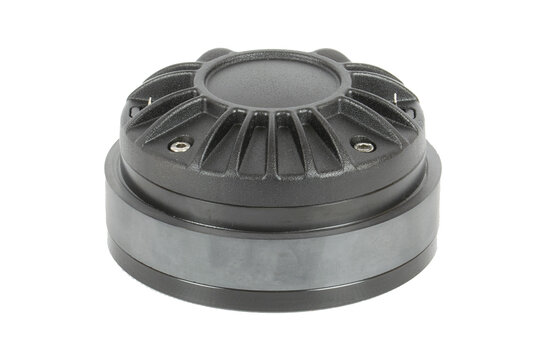

        CD-1114Fe Compression Driver
        CD-1114Fe Compression Driver
        CD-1114Fe Compression Driver
        CD-1114Fe Compression Driver
        € 82,60€ 99,95 2 Op voorraad
        • -5% Bestel 4 voor slechts € 94,95 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        CD-1114Fe Compression Driver
        CD-1114Fe Compression Driver
        CD-1114Fe Compression Driver
        CD-1114Fe Compression Driver

        Voor- en nadelen

        Volgens onze specialisten
        • 1,75” (44,4) DUO double layer in/out aluminium voice coil

        Productomschrijving Beyma CD-1114Fe Compression Driver

        The Beyma CD-1114Fe is a compact 1.4" compression driver optimized for natural sound reproduction in mid- and high-frequency applications. Engineered with a DUO double-layer aluminum voice coil and PM4 polymer diaphragm, this model delivers clean, detailed audio with high sensitivity and reliability.



        Highlights of the Beyma CD-1114Fe

        • 1.4” throat exit with a 1.75” DUO double-layer in/out aluminum voice coil
        • Delivers 140 W program power above 1.5 kHz with 109 dB sensitivity
        • PM4 polymer diaphragm ensures smooth and natural tonal response
        • Lightweight ferrite motor optimized with FEA for efficient performance



        Product details Beyma CD-1114Fe

        Beyma CD-1114Fe Compression Driver



        The Beyma CD-1114Fe is a 1.4" exit high-frequency compression driver designed to deliver articulate and transparent audio reproduction, particularly in mid-sized PA systems, monitors, and compact arrays. Its standout feature is the 1.75” DUO double-layer in/out aluminum voice coil, which allows excellent thermal conductivity and transient response, contributing to clean, undistorted sound reproduction. This driver features a PM4 polymer diaphragm that provides a smooth, natural frequency response from 0.7 kHz up to 19 kHz, with reduced breakup modes and tonal coloration. With a sensitivity of 109 dB (1W/1m) and a power handling capability of 140 W program power above 1.5 kHz, the CD-1114Fe offers efficient performance in lightweight applications. Its ferrite magnet motor structure is optimized using Finite Element Analysis (FEA), ensuring high magnetic flux density (1.5 T) and a stable BL factor of 6.6 N/A. The aluminum cover provides additional durability, and the driver’s compact form factor—measuring just 110 mm in diameter and 58 mm in depth—makes it suitable for space-constrained enclosures. Mounting is straightforward using four M6 threaded holes spaced 90º apart on a standard 101.6 mm (4") circle. At just 1.9 kg, the CD-1114Fe is a lightweight and capable choice for system designers seeking natural response and efficiency in a compact compression driver.

        Toon meer

        Specificaties

        Artikelnummer
        CD-1114Fe
        EAN
        8435469044562
        Tweeter type
        Compression Driver
        Cone / Dome Diameter
        1.75"
        Belastbaarheid (RMS)
        140 Watts
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        109 dB
        Frequentierespons
        700 - 19.000 Hz
        Gelijstroomweerstand (Re)
        4.4 Ω
        Totale buitendiameter
        110 mm
        Diepte
        58 mm
        Bevestigingstype
        Screws 4 x 6 mm
