        8CFX260Nd Coaxial Woofer

        Beyma 8CFX260Nd Coaxial Woofer

        €549,95

        2 Op voorraad

        Toevoegen aan winkelwagen

        Beyma 8CFX260Nd Coaxial Woofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Beyma
        Toon alle Nieuwe producten
        8" | 8 Ω
        8CFX260Nd Coaxial Woofer
        8CFX260Nd Coaxial Woofer
        8CFX260Nd Coaxial Woofer
        8CFX260Nd Coaxial Woofer
        € 454,50€ 549,95 2 Op voorraad
        • -5% Bestel 4 voor slechts € 522,45 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        8CFX260Nd Coaxial Woofer
        8CFX260Nd Coaxial Woofer
        8CFX260Nd Coaxial Woofer
        8CFX260Nd Coaxial Woofer

        Voor- en nadelen

        Volgens onze specialisten
        • Features a waterproof carbon fiber cone

        Productomschrijving Beyma 8CFX260Nd Coaxial Woofer

        High-performance 8-inch coaxial speaker featuring a waterproof carbon fiber cone and a lightweight neodymium magnet system, designed for compact, high-fidelity single-point source applications.



        Highlights of the Beyma 8CFX260Nd

        • 500 W / 120 W program power handling (LF / HF) with 97 / 103 dB sensitivity
        • Integrated 2.5” woofer and 2.85” compression driver with neodymium magnet
        • Waterproof carbon fiber cone and demodulation ring for low distortion
        • Wide frequency range: 100 – 20,000 Hz with recommended crossover ≥ 1.5 kHz



        Product details Beyma 8CFX260Nd

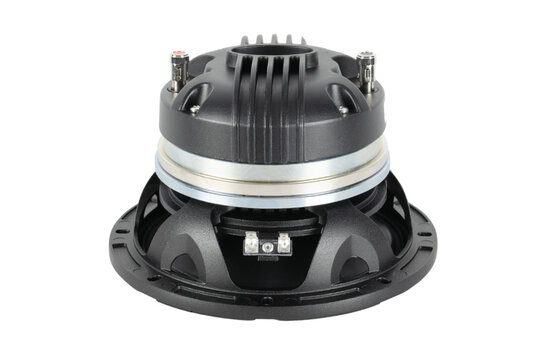

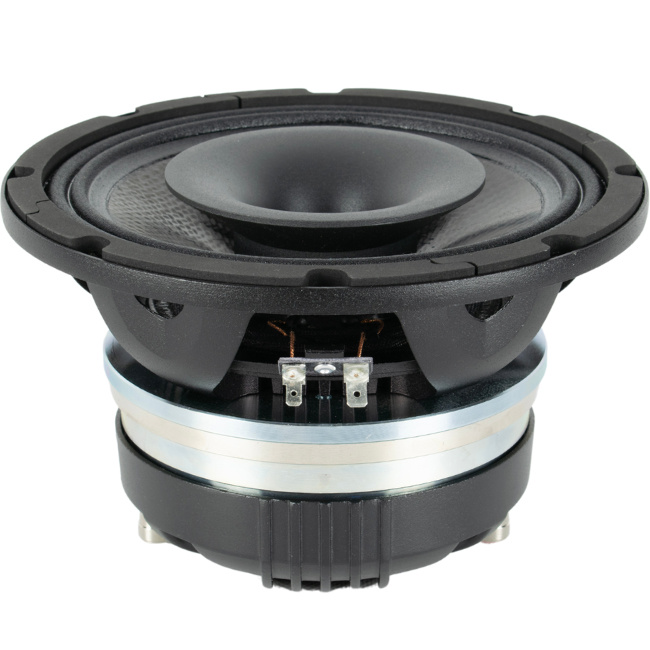

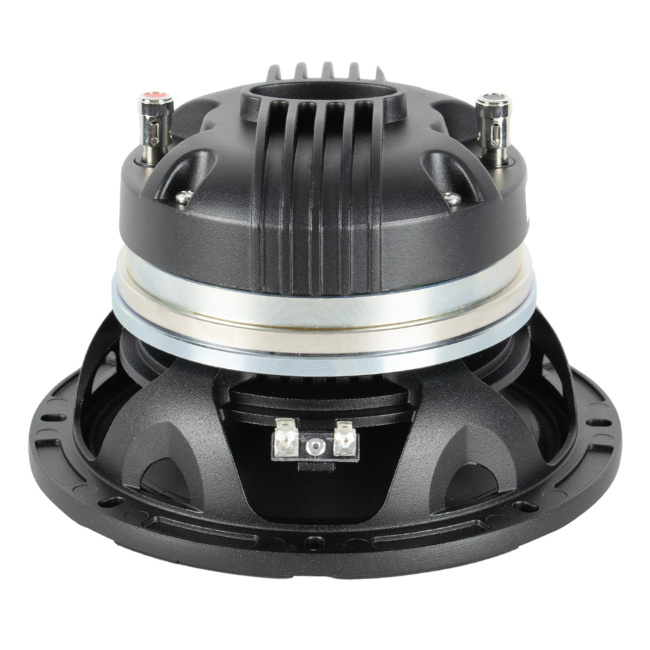

        Beyma 8CFX260Nd Coaxial Transducer



        The Beyma 8CFX260Nd is a premium 8” coaxial transducer that integrates a high-efficiency low-frequency driver and a wide-bandwidth compression driver into a compact, full-range system. It is rated at 250 W AES / 500 W program for the woofer, and 60 W AES / 120 W program for the HF section, with impressive sensitivities of 97 dB and 103 dB respectively. Designed with a lightweight common neodymium magnet circuit and a robust cast aluminum frame, the 8CFX260Nd ensures structural integrity with minimal weight. The waterproof carbon fiber cone enhances environmental resilience while maintaining clarity and transient precision. Its coaxial configuration includes a 2.5” voice coil for the LF and a 2.85” voice coil compression driver, optimized for accurate phase alignment and natural sound integration. A demodulating ring minimizes harmonic distortion and extends linear response, making the driver suitable for studio monitors, home theater systems, houses of worship, cinemas, and small PA applications. Operating over a frequency range of 100 Hz to 20 kHz, with a recommended crossover at 1.5 kHz (minimum 12 dB/oct slope), this transducer excels in point-source designs demanding full-range clarity and controlled dispersion in tight enclosures.

        Toon meer

        Specificaties

        Artikelnummer
        8CFX260Nd
        EAN
        8435469057722
        Woofer type
        Coaxial Transducer
        Nominale diameter
        Woofer 8", Compression driver 2.85"
        Belastbaarheid (RMS)
        500 Watts
        Continuous Program Power
        Woofer 500 Watts, Tweeter 120 Watts
        Impedantie (Z)
        Woofer 8 Ω, Tweeter 8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        Woofer 97 dB, Tweeter 103 dB
        Frequentierespons
        100-20.000 Hz
        Spreekspoeldiameter
        Woofer 2.5”, Compression driver 2.85”
        Gelijkstroomweerstand (Re)
        5.2 Ω
        Spreekspoelinductie (Le)
        0,23 mH
        Resonantiefrequentie (Fs)
        100 Hz
        Mechanische Q (Qms)
        4.8
        Elektrische Q (Qes)
        0.37
        Totale Q (Qts)
        0,35
        Bewegende massa (Mms)
        0,021 kg
        Compliantie van de ophanging (Cms)
        119 µm / N
        Effectief oppervlak (Sd)
        0,022 m²
        Maximaal verplaatst volume (Vd)
        132 cm³
        Krachtsfactor (BL)
        13,5 N/A
        Equivalentvolume (Vas)
        8 Liters
        Maximale excursie (Xmax)
        +/- 6 mm
        Driver's Mechanical Losses (Rms)
        2,7 kg / s
        Cone / Diaphragm Material
        Carbon fiber
        Magneetmateriaal
        Neodymium
        Totale buitendiameter
        212 mm
        Totale diepte
        134 mm
        Montagegatdiameter
        181 mm
        Bolt Circle Diameter
        195 mm
        # Bevestigingsgaten
        8
        Diameter bevestigingsgaten
        5.5 mm

        Toon meer
