        6NMFW Bass-midwoofer

        Beyma 6NMFW Bass-midwoofer

        €269,95

        2 Op voorraad

        Toevoegen aan winkelwagen

        Beyma 6NMFW Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Beyma
        Toon alle Nieuwe producten
        6" | 8 Ω
        6NMFW Bass-midwoofer
        6NMFW Bass-midwoofer
        6NMFW Bass-midwoofer
        6NMFW Bass-midwoofer
        € 223,10€ 269,95 2 Op voorraad
        • -5% Bestel 4 voor slechts € 256,45 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        6NMFW Bass-midwoofer
        6NMFW Bass-midwoofer
        6NMFW Bass-midwoofer
        6NMFW Bass-midwoofer

        Voor- en nadelen

        Volgens onze specialisten
        • Weatherproof paper cone with rubber surround
        • Designed for for small / compact designs

        Productomschrijving Beyma 6NMFW Bass-midwoofer

        High-performance 6.5-inch low-frequency transducer with advanced cooling, extended excursion, and premium carbon fiber cone for demanding professional audio applications.



        Highlights of the Beyma 6NMFW

        • 200 W AES / 400 W program power handling with peak capacity of 600 W
        • ±9 mm Xmax and 43 mm peak-to-peak excursion for extended displacement
        • Malt Cross® Technology Cooling System ensures low power compression
        • Carbon fiber cone and dustcap with FEA-optimized ceramic magnet system



        Product details Beyma 6NMFW

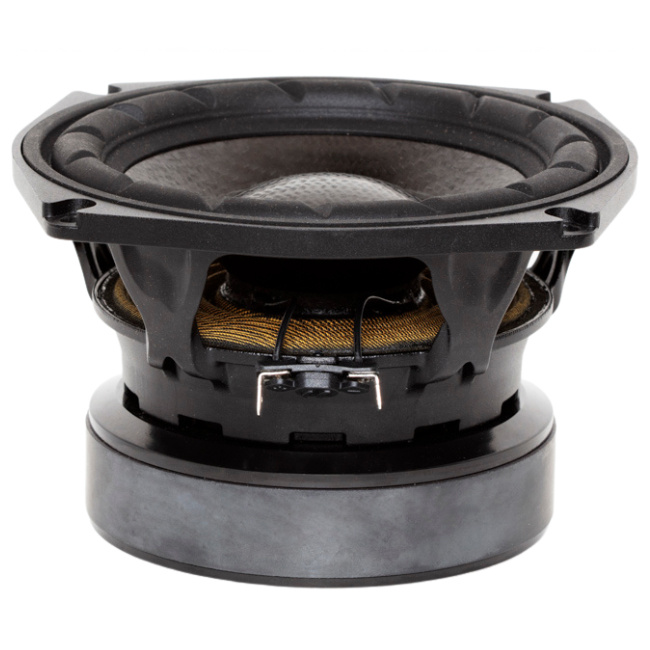

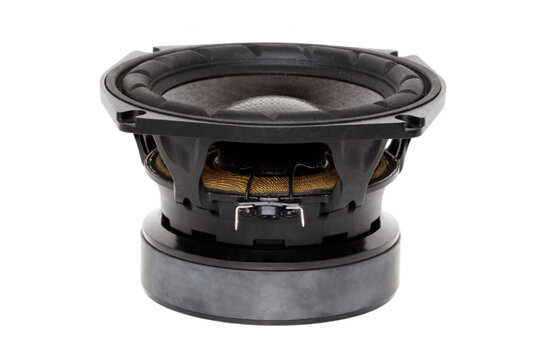

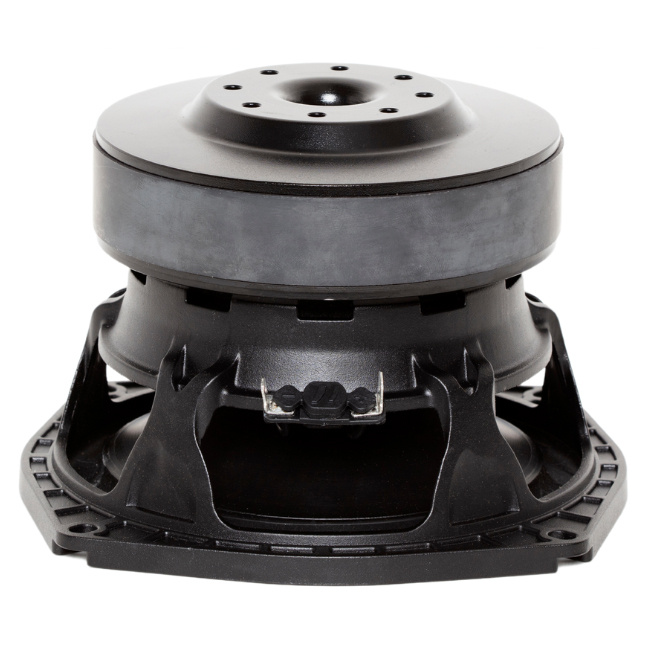

        Beyma 6NMFW Low Frequency Transducer



        The Beyma 6NMFW is a premium 6.5” low-frequency transducer tailored for high-performance professional sound systems. Rated at 200 W AES and 400 W program power—with a peak handling of 600 W—it delivers solid output with low distortion across a frequency range of 35 Hz to 3,000 Hz. A core highlight is the incorporation of Beyma’s exclusive Malt Cross® Technology Cooling System, which significantly reduces power compression and enhances heat dissipation. The driver features a robust 2” QUATTRO in/out aluminum voice coil and a carbon fiber cone and dustcap for improved structural integrity and low coloration. This transducer offers an exceptional ±9 mm Xmax and an extended 43 mm peak-to-peak excursion before damage, allowing it to handle deep bass with precision and headroom. It includes a double BIMAX spider and NBR surround for enhanced linearity, along with a triple demodulating circuit for reduced distortion and greater clarity. Engineered with an FEA-optimized ceramic magnetic circuit, the 6NMFW is ideal for use in compact subwoofer or low-frequency reinforcement applications where high force factor and low air noise are critical. Its mechanical precision and thermal reliability make it an optimal choice for demanding audio system builders.

        Toon meer

        Specificaties

        Artikelnummer
        6NMFW
        EAN
        8435469041097
        Woofer type
        Low Frequency Transducer
        Belastbaarheid (RMS)
        400 Watts
        Continuous Program Power
        400 Watts
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        93 dB
        Frequentierespons
        60-9.000 Hz
        Spreekspoeldiameter
        2"
        Gelijkstroomweerstand (Re)
        4.9 Ω
        Spreekspoelinductie (Le)
        0.3 mH
        Resonantiefrequentie (Fs)
        58 Hz
        Mechanische Q (Qms)
        4.6
        Elektrische Q (Qes)
        0.27
        Totale Q (Qts)
        0.26
        Bewegende massa (Mms)
        0,017 kg
        Compliantie van de ophanging (Cms)
        429 µm / N
        Effectief oppervlak (Sd)
        0,0135 m²
        Maximaal verplaatst volume (Vd)
        68 cm³
        Krachtsfactor (BL)
        10,5 N/A
        Equivalentvolume (Vas)
        11.1 Liters
        Maximale excursie (Xmax)
        +/- 5 mm
        Driver's Mechanical Losses (Rms)
        1,4 kg / s
        Totale buitendiameter
        187.5 mm
        Totale diepte
        87 mm
        Montagegatdiameter
        145.3 mm
        Bolt Circle Diameter
        172 mm
        # Bevestigingsgaten
        4
        Diameter bevestigingsgaten
        5.3 mm

        Toon meer
