        18QLEX1600Fe Subwoofer

        Beyma 18QLEX1600Fe Subwoofer

        €359,95

        8 Op voorraad

        Toevoegen aan winkelwagen

        Beyma 18QLEX1600Fe Subwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Beyma
        Toon alle Nieuwe producten
        18" | 8 Ω
        18QLEX1600Fe Subwoofer
        18QLEX1600Fe Subwoofer
        18QLEX1600Fe Subwoofer
        18QLEX1600Fe Subwoofer
        € 297,48€ 359,95 8 Op voorraad
        • -5% Bestel 4 voor slechts € 341,95 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        18QLEX1600Fe Subwoofer
        18QLEX1600Fe Subwoofer
        18QLEX1600Fe Subwoofer
        18QLEX1600Fe Subwoofer

        Voor- en nadelen

        Volgens onze specialisten
        • Weatherproof cone with treatment for both sides of the cone
        • High power handling: 2.400 W program power

        Productomschrijving Beyma 18QLEX1600Fe Subwoofer

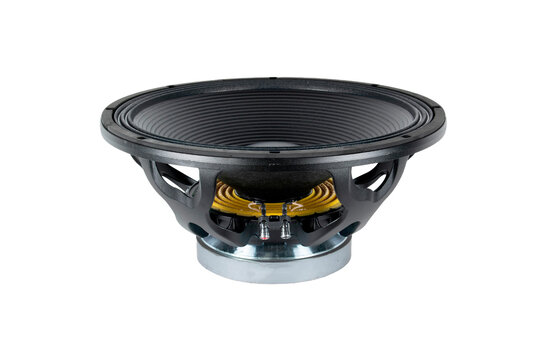

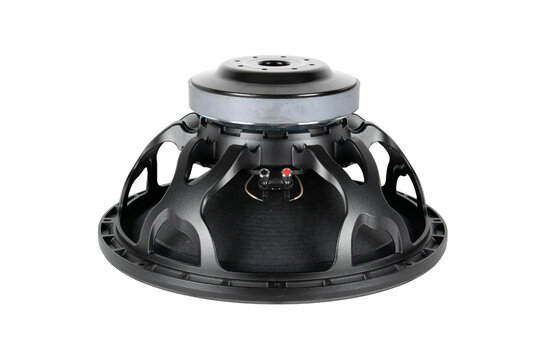

        The Beyma 18QLEX1600Fe is a high-performance 18" ceramic magnet subwoofer engineered for advanced low-frequency applications. With top-tier power handling, precise linear control, and rugged construction, it is perfectly suited for high-SPL professional audio systems and demanding subwoofer designs.



        Highlights of the Beyma 18QLEX1600Fe Subwoofer

        • 1,600W AES power handling and 3,200W program power with 97 dB sensitivity
        • Advanced 4” QUATTRO in/out copper voice coil and exclusive NCR membrane
        • FEA-optimized ceramic magnetic structure and aluminium demodulating ring
        • Exclusive Malt Cross® cooling system and weatherproof dual-treated cone



        Product details Beyma 18QLEX1600Fe Subwoofer

        Beyma 18QLEX1600Fe Low Frequency Transducer



        The Beyma 18QLEX1600Fe is a premium 18” low-frequency transducer built to handle extreme performance requirements with low distortion and high efficiency. It delivers a massive 1,600W AES continuous power and up to 3,200W program power, while maintaining excellent sensitivity at 97 dB (1W/1m). Designed with a high Bl factor (36.4 N/A), this driver ensures strong motor control and superior transient response.

        Featuring a robust 4” QUATTRO in/out copper voice coil, the 18QLEX1600Fe uses Beyma’s exclusive Neck Coupling Reinforcement (NCR) membrane and a double silicone spider for enhanced mechanical integrity and excursion control. The extended linear excursion (Xmax ±13 mm) and 60 mm peak-to-peak mechanical limit enable deep, undistorted bass at high SPLs.

        Thermal management is optimized with Beyma’s patented Malt Cross® cooling system, minimizing power compression even under long-duration loads. The FEA-designed ceramic magnetic circuit and integrated aluminium demodulating ring work together to reduce distortion and air noise. The weather-resistant cone, treated on both sides, and recommended bass-reflex tuning (Fb = 39 Hz, Vb = 125 L) make this subwoofer a durable and versatile choice for both indoor and outdoor sound systems.

        Toon meer

        Specificaties

        Artikelnummer
        18QLEX1600Fe
        EAN
        8435469044265
        Woofer series
        Beyma QLEX series
        Woofer type
        Subwoofer
        Nominale diameter
        18"
        Belastbaarheid (RMS)
        1600 Watts
        Continuous Program Power
        3.200 Watts
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        97 dB
        Frequentierespons
        30-1.000 Hz
        Spreekspoeldiameter
        101.6 mm
        Gelijkstroomweerstand (Re)
        5.2 Ω
        Spreekspoelinductie (Le)
        1.75 mH
        Resonantiefrequentie (Fs)
        33 Hz
        Mechanische Q (Qms)
        10,5
        Elektrische Q (Qes)
        0.33
        Totale Q (Qts)
        0.32
        Bewegende massa (Mms)
        0,323 kg
        Compliantie van de ophanging (Cms)
        88 µm / N
        Effectief oppervlak (Sd)
        0,1255 m²
        Maximaal verplaatst volume (Vd)
        1631 cm³
        Krachtsfactor (BL)
        36.4 N/A
        Equivalentvolume (Vas)
        195 Liters
        Maximale excursie (Xmax)
        +/- 13 mm
        Driver's Mechanical Losses (Rms)
        9,3 kg / s
        Spreekspoel vormermateriaal
        Copper
        Dual Voice Coil
        QUATTRO in/out copper voice coil
        Totale buitendiameter
        462 mm
        Totale diepte
        233 mm
        Montagegatdiameter
        415 mm
        Bolt Circle Diameter
        440 mm
        # Bevestigingsgaten
        8
        Diameter bevestigingsgaten
        7.0 mm
