        18LEX1200Nd Subwoofer

        Beyma 18LEX1200Nd Subwoofer

        €329,95

        2 Op voorraad

        Toevoegen aan winkelwagen

        Beyma 18LEX1200Nd Subwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Beyma
        Toon alle Nieuwe producten
        18" | 8 Ω
        18LEX1200Nd Subwoofer
        18LEX1200Nd Subwoofer
        18LEX1200Nd Subwoofer
        18LEX1200Nd Subwoofer
        € 272,69€ 329,95 2 Op voorraad
        • -5% Bestel 4 voor slechts € 313,45 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        18LEX1200Nd Subwoofer
        18LEX1200Nd Subwoofer
        18LEX1200Nd Subwoofer
        18LEX1200Nd Subwoofer

        Productomschrijving Beyma 18LEX1200Nd Subwoofer

        The Beyma 18LEX1200Nd is a professional-grade 18" neodymium subwoofer engineered for high-performance low-frequency reproduction. With advanced cooling technologies and rugged build quality, it is ideal for demanding applications in high SPL environments such as professional sound reinforcement systems and high-end DIY projects.



        Highlights of the Beyma 18LEX1200Nd Subwoofer

        • Power handling of 1200W AES and 2400W program power with 98 dB sensitivity
        • Exclusive Malt Cross® cooling system for lower power compression and improved thermal management
        • 4” DUO double layer copper voice coil with double silicone spider for extended linear excursion
        • FEA-optimized neodymium magnet structure and weatherproof cone design



        Product details Beyma 18LEX1200Nd Subwoofer

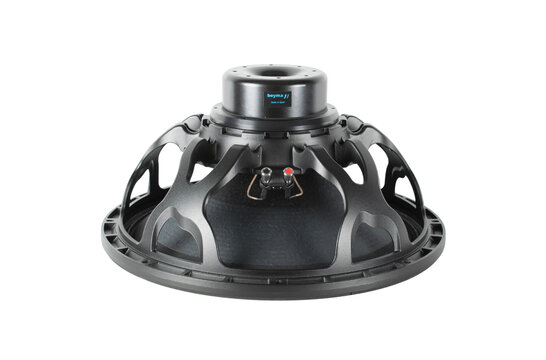

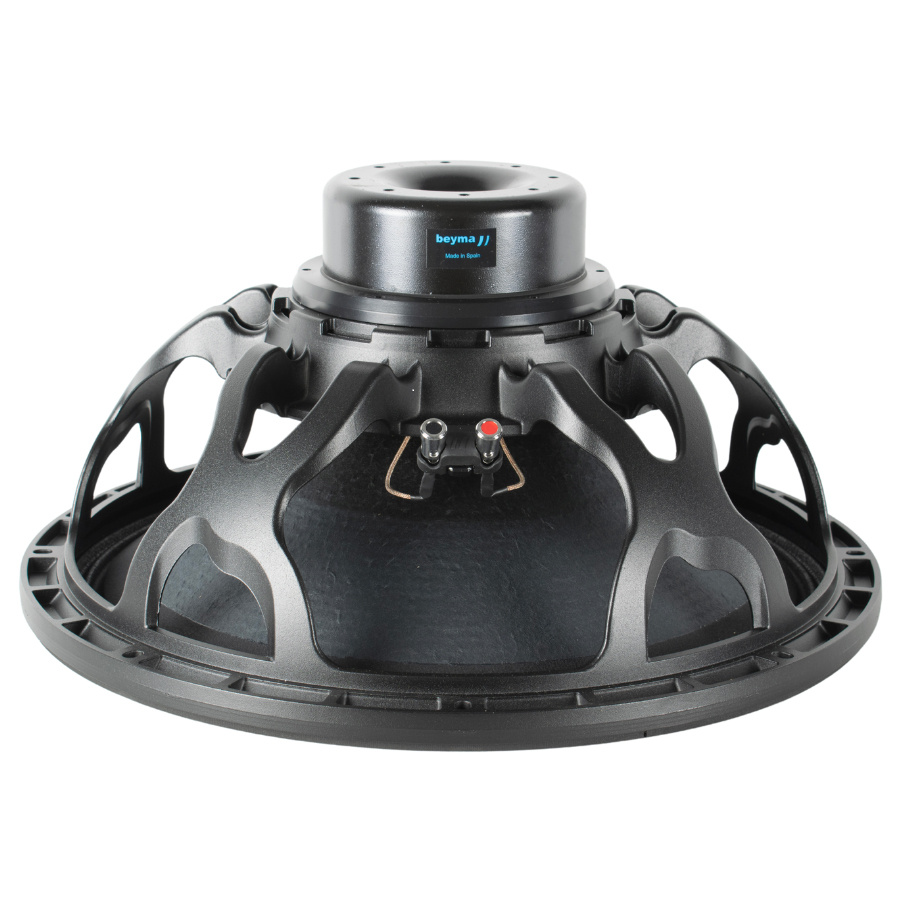

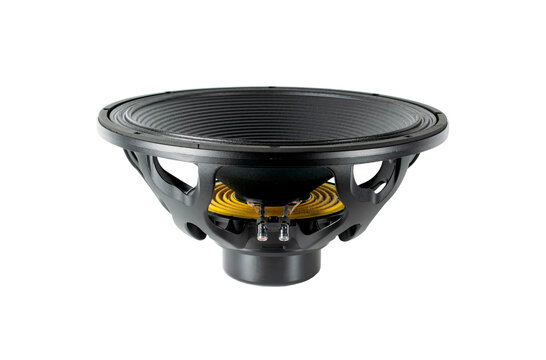

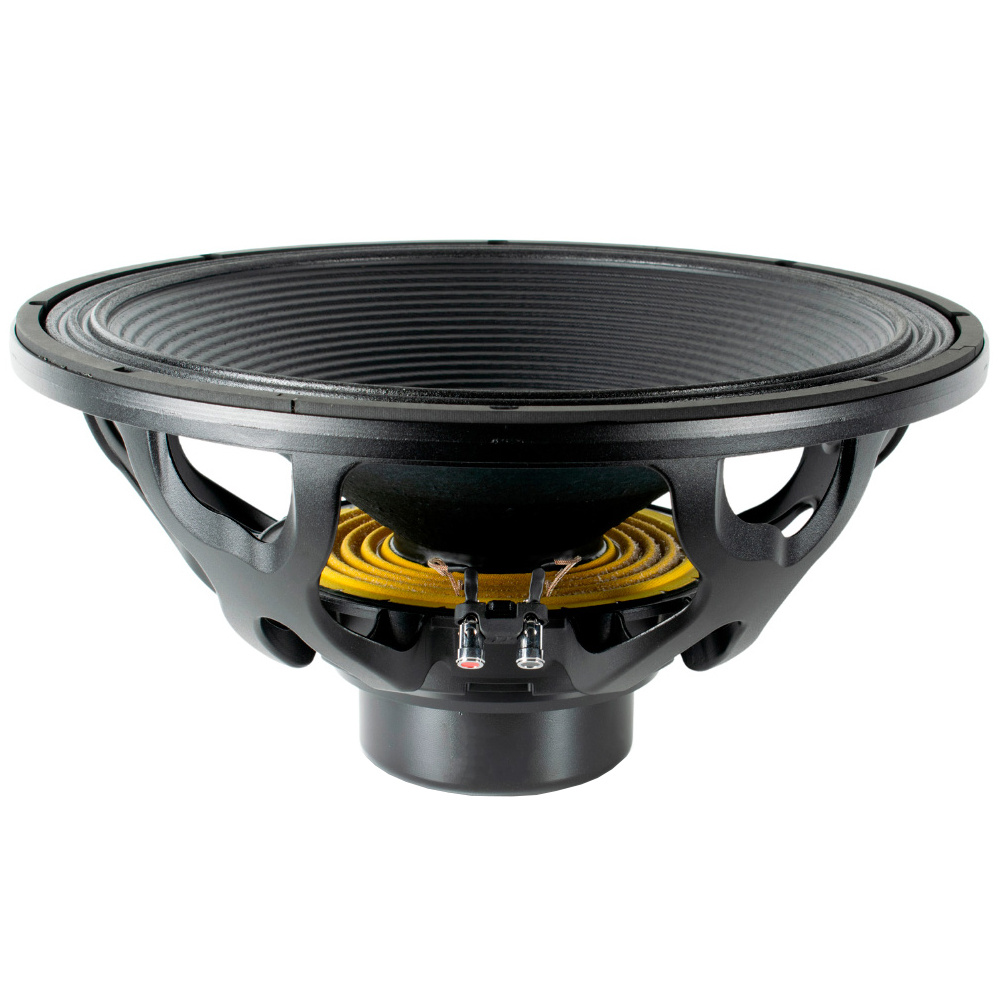

        Beyma 18LEX1200Nd Low Frequency Transducer



        The Beyma 18LEX1200Nd is a premium low-frequency transducer designed to deliver powerful, low-distortion bass with exceptional control and durability. Built around a lightweight yet strong neodymium motor structure, the driver achieves high efficiency with a sensitivity of 98 dB (1W/1m). It supports a continuous AES power rating of 1200 watts and a program power capacity of 2400 watts, making it suitable for high-powered subwoofer systems.

        This driver features a 4" DUO double-layer voice coil wound in and out on a high-temperature copper former, which ensures excellent thermal stability and mechanical reliability. A double silicone spider and extended Xmax of ±11 mm contribute to its precise and linear behavior over large excursions. The 48 mm peak-to-peak mechanical excursion capacity allows it to handle massive dynamic peaks without damage.

        The 18LEX1200Nd incorporates Beyma’s patented Malt Cross® cooling system, which minimizes power compression and keeps performance stable even under continuous heavy loads. Additional design enhancements include an aluminum demodulating ring to reduce distortion and a weatherproof cone treated on both sides for outdoor or adverse conditions. With an optimized frequency range of 40–1000 Hz and resonance frequency of 36 Hz, this subwoofer is ideal for both direct radiation and band-pass configurations.

        Toon meer

        Specificaties

        Artikelnummer
        18LEX1200Nd
        EAN
        8435469057708
        Woofer series
        Beyma LEX series
        Woofer type
        subwoofer
        Nominale diameter
        18"
        Belastbaarheid (RMS)
        1200 Watts
        Belastbaarheid (max)
        2400 W
        Impedantie (Z)
        8 Ohm
        Gevoeligheid (SPL bij 1m / 2.83V)
        98 dB
        Frequentierespons
        40-1000 Hz
        Spreekspoeldiameter
        101.6 mm
        Gelijkstroomweerstand (Re)
        5.3 ohm
        Spreekspoelinductie (Le)
        1.7 mH
        Resonantiefrequentie (Fs)
        36 Hz
        Mechanische Q (Qms)
        10.9
        Elektrische Q (Qes)
        0.35
        Totale Q (Qts)
        0.33
        Bewegende massa (Mms)
        200g
        Compliantie van de ophanging (Cms)
        0.1 mm / N
        Effectief oppervlak (Sd)
        1255 cm²
        Maximaal verplaatst volume (Vd)
        1.3 l
        Krachtsfactor (BL)
        26.4 N/A
        Equivalentvolume (Vas)
        219 l
        Maximale excursie (Xmax)
        11 mm
        Driver's Mechanical Losses (Rms)
        4.1 kg / s
        Dual Voice Coil
        Magneetmateriaal
        Neodymium
        Totale buitendiameter
        462 mm
        Totale diepte
        225 mm
        Montagegatdiameter
        415 mm
        Bolt Circle Diameter
        440 mm
