        15P80Nd Bass-midwoofer

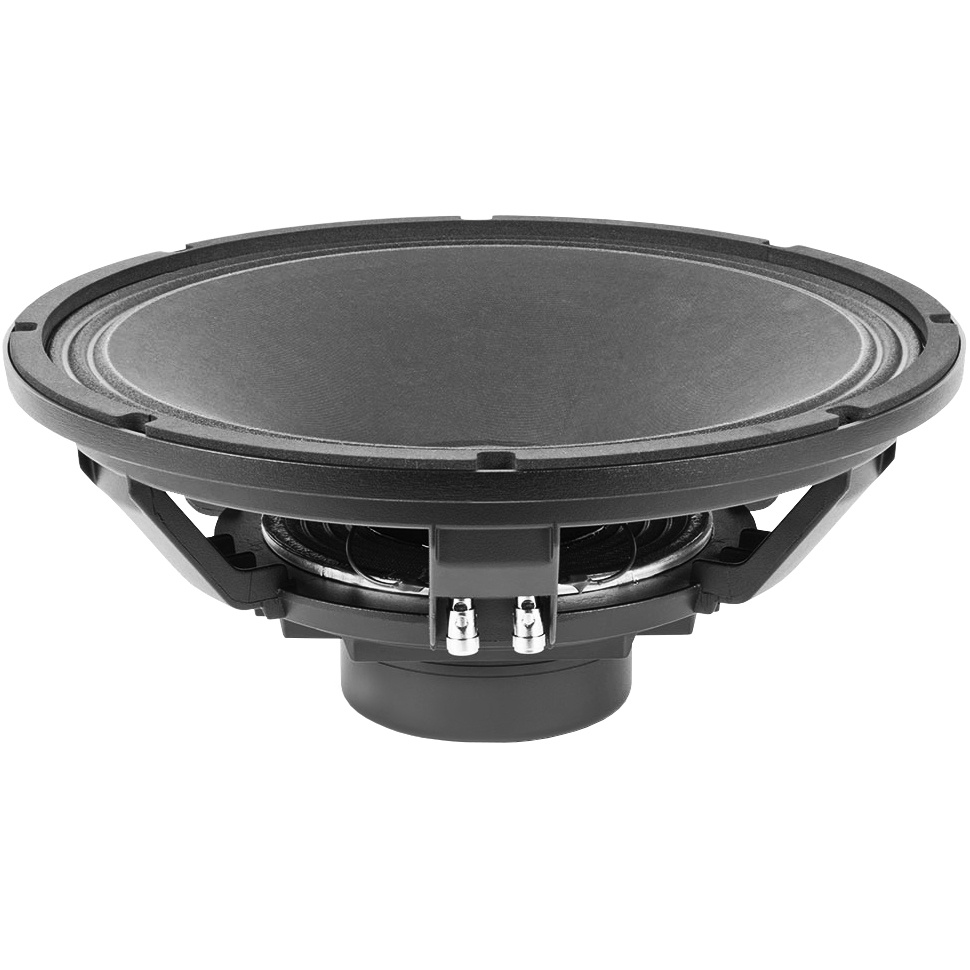

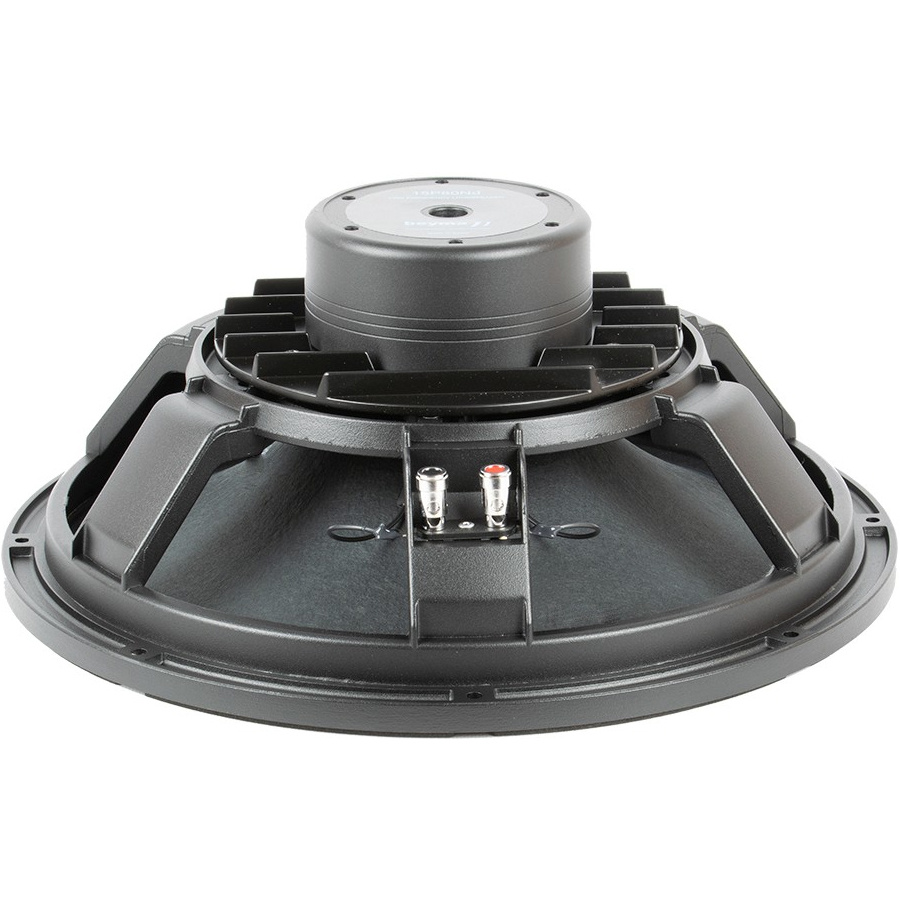

        Beyma 15P80Nd Bass-midwoofer

        €379,95

        4 verwacht op 02-01-2026

        Toevoegen aan winkelwagen

        Beyma 15P80Nd Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Beyma
        Toon alle Nieuwe producten
        15" | 8 Ω
        15P80Nd Bass-midwoofer
        15P80Nd Bass-midwoofer
        15P80Nd Bass-midwoofer
        15P80Nd Bass-midwoofer
        € 314,01€ 379,95 Niet op voorraad4 verwacht op 02-01-2026
        • -5% Bestel 4 voor slechts € 360,95 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Snel weer op voorraad
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        15P80Nd Bass-midwoofer
        15P80Nd Bass-midwoofer
        15P80Nd Bass-midwoofer
        15P80Nd Bass-midwoofer

        Voor- en nadelen

        Volgens onze specialisten
        • Weatherproof cone with treatment for both sides
        • 1.600 W program power

        Productomschrijving Beyma 15P80Nd Bass-midwoofer

        The Beyma 15P80Nd is a high-efficiency 15” neodymium low-frequency transducer designed for professional sound systems requiring excellent sensitivity and dynamic performance. Compact and powerful, it delivers clean, impactful bass across a wide frequency range.



        Highlights of the Beyma 15P80Nd Subwoofer

        • 800W AES and 1,600W program power handling with outstanding 101 dB sensitivity
        • 4” DUO double-layer copper voice coil with ±7.5 mm linear Xmax
        • FEA-optimized neodymium magnet and forced air convection cooling
        • Weatherproof cone, CONEX spider, and 52 mm peak-to-peak excursion limit



        Product details Beyma 15P80Nd Subwoofer

        Beyma 15P80Nd Low Frequency Transducer



        The Beyma 15P80Nd is a lightweight yet robust 15” subwoofer built for high-output, wide-range low-frequency applications. It offers 800W AES-rated power handling and 1,600W program power, delivering tight, responsive bass with remarkable 101 dB sensitivity (1W/1m). Designed for maximum SPL and efficiency, this driver is ideal for compact bass-reflex systems and multi-purpose full-range speaker enclosures.

        The motor system uses a neodymium magnet optimized via FEA (finite element analysis) to ensure low distortion and high magnetic performance. A 4” DUO in/out copper voice coil provides excellent thermal dissipation and power control, supported by forced air convection to minimize power compression. With a moving mass of just 0.098 kg and a Bl factor of 23.8 N/A, it offers fast transient response and dynamic low-end.

        The weatherproof cone—treated on both sides—along with the durable CONEX spider supports long-lasting performance even under intensive conditions. The driver achieves ±7.5 mm linear excursion (Xmax) and a 52 mm mechanical excursion limit, making it suitable for subwoofer applications with deep excursion demands. Recommended for enclosures around 75 liters tuned to 59 Hz, the 15P80Nd performs well in systems requiring both depth and punch.

        Toon meer

        Specificaties

        Artikelnummer
        15P80Nd
        EAN
        8435469043824
        Woofer type
        Low Frequency Transducer
        Nominale diameter
        15"
        Belastbaarheid (RMS)
        800 Watts
        Continuous Program Power
        1.600 watts
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        101 dB
        Frequentierespons
        40-4.000 Hz
        Spreekspoeldiameter
        4"
        Gelijkstroomweerstand (Re)
        5.1 Ω
        Spreekspoelinductie (Le)
        0.8 mH
        Resonantiefrequentie (Fs)
        39 Hz
        Mechanische Q (Qms)
        5.1
        Elektrische Q (Qes)
        0.22
        Totale Q (Qts)
        0.21
        Bewegende massa (Mms)
        0,098 kg
        Compliantie van de ophanging (Cms)
        168 µm / N
        Effectief oppervlak (Sd)
        0,088 m²
        Maximaal verplaatst volume (Vd)
        660 cm³
        Krachtsfactor (BL)
        23,8 N/A
        Equivalentvolume (Vas)
        184 Liters
        Maximale excursie (Xmax)
        +/- 7.5 mm
        Driver's Mechanical Losses (Rms)
        4,7 kg / s
        Dual Voice Coil
        DUO double layer in/out voice coil
        Magneetmateriaal
        Neodymium
        Totale buitendiameter
        388 mm
        Totale diepte
        161 mm
        Montagegatdiameter
        352 mm
        Bolt Circle Diameter
        370 mm
        # Bevestigingsgaten
        8
        Diameter bevestigingsgaten
        6.5 mm

        Toon meer
