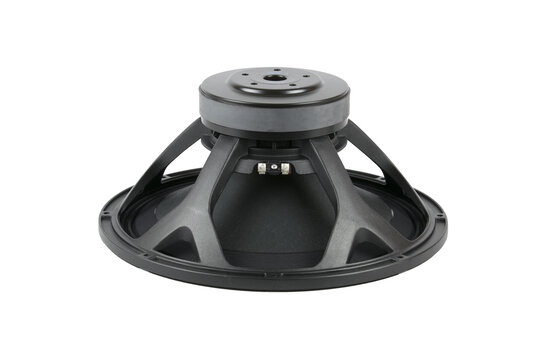

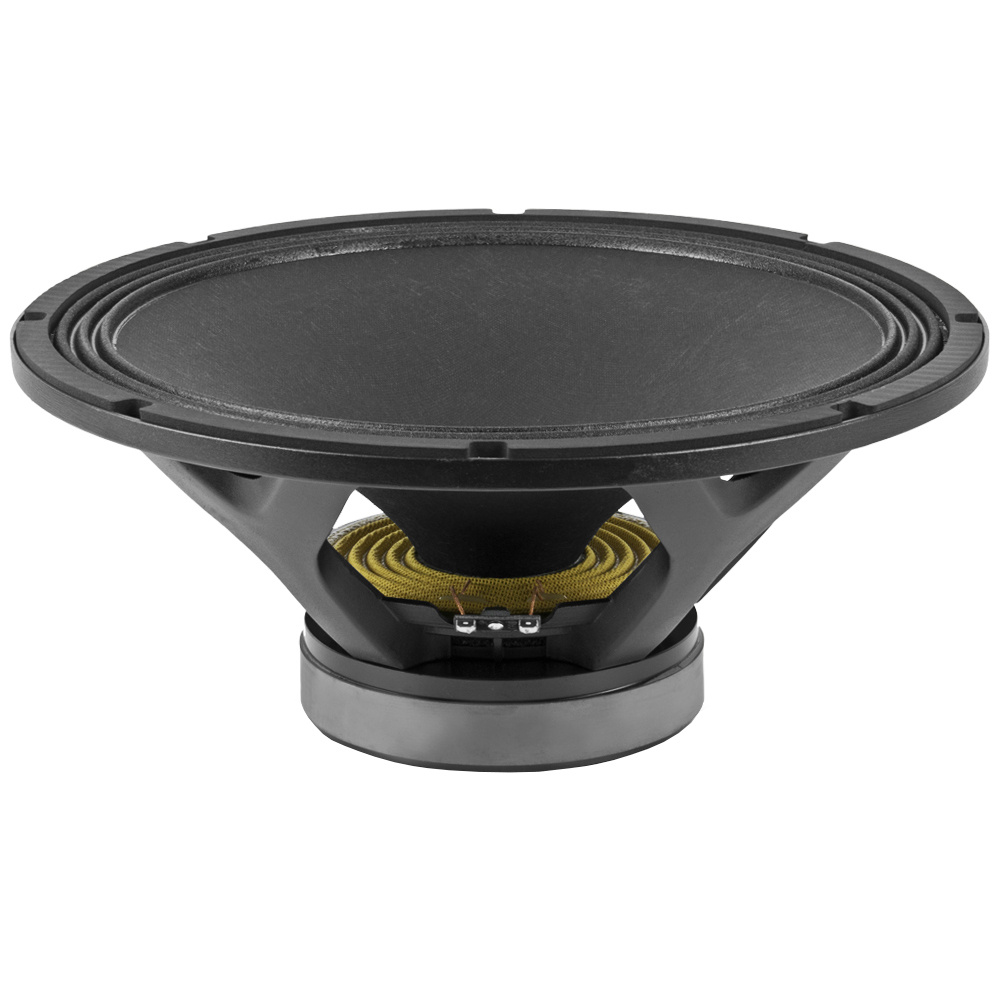

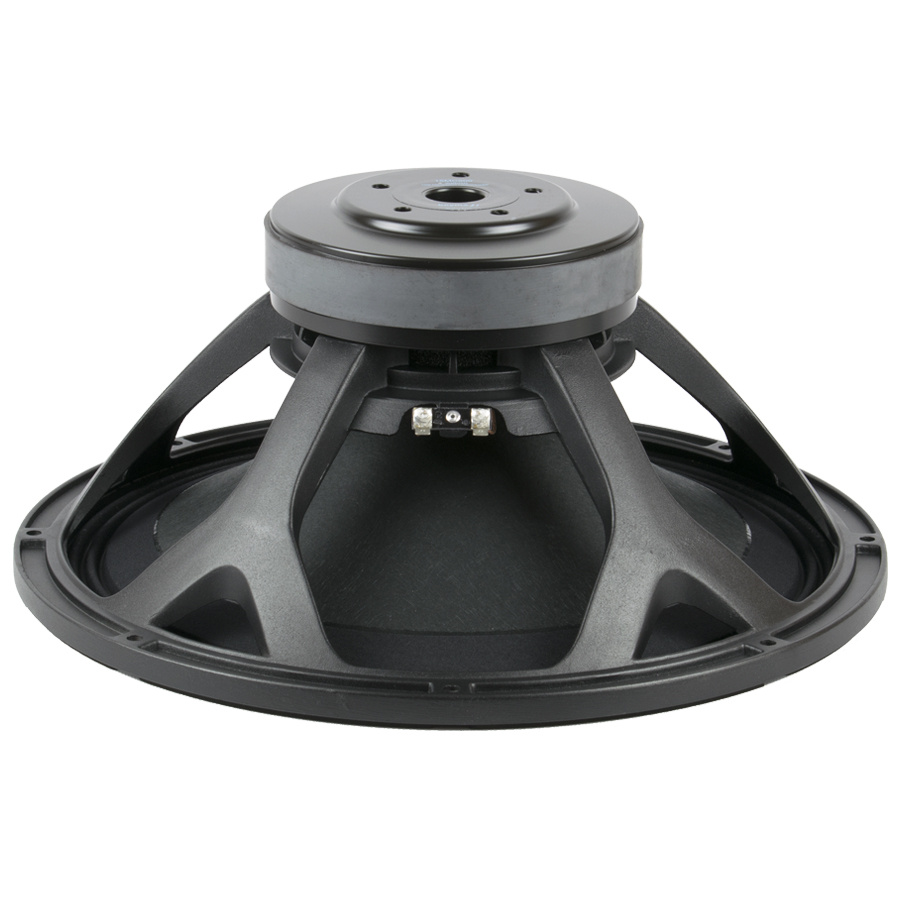

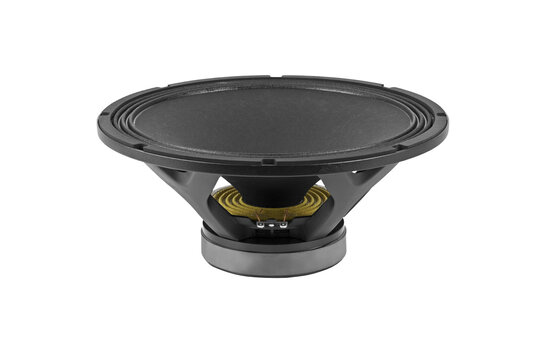

        15MC500 Bass-midwoofer

        Beyma 15MC500 Bass-midwoofer

        €209,95

        4 verwacht op 02-01-2026

        Toevoegen aan winkelwagen

        Beyma 15MC500 Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Beyma
        Toon alle Nieuwe producten
        15" | 8 Ω
        15MC500 Bass-midwoofer
        15MC500 Bass-midwoofer
        15MC500 Bass-midwoofer
        15MC500 Bass-midwoofer
        € 173,51€ 209,95 Niet op voorraad4 verwacht op 02-01-2026
        • -5% Bestel 4 voor slechts € 199,45 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Snel weer op voorraad
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        15MC500 Bass-midwoofer
        15MC500 Bass-midwoofer
        15MC500 Bass-midwoofer
        15MC500 Bass-midwoofer

        Voor- en nadelen

        Volgens onze specialisten
        • Weatherproof cone treatment for both sides of the cone
        • Optimized for 2 or 3 way PA systems and line array for utlimate professional applications

        Productomschrijving Beyma 15MC500 Bass-midwoofer

        High-performance 15" professional transducer designed for low and mid-frequency applications, the Beyma 15MC500 delivers exceptional power handling, low distortion, and rugged reliability for advanced PA systems and line arrays.



        Highlights of the Beyma 15MC500

        • Rated power handling of 500W AES / 1000W program power
        • 98 dB sensitivity and extended frequency range from 50 Hz to 4,000 Hz
        • 2.5” copper voice coil with Malt Cross® Cooling System for enhanced thermal performance
        • Optimized for professional PA and line array systems with weatherproof cone treatment



        Product details Beyma 15MC500

        Beyma 15MC500 Low & Mid Frequency Transducer



        The Beyma 15MC500 is a 15-inch professional transducer engineered to deliver high-output low and mid-frequency reproduction. With a power handling of 500W AES and 1000W program power, it is built for demanding sound reinforcement applications. Featuring a 2.5” copper voice coil and Beyma’s proprietary Malt Cross® Cooling System, the driver maintains low thermal compression and ensures high efficiency over extended use. Its FEA-optimized magnetic circuit incorporates an aluminum demodulating ring, reducing distortion and improving transient response. The unit offers a sensitivity of 98 dB (1W/1m) and operates effectively in the 50 Hz to 4,000 Hz range, making it suitable for both 2-way and 3-way PA systems. Designed with a weatherproof treated cone on both sides, the 15MC500 ensures durability in various environments. Its mechanical architecture supports an extended excursion of ±8 mm and a peak-to-peak excursion of 40 mm, providing robust performance under extreme conditions. Weighing 6.2 kg and with a compact 172 mm depth, it also supports efficient system integration.

        Toon meer

        Specificaties

        Artikelnummer
        15MC500
        EAN
        8435469043688
        Woofer type
        Low & Mid Frequency Transducer
        Nominale diameter
        15"
        Belastbaarheid (RMS)
        500 Watts
        Continuous Program Power
        1.000 Watts
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        98 dB
        Frequentierespons
        50-4.000 Hz
        Spreekspoeldiameter
        2.5"
        Gelijkstroomweerstand (Re)
        5.6 Ω
        Spreekspoelinductie (Le)
        1.1 mH
        Resonantiefrequentie (Fs)
        46 Hz
        Mechanische Q (Qms)
        7.8
        Elektrische Q (Qes)
        0.47
        Totale Q (Qts)
        0.45
        Bewegende massa (Mms)
        0,098 kg
        Compliantie van de ophanging (Cms)
        122 µm / N
        Effectief oppervlak (Sd)
        0,088 m²
        Maximaal verplaatst volume (Vd)
        704 cm³
        Krachtsfactor (BL)
        18,3 N/A
        Equivalentvolume (Vas)
        134 Liters
        Maximale excursie (Xmax)
        +/- 8 mm
        Driver's Mechanical Losses (Rms)
        3,6 kg / s
        Spreekspoel draadmateriaal
        Copper
        Magneetmateriaal
        FEA optimized magnetic circuit
        Totale buitendiameter
        388 mm
        Totale diepte
        172 mm
        Montagegatdiameter
        349.5 mm
        Bolt Circle Diameter
        370 mm
        # Bevestigingsgaten
        8
        Diameter bevestigingsgaten
        6.5 mm

        Toon meer
