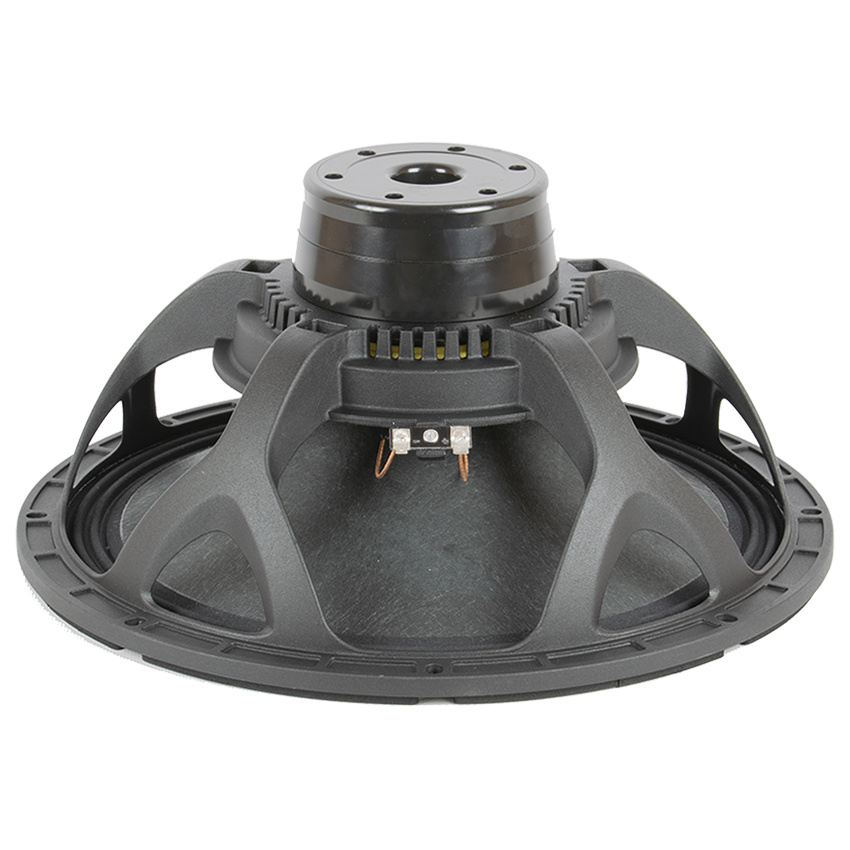

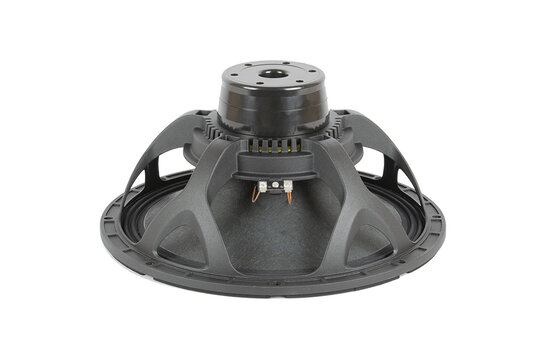

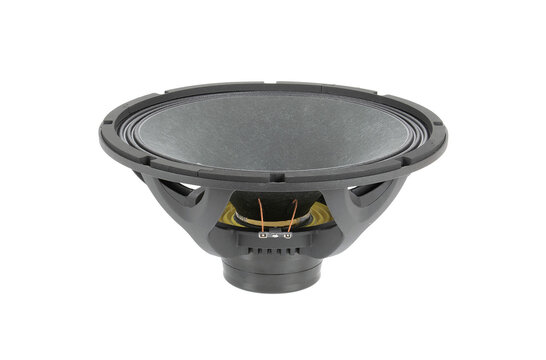

        14MC700Nd Bass-midwoofer

        Beyma 14MC700Nd Bass-midwoofer

        €269,95

        2 Op voorraad

        Toevoegen aan winkelwagen

        Beyma 14MC700Nd Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Beyma
        Toon alle Nieuwe producten
        14" | 8 Ω
        14MC700Nd Bass-midwoofer
        14MC700Nd Bass-midwoofer
        14MC700Nd Bass-midwoofer
        14MC700Nd Bass-midwoofer
        € 223,10€ 269,95 2 Op voorraad
        • -5% Bestel 4 voor slechts € 256,45 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        14MC700Nd Bass-midwoofer
        14MC700Nd Bass-midwoofer
        14MC700Nd Bass-midwoofer
        14MC700Nd Bass-midwoofer

        Voor- en nadelen

        Volgens onze specialisten
        • Waterproof cone with treatment for both sides
        • Optimized for bass or mid-bass high performance audio systems

        Productomschrijving Beyma 14MC700Nd Bass-midwoofer

        The Beyma 14MC700Nd is a powerful and lightweight 14” transducer built for precise low and mid-frequency performance. Equipped with a 3” DUO voice coil and neodymium magnet, it delivers high output with low power compression, making it ideal for high-performance audio systems.



        Highlights of the Beyma 14MC700Nd

        • 700 W AES / 1,400 W program power with 99 dB sensitivity
        • 3” DUO double-layer copper in/out voice coil with Malt Cross® cooling
        • Waterproof cone and neodymium magnetic structure for reliable outdoor use
        • Lightweight build with 4 kg net weight and compact 166 mm depth



        Product details Beyma 14MC700Nd

        Beyma 14MC700Nd Low & Mid Frequency Transducer



        The Beyma 14MC700Nd is a 14-inch low and mid-frequency transducer from the MC Series, tailored for professional audio systems requiring a high-efficiency and lightweight solution. Featuring a 3” DUO double-layer in/out copper voice coil and neodymium motor structure, it offers a remarkable sensitivity of 99 dB (1W/1m) and power handling of 700 W AES (1,400 W program). It integrates Beyma’s exclusive Malt Cross® Cooling System, which ensures reduced power compression and excellent thermal management during prolonged operation. The waterproof-treated cone and aluminum demodulating ring contribute to its durability and distortion reduction, making it suitable for both indoor and outdoor applications. With a resonant frequency of 51 Hz, an extended Xmax of ±7 mm, and a recommended bass-reflex enclosure volume of 55 liters (Fb = 60 Hz), the 14MC700Nd provides controlled excursion and optimized low-frequency behavior. The total weight of only 4 kg and shallow mounting depth (166 mm) allow easy integration into high-performance, compact loudspeaker enclosures.

        Toon meer

        Specificaties

        Artikelnummer
        14MC700Nd
        EAN
        8435469043428
        Woofer type
        Low and Mid Frequency Transducer
        Nominale diameter
        14"
        Belastbaarheid (RMS)
        700 Watts
        Continuous Program Power
        1.400 Watts
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        99 dB
        Frequentierespons
        55-4.000 Hz
        Spreekspoeldiameter
        3"
        Gelijkstroomweerstand (Re)
        5.3 Ω
        Spreekspoelinductie (Le)
        1 mH
        Resonantiefrequentie (Fs)
        51 Hz
        Mechanische Q (Qms)
        3.3
        Elektrische Q (Qes)
        0.30
        Totale Q (Qts)
        0.28
        Bewegende massa (Mms)
        0,086 kg
        Compliantie van de ophanging (Cms)
        110 µm / N
        Effectief oppervlak (Sd)
        0,070 m²
        Maximaal verplaatst volume (Vd)
        490 cm³
        Krachtsfactor (BL)
        22 N/A
        Equivalentvolume (Vas)
        78 Liters
        Maximale excursie (Xmax)
        +/- 7 mm
        Driver's Mechanical Losses (Rms)
        8,3 kg / s
        Dual Voice Coil
        DUO double layer in/out copper voice coil
        Magneetmateriaal
        Neodymium
        Totale buitendiameter
        359 mm
        Totale diepte
        166 mm
        Montagegatdiameter
        323 mm
        Bolt Circle Diameter
        342 mm
        # Bevestigingsgaten
        8
        Diameter bevestigingsgaten
        6.50 mm

        Toon meer
