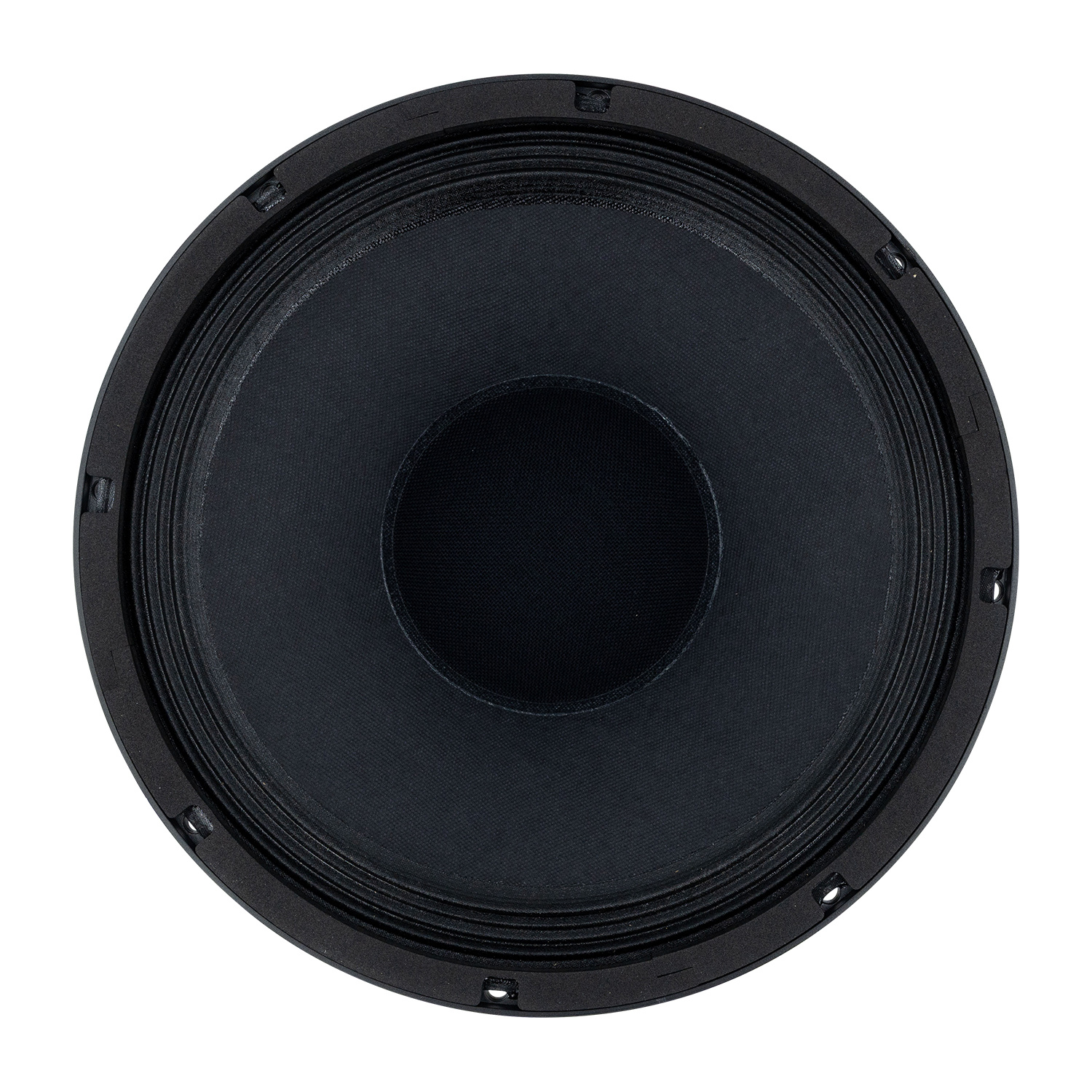

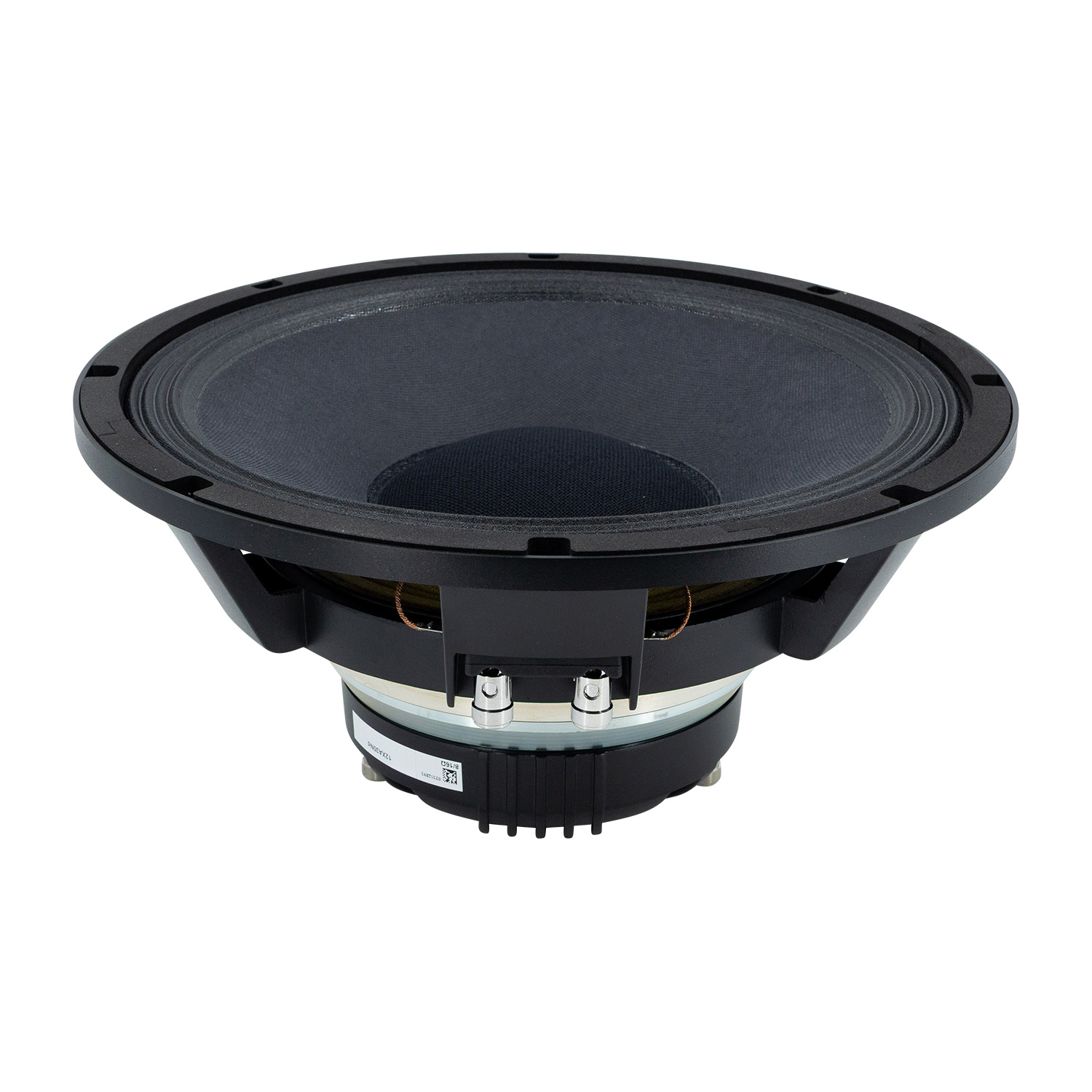

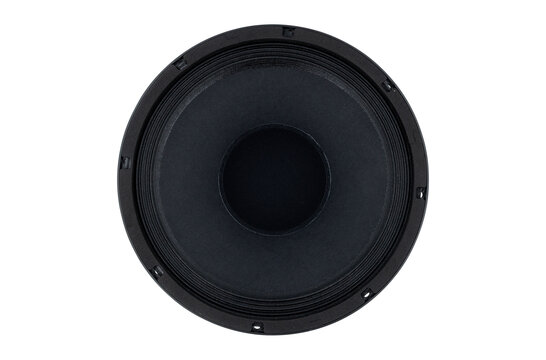

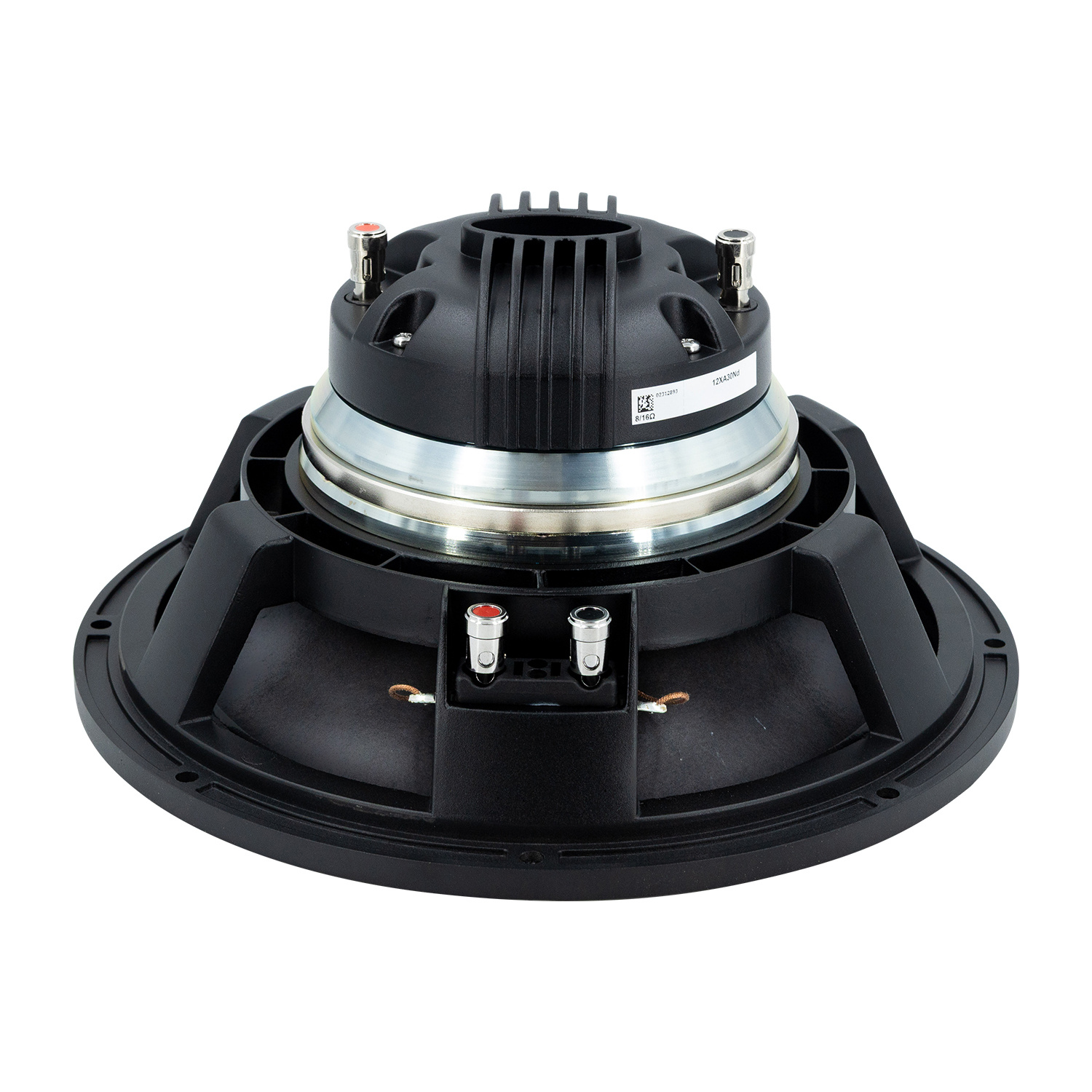

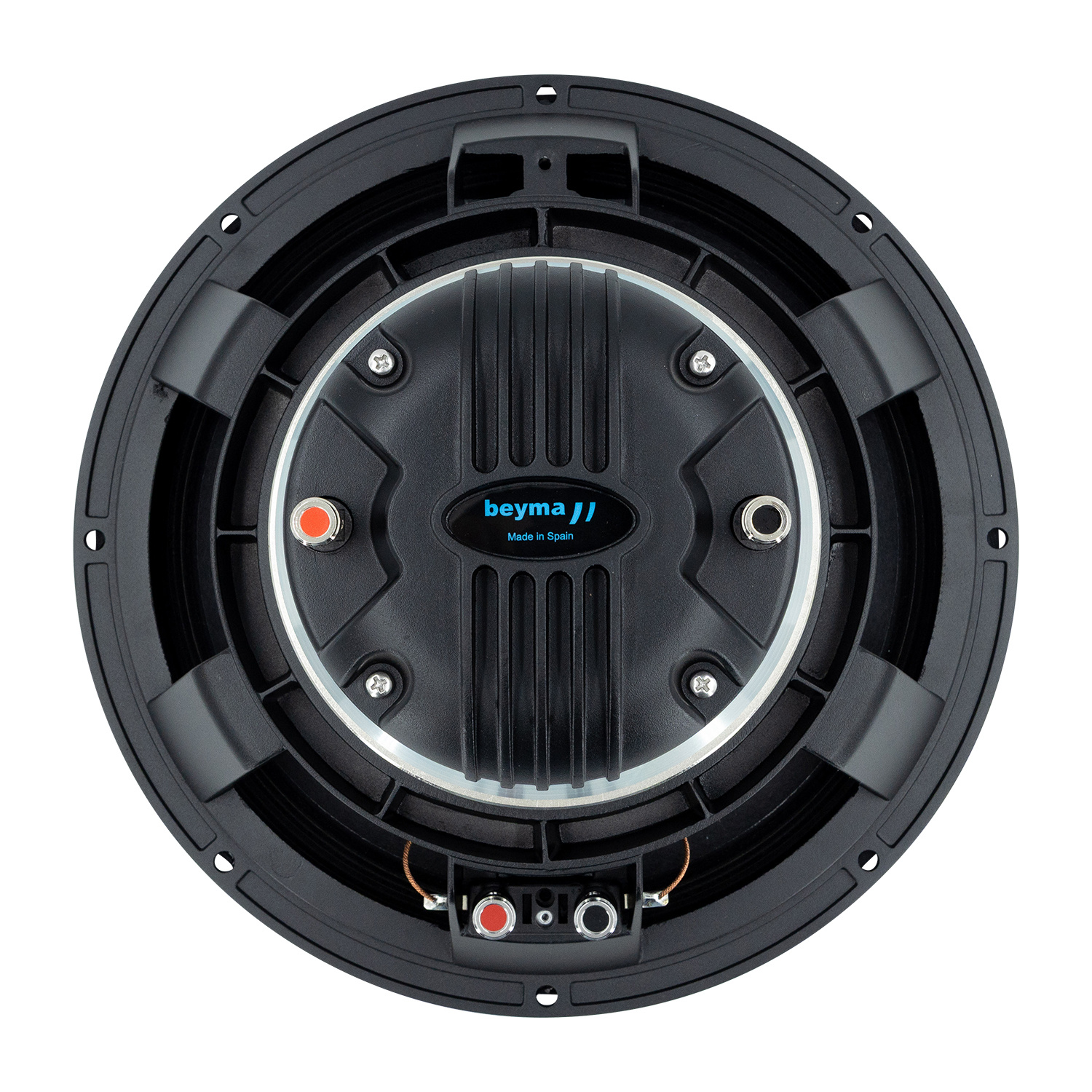

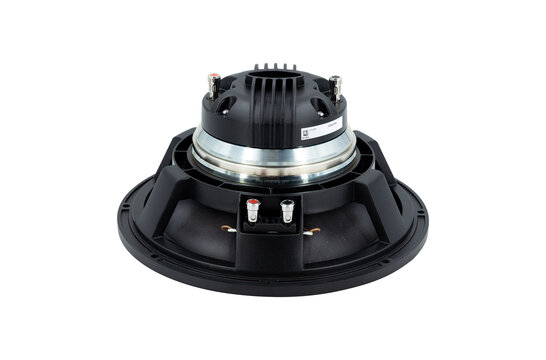

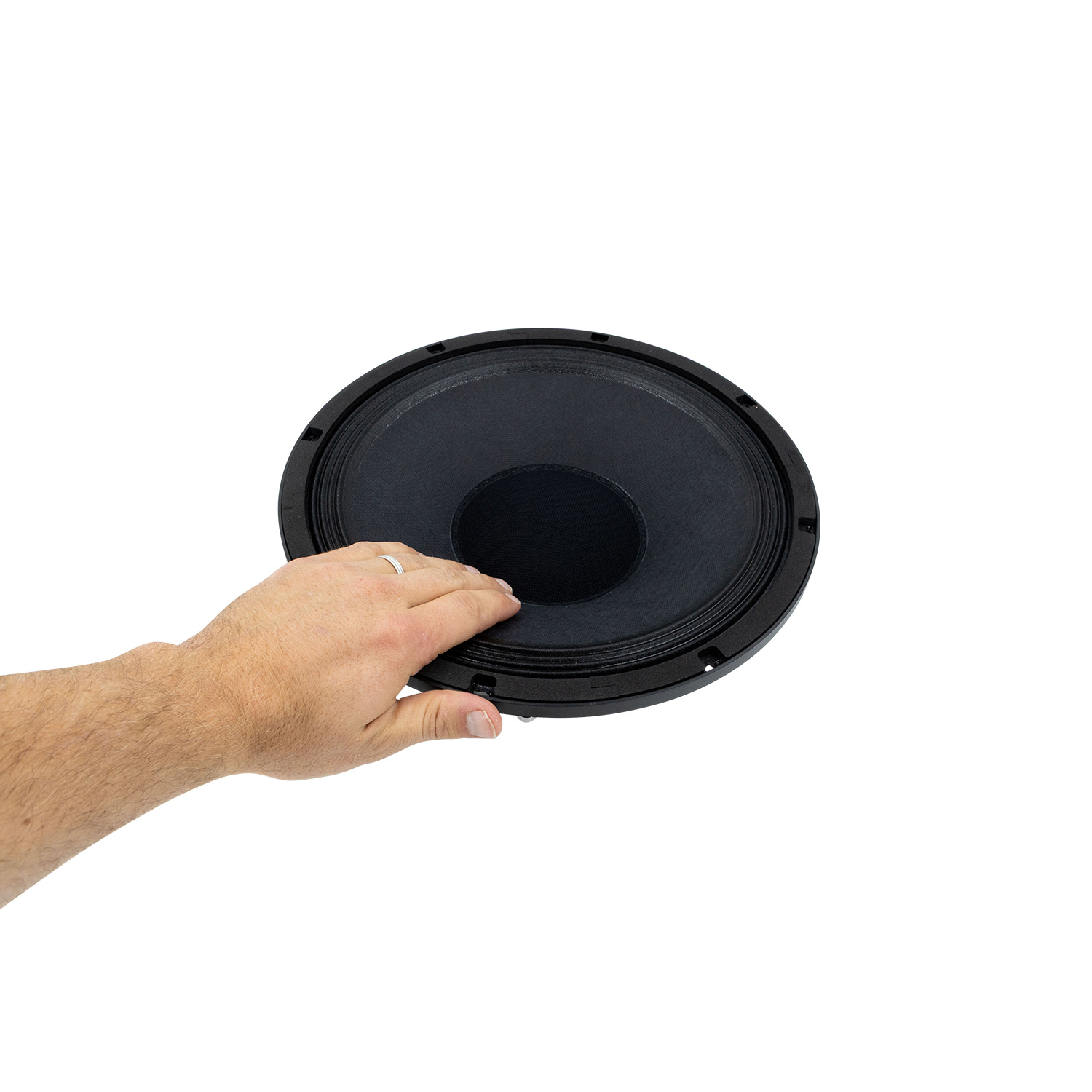

        12XA30Nd Coaxial Woofer

        Beyma 12XA30Nd Coaxial Woofer

        €559,95

        2 Op voorraad

        Toevoegen aan winkelwagen

        Beyma 12XA30Nd Coaxial Woofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Beyma
        Toon alle Nieuwe producten
        12" | 8 Ω

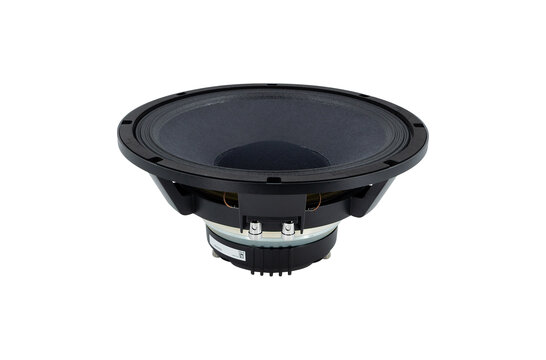

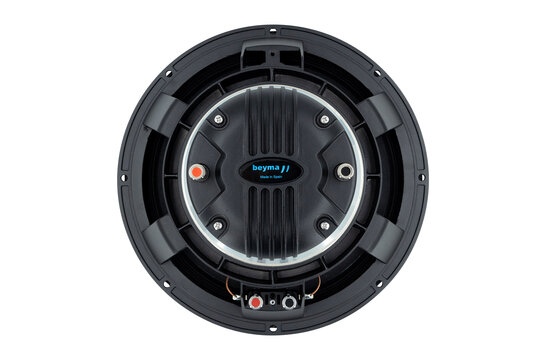

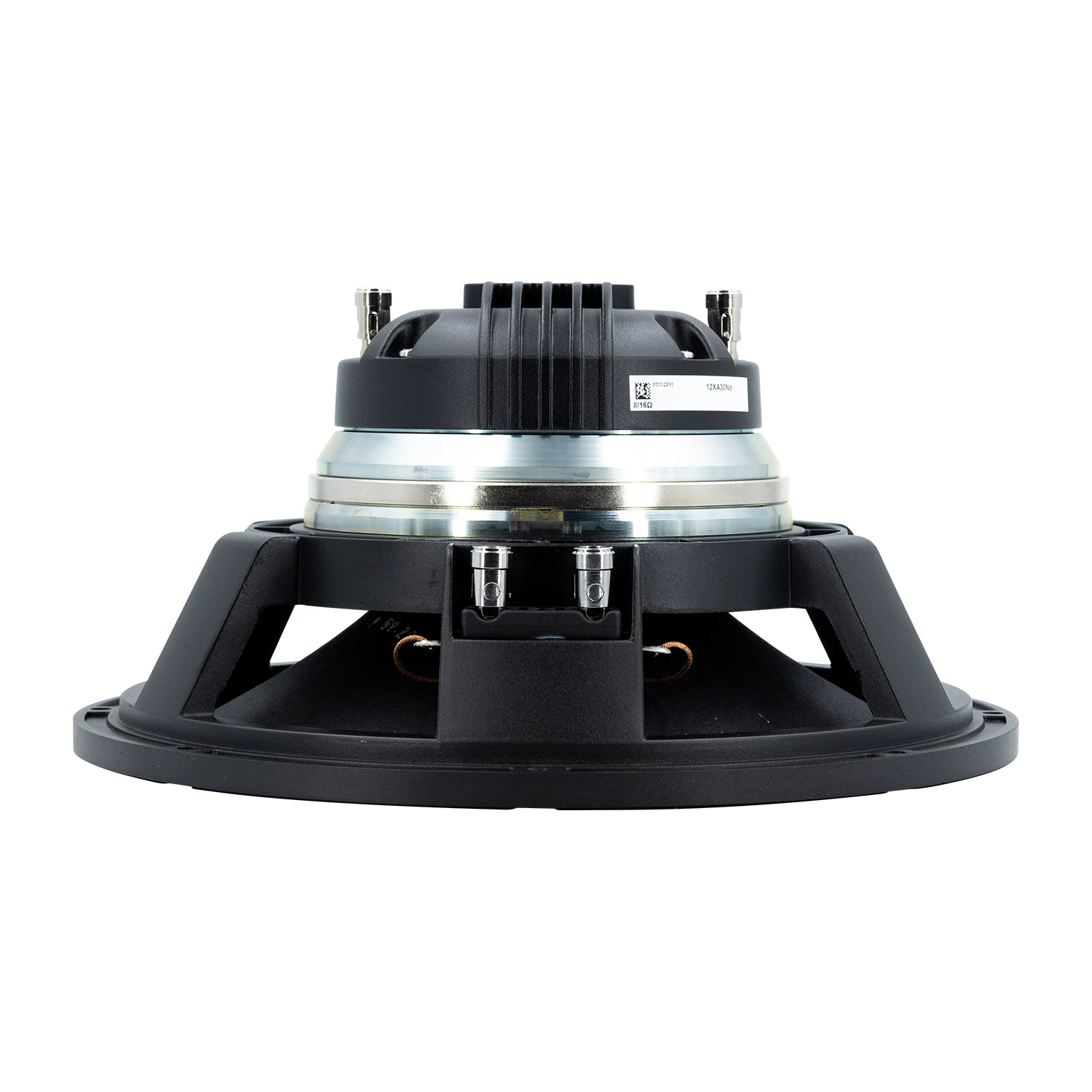

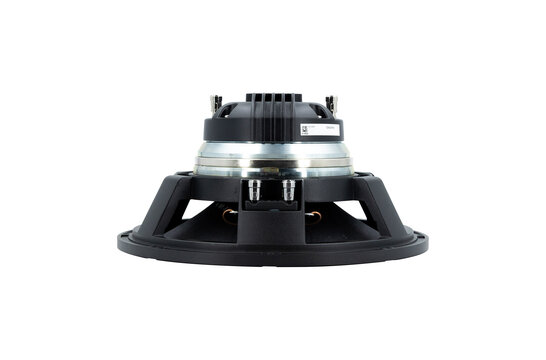

        12XA30Nd Coaxial Woofer
        12XA30Nd Coaxial Woofer
        12XA30Nd Coaxial Woofer
        12XA30Nd Coaxial Woofer
        € 462,77€ 559,95 2 Op voorraad
        • -5% Bestel 4 voor slechts € 531,95 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        12XA30Nd Coaxial Woofer
        12XA30Nd Coaxial Woofer
        12XA30Nd Coaxial Woofer
        12XA30Nd Coaxial Woofer

        Productomschrijving Beyma 12XA30Nd Coaxial Woofer

        High-efficiency 12-inch coaxial transducer with integrated compression driver, designed for compact full-range systems requiring detailed performance and extended bandwidth.



        Highlights of the Beyma 12XA30Nd

        • 700 W / 180 W program power handling (LF / HF) with 98 / 105 dB sensitivity
        • Shared neodymium magnet system for reduced weight and compact design
        • 4” aluminum voice coil (LF) and 2.85” aluminum voice coil (HF)
        • Flat and extended response from 40 Hz to 20,000 Hz with demodulating rings



        Product details Beyma 12XA30Nd

        Beyma 12XA30Nd Coaxial Transducer



        The Beyma 12XA30Nd is a high-performance 12” coaxial transducer combining a bass loudspeaker and a compression driver into a single compact unit. Designed for space-efficient bass-reflex enclosures, this model delivers 350 W AES power for the LF and 90 W AES for the HF, with program power ratings of 700 W and 180 W respectively. Its outstanding efficiency—98 dB for the woofer and 105 dB for the HF driver—ensures high output with minimal power input. The coaxial design features a 4” aluminum voice coil for the LF unit and a 2.85” aluminum voice coil compression driver with a composite Titanium/Polyester diaphragm. Both drivers are powered by a common neodymium magnet system to reduce total weight and improve phase coherence. With an extended frequency response from 40 Hz to 20 kHz and recommended crossover above 1.8 kHz (12 dB/oct), the 12XA30Nd is well-suited for stage monitors, portable PA cabinets, and high-definition installation systems. Demodulating rings in both LF and HF motors reduce distortion, while the compact form factor (152 mm depth) and net weight of 6.3 kg ensure easy integration and transportability. This transducer provides a high-performance solution where full-range, high-fidelity audio reproduction is required in minimal space.

        Toon meer

        Specificaties

        Artikelnummer
        12XA30Nd
        EAN
        8435469043367
        Woofer type
        Coaxial Transducer
        Nominale diameter
        Woofer 12", Compression driver 2.85”
        Belastbaarheid (RMS)
        700 Watts
        Continuous Program Power
        Woofer 700 Watts, Tweeter 180 watts
        Impedantie (Z)
        Woofer 8 Ω, Tweeter 16 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        Woofer 98 dB, Tweeter 105 dB
        Frequentierespons
        40-20.000 Hz
        Spreekspoeldiameter
        Woofer 4”, Compession driver 2.85”
        Gelijkstroomweerstand (Re)
        6.8 Ω
        Spreekspoelinductie (Le)
        1.3 mH
        Resonantiefrequentie (Fs)
        35 Hz
        Mechanische Q (Qms)
        8
        Elektrische Q (Qes)
        0.22
        Totale Q (Qts)
        0.21
        Bewegende massa (Mms)
        0,047 kg
        Compliantie van de ophanging (Cms)
        430 µm / N
        Effectief oppervlak (Sd)
        0,053 m²
        Maximaal verplaatst volume (Vd)
        318 cm³
        Krachtsfactor (BL)
        18,2 N/A
        Equivalentvolume (Vas)
        172 Liters
        Maximale excursie (Xmax)
        +/- 6 mm
        Driver's Mechanical Losses (Rms)
        1,4 kg / s
        Spreekspoel vormermateriaal
        Aluminium
        Magneetmateriaal
        Neodymium
        Totale buitendiameter
        312 mm
        Totale diepte
        152 mm
        Montagegatdiameter
        283 mm
        Bolt Circle Diameter
        298 mm
        # Bevestigingsgaten
        8
        Diameter bevestigingsgaten
        7 mm

        Toon meer
