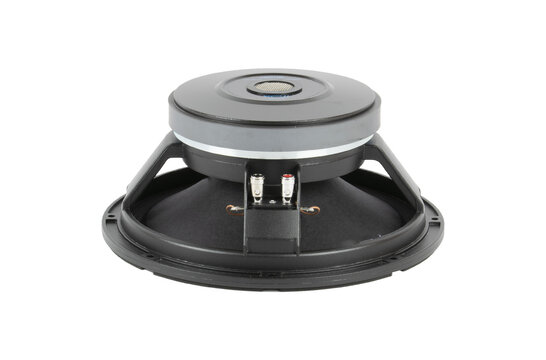

        12MI100 Bass-midwoofer

        Beyma 12MI100 Bass-midwoofer

        €179,95

        8 Op voorraad

        Toevoegen aan winkelwagen

        Beyma 12MI100 Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Beyma
        Toon alle Nieuwe producten
        12" | 8 Ω
        12MI100 Bass-midwoofer
        12MI100 Bass-midwoofer
        12MI100 Bass-midwoofer
        12MI100 Bass-midwoofer
        € 148,72€ 179,95 8 Op voorraad
        • -5% Bestel 4 voor slechts € 170,95 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        12MI100 Bass-midwoofer
        12MI100 Bass-midwoofer
        12MI100 Bass-midwoofer
        12MI100 Bass-midwoofer

        Voor- en nadelen

        Volgens onze specialisten
        • Extremely linear frequency response
        • Low harmonic distortion

        Productomschrijving Beyma 12MI100 Bass-midwoofer

        The Beyma 12MI100 is a high-efficiency 12” mid-frequency transducer tailored for applications demanding clean vocal clarity and precision. With a 3” aluminum voice coil and outstanding sensitivity, it's engineered for natural, low-distortion reproduction.



        Highlights of the Beyma 12MI100

        • 450 W AES / 900 W program power with 100 dB sensitivity
        • 3” aluminum voice coil with polymide fiber glass former
        • Very high efficiency (5.1%) and linear response across 60–4,000 Hz
        • Low harmonic distortion and fast transient response



        Product details Beyma 12MI100

        Beyma 12MI100 Mid Frequency Transducer



        The Beyma 12MI100 is a 12-inch transducer optimized for mid-frequency reproduction in professional audio systems. It features a 3” aluminum voice coil wound on a polymide fiber glass former and is designed for low distortion and excellent transient response. Delivering 450 W AES and 900 W program power, it maintains high sensitivity at 100 dB (1W/1m), ensuring articulate and dynamic performance. Engineered with a large magnetic assembly for improved thermal dissipation, the 12MI100 combines robust power handling with 5.1% efficiency—ideal for applications requiring loud and clear midrange output. The mechanical structure allows for a peak-to-peak excursion of 24 mm, while maintaining excellent control across its operating range of 60 Hz to 4,000 Hz. Its light moving mass (0.047 kg) and moderate depth (135 mm) make it an excellent fit for compact cabinet designs focused on vocal and midband clarity. With a net weight of 7.2 kg, the 12MI100 is a high-quality choice for touring PA, monitors, and fixed installations requiring refined midrange detail.

        Toon meer

        Specificaties

        Artikelnummer
        12MI100
        EAN
        8435469043169
        Woofer type
        Mid Frequency Transducer
        Nominale diameter
        12"
        Belastbaarheid (RMS)
        450 Watts
        Continuous Program Power
        900 Watts
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        100 dB
        Frequentierespons
        60-4.000 Hz
        Spreekspoeldiameter
        3"
        Gelijkstroomweerstand (Re)
        6.3 Ω
        Spreekspoelinductie (Le)
        1 mH
        Resonantiefrequentie (Fs)
        58 Hz
        Mechanische Q (Qms)
        5.5
        Elektrische Q (Qes)
        0.23
        Totale Q (Qts)
        0.22
        Bewegende massa (Mms)
        0,047 kg
        Compliantie van de ophanging (Cms)
        163 µm / N
        Effectief oppervlak (Sd)
        0,053 m²
        Maximaal verplaatst volume (Vd)
        159 cm³
        Krachtsfactor (BL)
        21,6 N/A
        Equivalentvolume (Vas)
        64 Liters
        Maximale excursie (Xmax)
        +/- 3 mm
        Driver's Mechanical Losses (Rms)
        3,3 kg / s
        Spreekspoel vormermateriaal
        Aluminium
        Totale buitendiameter
        312 mm
        Totale diepte
        135 mm
        Montagegatdiameter
        278 mm
        Bolt Circle Diameter
        294.5 mm
        # Bevestigingsgaten
        8
        Diameter bevestigingsgaten
        6.50 mm

        Toon meer
