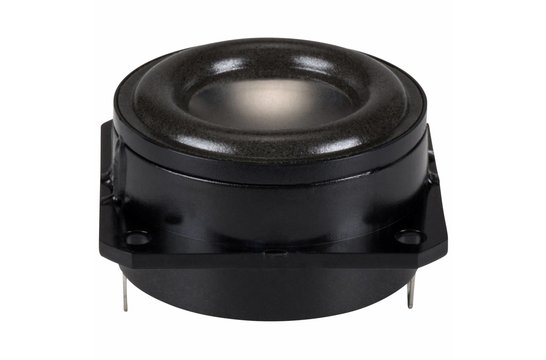

AuraSound Cougar NSW1-205-8A 1" Extended Range Driver 8 Ohm

Levertijd: 1 werkdag

  • Artikelcode: Cougar
  • Voorraad: >10 Op voorraad

AuraSound designed the 1" extended range "Cougar" driver with bleeding edge loudspeaker technology for the highest quality, full range sound, in the smallest possible package. Great for modern applications such as speaker bars, desktop computer speakers,

€ 16,95 Incl. 21% btw

  • Bestel 4 voor €16,10 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

AuraSound Cougar NSW1-205-8A 1" Extended Range Driver 8 Ohm

AuraSound designed the 1" extended range "Cougar" driver with bleeding edge loudspeaker technology for the highest quality, full range sound, in the smallest possible package. Great for modern applications such as speaker bars, desktop computer speakers, thin tower speakers, and line arrays.



Highlights

  • NRT radial neodymium motor for extremely low distortion
  • Full range, 1" underhung driver with 4.5 mm of Xmax
  • Small frame size for reduced center-to-center distance and reduced comb filtering when used in arrays
  • Extreme ventilation for great power handling
  • Great for modern audio applications including sound bars and ultra-thin tower speakers



Product details

AuraSound Cougar NSW1-205-8A 1" Extended Range Driver 8 Ohm

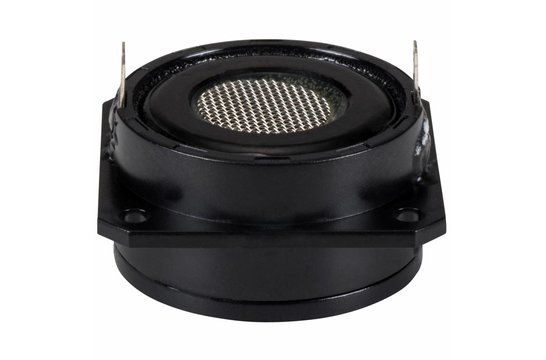

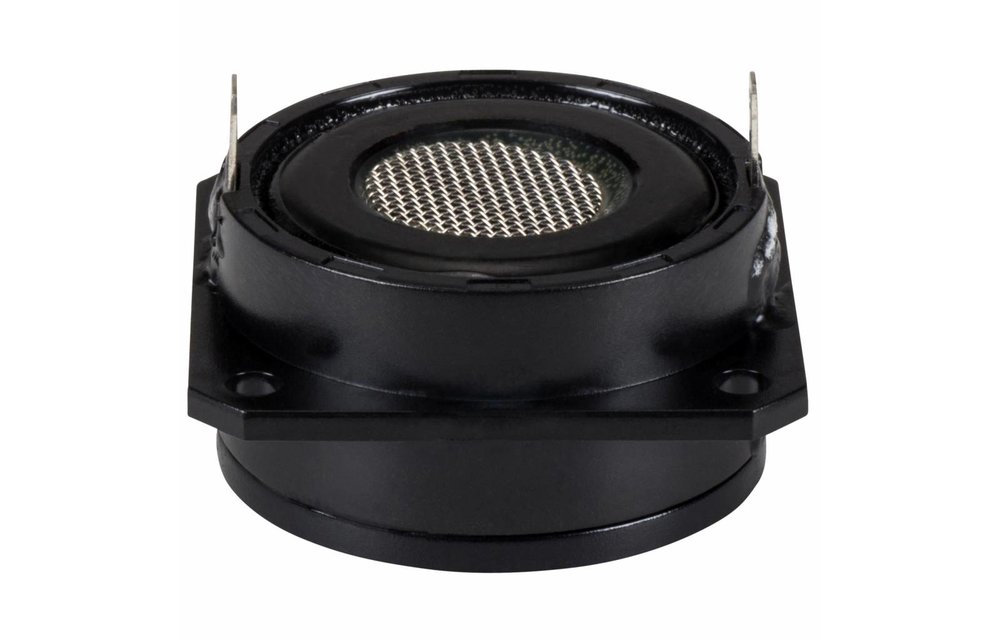

The AuraSound "Cougar" NSW1-205-8A 1" extended range driver is packed with next-gen speaker technology. An NRT™ neodymium radial magnet motor submerses the 20 mm, underhung voice coil in magnetic flux for supreme control, low distortion, high output (for its size), and wide frequency range without stray magnetic fields that could potentially damage sensitive electronics, while the extreme venting provided by a capless pole piece evacuates air that would otherwise be compressed (in a driver this size).

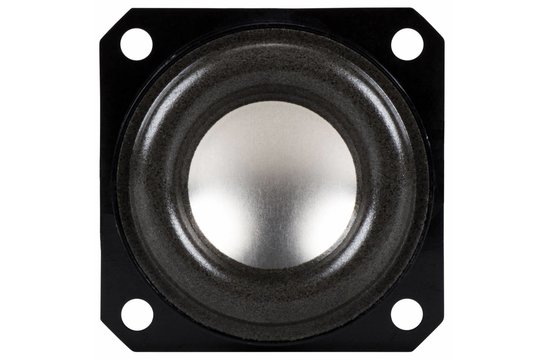

A titanium cone is mated to a foam surround to reduce cone breakup, for an extremely linear frequency response from 250 to 20,000 Hz. The low, 220 Hz free air resonance combines with 2.25 mm of Xmax (9 mm maximum peak-to-peak excursion) to allow for low crossover points, meaning you can pair the Cougar with nearly any woofer up to 5 feet away (2-1/2 ft. is the recommended maximum) seamlessly.



AuraSound built the NSW1-205-8A with a non-resonant, minimalistic, rear-mount frame for close center-to-center placement which is especially important in line arrays to minimize comb filtering. When used in series-parallel groups of four, the Cougar's output is increased from 78 dB 1W/1m to roughly 84 dB 1W/1m, with power handling increased to 20 watts RMS. Grouping eight together, and wiring for 4 ohms, yields roughly 90 dB of output at 1W/1m with power handling increased to 40 watts RMS.



Adding a series 80 microfarad capacitor creates a 250 Hz, 1st-order high pass and increases power handling. When wired in pairs or groups for a 4 ohm load, use a series 160 microfarad capacitor for the same effect.



Specifications: Compliance Equivalent Volume (Vas): 0.01 ft.3 • Maximum Linear Excursion (Xmax): 2.25mm • Surface Area of Cone (Sd): 5.31 cm² • Cone Material: Titanium • Surround Material: Foam • Voice Coil Wire Material: CCA • Voice Coil Former: Aluminum • Basket / Frame  Material: Polymer • Magnet Material: Neodymium • Baffle Cutout Diameter: Rear mount 1.42" • Bolt Circle Diameter: 1.69” • # Mounting Holes: 4

Specificaties

Specificaties voor: Cougar NSW1-205-8A 1" Extended Range Driver 8 Ohm

  • Woofer Series Specifieke woofer productlijn van de fabfrikant.
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Extended Range Driver
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 1''
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 5 Watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 20 Watts
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 8 Ohms
  • Sensitivity 78 dB 1W/m
  • Frequency Response 220-20,000 Hz
  • Voice Coil Diameter 7/8''
  • Magnet Weight
  • DC Resistance (Re) 6.3 Ohms
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 220 Hz
  • Mechanical Q (Qms) 2.1
  • Electromagnetic Q (Qes) 1.1
  • Total Q (Qts) 0.7
  • Diaphragm Mass Inc. Airload (Mms) 0.5 g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.155 mm/N
  • Surface Area of Cone (Sd) 5.31 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 1.9 Tm
  • Compliance Equivalent Volume (Vas) 0.04 L
  • Maximum Linear Excursion (Xmax) 2.25 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Titanium
  • Surround Material Foam
  • Voice Coil Wire Material CCAW
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Polymer
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 39 x 39 mm
  • Overall Depth
  • Baffle Cutout Diameter 36 mm
  • Bolt Circle Diameter 43 mm
  • # Mounting Holes 4
  • Mounting Hole Diameter 3.4 mm
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3

Documenten

Reviews

Gebruikers beoordelingen 4 / 5 Reviews: (2)

  • MB Door Marco B. aan 04-09-2020 13:56

    3 / 5

    not what i was expecting, very low output below 2k

  • FH Door Frank H. aan 06-10-2018 22:21

    5 / 5

    Mega sound, very good range and finally a speaker that fits into my rc-tank !!
    Higly recommended.
