    Arylic Up2Stream Mini V3 Wi-Fi & Bluetooth Audio Receiver Module with I2S

    € 49,95 >10 Op voorraad: levertijd 1 werkdag
    With the Up2Stream Mini V3 Wi-Fi & Bluetooth Audio Receiver Module, you can stream your audio wirelessly to your speakers. With its five streaming possibilities and all of its other features, it is the most complete and simplest way to enjoy music wirele... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €47,45 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    With the Up2Stream Mini V3 Wi-Fi &  Bluetooth Audio Receiver Module, you can stream your audio wirelessly to your speakers. With its five streaming possibilities and all of its other features, it is the most complete and simplest way to enjoy music wireless.



    Highlights

    • Five streaming possibilities
    • Doubles as a USB DAC
    • Extremely small form factor



    Product details

    Arylic Up2Stream Mini V3 Wi-Fi Bluetooth Audio Receiver Module



    With the Up2Stream Mini V3 Wi-Fi &  Bluetooth Audio Receiver Module, you can stream your audio wirelessly to your speakers using Wi-Fi, Bluetooth 5.0, Airplay, DLNA & UPnP. It is the most complete and simplest way to enjoy music wirelessly.



    The compact design of the receiver will leave you with more space for your wild & creative ideas, so you can design with more freedom and add components to further improve your speaker system.



    Up2stream Mini V3 wifi audio receiver has huge upgrades from the previous version. Now with Bluetooth 5.0, 7-Pin connector for SPDIF output, ADC Key (for external button board), and 2x I/O for external controls such as volume knobs. It can double as a USB DAC, able to connect to a PC and stream PC audio digitally. Thanks to the upgraded CPU, you can now also change the device name for WiFi SSID and Bluetooth using the mobile app.



    If you are a DIY rookie and like to keep things simple, don't worry we got you covered! On the Up2Stream receiver, all ports and the mobile app are extremely user friendly. You can even use the remote control for conveniently satisfying your music streaming needs.

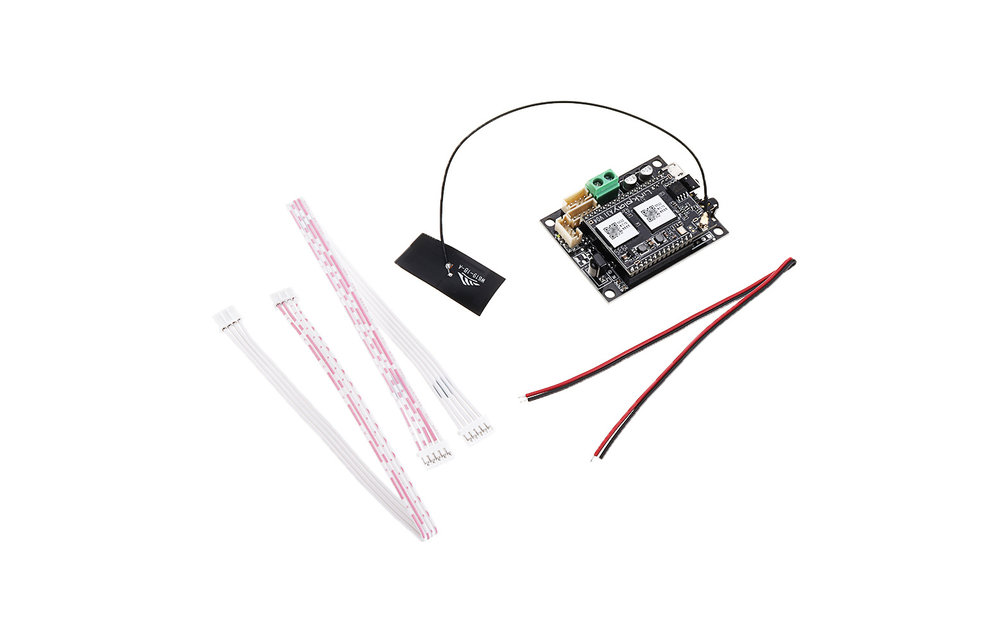

    What’s in the box?

    • Up2Stream Mini
    • 7-pin cable for SPDIF output
    • 4-pin cable for analog input
    • 2-pin cable for 5V 1A input
    • Wi-Fi Antenna
    • User manual



    Warning: Up2Stream Mini must use 5V-1A DC input, higher voltage power supply may damage the board.

    Specificaties

    Artikelnummer
    Up2Stream Mini V3
    Rated power output (RMS)
    -
    Bridged power output (RMS)
    -
    Minimum load
    -
    Signal-to-noise ratio (SNR)
    100 dB
    Distortion
    0.03% at 1 KHz, 0dBFS
    Distortion bridged
    -
    Efficiency
    -
    Frequency response
    20 Hz -20,000 Hz
    Input impedance
    -
    Input sensitivity
    -
    Auto turn-on sensitivity
    -
    DSP
    -
    DAC
    check USB-DAC
    Maximum sampling rate
    Up to 24bit/192kHz
    Circuit Topology
    -
    Amplifier classification
    -
    Speaker output channels
    -
    Subwoofer output channel
    -
    Analog in/out
    -/2
    Optical S/PDIF in/out
    1/0
    Coaxial in/out
    -/-
    RCA in/out
    -/-
    AUX in/out
    -/1
    Bus in/out
    -/-
    USB
    check USB DAC
    Memory card slot
    -
    Network connection
    check Wi-Fi
    Headphone jack
    -
    Subwoofer pre-out
    -
    Bluetooth
    check Bluetooth 5.0
    NFC
    -
    Wi-Fi
    check IEEE802.11 b/g/n 2.4G
    Banana plug compatible
    -
    Remote control
    check (not included)
    App control
    Check 4Stream
    Auto turn-on
    -
    Accepted file formats
    FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
    Equalizer (EQ) adjustment
    check in-app equalizer adjustment
    Equalizer (EQ) profiles
    -
    Multi zone/room
    App supports Multi-Room playback
    Crossover frequency adjustment
    -
    Bridge mode
    -
    Power requirements
    5 VDC, 1 A
    Power inlet connector
    Micro USB or screw-terminal
    Power consumption
    -
    Stand-by power consumption
    -
    Dimensions (D x W x H)
    55 x 42 x 12mm
    Case material
    -
