Arylic Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board

Levertijd: 1 werkdag

  • Artikelcode: Up2Stream 2.1 AMP
  • Voorraad: 6 Op voorraad

The Up2stream Amp 2.1 is a specialized wireless subwoofer amplifier module designed for DIY users and subwoofer lovers. In addition to the undistorted sound quality and a powerful subwoofer output, you also get the most advanced wireless technology.

99,95 € 84,96 Incl. 21% btw

  • Bestel 4 voor €94,95 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Arylic Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board

Highlights

  • Rotary Knob Control
  • Equipped with 50W*2 stereo pair + 100W high-powered subwoofer
  • First Wifi 2.1 amplifier board
  • Precisely EQ Adjustment
  • Wireless Connectivity



Product details

Arylic Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board



The Up2stream Amp 2.1 is a specialized wireless subwoofer amplifier module designed for DIY users and subwoofer lovers. In addition to the undistorted sound quality and a powerful subwoofer output, you also get the most advanced wireless technology. With wifi, Bluetooth 5.0, Airplay, Spotify Connect, also DLNA and UPnP protocols for wireless control. It's worth mentioning that the sound quality via wifi streaming is without any compression and no distance limitation as long as your wifi signal is strong enough, which upgrades your home audio system to be more usable and enjoyable to listen to.

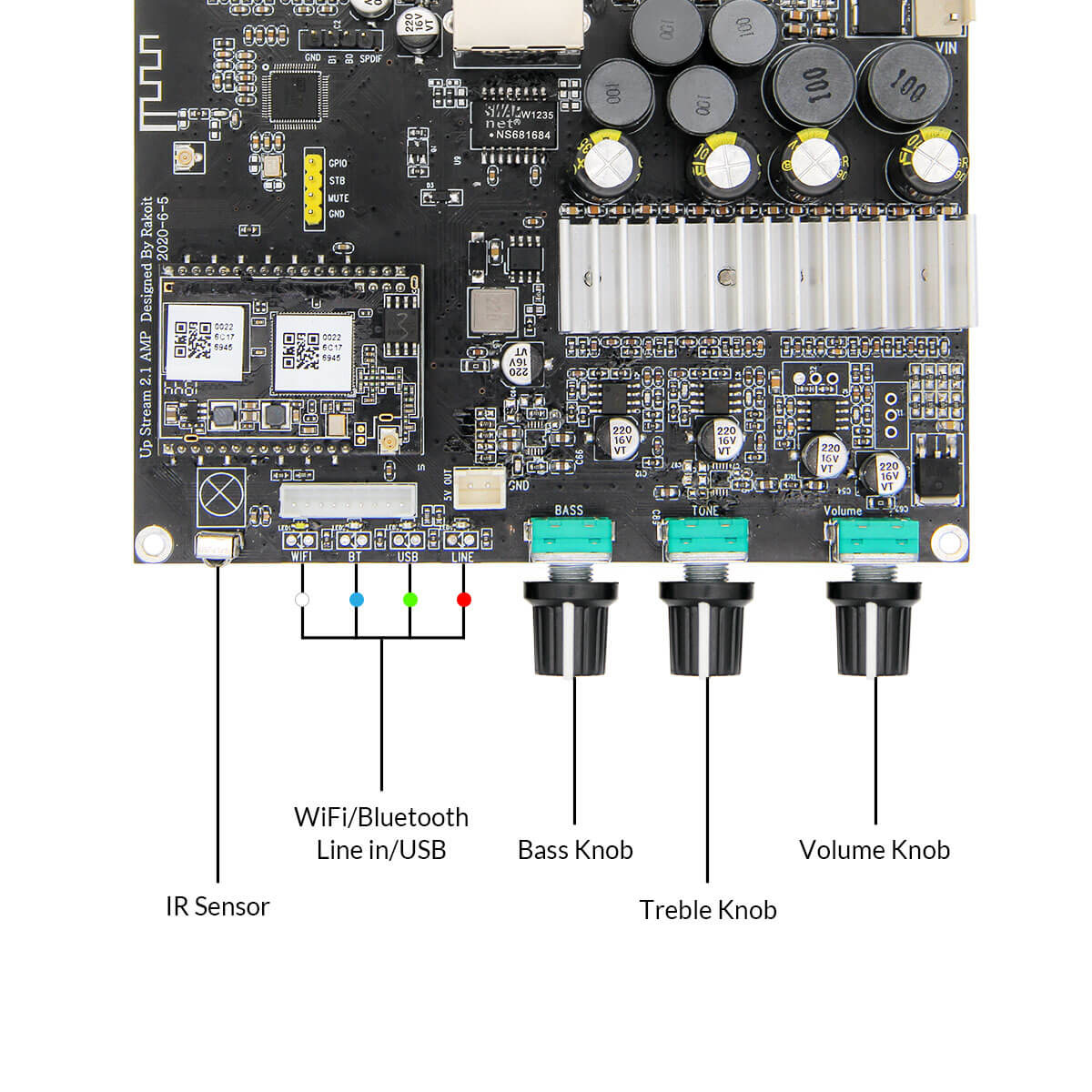

Besides adjusting the volume in real-time, you can also change your Treble and Bass while listening to your music through the corresponding knob. When it comes to audio products, especially subwoofers, players are very interested in EQ control. Up2stream Amp 2.1 can adjust Treble and Bass via remote control, app, and knobs, but the best way is to use our ACPWorkbench tuning tool, which adjusts EQ precisely.



Huge music resources supported like Spotify, Pandora, Amazon Music, Tidal, Deezer, Qobuz, Internet Radio, iheart Radio, Napster etc. Except online music, you also can play local music by NAS, USB storage where you have collected your favorite song for years. Streaming your audio all the way by Wifi, Bluetooth 5.0, DLNA, UpPnP, Airplay, Spotify Connect.



The App called “4stream” that is compatible to your iOS & Android system. All the features can be simply controlled by App. And you also can receive the notification for our regular online firmware update automatically in our App.

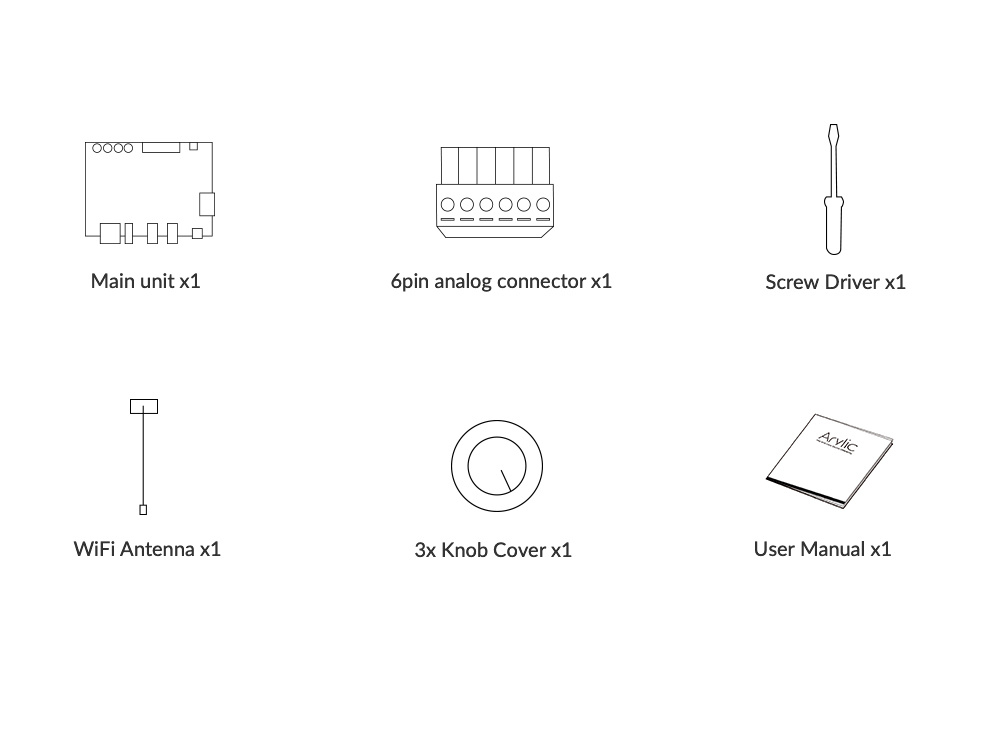

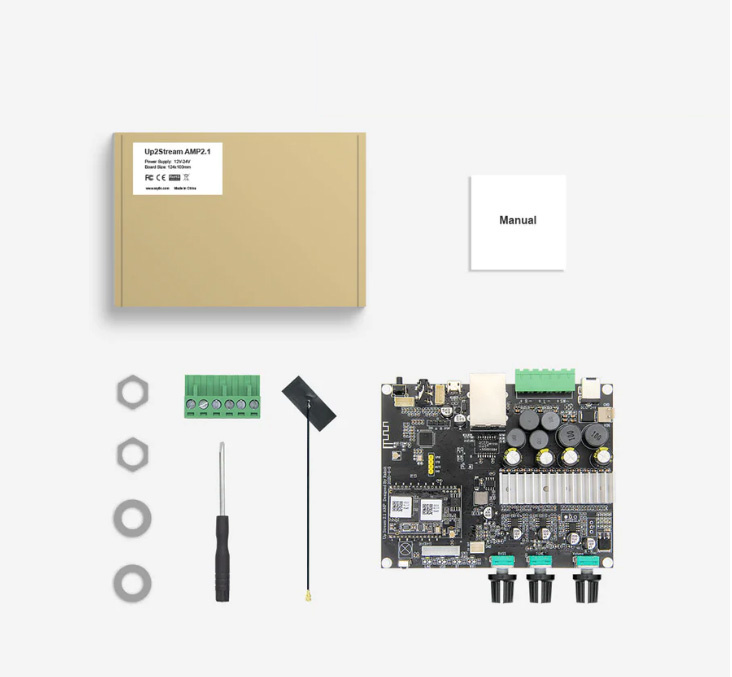

What’s in the box?

  • Up2Stream 2.1 Amp
  • 6-pin analog connector
  • Screw Driver
  • Wi-Fi Antenna
  • 3 x Know Cover
  • User manual

Specificaties

Specificaties voor: Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board

  • Rated power output (RMS) Het elektrisch vermogen uitgedrukt in watt (W) dat een versterker kan uitgeven per uitgangskanaal, zonder dat de versterker beschadigt of gaat 'clippen'. RMS = Root Mean Square. 2 x 50W @ 4Ω + 100W @ 2Ω BTL load at 24 V
  • Bridged power output (RMS) Het elektrisch vermogen uitgedrukt in watt (W) dat een versterker kan uitgeven per gebrugd uitgangskanaal (2 x stereo naar 1 x mono output), zonder dat de versterker beschadigd of gaat 'clippen'. RMS = Root Mean Squeare.
  • Minimum load Geeft de minimale belasting weer wat een versterker kan aansturen in ohm's. Een lagere impedantie van een speaker wordt afgeraden wanneer deze lager is dan de minimale impedantie van een versterker. Een versterker werkt het beste wanneer de impedantie van de speaker binnen het impedantie bereik valt wat de versterker voorschrijft (bijvoorbeeld 4 tot 8 ohm). 4 Ohms
  • Signal-to-noise ratio (SNR) Geeft de sterkte weer van het gewenste signaal in verhouding tot het vermogen van de aanwezige ruis. Algemeen geldt dat hogere waardes wenselijk zijn.
  • Distortion SPEC Distortion <0.03%, @1kHz/1W/24V/4Ω
  • Bekijk alle specificaties
  • Distortion bridged
  • Efficiency
  • Frequency response 20Hz to 20kHz
  • Input impedance 4-8 Ohms
  • Input sensitivity
  • Auto turn-on sensitivity
  • DSP
  • DAC micro-USB DAC
  • Maximum sampling rate Up to 24bit/192kHz
  • Circuit Topology
  • Amplifier classification Class D
  • Speaker output channels
  • Subwoofer output channel
  • Analog in/out
  • Optical S/PDIF in/out
  • Coaxial in/out
  • RCA in/out
  • AUX in/out
  • Bus in/out
  • XLR in/out
  • USB Play USB music
  • Memory card slot
  • Network connection
  • Headphone jack
  • Subwoofer pre-out
  • Bluetooth 5.0, SBS/AAC
  • NFC
  • Wi-Fi IEEE802.11 b/g/n 2.4G
  • Banana plug compatible
  • Remote control Optional
  • App control
  • Auto turn-on
  • Accepted file formats
  • Equalizer (EQ) adjustment
  • Equalizer (EQ) profiles
  • Multi zone/room
  • Crossover frequency adjustment
  • Bridge mode
  • Power requirements
  • Power inlet connector
  • Power consumption
  • Stand-by power consumption
  • Dimensions (D x W x H) 124*100*25mm
  • Case material

Documenten

Reviews

Gebruikers beoordelingen 5 / 5 Reviews: (1)

  • TS Door Tomas aan 22-09-2020 14:14

    5 / 5

    Really impressive for the money.
    It's got enough power for any normal home use and plenty of connectivity, including AirPlay.
    Things I didn't like:
    - Getting the board to connect to my home wifi was a pain, I could connect my phone to board just fine, but then the app just didn't want to work with it - disable mobile data while doing this. After that, WiFi works just fine, amp remembers WiFi networks it was connected to and keeps a stable connection. Not having 5GHz wireless is no issue.
    - WPS button, which acts as on/standby switch, is on the back of the board by default. You can connect another one via a 9-pin header, though.
    - Not sure how to use SPDIF input, it's not in the inputs you can select by mode button and pressing it on the remote doesn't seem to do much. Board has a 5V output, so Toslink should be possible. Haven't really tried this yet, though, it's not an accessory you can buy with the amp.
    - USB connection is only live when USB input is selected. If you switch to other input, USB will disconnect. It wasn't reconnecting back on my PC by switching input back to USB, I had to unplug and plug the cable.

    Board also has a DSP, which is fantastic, but the application for programming it is sold separately - haven't had the opportunity to try it yet.
