      Mini Gold Plated Insulated 5-Way Binding Post Banana Jack Set 2 Red 2 Black

      € 15,25€ 18,45 4 Op voorraad10+ verwacht op 08-02-2023
      • -5% Bestelling 4 voor slechts € 17,53 per stuk

      Buy now, pay later

      • Gratis verzending vanaf € 99 (NL & BE)
      • Nu besteld, dinsdag bezorgd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      These high-quality miniature 5-way binding posts offer audiophile features at a great price. The fully insulated design prevents the accidental shorting of speaker wires, allowing these to be mounted directly to a metal chassis.



      Highlights

      • Miniature 5-way binding posts for mounting in tight spots
      • Removable top cap for ring terminal installation
      • Fully insulated for metal chassis mounting and reduced accidental shorting
      • Accepts up to 8 AWG wire, banana plugs, forks, spades, and speaker pins
      • Gold-plated for corrosion resistance and maximum power transmission



      Product Details

      Mini Gold Plated Insulated 5-Way Binding Post Banana Jack Set 2 Red 2 Black

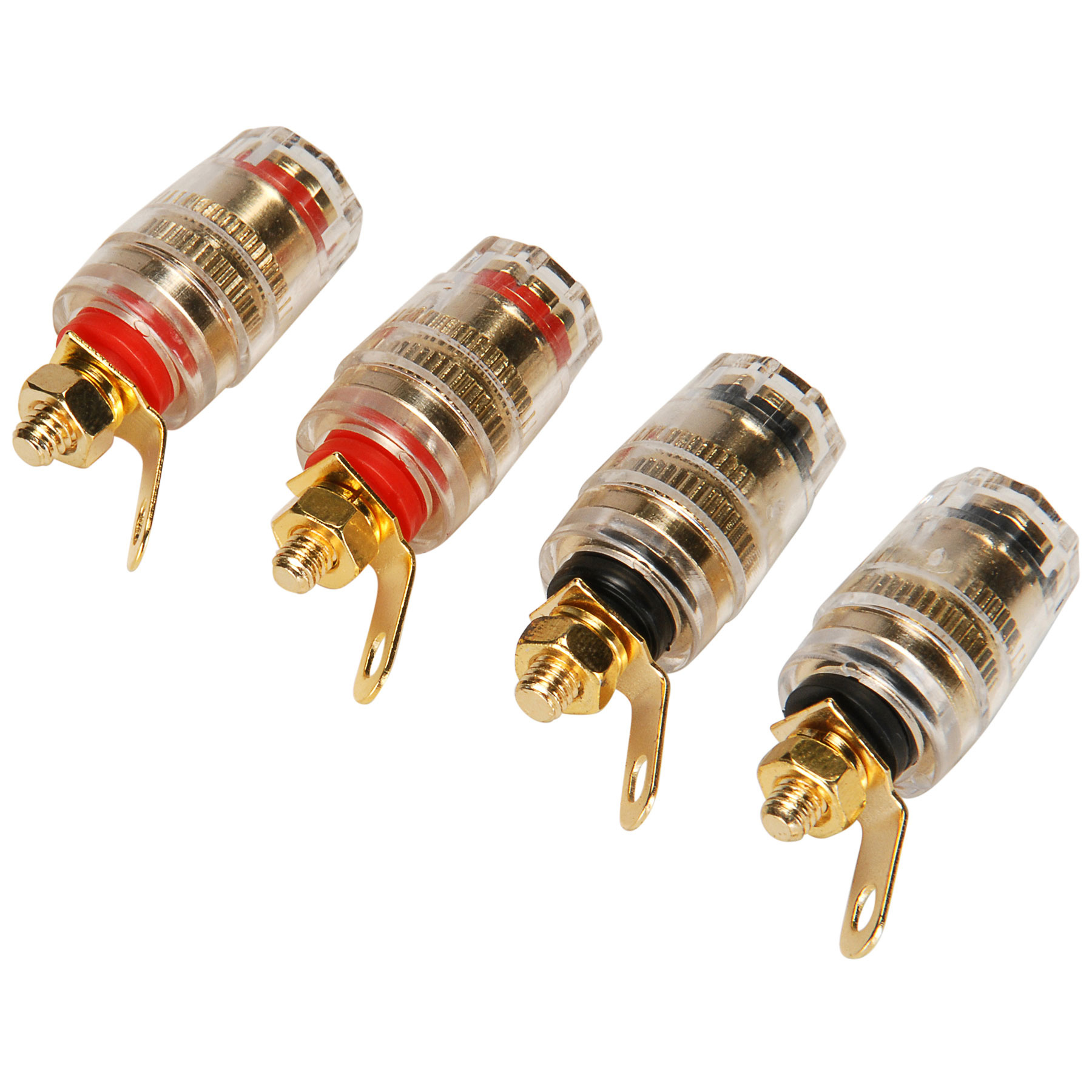

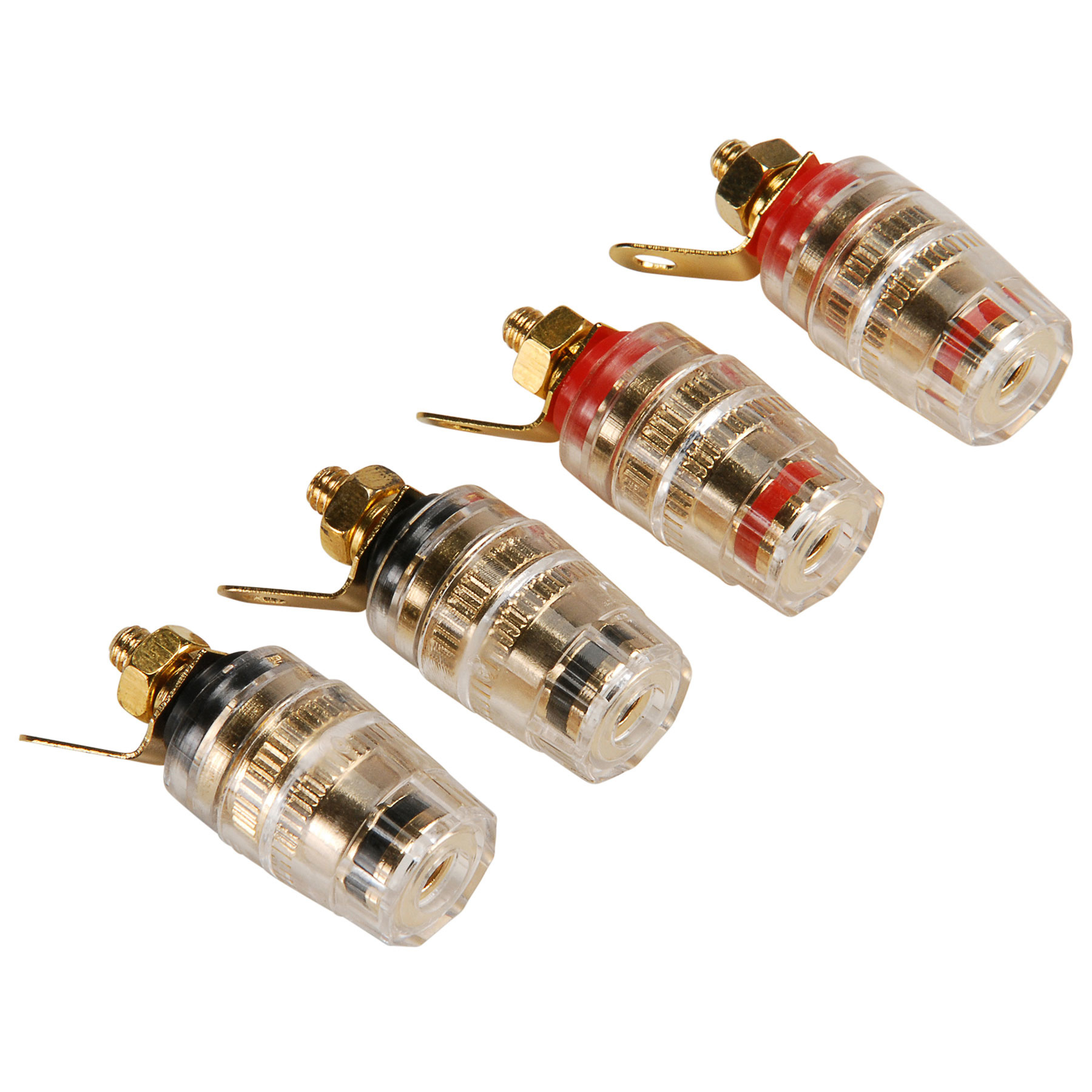

      Five-way binding posts are preferred by audiophiles for speaker cable termination due to the ability to use just about any type of connector, or even bare wire! This set of four miniature insulated binding posts (two red, two black) are scaled down in size for use in applications where a standard binding post just won't fit, without sacrificing binding post features.

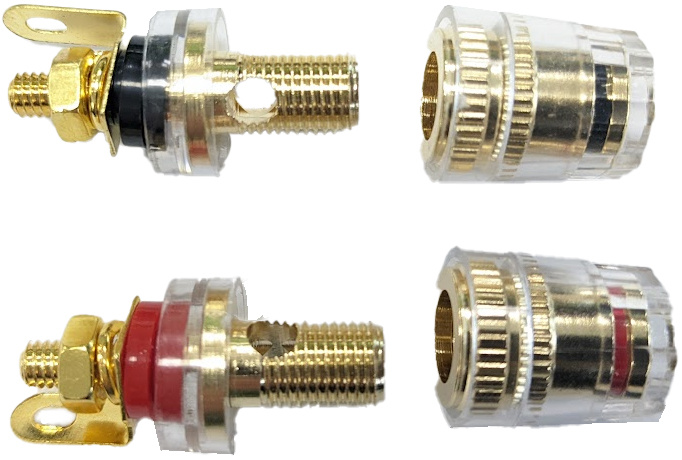

      An 18 mm overall diameter allows for close chassis placement, while the two-piece insulation grommet guards against accidental binding post grounding. The top banana plug entry section is removable for the use of ring terminals, while the 5-way design also allows for the use of fork terminals, spade terminals, speaker pins and, of course, bare wire up to 8 AWG.



      A 0.205" interior male disconnect offers quick connection to a 0.205" female disconnect, or for direct solder-on connection. For insulated chassis mounting, a 1/4" hole is required. A 1/4" mounting nut is included. Overall height is 1.25" (including the mounting stud).

      Toon meer

      Specificaties

      Artikelnummer
      320-3375
      Gatdiameter
      1/4"
      Totale lengte
      1.25"
      Connectoren
      0.205" female disconnect or direct solder-on connection
      Verkocht per
      Twee paar
