Standard 19.1 mm dual binding posts made for chassis mounting. Will accommodate a standard dual banana plug, up to 12 gauge wire, and high current spade connectors stacked up to 5 mm high.

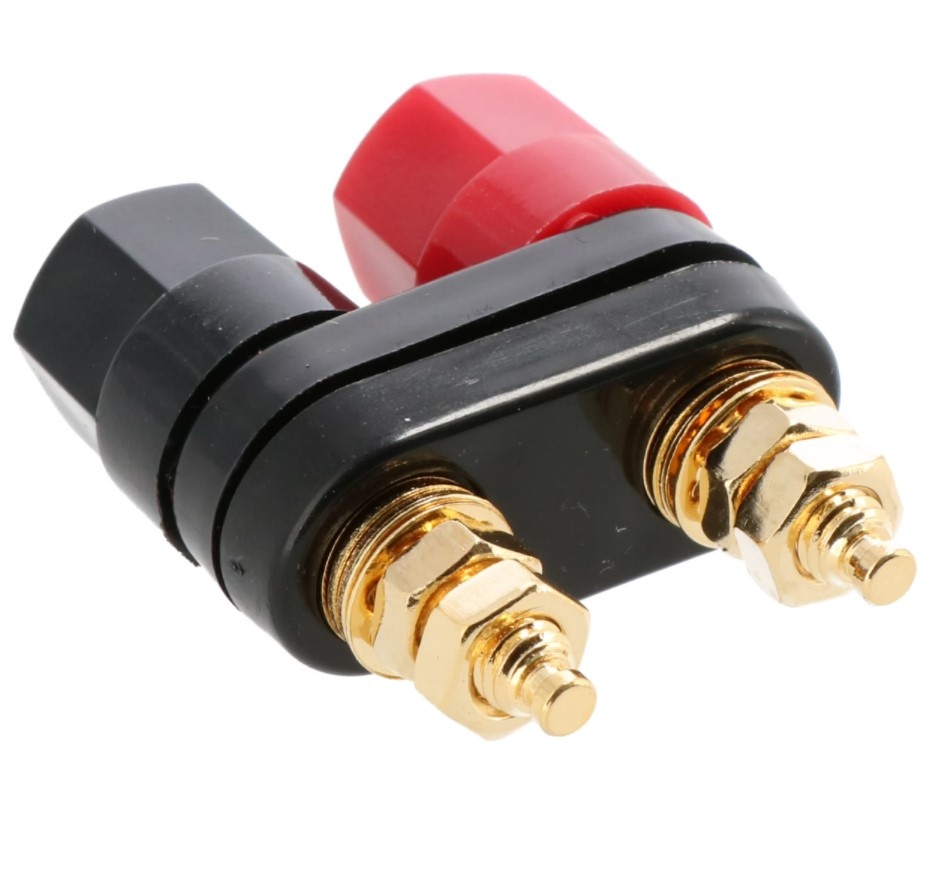

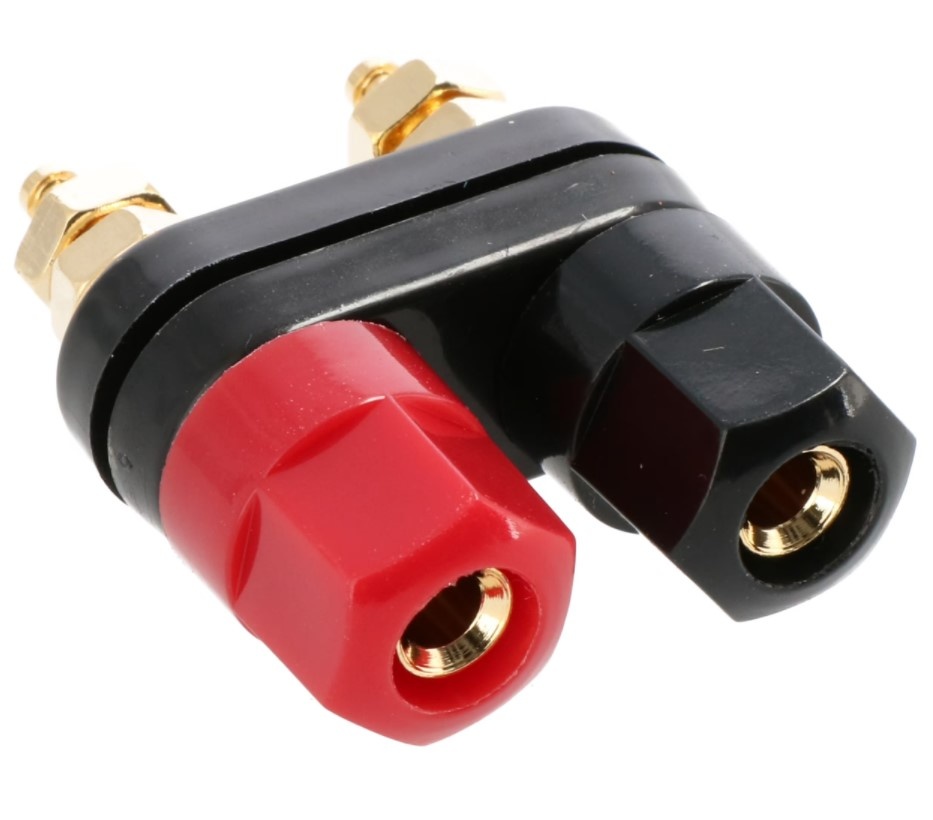

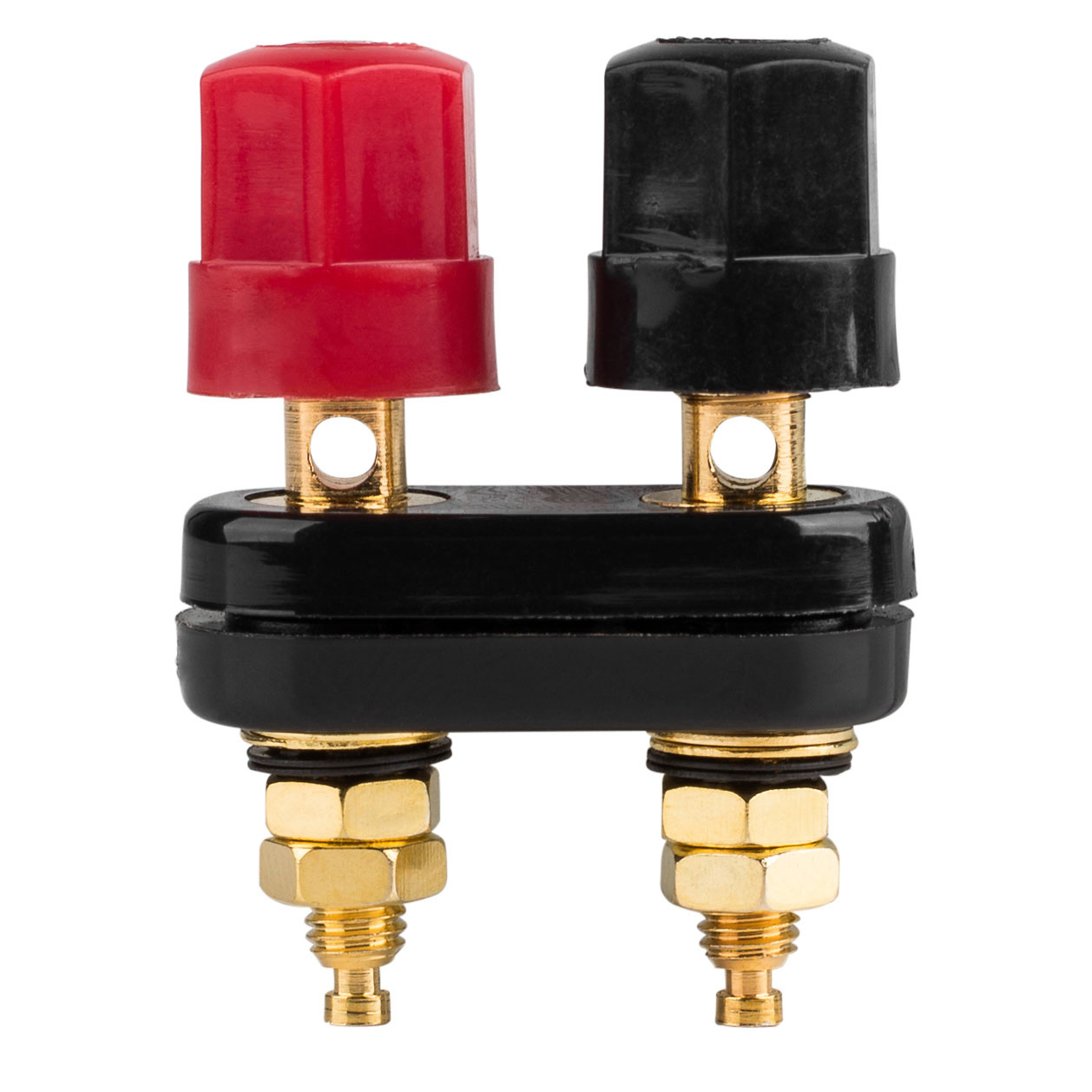

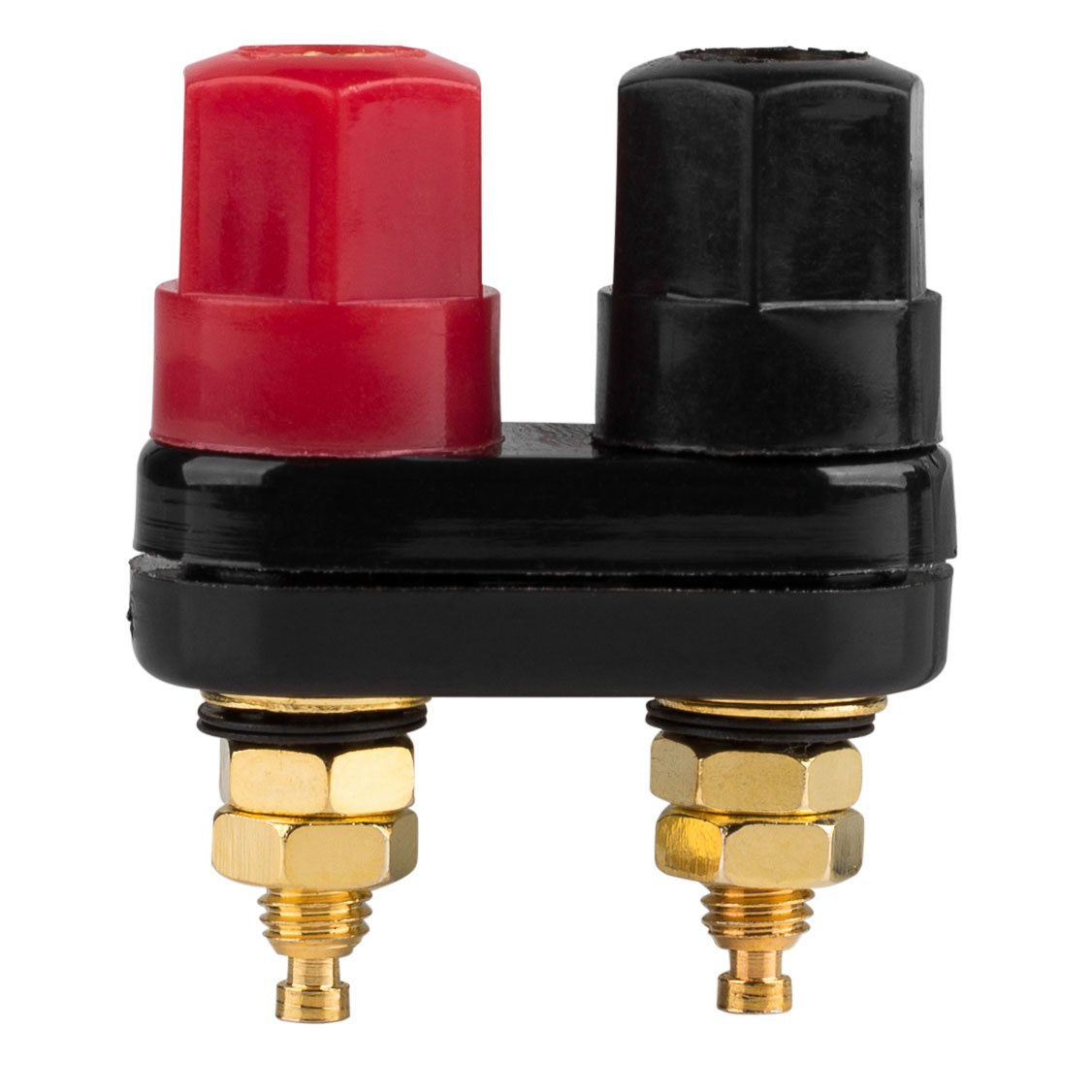

Gold Dual Binding Post Banana Jack
Give you project a professional look with these easy to use brass gold colored contact binding post. They have holes in each post eliminating the need to wrap bare wires around the post that try to slip out. The red and black knob will not unscrew completely off the shaft to prevent loss. Front and rear chassis insulators have a slight lip that keeps the conductors centered and from touching the chassis. This unit requires two 12.7 mm holes drilled 19.1 mm on center. They work on chassis up to 8.4 mm thick. Unit comes with 4 nuts for rear ring or spade connection, or wires can be soldered directly to posts.
