Descrizione del prodotto Sure Electronics AA-AB41148 | VC05 | Electronic Volume Control Board

Highlights

Board Type: Board
input: RCA, 3.5mm AUX,
output: RCA, 3.5mm AUX,
Control Interface: Hardware
Size: 4.8 x 3.6 inches (121.92mm x 91.44mm)
Power Voltage: 8V-15V

Product details

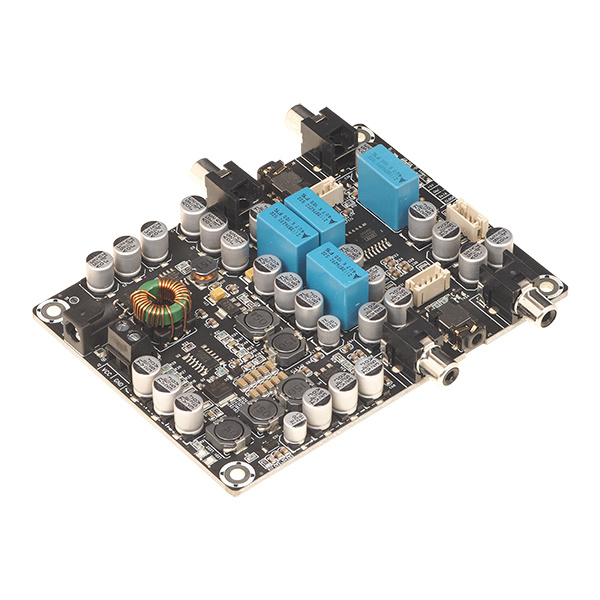

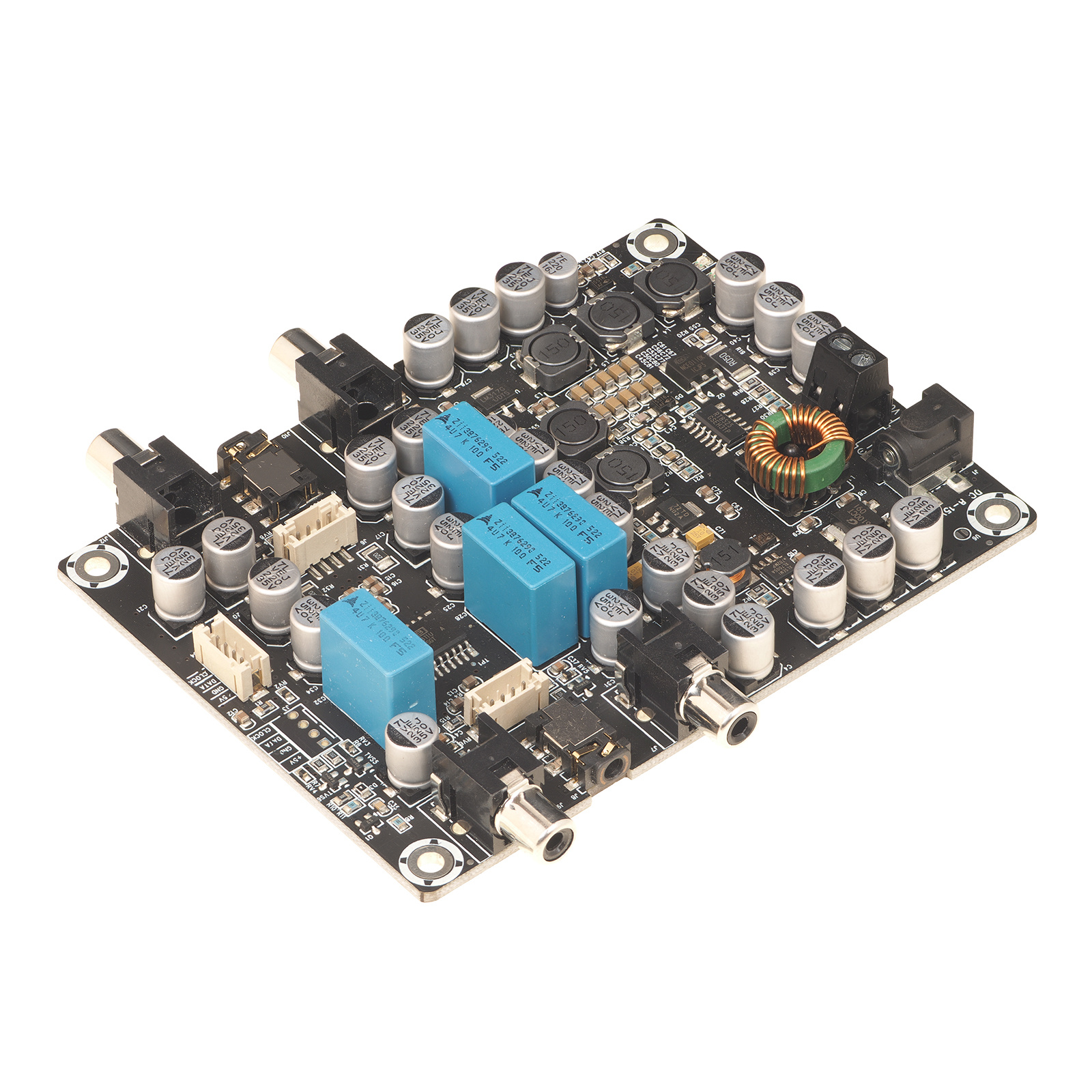

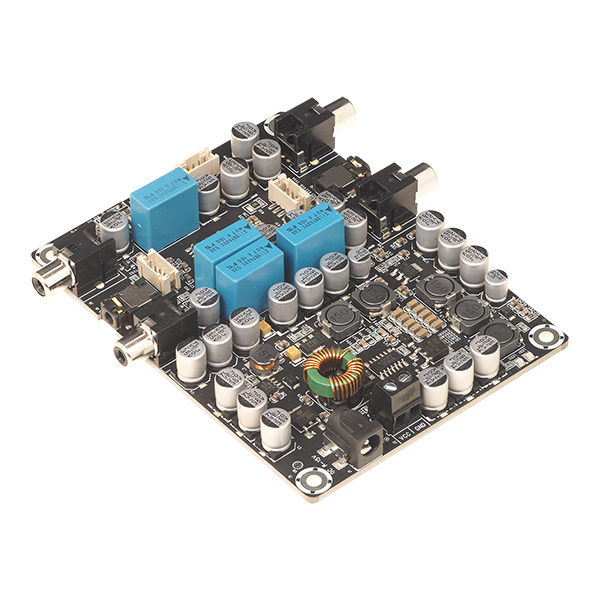

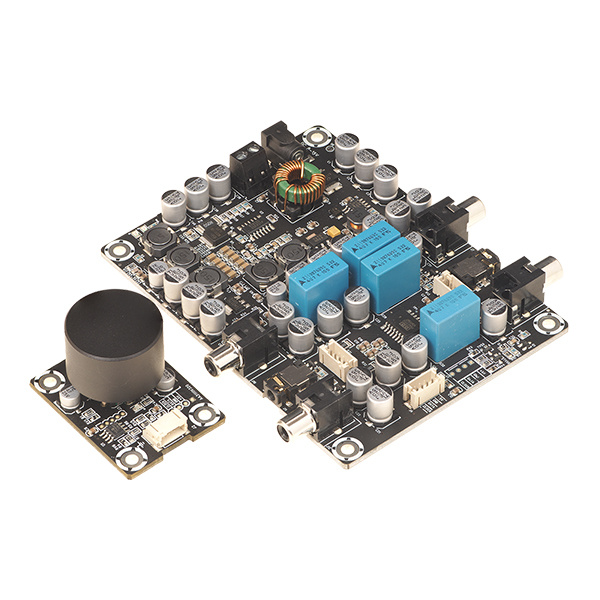

Sure Electronics AA-AB41148 Digitally Controlled Stereo Electronic Audio Volume Control Board - VC05

This is a digitally controlled stereo electronic audio volume board with gorgeous appearance. It features a mature volume adjustable module and external power and signal output connector. Several wiring methods such as 3.5 mm Socket (Default) facilitate connection. Analog and digital section powers are used independently to minimize the interference. Excellent heat dissipation eliminates the need for an extra heatsink. Over temperature, over current protection and power supply anti-reverse protection are included to extend its longevity of the board.

Specifications: Volume Control Board: 4.8 x 3.6 inches (121.92mm x 91.44mm) • Decode Board: 2 x 1.5 x1.7 inches • Wide Control Range: -95.5dB to 10dB • Accuracy: 1.5dB/step • Output Noise Voltage: 8.8μV • THD+N: 0.0006% • SNR:108dB • Single Ended Audio Signal Input and Output • LED Status Indicator • Flexible Connection and Easy Installation.
