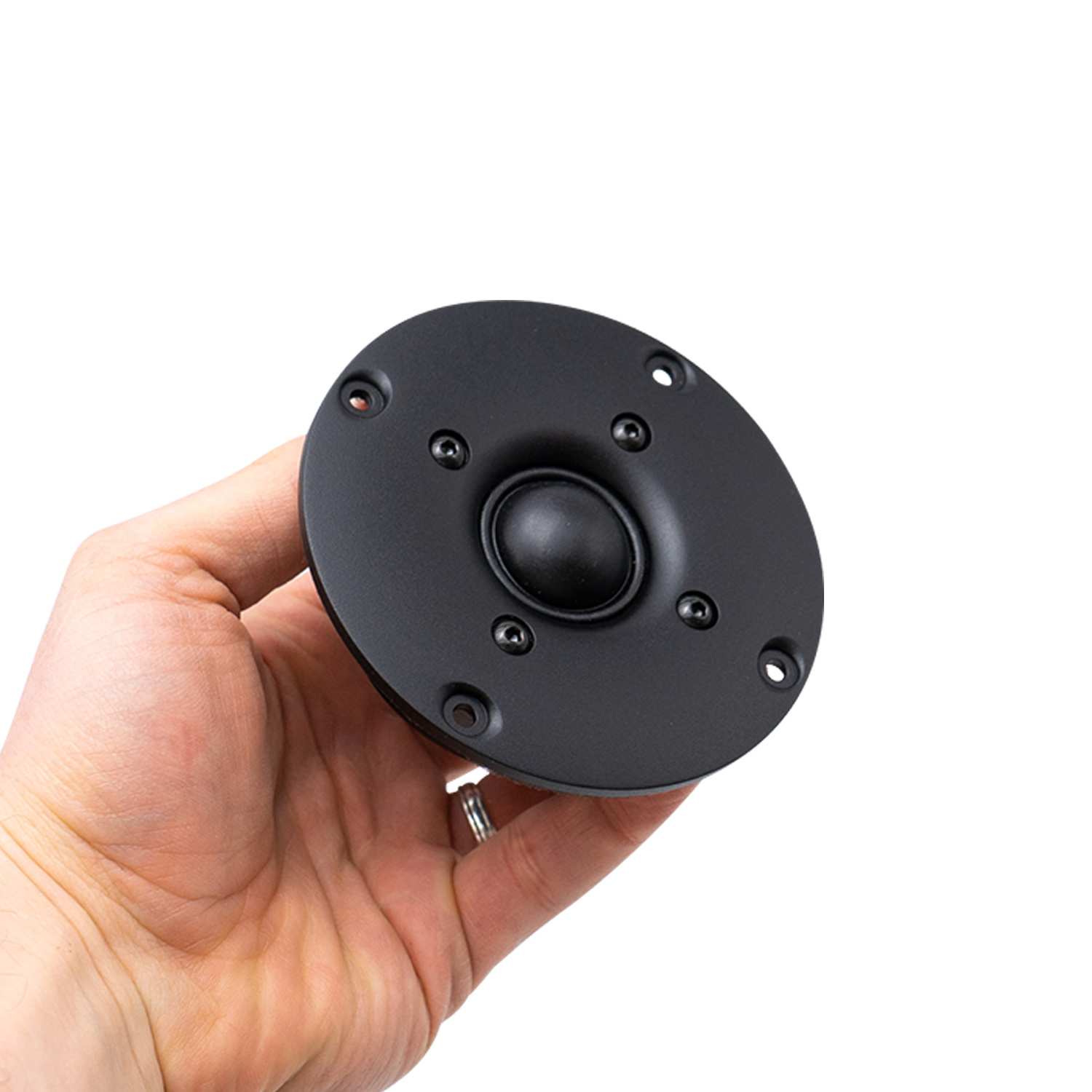

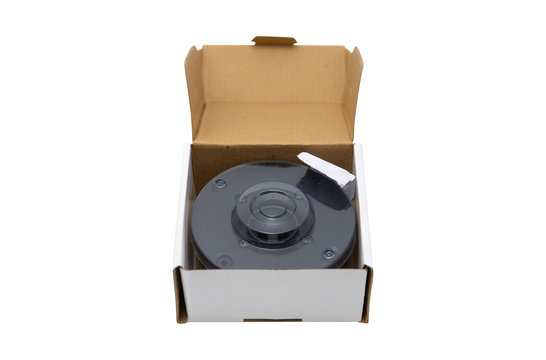

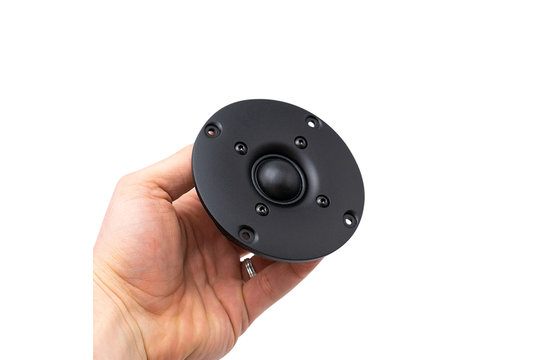

      SB26STC-C000-04 Tweeter a Cupola

      SB Acoustics SB26STC-C000-04 Tweeter a Cupola

      €32,45

      10+ In magazzino

      Aggiungi al carrello

      SB Acoustics SB26STC-C000-04 Tweeter a Cupola

      11 reviews
      5 da 5
      11 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SB Acoustics
      Mostra tutti Tweeters SB Acoustics
      1" | 4 Ω
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      € 26,82€ 32,45 10+ In magazzino
      • -5% Acquista 4 per soli € 30,83 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola
      SB26STC-C000-04 Tweeter a Cupola

      Descrizione del prodotto SB Acoustics SB26STC-C000-04 Tweeter a Cupola

      The SB Acoustics SB26STC-C000-4 Textile Dome Tweeter is a surprisingly well designed tweeter for its price. The 1’’ tweeter has a low resonance frequency allowing for a lower crossover point and better integration.



      Highlights

      • Copper cap for reduced voice coil inductance and minimum phase shift
      • Non-reflective rear chamber with optimized damping for improved dynamics
      • Flow optimized vented pole piece for optimum coupling to rear chamber
      • Fine weave soft fabric dome for smooth frequency response
      • Saturation controlled motor system for low distortion
      • CCAW voice coil for low moving mass
      • Long life silver lead wires
      • Low resonance frequency



      Product details

      SB Acoustics SB26STC-C000-4 1'' Tweeter

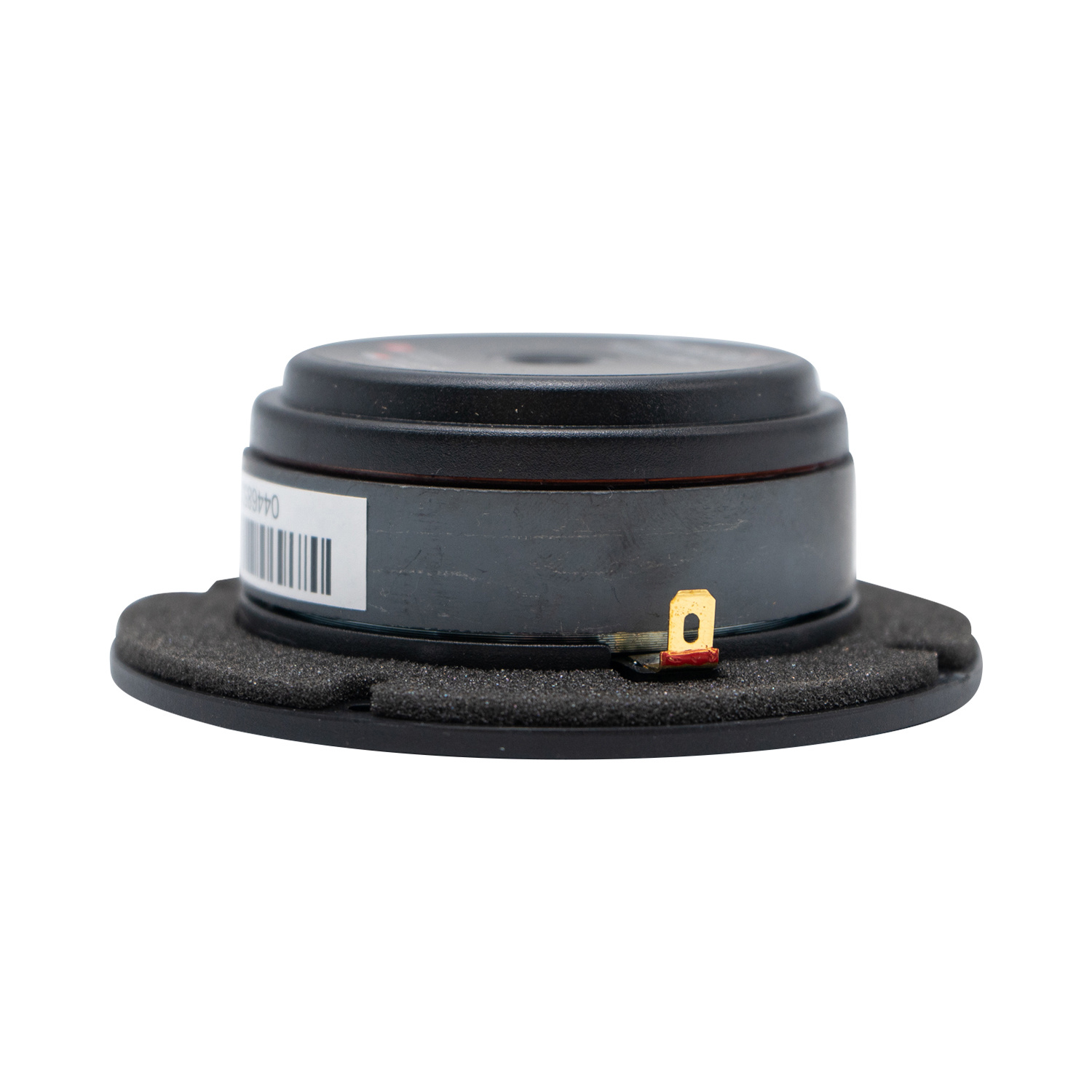

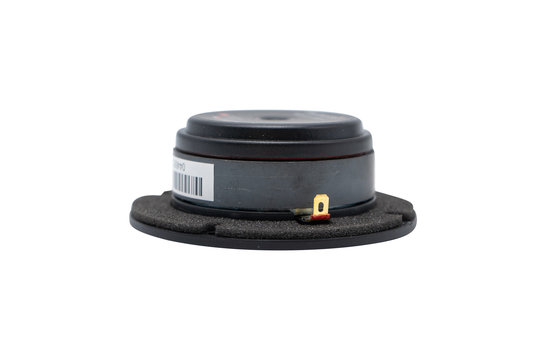

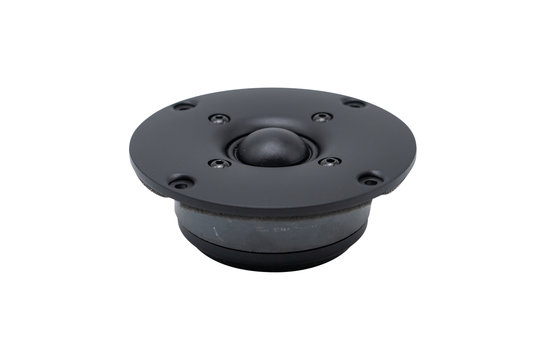

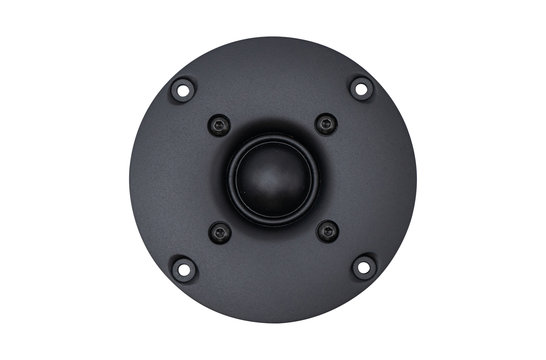

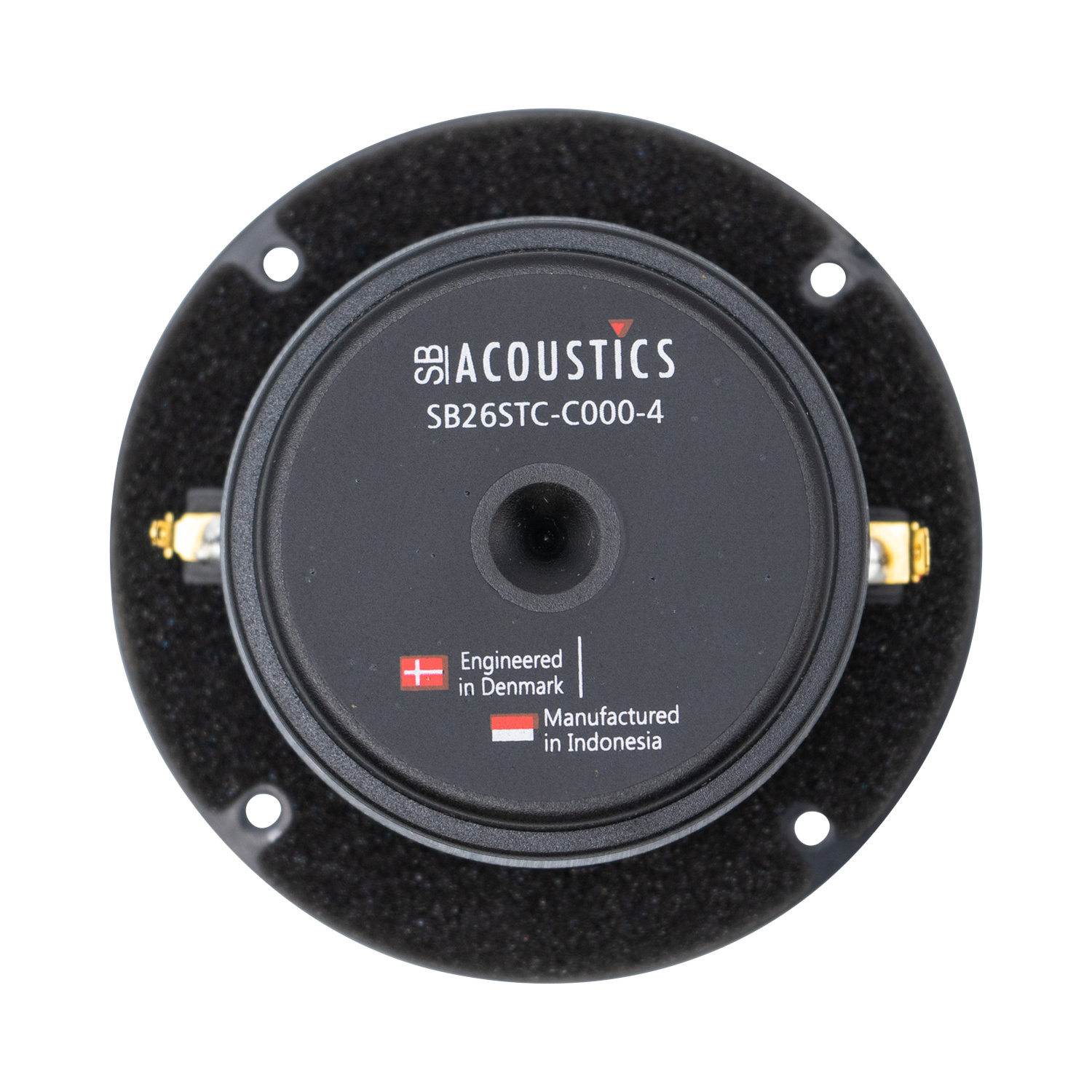

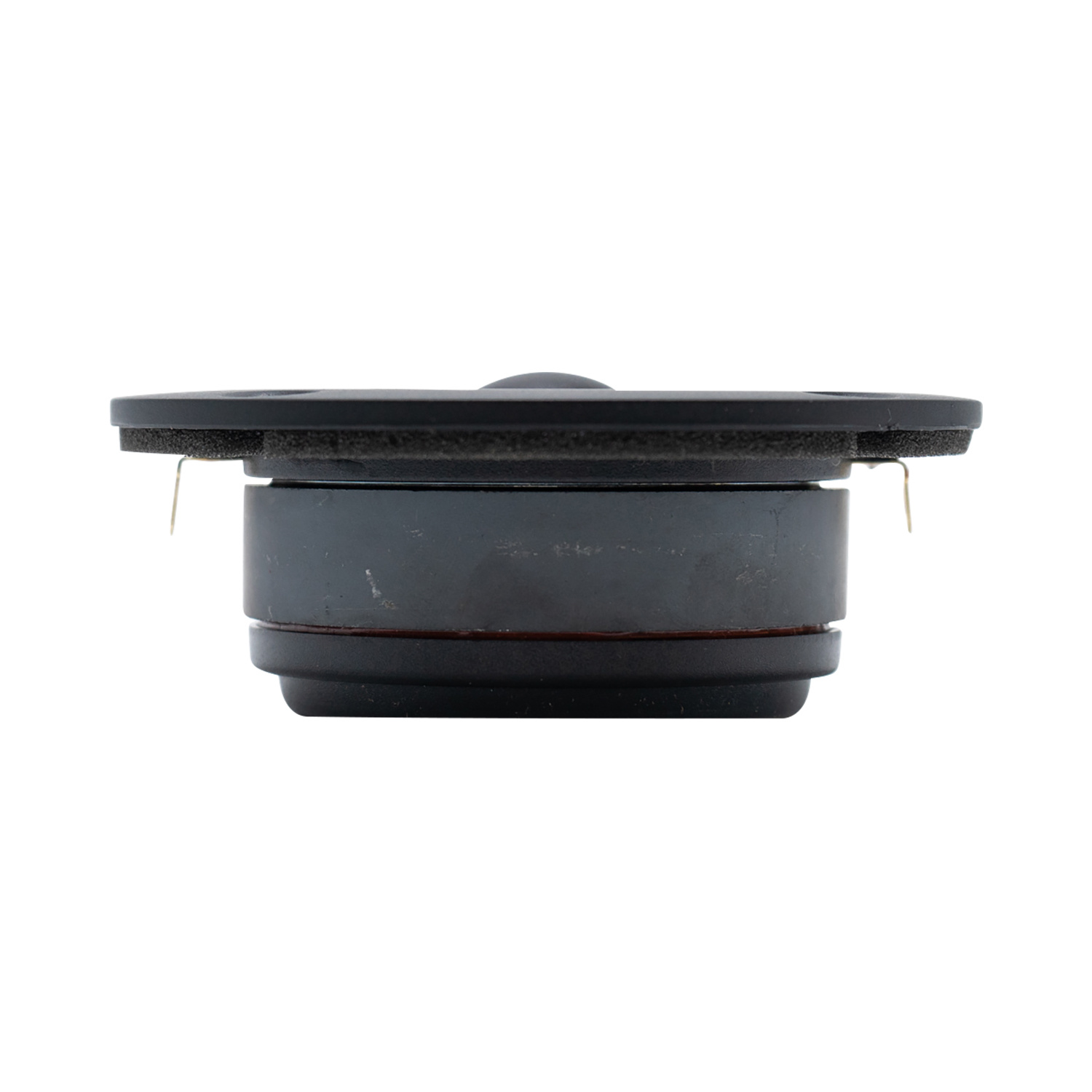

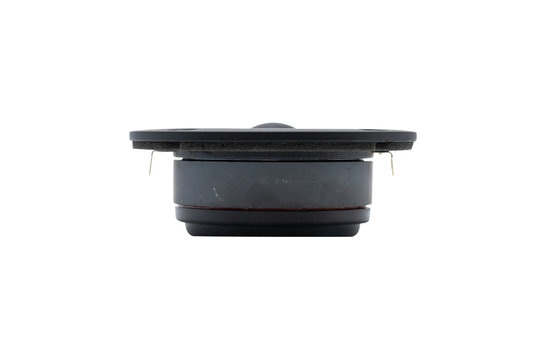

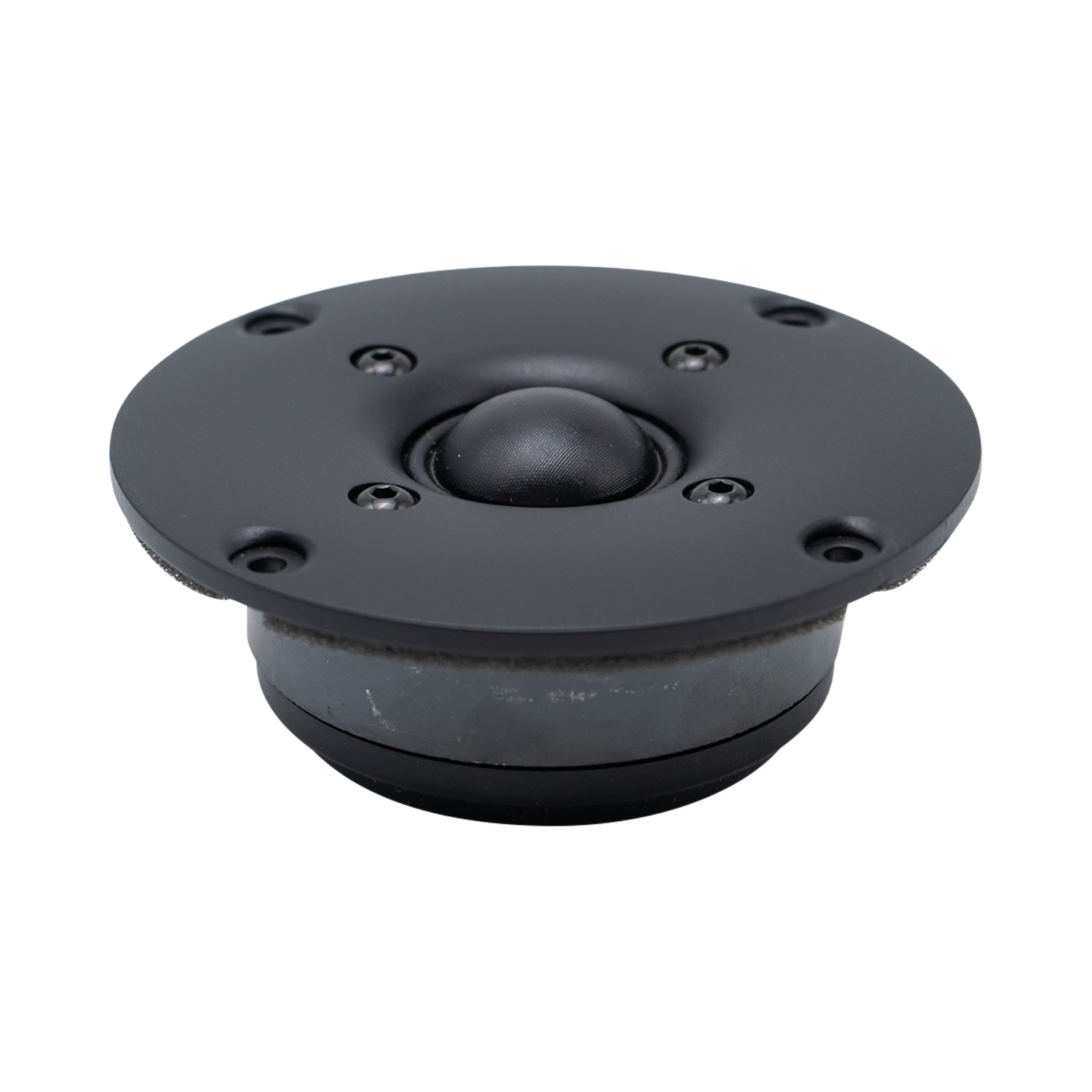

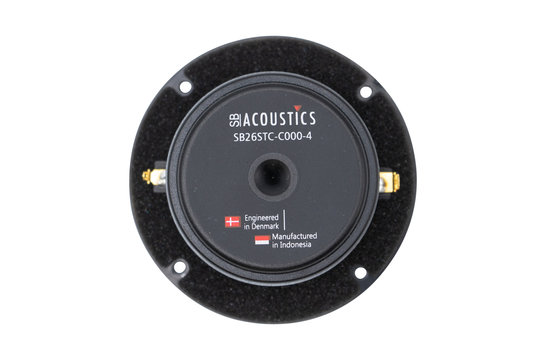

      The SB Acoustics SB26STC-C000-4 tweeter has a large rear chamber lowering the fs to 750Hz and reducing back wave reflections from the dome. Its copper cap pole piece, coated textile dome, 1” voice coil and the recessed faceplate give it a partially horn loaded profile. A very linear response, high efficiency output at 91.5dB sensitivity and extension past 35,000Hz make it an excellent tweeter for larger two-way speakers.



      Specifications: BL Product (BL): 1.6 Tm • Diaphragm Mass Inc. Airload (Mms): 0. 3 g • Maximum Linear Excursion (Xmax): 0.6 mm • Surface Area of Cone (Sd): 6.2 cm2

      Show more

      Specifiche

      Numero dell'articolo:
      SB26STC-C000-04
      EAN
      0691046948526
      Tipo di tweeter
      Dome
      Diametro del cono / cupola
      25 mm | 1"
      Gestione della potenza (RMS)
      120 Watts
      Impedenza (Z)
      4 Ω
      Sensibilità (SPL a 1m / 2,83V)
      91.5 dB
      Risposta in frequenza
      1400 to 35,000 Hz
      Frequenza di risonanza (Fs)
      750 Hz
      Resistenza DC (Re)
      3.2 ohms
      Induttanza della bobina mobile (Le)
      0.04 mH
      Fattore di merito meccanico (Qms)
      3
      Fattore di merito elettromagnetico (Qes)
      1.78
      Fattore di merito totale (Qts)
      1.12

      Show more
