Name: Yung International SD300 300W Class D Subwoofer Amplificatore a Piastra Module No Boost
Brand: Yung International
SKU: SD300
Price: 277.95 EUR
Availability: InStock

1 x 300 W

SD300 300W Class D Subwoofer Amplificatore a Piastra Module No Boost

€ 229,71€ 277,95 2 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Yung International SD300 Sub Amplificatore a Piastra

The Yung SD300 300W Class D subwoofer amplifier module produces 300 watts of continuous, honest power, which is enough to drive most home subwoofer speaker systems to very high playback volumes!

Highlights

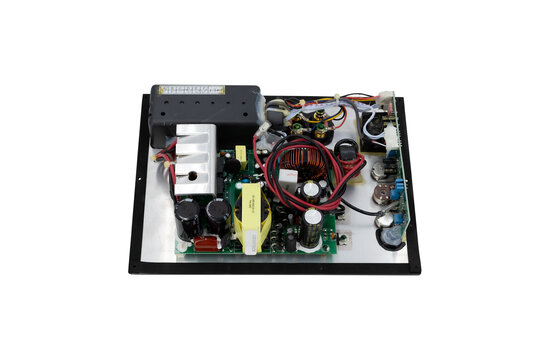

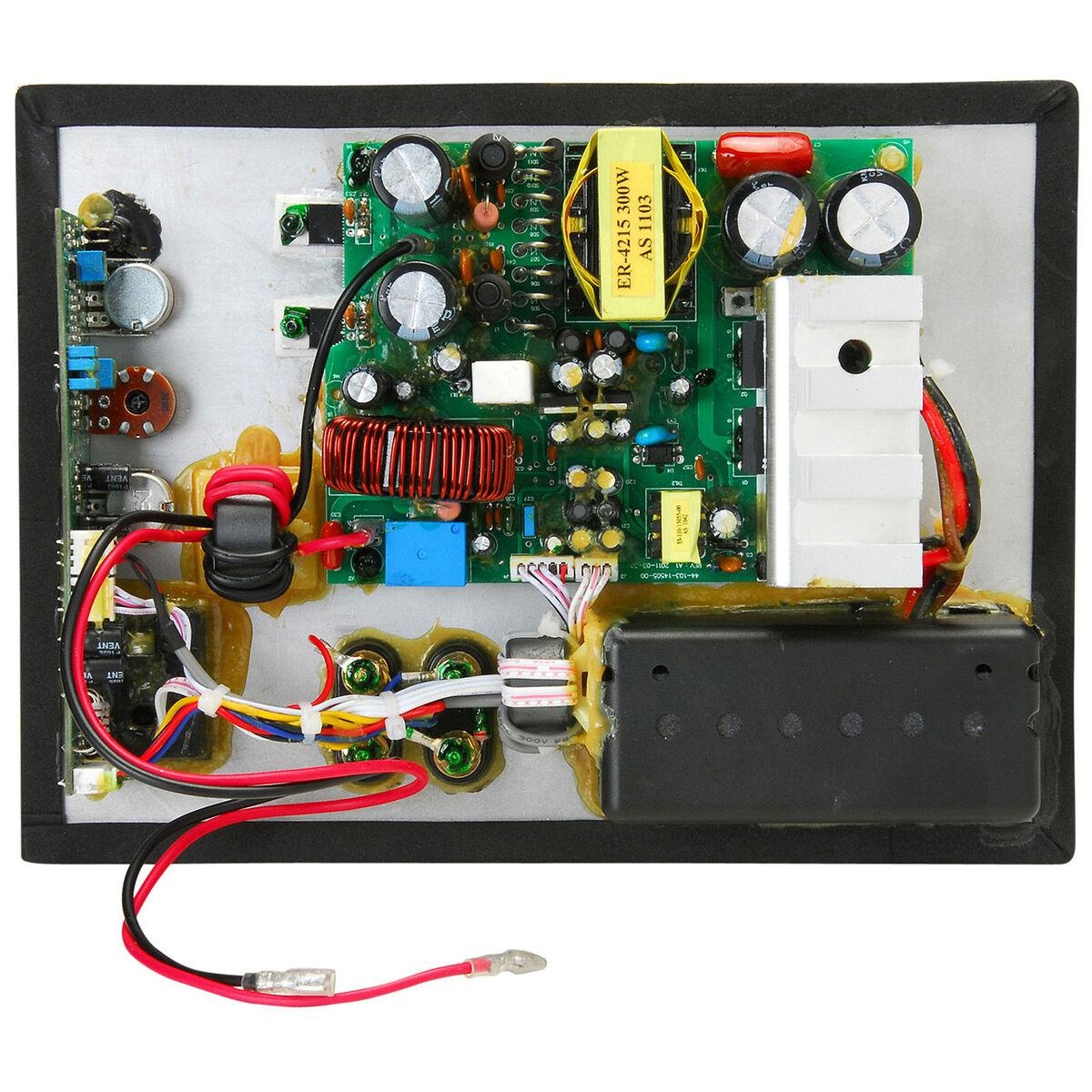

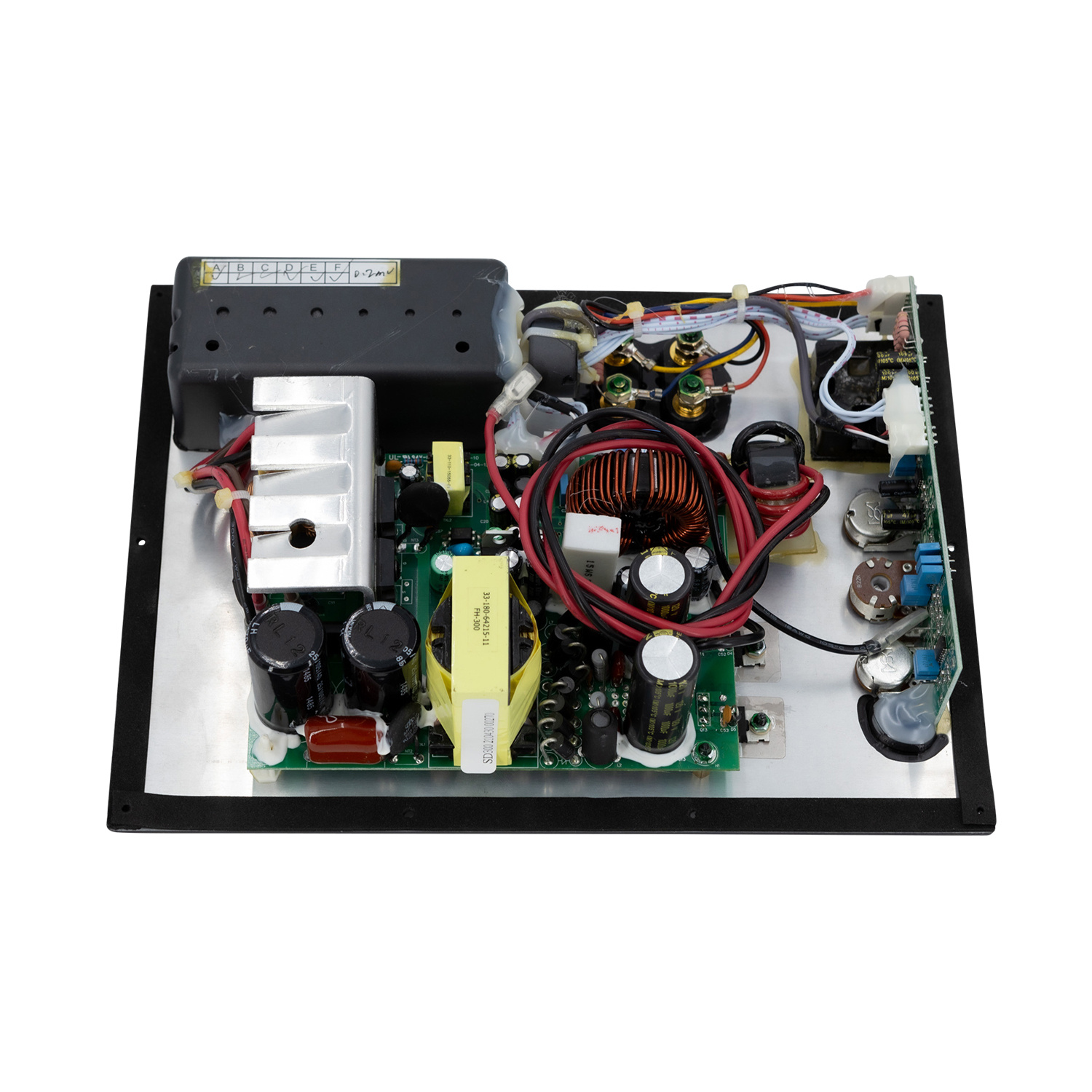

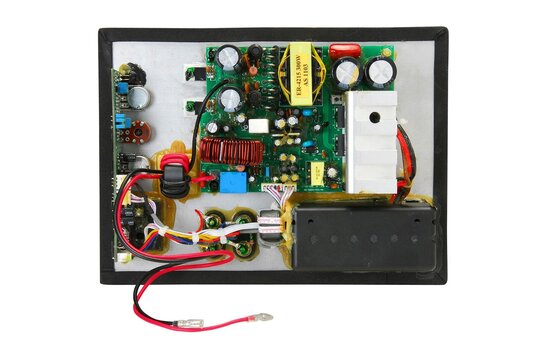

Class D amplifier circuit with switching power supply provides excellent efficiency
Capable of sustained, continuous output without thermal shutdown
Built-in limiter circuit protection prevents peak overloads
Low-level, high-level, and LFE inputs for flexible interconnection
Manual and automatic on/off mode options
Fully adjustable phase, gain, and crossover points ensure system optimization
Switchable 115/230V input voltage

Product details

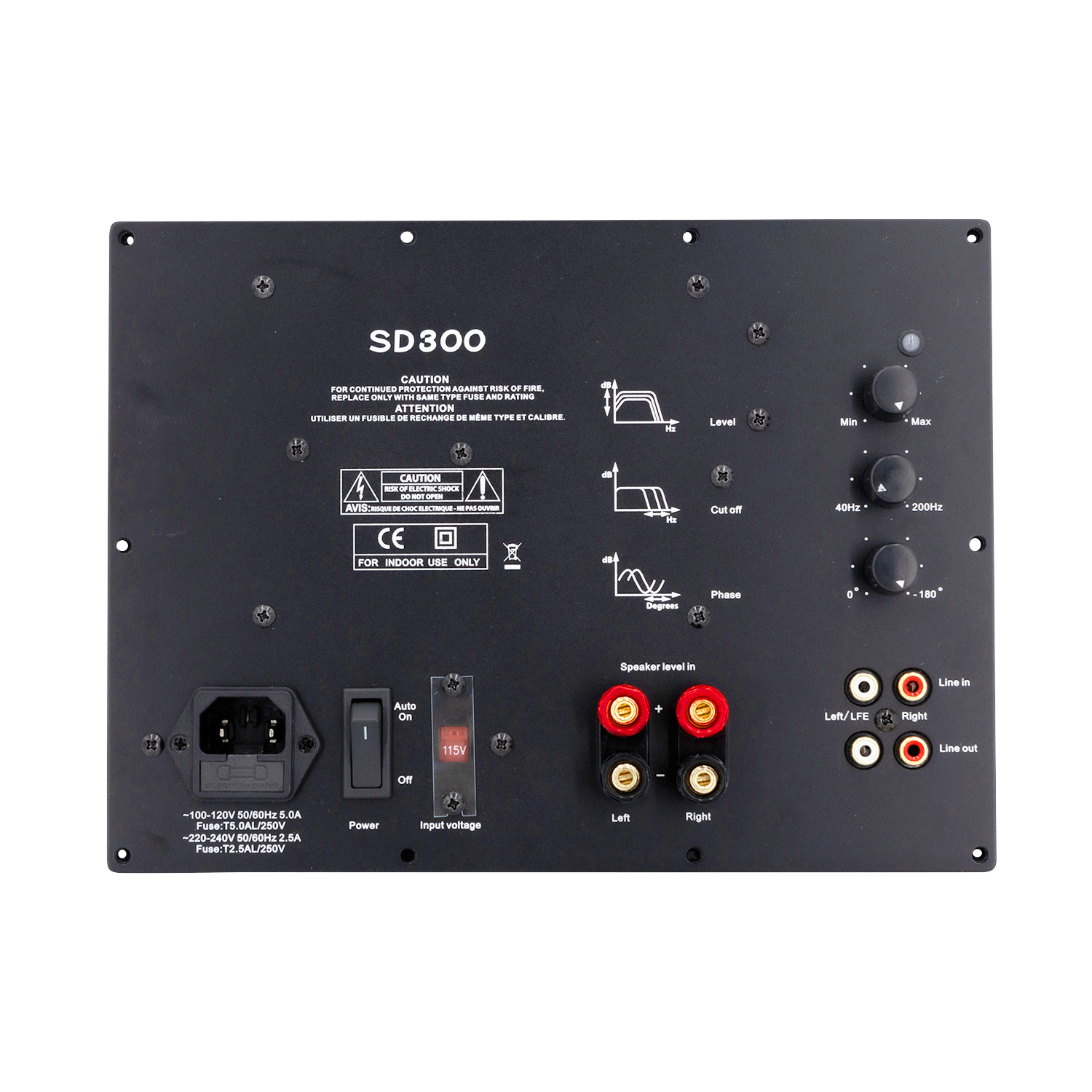

SD300 300W Class D Subwoofer Plate Amplifier Module No Boost

Yung International's SD Series Class D subwoofer power amplifiers are equipped with the unique ability to operate continuously at full rated output—a performance attribute not shared by most home audio amp designs. The benefits of this remarkable reserve capacity include solid, punchy dynamic range and fewer "nuisance" shutdowns when operated at sustained high levels.

The amplifiers are also extremely compact, lightweight, and cool-running, allowing users to enjoy the advantages of compact system form factors and flexibility of placement. An internal peak limiting circuit prevents amplifier overload, and protection against internal and external faults is also provided. Input power requirements are user configurable to either 115 VAC or 230 VAC line voltage.

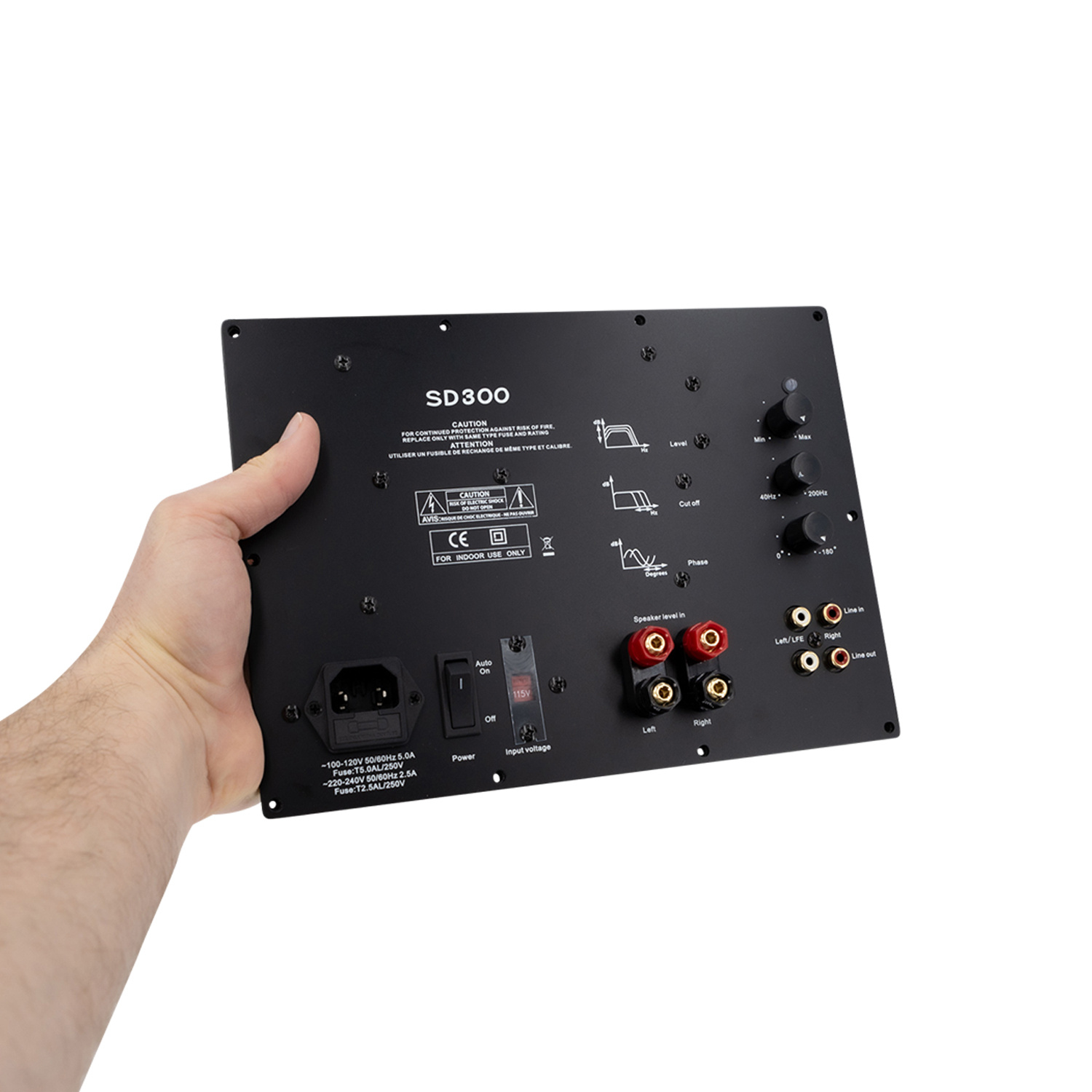

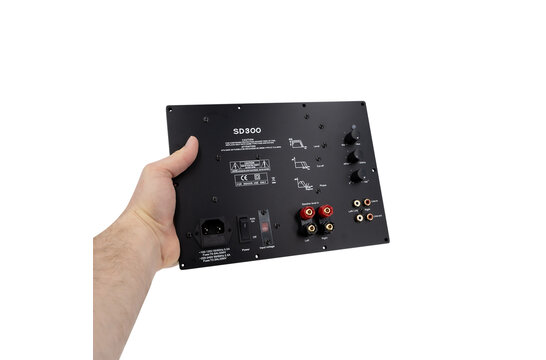

Room optimization and system integration are accomplished easily, thanks to the SD Series amps' inclusion of fully variable level, crossover frequency, and phase controls. Signal input is connected via dual RCA-type jacks, including the means to accept the output of an A/V receiver's LFE output, and dual RCA jacks are also provided to facilitate line level loop-through. The amplifier also accepts high (or speaker) level input signals through binding post terminals. When in standby mode, the amp's full active operation is engaged by signal presence of less than 1/2 watt.

Specifications: • Measured power output: 300 watts RMS into 4 ohms @ < 1.0% THD • Signal to noise ratio (at rated power): >90 dB • Input sensitivity (@ low level): 210 mV/50 Hz • Input sensitivity (@ high level): 3.0V/50 Hz • Low pass adjustment: 40 Hz to 200 Hz • Phase adjustment: Continuously variable from 0º (normal) to 180º (reverse) • Power requirements: Switchable, 115/230 VAC, 50/60 Hz • Dimensions: 10" W x 7-3/8" H x 2-1/2" D; Cutout dimensions: 9-1/4" W x 6-5/8" H.
