      Xtreme XTB40-8 Low Frequency Sound Eccitatore

      Xcite Xtreme XTB40-8 Low Frequency Sound Eccitatore

      €49,95

      10+ In magazzino

      Aggiungi al carrello

      Xcite Xtreme XTB40-8 Low Frequency Sound Eccitatore

      4 reviews
      5 da 5
      4 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Xcite
      Mostra tutti Nuovi prodotti
      150 W | 40 mm
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      € 41,28€ 49,95 10+ In magazzino
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo cinque anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore
      Xtreme XTB40-8 Low Frequency Sound Eccitatore

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Extreme Bass
      • Extreme low distortion
      • Also available in 4 ohms
      • Relatively heavy for an exciter

      Descrizione del prodotto Xcite Xtreme XTB40-8 Bass Eccitatore

      The XTB40-8 Audio Exciter from the Xtreme Series is engineered for superior bass performance and rugged durability. Designed in Germany, this high-quality exciter is perfect for applications requiring deep bass and robust sound output in a durable form factor.



      Highlights of the XTB40-8 Audio Exciter

      • Exceptional bass performance: Frequency range from 25 Hz to 1 kHz
      • High power handling with a maximum long-term power of 160 W

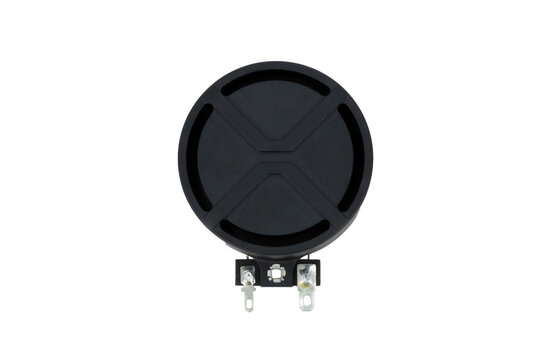

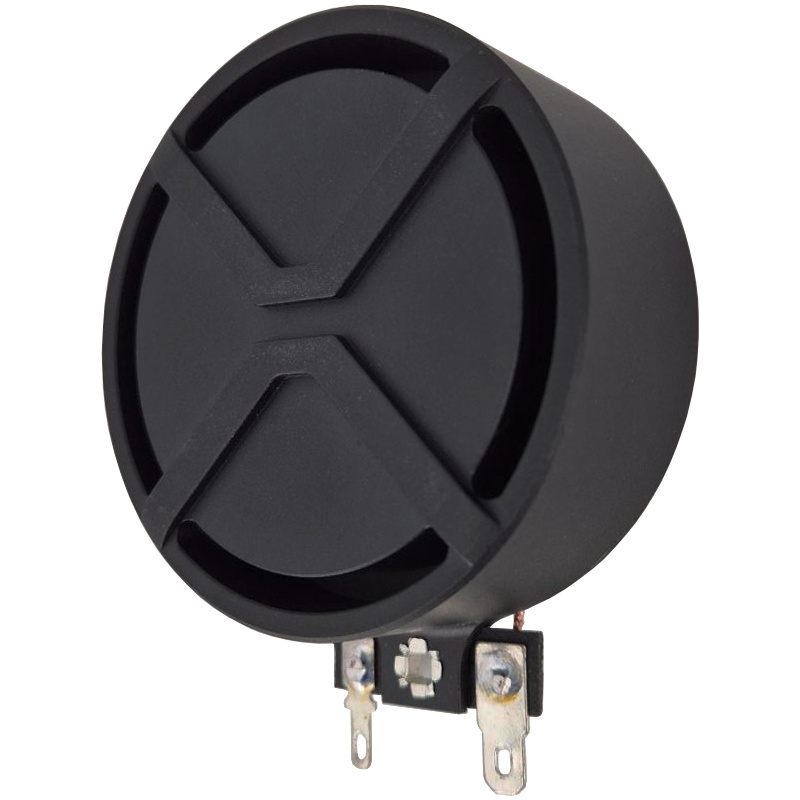

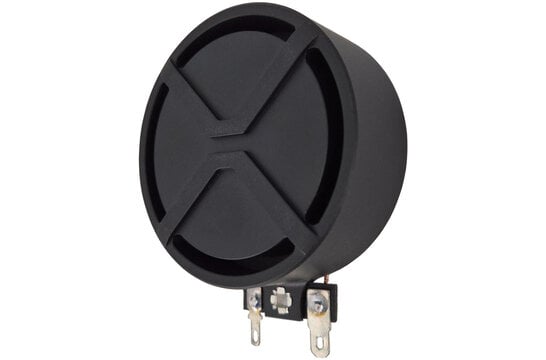

      • Rugged aluminum body with black steel suspension for enhanced durability
      • Advanced motor efficiency factor (β) of 13.8 dB for optimal performance



      Product details XTB40-8 Audio Exciter

      XTB40-8 Audio Exciter – High-performance bass exciter built for demanding audio applications.



      The XTB40-8 Audio Exciter is designed to deliver powerful bass with precision and reliability. Featuring a 4-layer, 40 mm voice coil and a nominal impedance of 8 Ohms, this exciter can handle up to 160 W of power for sustained performance. Its frequency range of 25 Hz to 1 kHz ensures rich and detailed low-frequency audio reproduction.

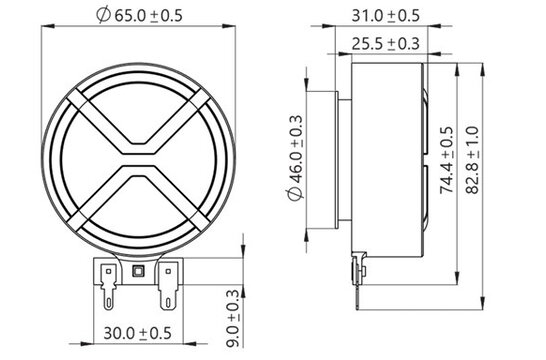

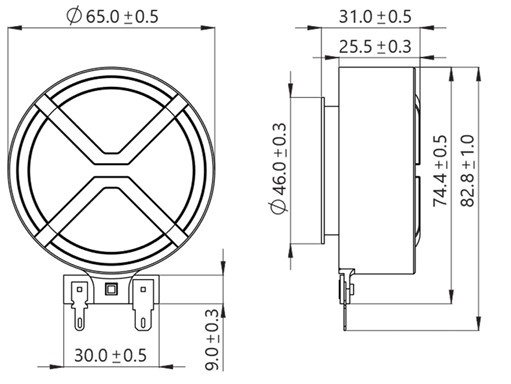

      With a total height of 31.0 mm and an outer diameter of 65.0 mm, the XTB40-8 is compact yet robust, making it suitable for integration into various professional audio setups. Its linear Xmax of ±2.5 mm allows for significant displacement, enabling deep bass output while maintaining low distortion. The rugged aluminum body and black steel suspension ensure durability and reliability in demanding environments. Optimized for reduced harmonic and intermodulation distortions, the XTB40-8 is the ideal choice for audiophiles and professionals looking for high-quality bass performance in their audio projects.



      A basic guide to creating invisible sound with exciters

      Curious about how to create invisible sound with exciters? In this blog, Ben Zenker, an expert with more than 15 years of experience and 10 internationally reviewed publications, shares his in-depth knowledge on material selection, installation and optimising sound quality. An indispensable resource for the passionate DIY audio enthusiast.



      FAQ about the Xcite Products

      What is the difference between 4Ohm and 8Ohm Exciters?

      Simple answer:

      Xcite offers both 4Ohm and 8Ohm exciters to suit various project needs. The choice depends on your setup. Usually, 4Ohm is preferred for the final configuration, such as using 1x 4Ohm, 2x 8Ohm in parallel, or 4x 4Ohm in a serial-parallel combination. If you need guidance, how to wire several exciters, check out the blog.



      Advanced answer:

      Looking in detail, 8Ohm exciters have a lighter voice coil due to a smaller winding diameter, which slightly enhances high frequencies although the inductivity is higher.



      Why is a low distortion design important?

      Simple answer:

      At higher volumes, all loudspeakers naturally produce distortion due to non-linearities in their voice coil, magnet, and stiffness design. The exciter design plays a crucial role in determining the level of distortion—a well-designed exciter minimizes it. For panel speakers, distortion is more complex than in traditional speakers, as the exciter is the primary source of distortion, while the panel and construction amplify it. Xcite units are engineered to produce low distortion, ensuring minimal distortion in the source of the final assembly.



      Advanced answer:

      Distortions in panel speakers arise from three sources: the exciter, the panel and assembly, with the exciter being the primary contributor. These distortions primarily include harmonic and intermodulation distortions caused by non-linearities in Bl(x) and Kms(x) of the exciter. By filtering the sound pressure using the inverse fundamental frequency response, the influence of the panel’s radiation can be removed, isolating all distortion at the system's input - the exciter. This technique, known as Equivalent Input Harmonic Distortion (EIHD), enables precise analysis of distortions at the exciter level. Xcite uses advanced simulations to identify and optimize the root causes of Bl(x) and Kms(x) non-linearities, minimizing distortion and delivering high-performance results. For detailed measurements, refer to our datasheets.



      What is Motor Efficiency Factor β?

      Simple answer:

      Motor efficiency factor β measures how efficiently the exciter converts electrical power into mechanical force. A higher value directly translates to greater sensitivity per Watt. Xcite represents this factor on a logarithmic scale to compare the performance of various products, including 4Ohm and 8Ohm exciters. Simply put, a 1dB higher motor efficiency factor means 1dB more in the passband.



      Advanced answer:

      Motor efficiency factor is determined by the motor design and influenced by factors such as coil winding layout, material resistivity, and magnetic field strength. Notably, it remains independent of the wire length and cross-sectional area of the wire, allowing for direct comparisons between 4Ohm and 8Ohm exciters. In our datasheets, we express the motor efficiency factor β logarithmically, highlighting differences in passband efficiency per Watt across exciters. This enables a clear evaluation of exciter performance in various configurations. For detailed insights, consult our measurement graphs with the corresponding motor efficiency factor for each product.

      Show more

      Specifiche

      Numero dell'articolo:
      XTB40-8
      EAN
      9506185848679
      Tipo
      Bass Exciter
      Gestione della potenza (RMS)
      160 Watts
      Impedenza
      8 Ohms
      Risposta in frequenza
      25Hz –1kHz
      Frequenza di risonanza (Fs)
      29.9 Hz
      Resistenza DC (Re)
      7.26 ohms
      Induttanza della bobina mobile (Le)
      0.32 mH
      Diametro della bobina mobile
      40 mm
      Diametro esterno complessivo
      65.0 mm Ø
      Profondità complessiva
      31.0 mm
      Dimensioni della superficie di montaggio
      46.0 mm outside Ø
      Tipo di montaggio

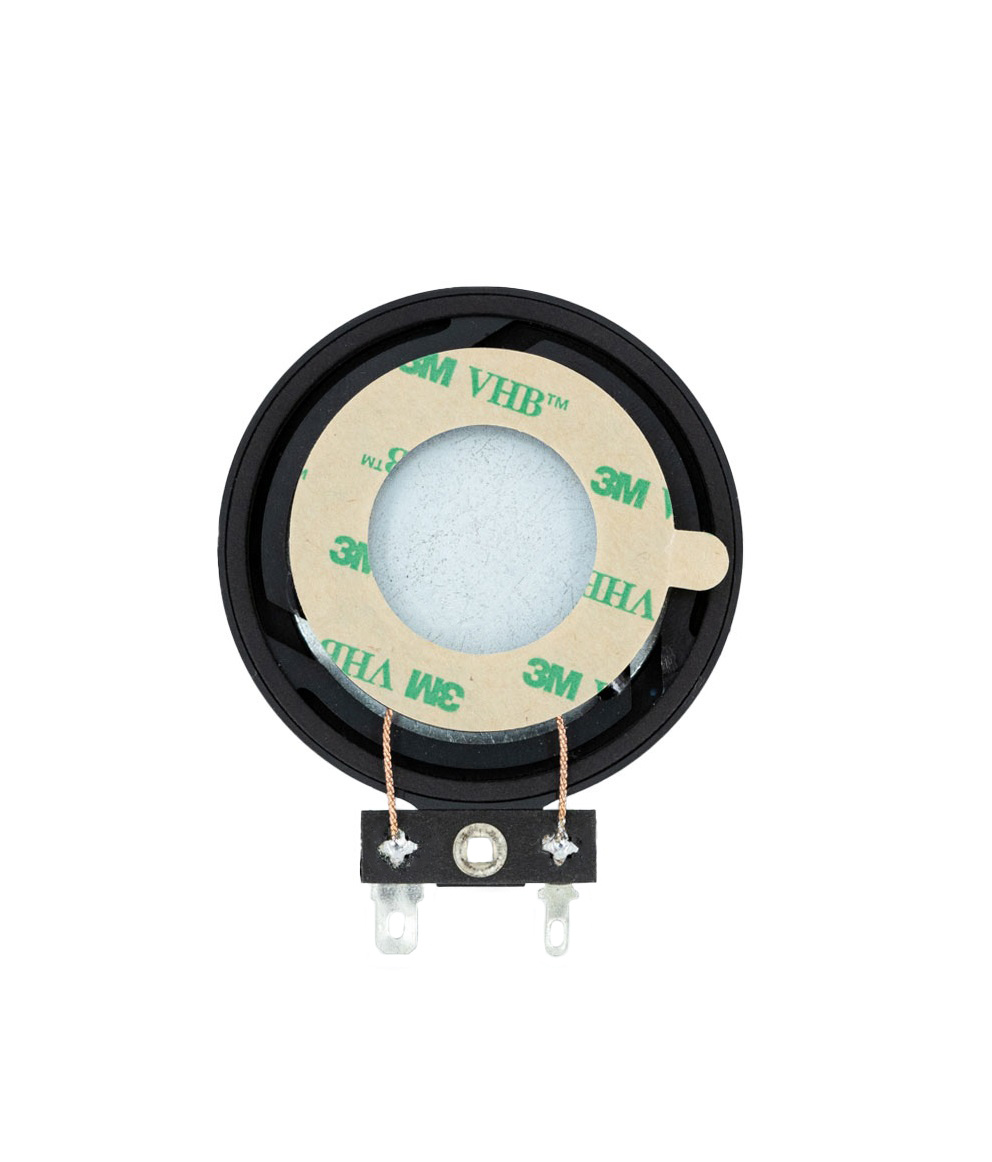

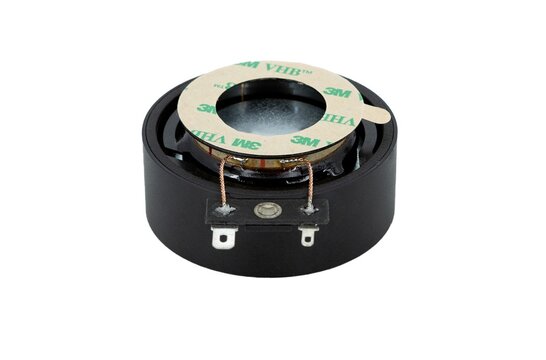

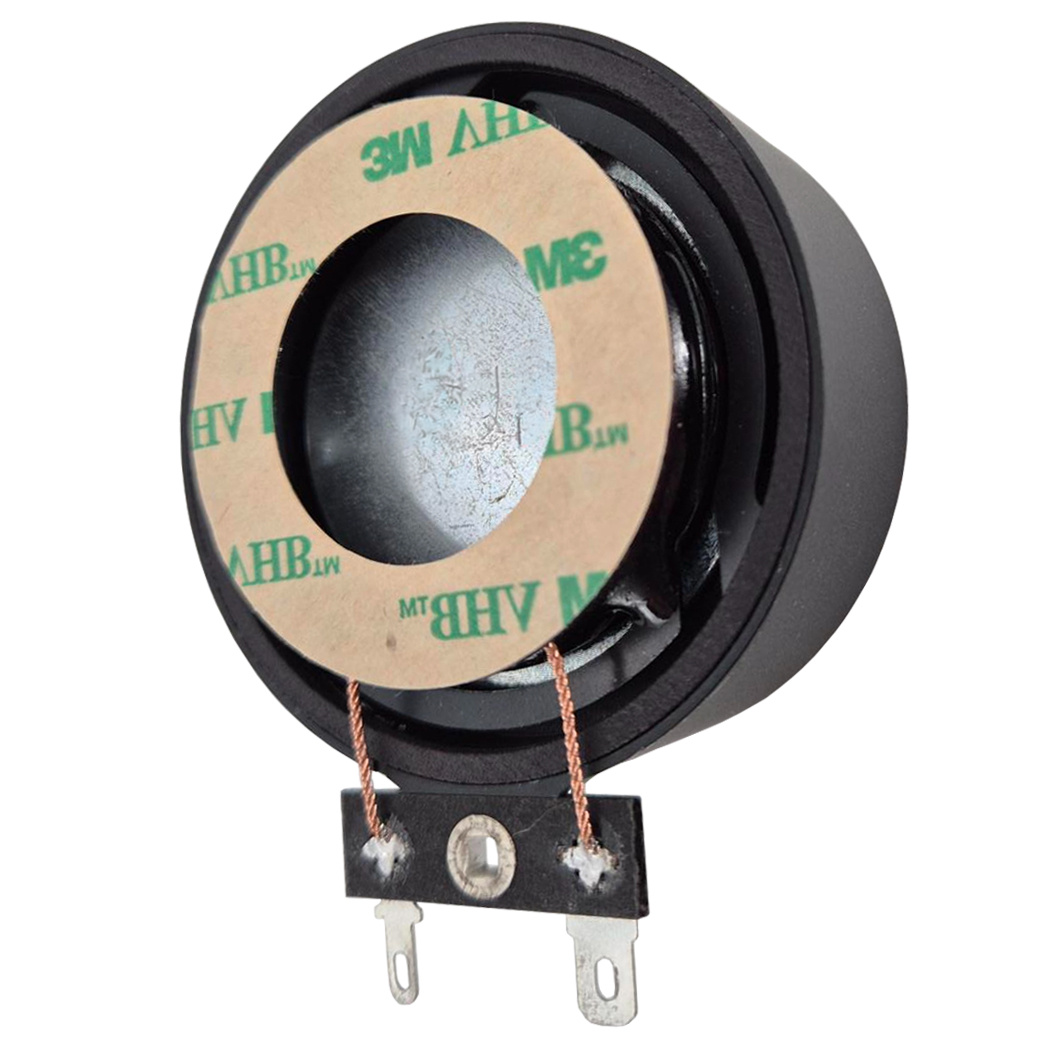

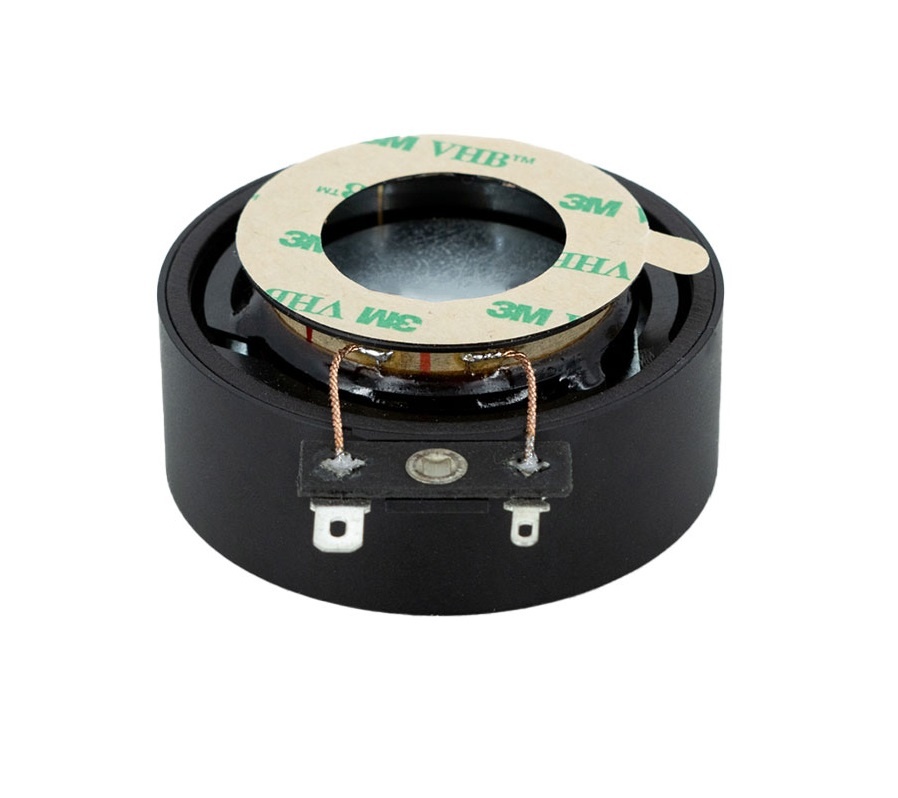

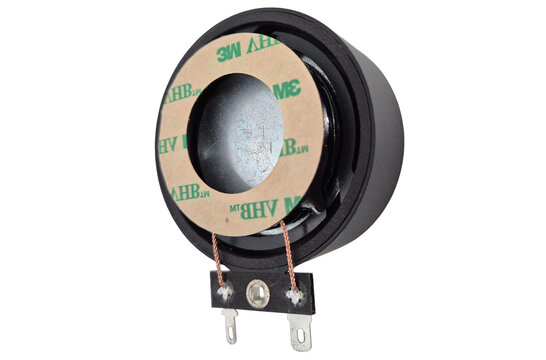

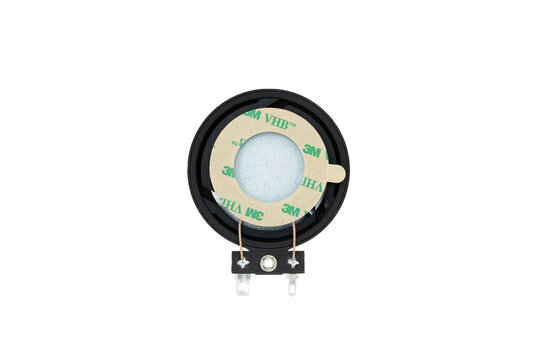

      3M VHB adhesive pre-applied
      Peso
      319 grams

      Show more

      Recensioni

      4 reviews
      Recensisci questo prodotto
      5 di 5
      I'm using the Xcite XTB40-8 units as bass shakers on my sim racing rig, and I’m genuinely impressed. I mounted them directly onto the seat and rig components using the built-in adhesive backing – no drilling, no MDF panels, and no hassle. The adhesive is strong and holds up well even under extended sessions. They’re powered by two 2x100W DAC amplifiers and controlled via SimHub, delivering precise, powerful tactile feedback with excellent ...

      Show more

      Da Luca on 25 Maggio 2025
      5 di 5
      Technical Review: Xcite Xtreme XTB40-8 Bass Exciter – High Performance in a Compact Design I recently integrated four Xcite Xtreme XTB40-8 Bass Exciters into my sim racing rig, using SimHub for signal generation and a compact 100W DAC/amp for amplification. The goal was to enhance tactile feedback without major structural modifications – and the XTB40-8 exceeded expectations across the board. Performance: These exciters deliver excepti...

      Show more

      Da Luca Capobianco on 26 Aprile 2025
