      VM752 Mid-range Dome

      Volt Loudspeakers VM752 Mid-range Dome

      €699,95

      9 In magazzino

      Aggiungi al carrello

      Volt Loudspeakers VM752 Mid-range Dome

      0 klantbeoordelingen
      0 da 5
      0 klantbeoordelingen
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Volt Loudspeakers
      3" | 8 Ω
      VM752 Mid-range Dome
      VM752 Mid-range Dome
      VM752 Mid-range Dome
      VM752 Mid-range Dome
      VM752 Mid-range Dome
      VM752 Mid-range Dome
      VM752 Mid-range Dome
      VM752 Mid-range Dome
      € 578,47€ 699,95 9 In magazzino
      • -5% Acquista 4 per soli € 664,95 per pezzo
      € 699,95
      +-
      Aggiungi al carrello
      🔒 Pagamento sicuro
      MastercardVisaPostepayBank TransferApple PayGoogle Paypaypal

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      VM752 Mid-range Dome
      VM752 Mid-range Dome
      VM752 Mid-range Dome
      VM752 Mid-range Dome
      VM752 Mid-range Dome
      VM752 Mid-range Dome
      VM752 Mid-range Dome
      VM752 Mid-range Dome

      Descrizione del prodotto Volt Loudspeakers VM752 Mid-range Dome

      The Volt Loudspeakers VM752 is a high-quality 3-inch dome midrange driver known for its smooth and extended response, making it suitable for critical midband frequencies in professional audio and high-fidelity systems. This midrange driver is often used in prestigious recording studios and high-end audio setups.



      Highlights of the Volt Loudspeakers VM752 Mid-range Dome

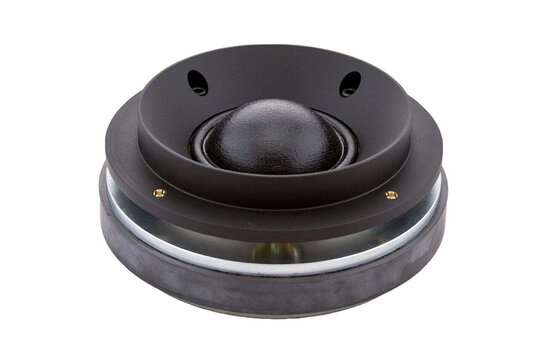

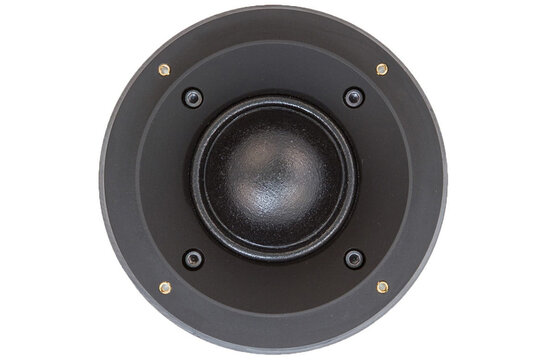

      • 3-inch (75mm) soft dome midrange loaded by a short front-mounted horn
      • Single-layer round-wire copper coil for high excursions
      • High sensitivity of 94 dB and 100W AES power handling
      • Critically doped dome and surrounds for smooth and consistent response
      • 200mm ceramic magnet for high efficiency



      Product details Volt Loudspeakers VM752 Mid-range Dome

      Volt Loudspeakers VM752 Mid-range Dome



      The VM752 features a 75mm soft dome midrange driver with a short front-mounted horn, designed for a wide and smooth frequency response from 500 Hz to 4,000 Hz. The single-layer round-wire copper coil and the critically doped dome ensure minimal coloration and low distortion. The high-power handling capability of 100W AES, combined with a sensitivity of 94 dB, makes it suitable for high-performance audio systems.

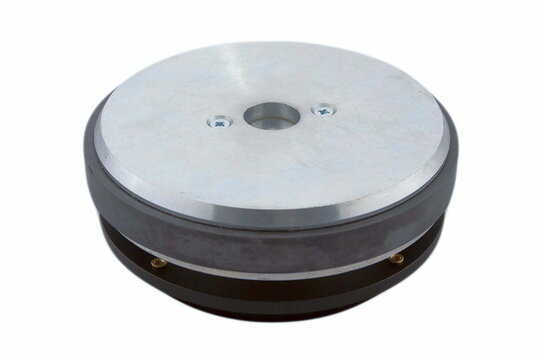

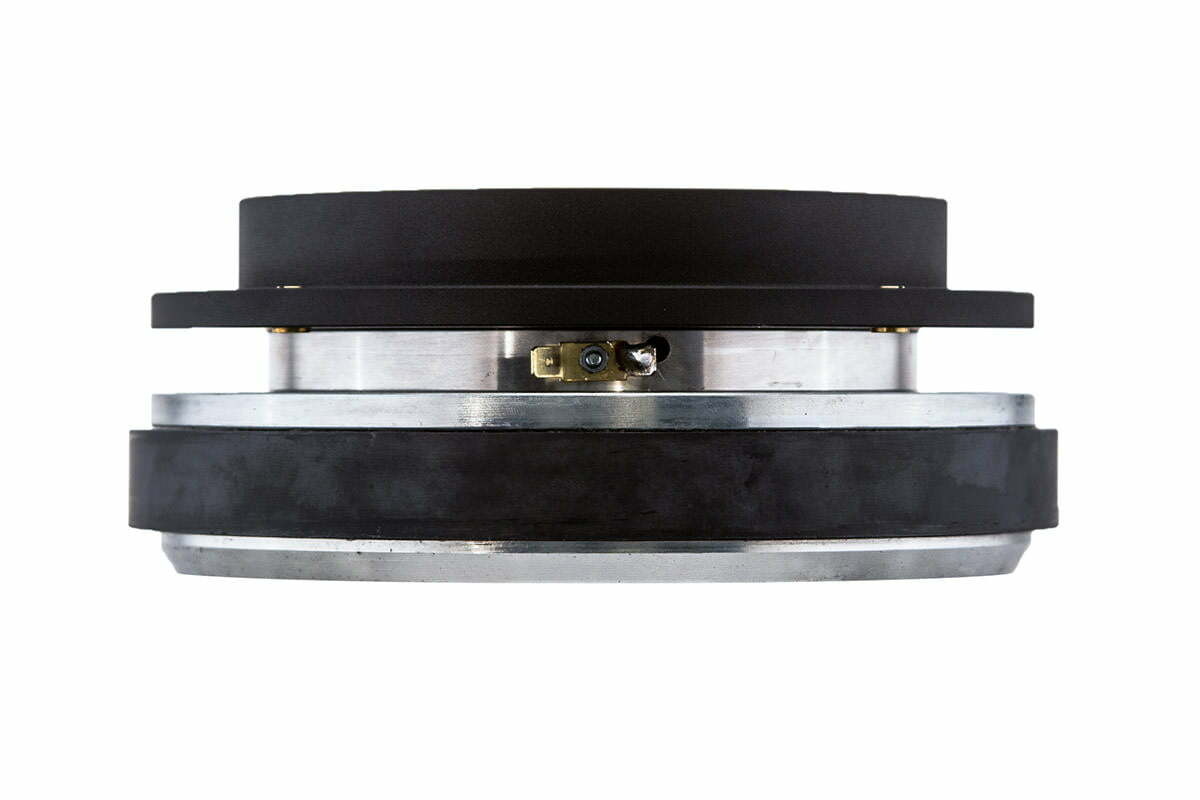

      This driver also includes a robust 200mm ceramic magnet and a diecast aluminum chassis for durability and efficient heat dissipation. The dome/coil assembly is built onto a self-locating replaceable ring, making it easy to maintain and replace in the field. It requires rear mounting onto a baffle board using M5 bolts into threaded inserts built into the chassis.



      The VM752 is ideal for use in studio monitors, high-end home audio systems, and professional sound reinforcement applications.

      Show more

      Specifiche

      Numero dell'articolo:
      VM752
      EAN
      9502741182355
      Tipo di woofer
      Midwoofer
      Diametro nominale
      3"
      Gestione della potenza (RMS)
      100 Watt
      Gestione della potenza (max)
      115 Watt
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      94 dB
      Risposta in frequenza
      500 - 4000 Hz
      Diametro della bobina mobile
      75 mm
      Peso del magnete
      8000 g
      Resistenza DC (Re)
      6.3 Ω
      Induttanza della bobina mobile (Le)
      0.37 mH
      Frequenza di risonanza (Fs)
      400 Hz
      Fattore di merito meccanico (Qms)
      9.53
      Fattore di merito elettromagnetico (Qes)
      0.81
      Fattore di merito totale (Qts)
      0.75
      Superficie del cono (Sd)
      57 cm²
      Volume di spostamento (Vd)
      5.7 cm³
      Prodotto BL (BL)
      9.3 Tm
      Volume equivalente di cedevolezza (Vas)
      0.16 L
      Escursione lineare massima (Xmax)
      1 mm
      Materiale del cono / diaframma
      Poly
      Materiale della sospensione
      Rubber
      Materiale del cestello / telaio
      Aluminum
      Materiale del magnete
      Ferrite
      Diametro esterno complessivo
      200 mm
      Diametro del ritaglio del pannello frontale
      172 mm
      # Numero di fori di montaggio
      4
      Diametro dei fori di montaggio
      5.2 mm
