      PAW 30 ND - 8 Woofer Medio-Bassi

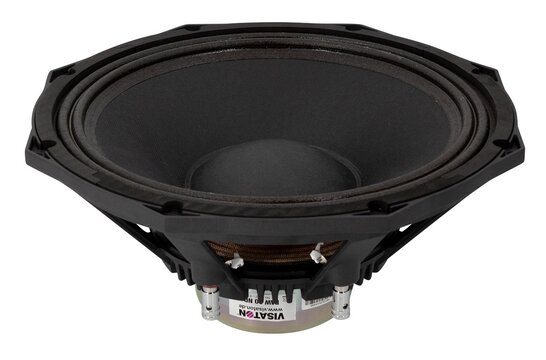

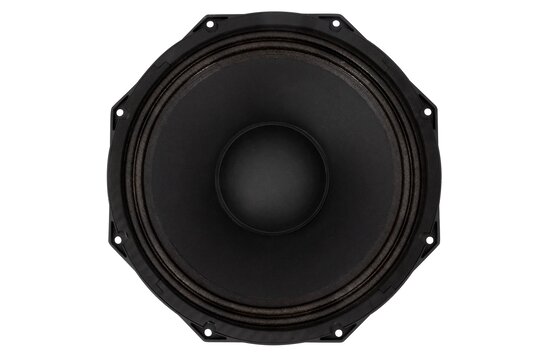

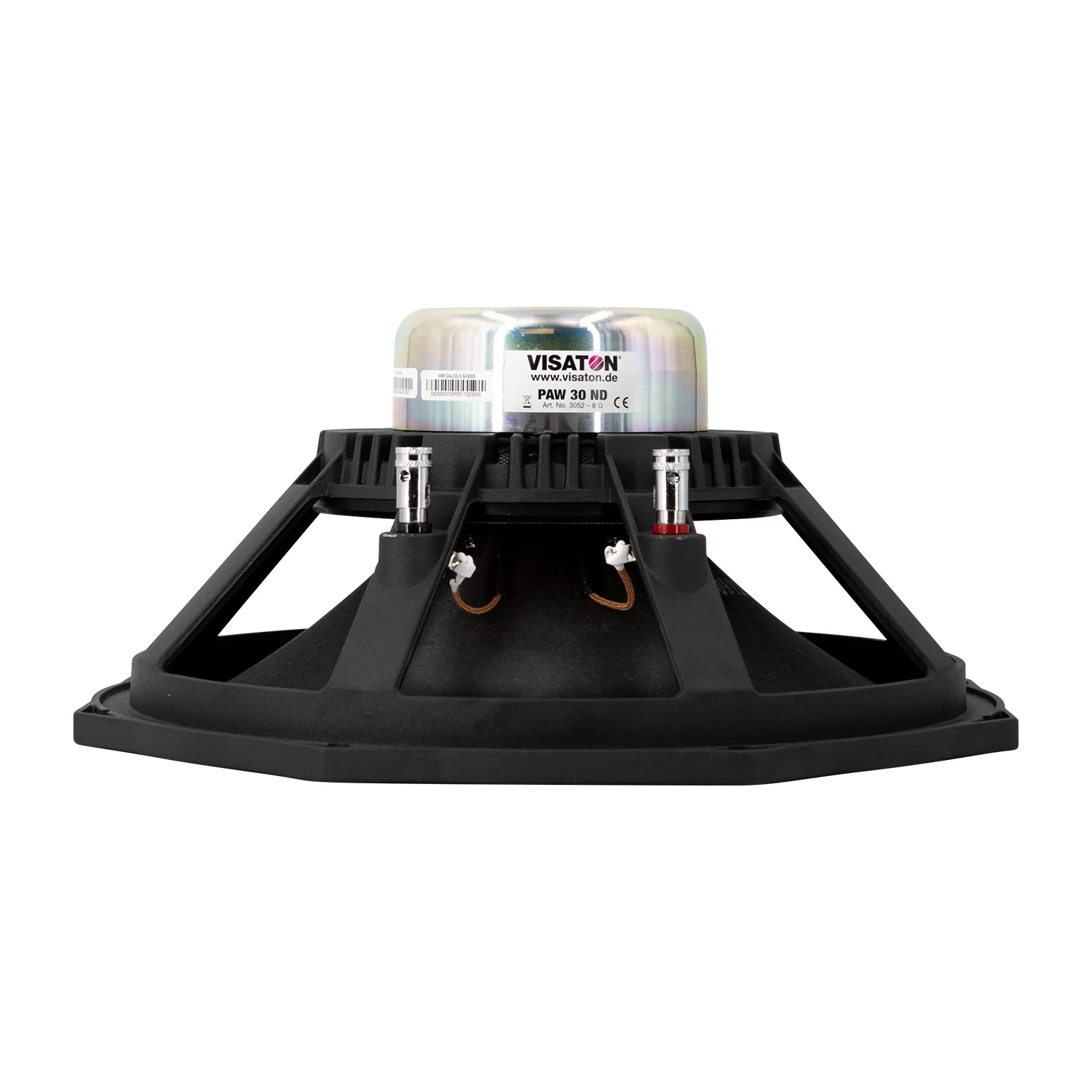

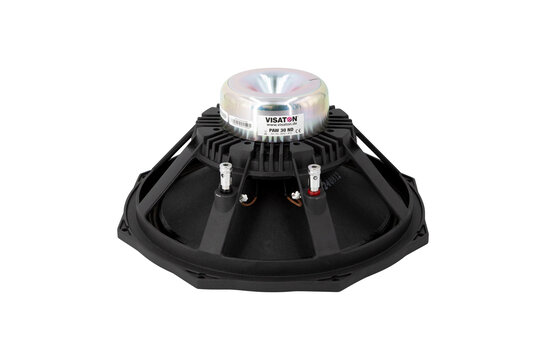

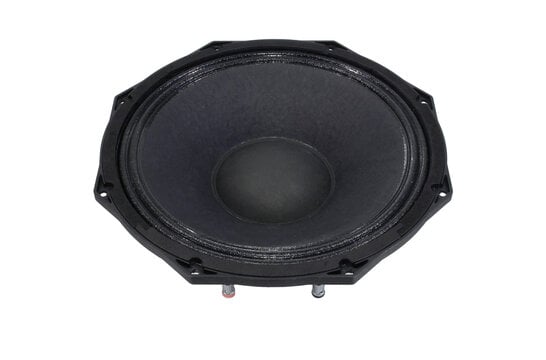

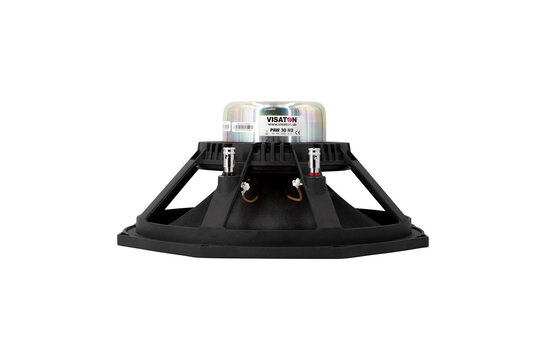

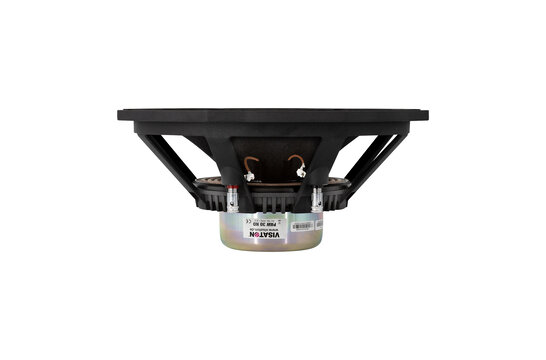

      Visaton PAW 30 ND - 8 Woofer Medio-Bassi

      €329,95

      2 In magazzino

      Visaton PAW 30 ND - 8 Woofer Medio-Bassi

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Visaton
      € 272,69€ 329,95 2 In magazzino
      • -5% Acquista 4 per soli € 313,45 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato prima delle 16:00, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto Visaton PAW 30 ND - 8 Woofer Medio-Bassi

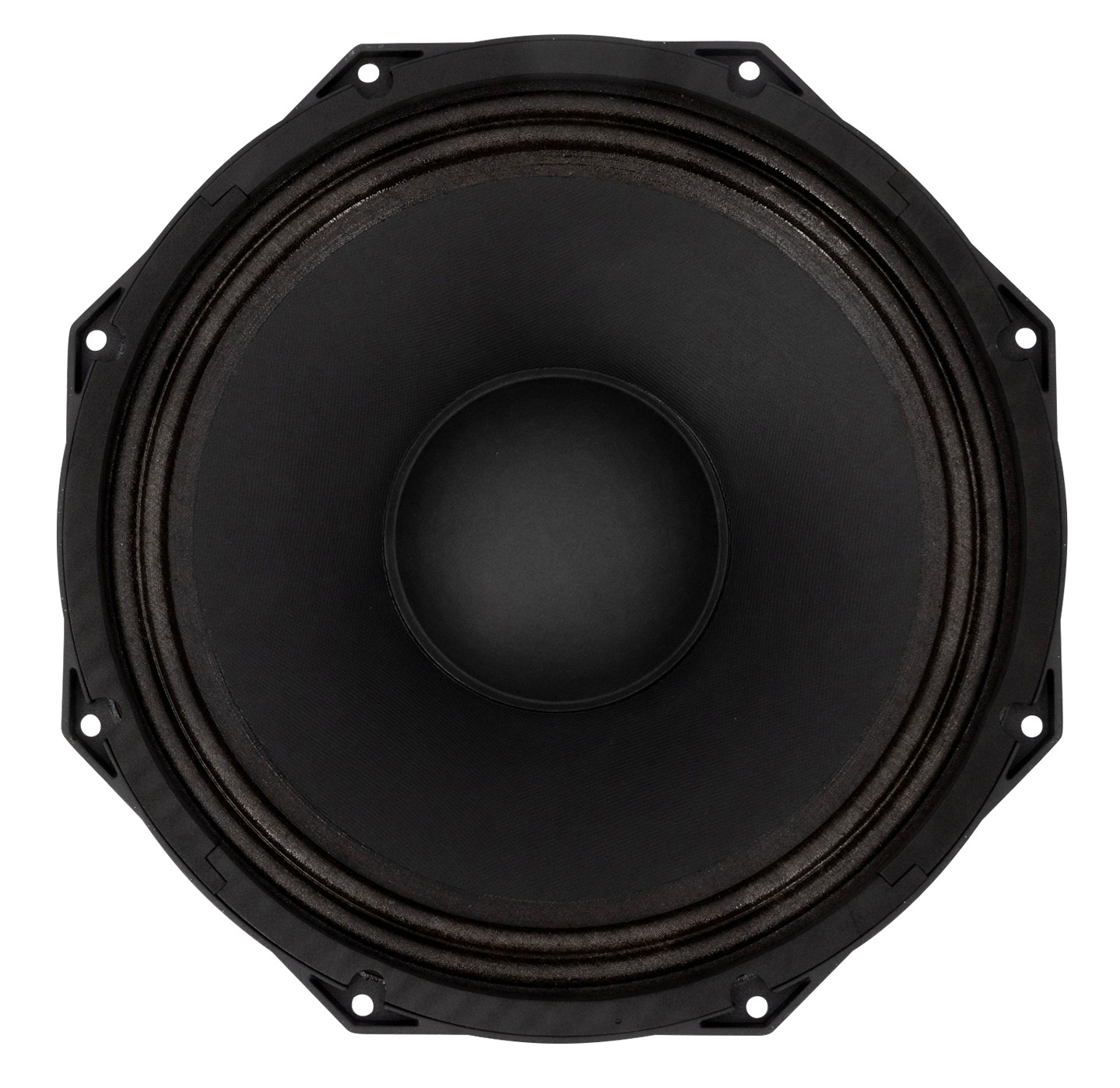

      The Visaton PAW 30 ND - 8 is a 12-inch bass-midwoofer that injects power and clarity into professional audio (PA) systems. Designed to conquer the demanding world of live music, this 8-ohm speaker is ideal for bands, DJs, and other audio professionals who need their music to be heard loud and clear.



      Highlights of the Visaton PAW 30 ND - 8

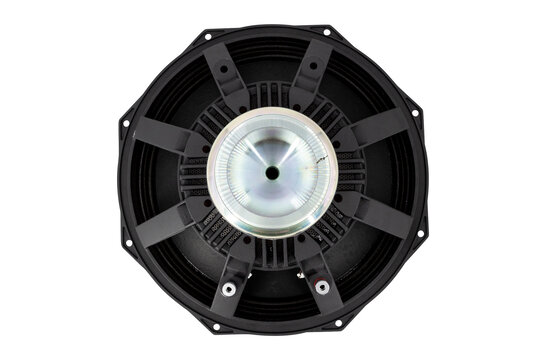

      • Octagonal die cast basket
      • Paper membrane
      • 75 mm voice coil for high power handling
      • Til voice coil former
      • Vented spider
      • Additional vented air gap (8 holes)
      • 10 mm t-yoke venting
      • M shape surround for high excursion
      • Connex spider
      • EVA gasket
      • Neodymium magnet
      • Impedance control ring (aluminum)



      Product details Visaton PAW 30 ND - 8

      Visaton PAW 30 ND - 8 Bass-midwoofer

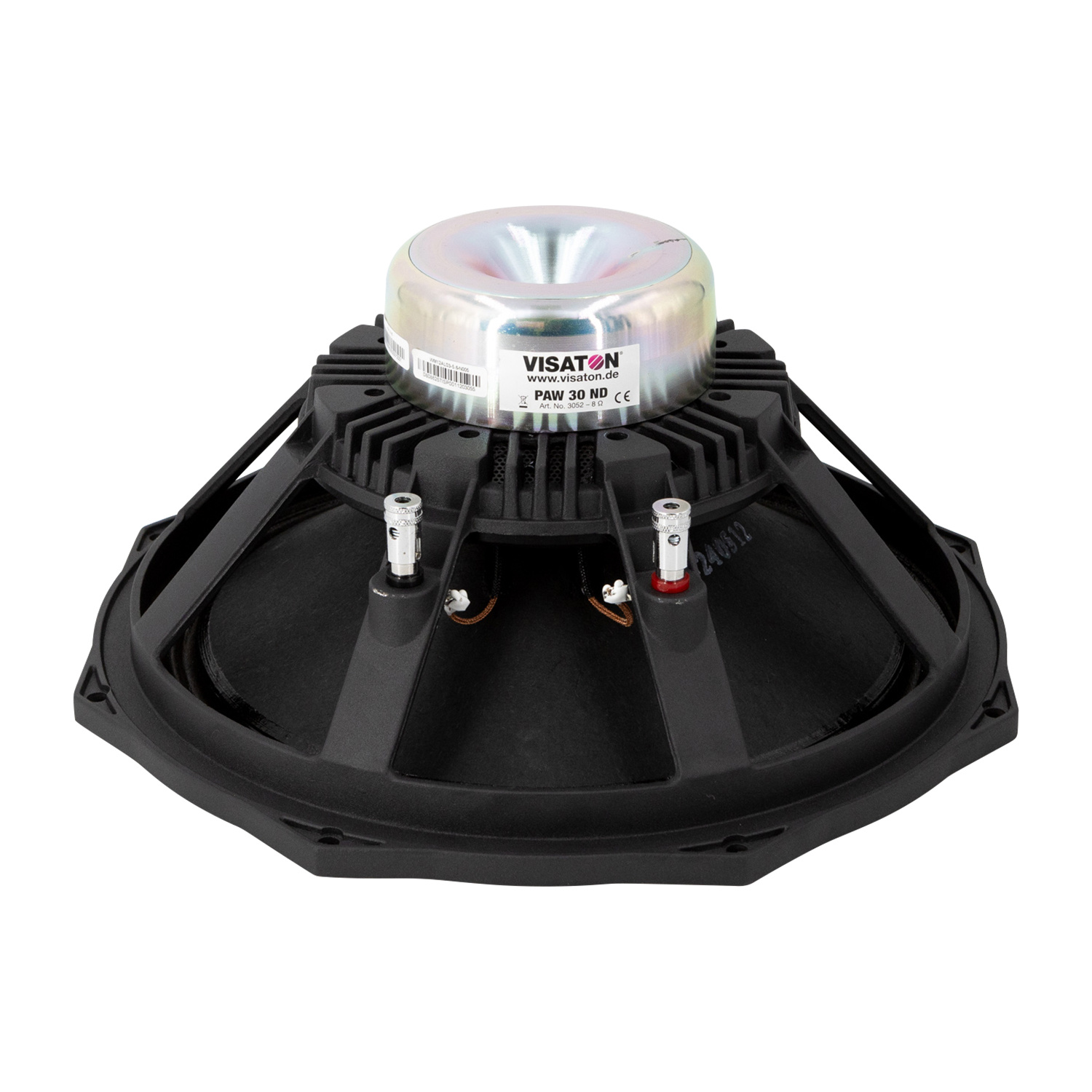

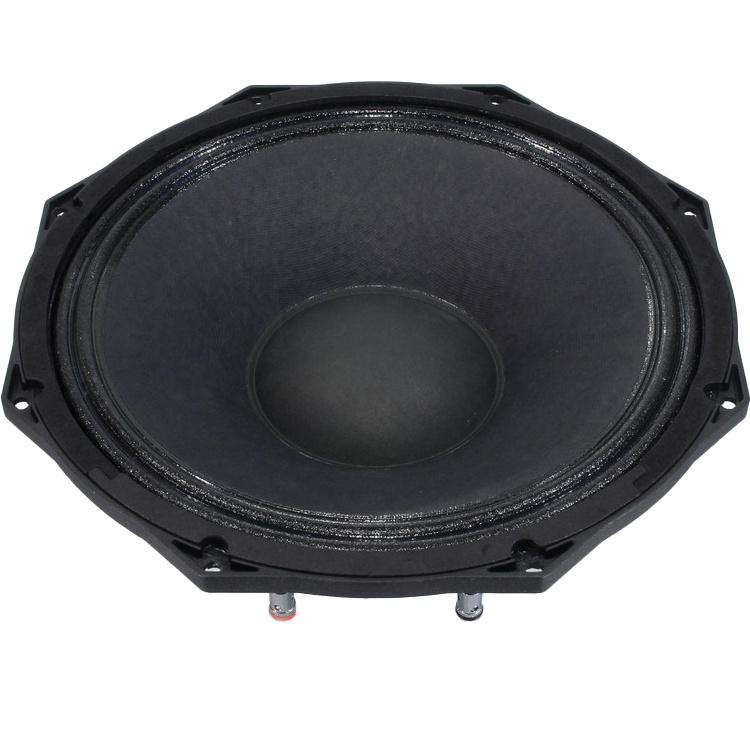

      Built to endure the rigors of live performances, the PAW 30 ND - 8 boasts a sturdy octagonal die-cast basket and a paper membrane. This robust combination ensures the speaker can handle the bumps and knocks that come with frequent use. But don't be fooled by its durability – this speaker packs a serious sonic punch. With a power handling of 400 watts, it delivers clear and powerful sound even in large venues. Additionally, the wide frequency response of the PAW 30 ND - 8 faithfully reproduces a broad range of sound, from deep bass tones to crisp mids, for a well-balanced and natural listening experience for your audience.



      The PAW 30 ND - 8 incorporates thoughtful design elements to optimize its performance. A vented spider and strategically placed air gap holes work together to efficiently dissipate heat, ensuring the speaker maintains optimal performance throughout a show. Additionally, the M-shaped surround allows the speaker cone to move a significant distance without distortion. This translates to clear and accurate sound reproduction at high volumes, ensuring your music reaches the audience exactly as intended. Overall, the Visaton PAW 30 ND - 8 is a reliable and powerful mid-woofer solution for professional audio applications. Its robust build, high power handling, wide frequency response, and well-designed features make it a great choice for bands, DJs, and audio professionals who demand clear and powerful sound for their audiences.

      Show more

      Specifiche

      Numero dell'articolo:
      PAW 30 ND - 8
      EAN
      4007540030524
      Tipo di woofer
      Bass Midwoofer
      Diametro nominale
      12“
      Gestione della potenza (RMS)
      400 Watts
      Gestione della potenza (max)
      600 Watts
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      93 dB
      Risposta in frequenza
      45-5500 Hz
      Diametro della bobina mobile
      75 mm
      Resistenza DC (Re)
      6.1 Ω
      Induttanza della bobina mobile (Le)
      0.55 mH
      Frequenza di risonanza (Fs)
      45 Hz
      Fattore di merito meccanico (Qms)
      7.63
      Fattore di merito elettromagnetico (Qes)
      0.37
      Fattore di merito totale (Qts)
      0.36
      Massa del diaframma incl. la massa dell'aria (Mms)
      69 g
      Cedevolezza meccanica della sospensione (Cms)
      0.19 mm/N
      Superficie del cono (Sd)
      539 cm²
      Prodotto BL (BL)
      17.6 Tm
      Volume equivalente di cedevolezza (Vas)
      78 Liters
      Escursione lineare massima (Xmax)
      +/−4 mm
      Diametro esterno complessivo
      329 mm
      Profondità complessiva
      142 mm
      Diametro del ritaglio del pannello frontale
      286 mm
      # Numero di fori di montaggio
      8
      Diametro dei fori di montaggio
      6.4 mm

      Show more
