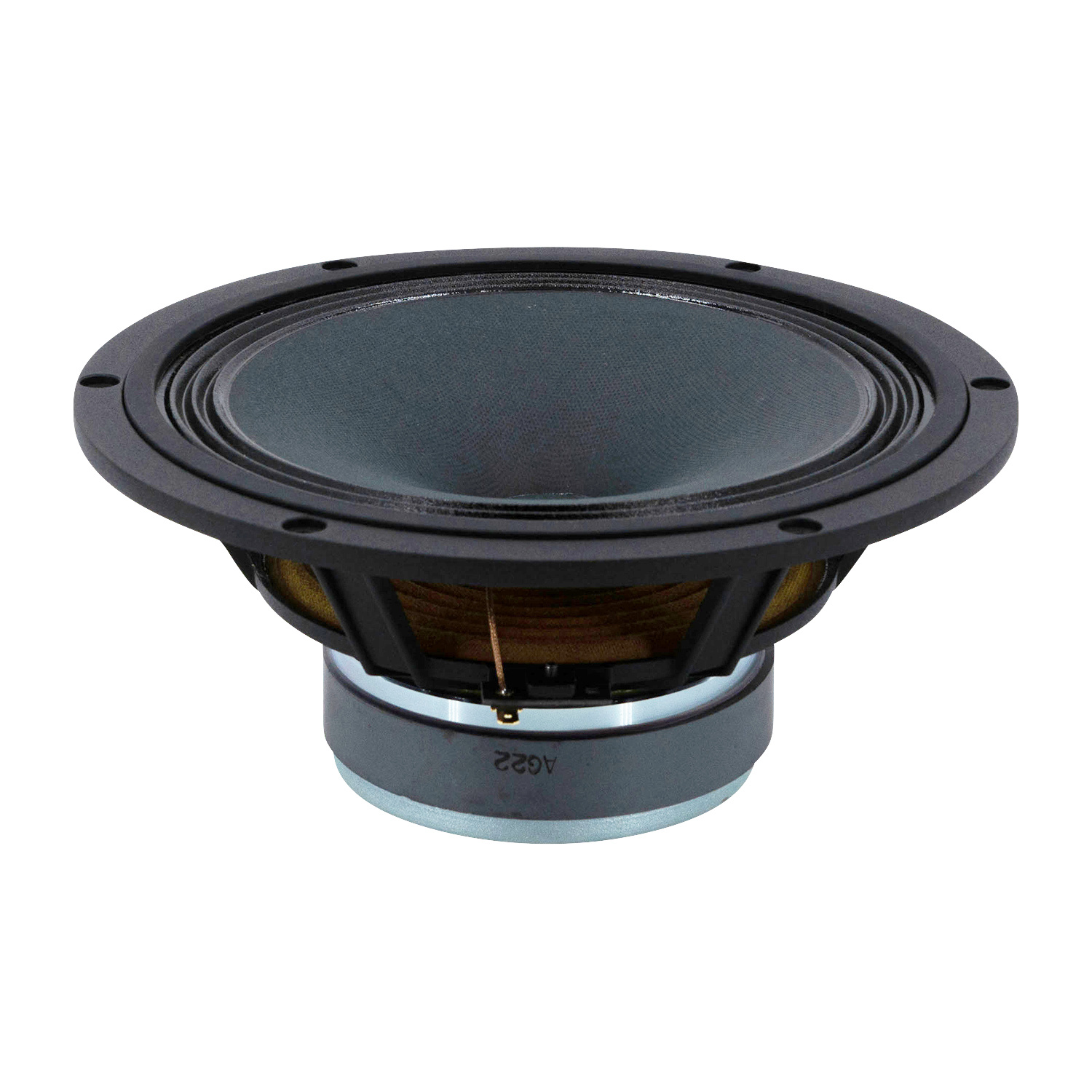

      B 200 Woofer a Gamma Completa

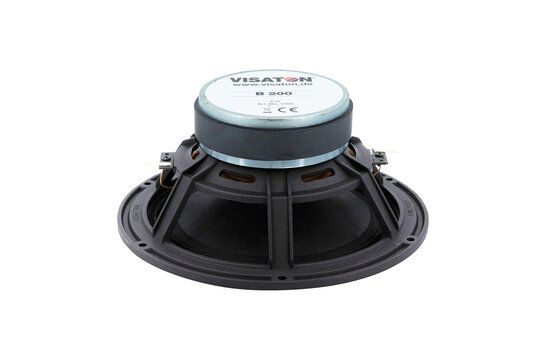

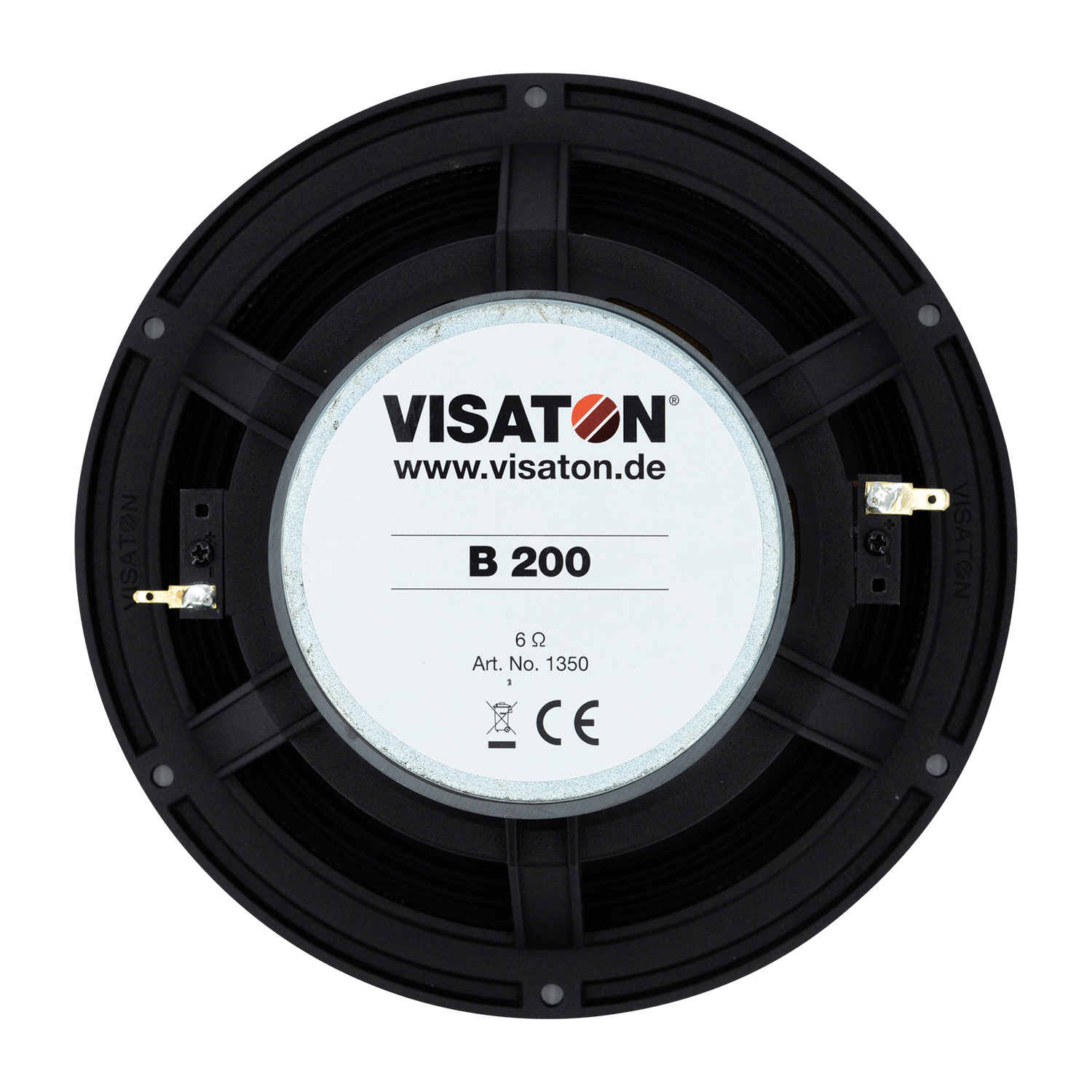

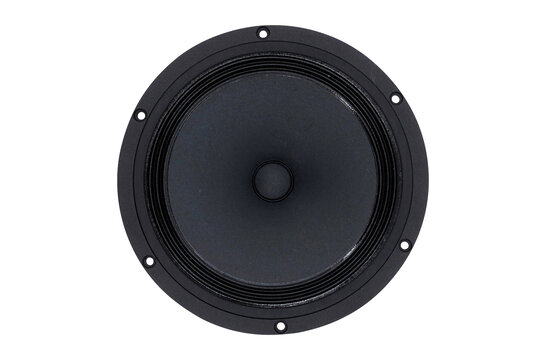

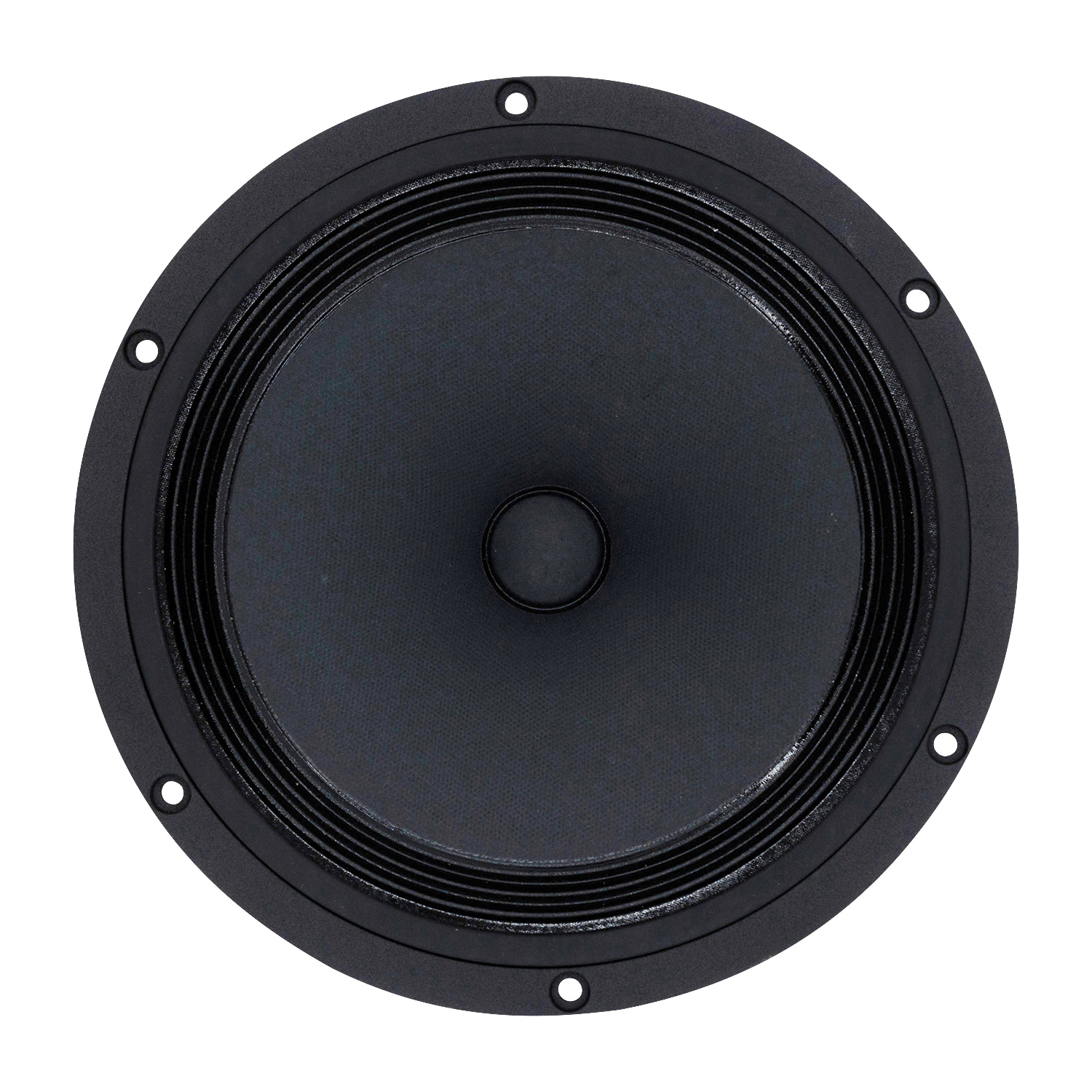

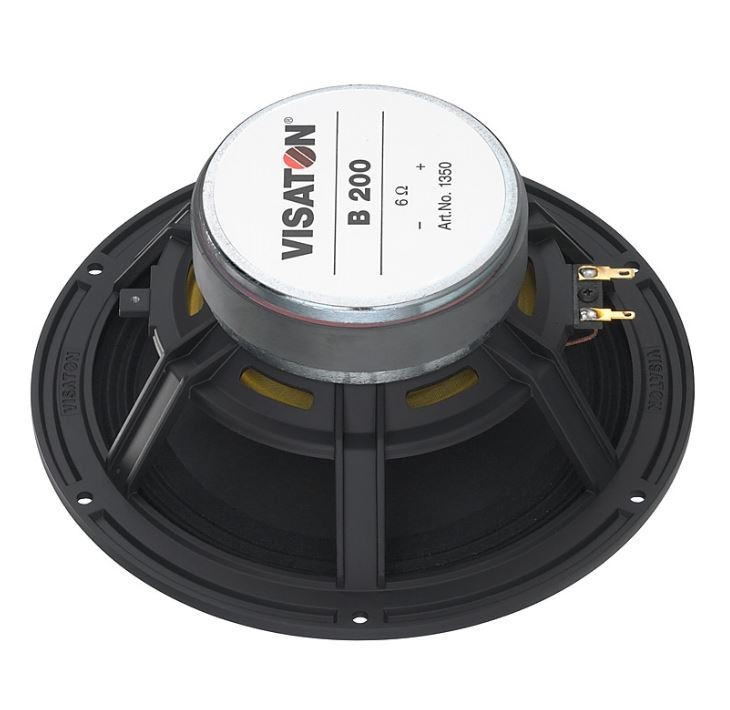

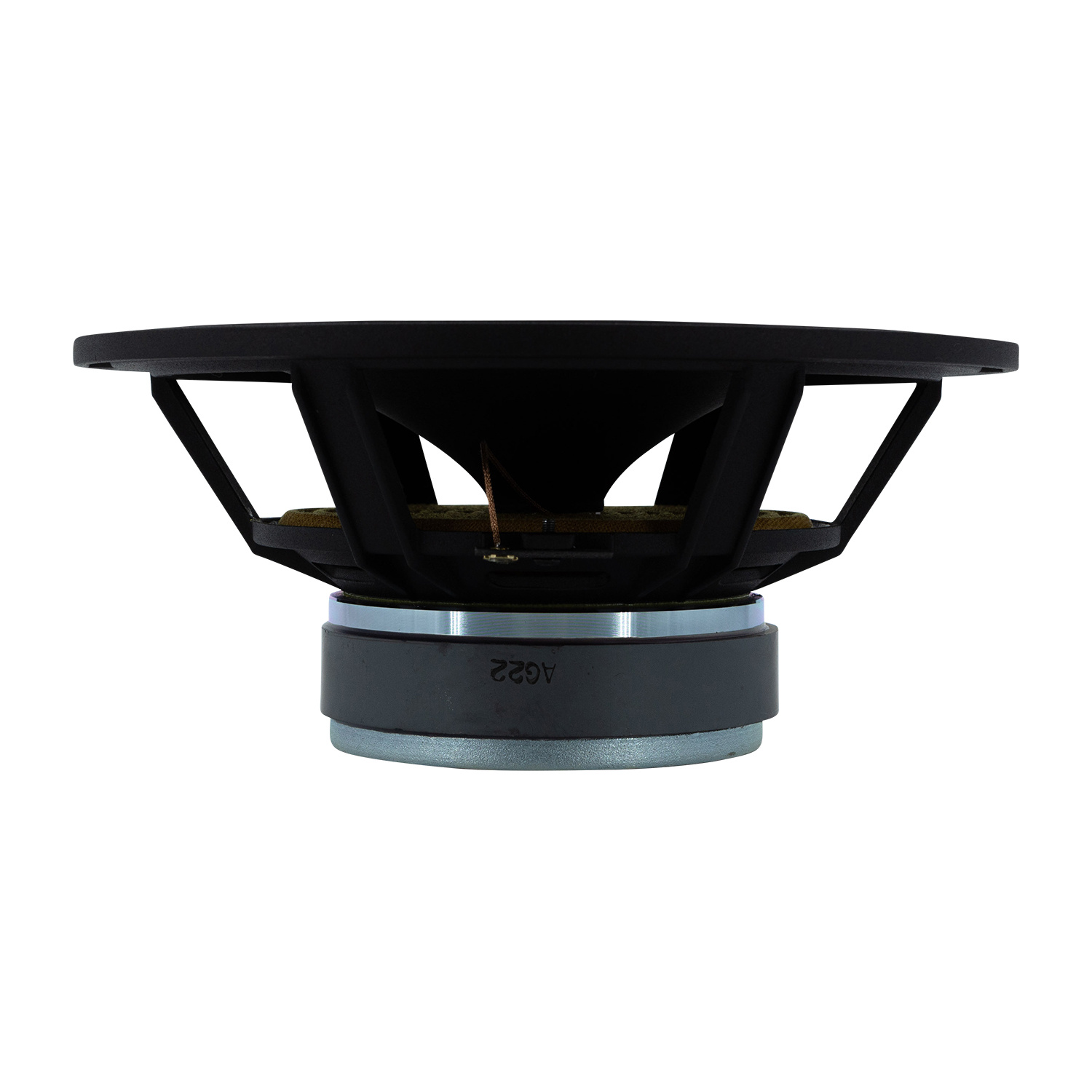

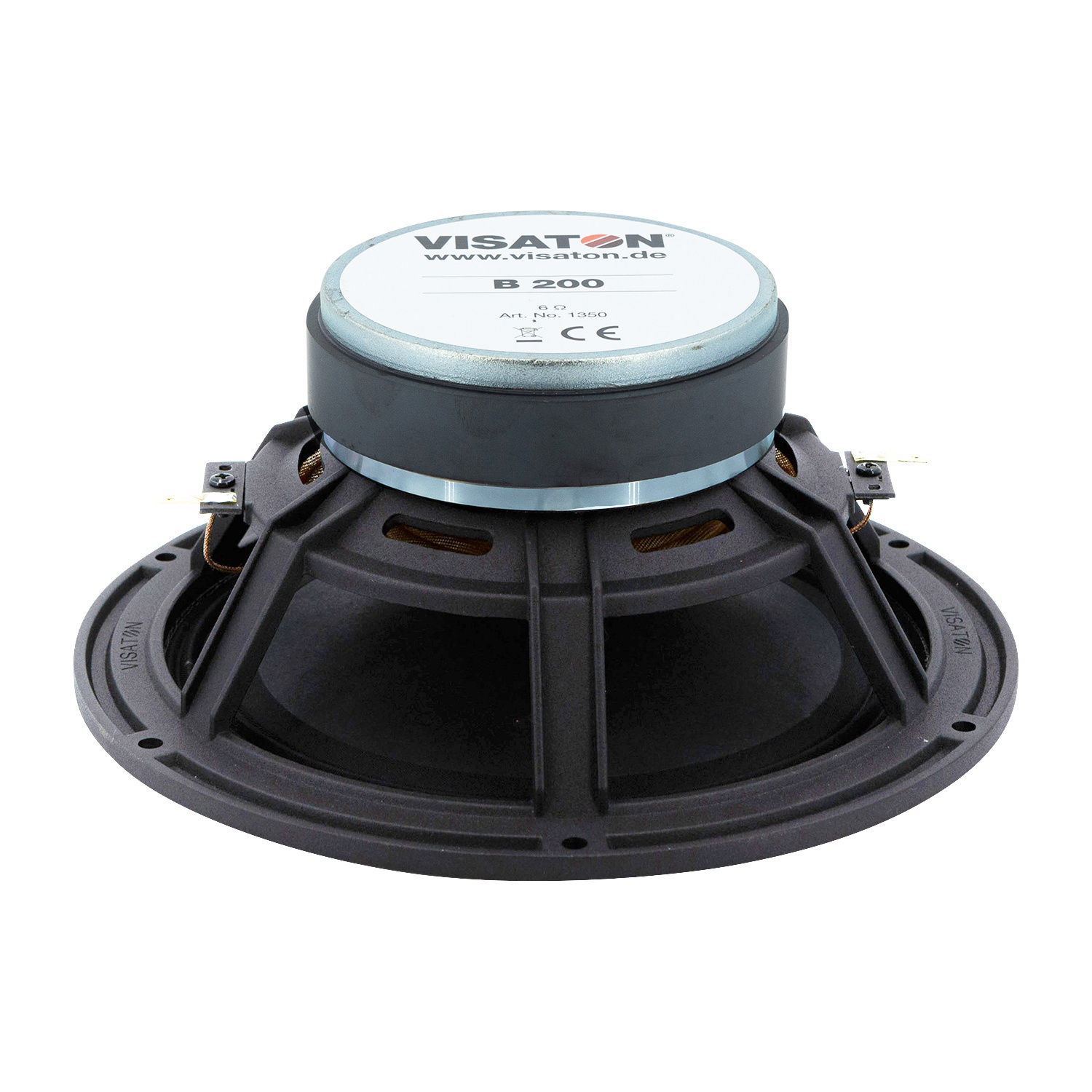

      Visaton B 200 Woofer a Gamma Completa

      €207,95

      3 In magazzino

      Visaton B 200 Woofer a Gamma Completa

      2 reviews
      4 da 5
      2 reviews
      5 stars
      50%
      4 stars
      0%
      3 stars
      0%
      2 stars
      50%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Visaton
      € 171,86€ 207,95 3 In magazzino
      • -5% Acquista 4 per soli € 197,55 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato prima delle 16:00, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto Visaton B 200 Woofer a Gamma Completa

      20 cm (8") High-end full-range loudspeaker with lightweight paper cone and fabric surround.



      Highlights

      • High sensitivity
      • Fabric surround
      • Die cast aluminum basket



      Product details

      Visaton B 200 8" High-End Full-Range Loudspeaker 6 Ohm



      These high-end speakers stand out because of their high degree of sensitivity and extremely well-balanced frequency response free of noticeable deviations. This is achieved by using a very light-weight paper cone, a fabric surround and an optimized driver equipped with a 25 mm voice coil (aluminum wire) which makes optimum use of the magnetic field in the air gap. The Kapton voice coil carrier is vented. The sturdy aluminum diecast basket is not only optically appealing but, thanks to its rear-venting openings, ensures that physical losses are minimized. Distortion is suppressed to a very low, uniform level.



      The B 200 is ideally suited to use in high-quality, powerful single-band speakers, where the cabinet design need not be restricted to classic, fully enclosed or vented cabinets, but more exotic alternatives like horns or open baffles can be used to create amazing results.



      Visaton article code: 1350

      Show more

      Specifiche

      Numero dell'articolo:
      B 200
      EAN
      4007540013503
      Tipo di woofer
      Full-Range
      Diametro nominale
      8"
      Gestione della potenza (RMS)
      40 Watts
      Gestione della potenza (max)
      70 Watts
      Impedenza (Z)
      6 ohms
      Sensibilità (SPL a 1m / 2,83V)
      99 dB
      Risposta in frequenza
      40 - 18,000 Hz
      Diametro della bobina mobile
      25 mm
      Resistenza DC (Re)
      5 ohms
      Induttanza della bobina mobile (Le)
      0.5 mH
      Frequenza di risonanza (Fs)
      40 Hz
      Fattore di merito meccanico (Qms)
      8.39
      Fattore di merito elettromagnetico (Qes)
      0.83
      Fattore di merito totale (Qts)
      0.75
      Massa del diaframma incl. la massa dell'aria (Mms)
      9.7g
      Cedevolezza meccanica della sospensione (Cms)
      1.57 mm/N
      Superficie del cono (Sd)
      214 cm2
      Prodotto BL (BL)
      3.9 Tm
      Volume equivalente di cedevolezza (Vas)
      102 liters
      Escursione lineare massima (Xmax)
      3.5 mm
      Materiale del cono / diaframma
      Paper
      Materiale della sospensione
      Cloth
      Materiale del filo della bobina mobile
      Aluminum
      Supporto della bobina mobile
      Kapton
      Materiale del cestello / telaio
      Cast Aluminum
      Diametro esterno complessivo
      222 mm
      Profondità complessiva
      92 mm
      Diametro del ritaglio del pannello frontale
      190 mm
      Diametro del cerchio dei fori di montaggio
      210 mm
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      5 mm
