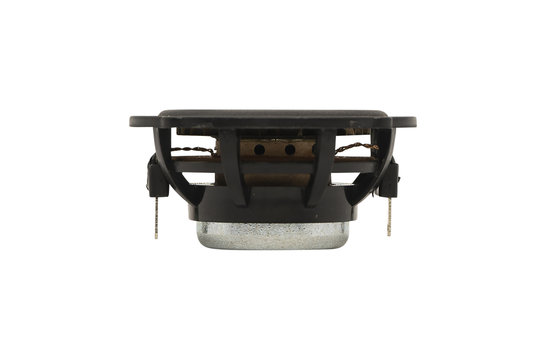

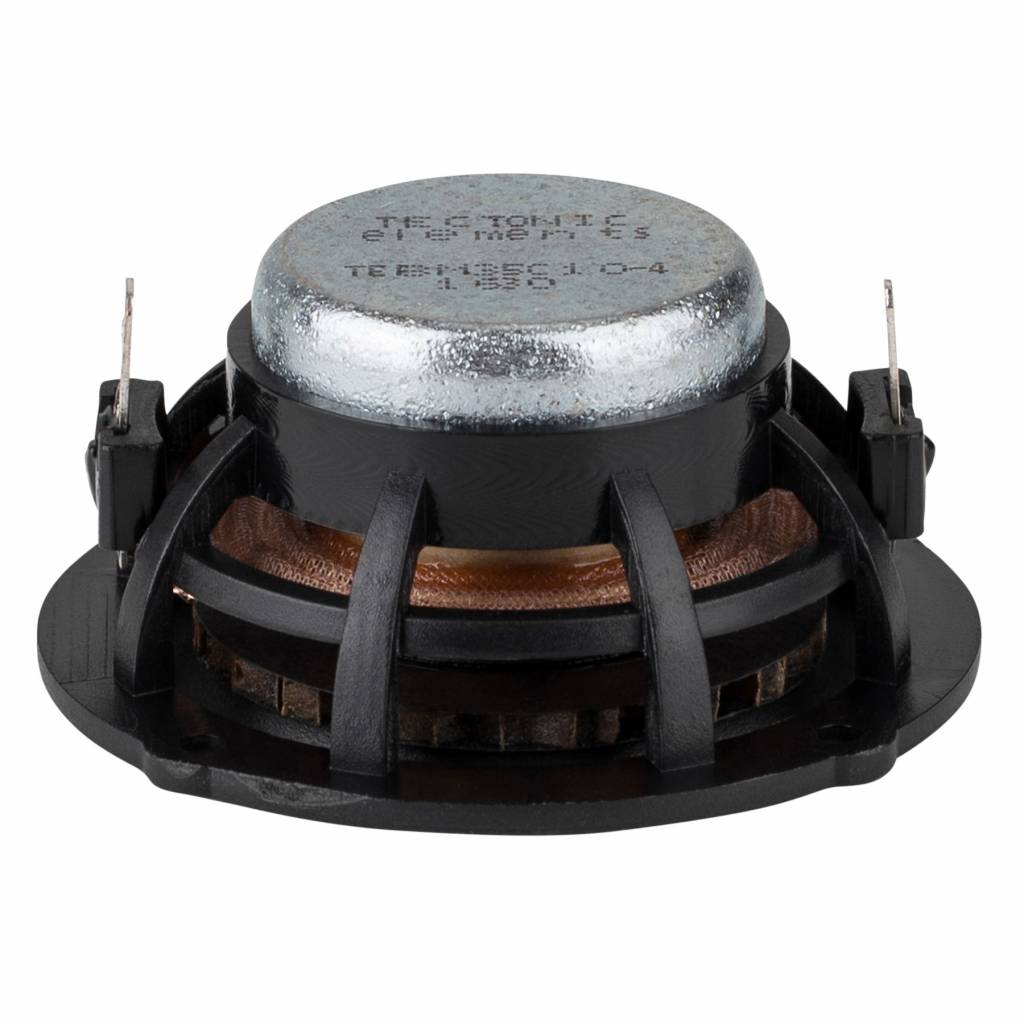

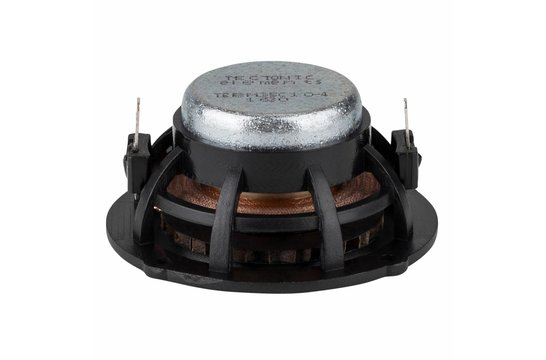

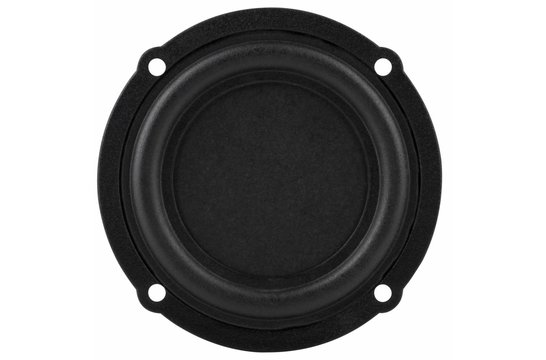

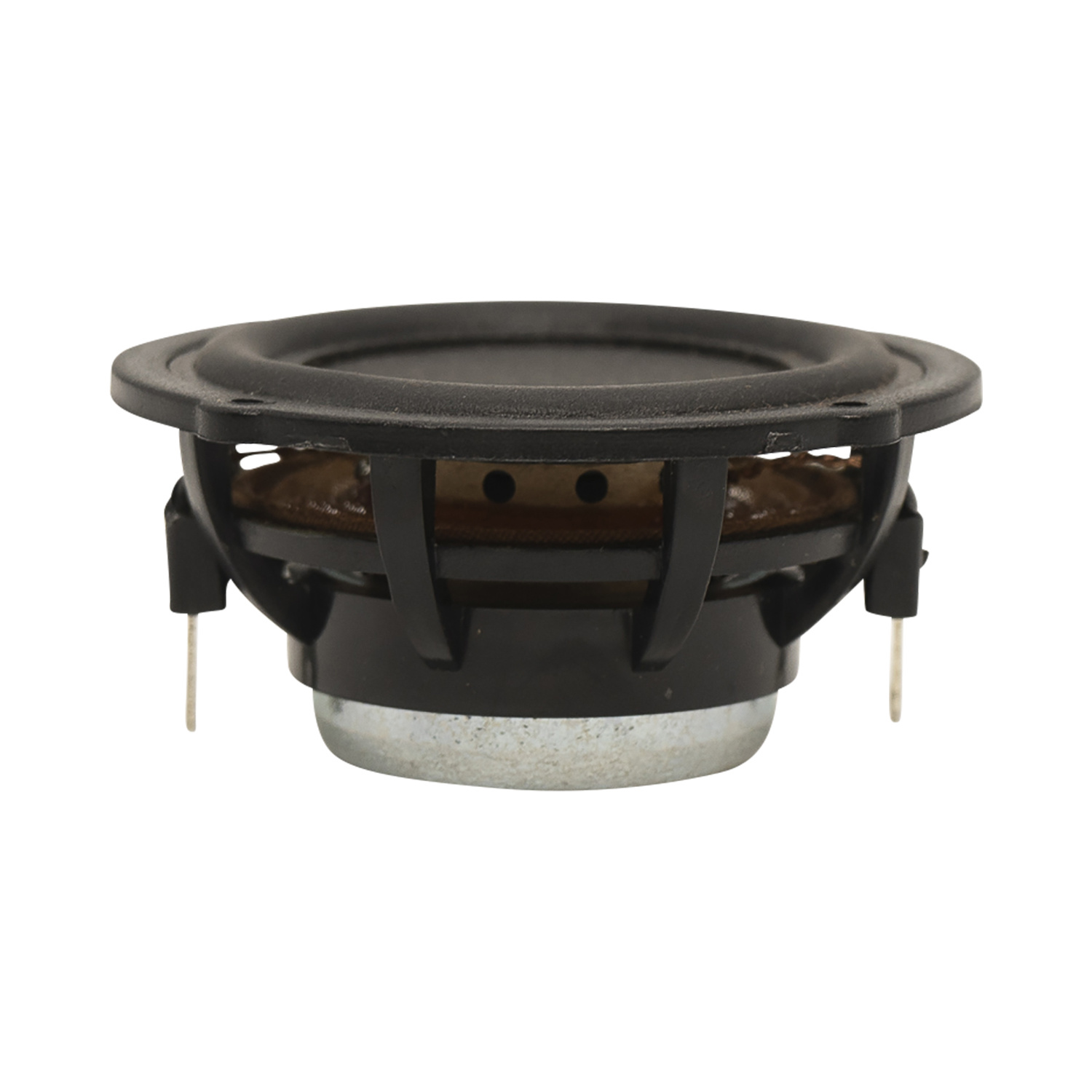

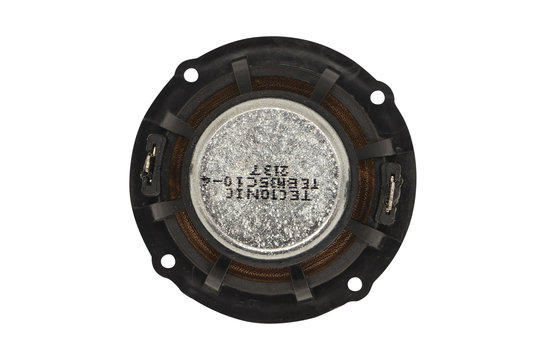

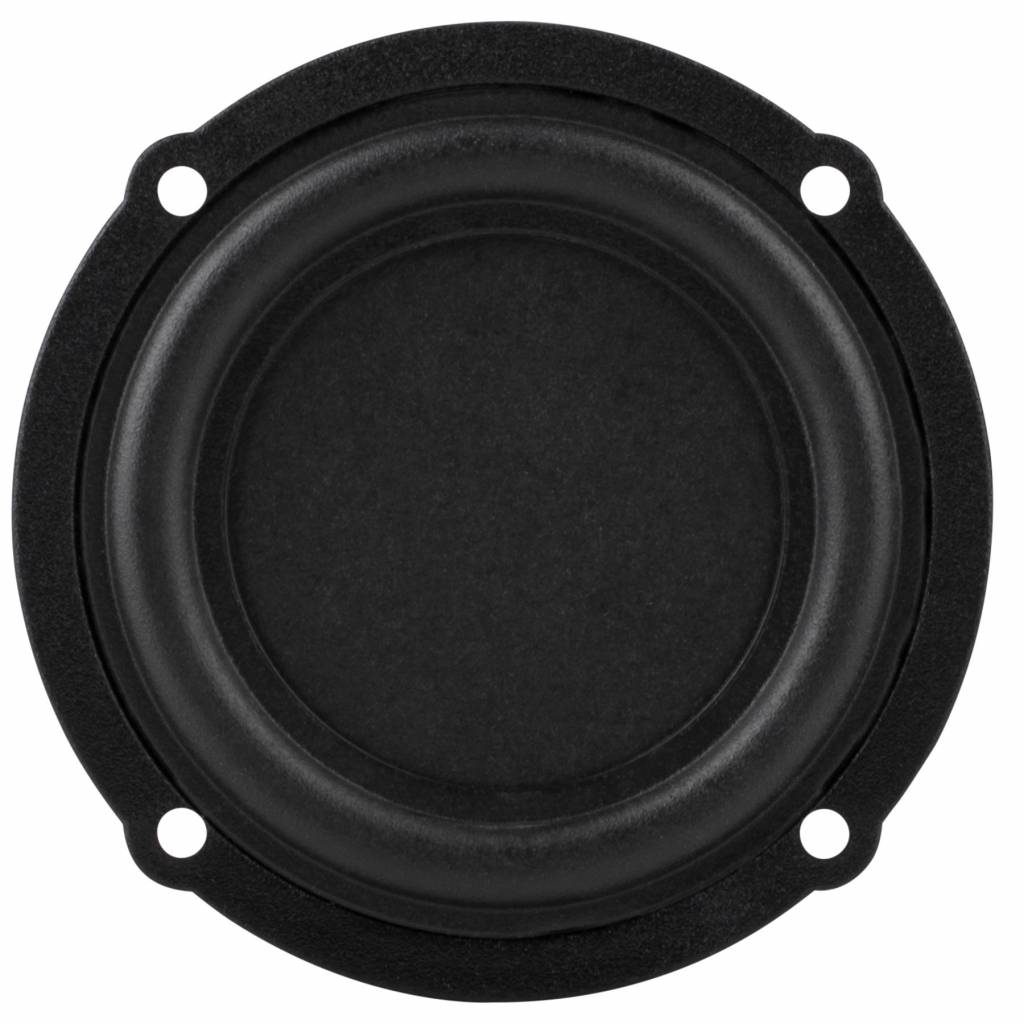

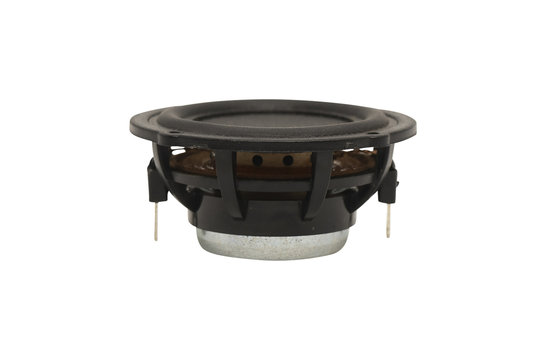

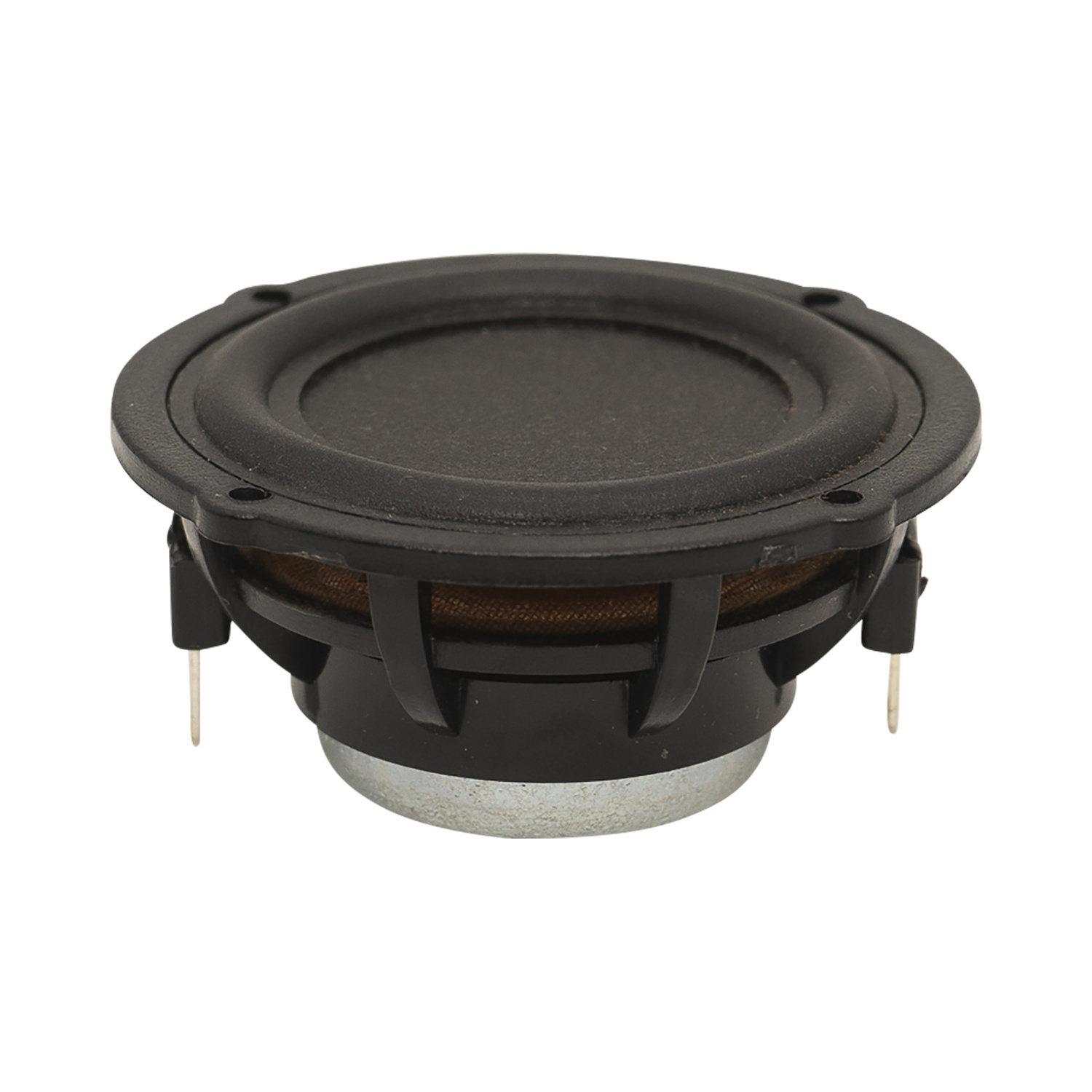

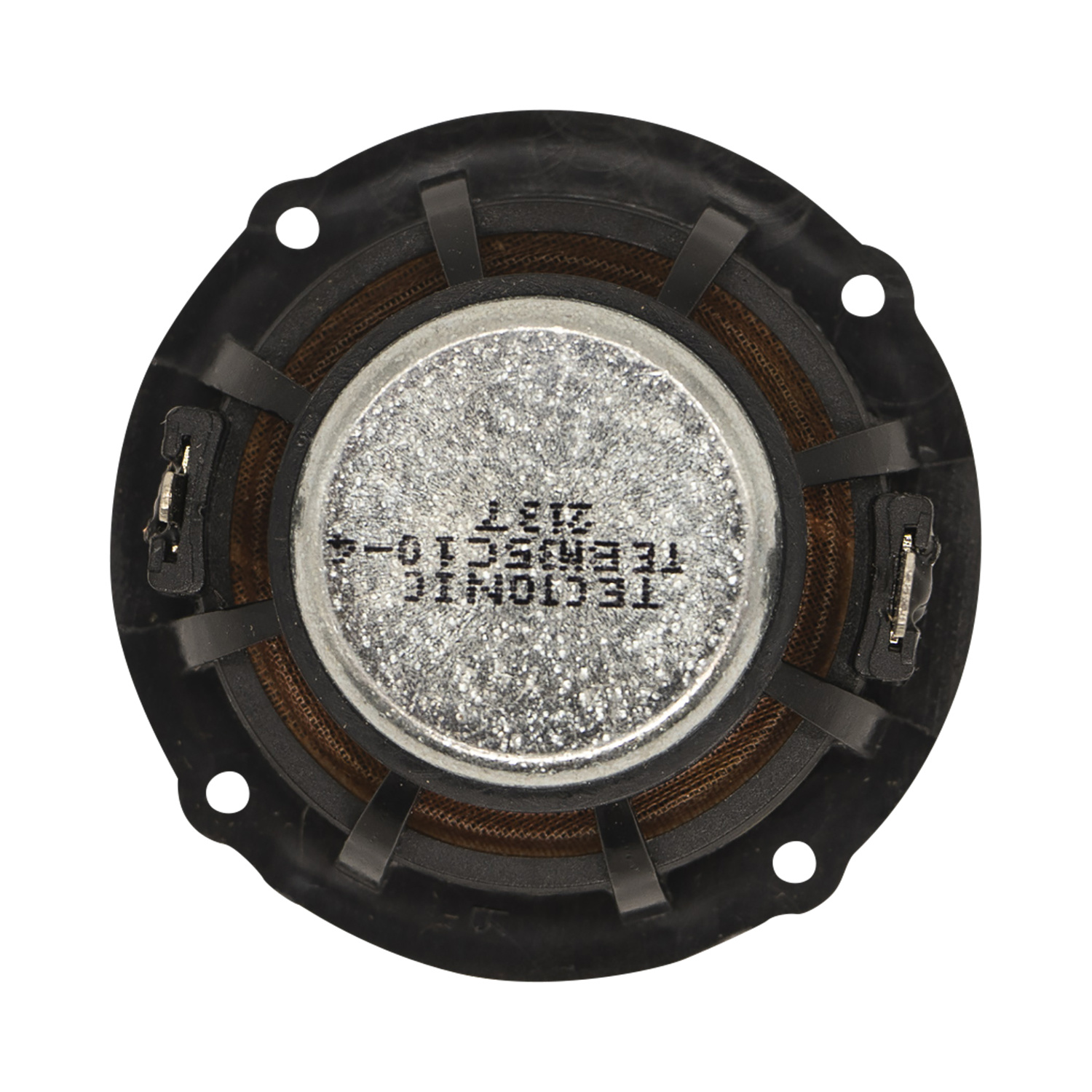

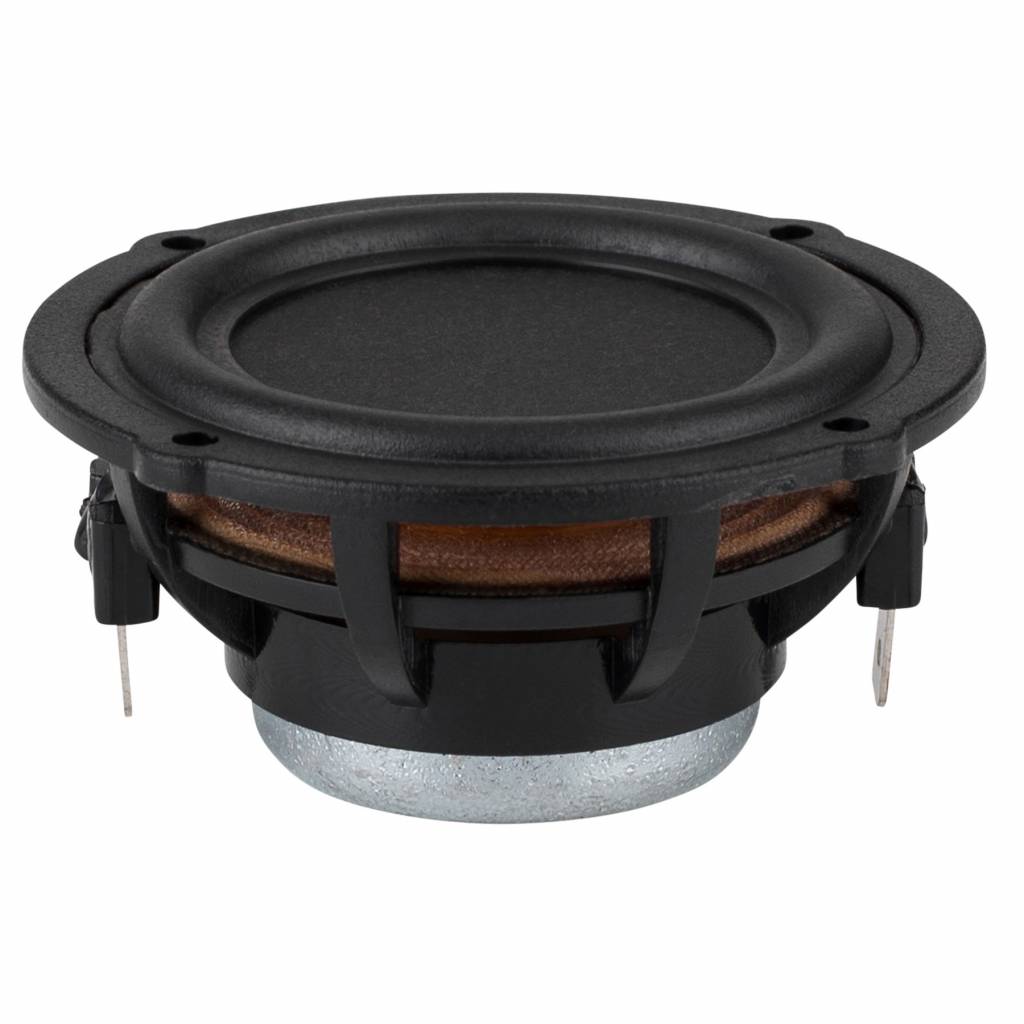

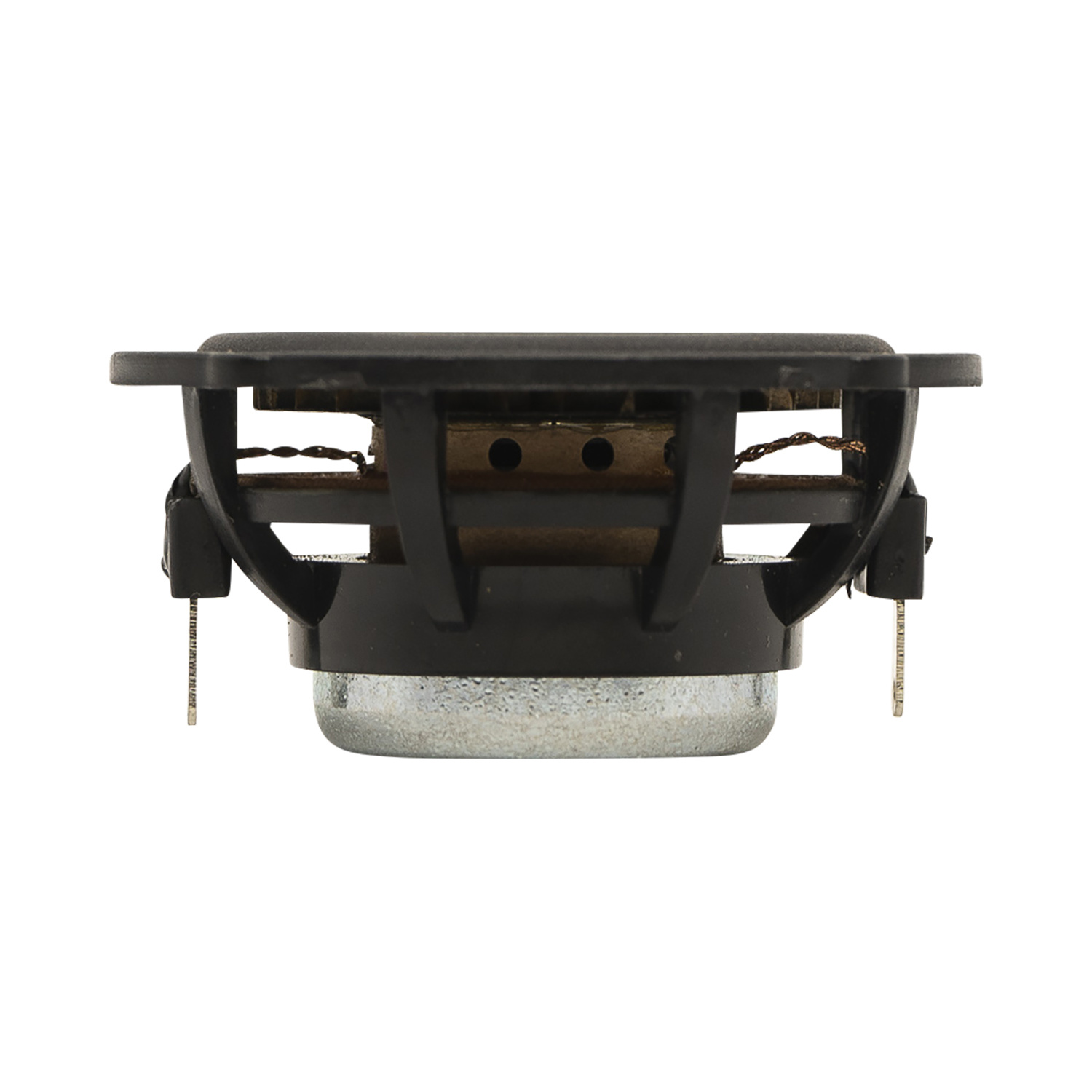

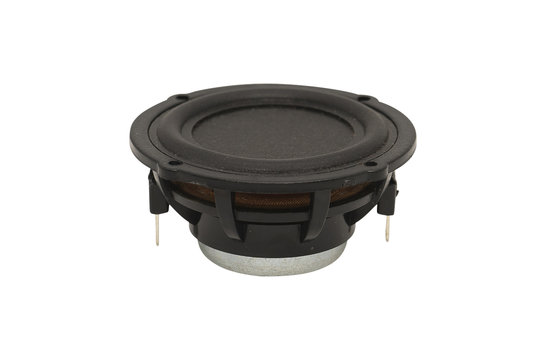

      TEBM35C10-4 BMR  Woofer a Gamma Completa

      Tectonic Elements TEBM35C10-4 BMR Woofer a Gamma Completa

      €21,45

      10+ In magazzino

      Tectonic Elements TEBM35C10-4 BMR Woofer a Gamma Completa

      14 reviews
      5 da 5
      14 reviews
      5 stars
      86%
      4 stars
      7%
      3 stars
      0%
      2 stars
      7%
      1 stella
      0%
      Leggi le recensioni
      € 17,73€ 21,45 10+ In magazzino
      • -5% Acquista 4 per soli € 20,38 per pezzo
      • -10% Acquista 10 per soli € 19,31 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto Tectonic Elements TEBM35C10-4 BMR Woofer a Gamma Completa

      The TEBM35C10-4 BMR 2" full-range is an audio drive unit with an extended frequency response and extremely wide directivity. It combines the benefits of Tectonic Elements bending-wave technology and pistonic modes of operation.



      Highlights

      • Blends pistonic and resonant mode output for wide frequency response
      • The small form-factor is ideally suited for compact audio enabled products
      • Nearly 180° dispersion all the way up to 20,000 Hz

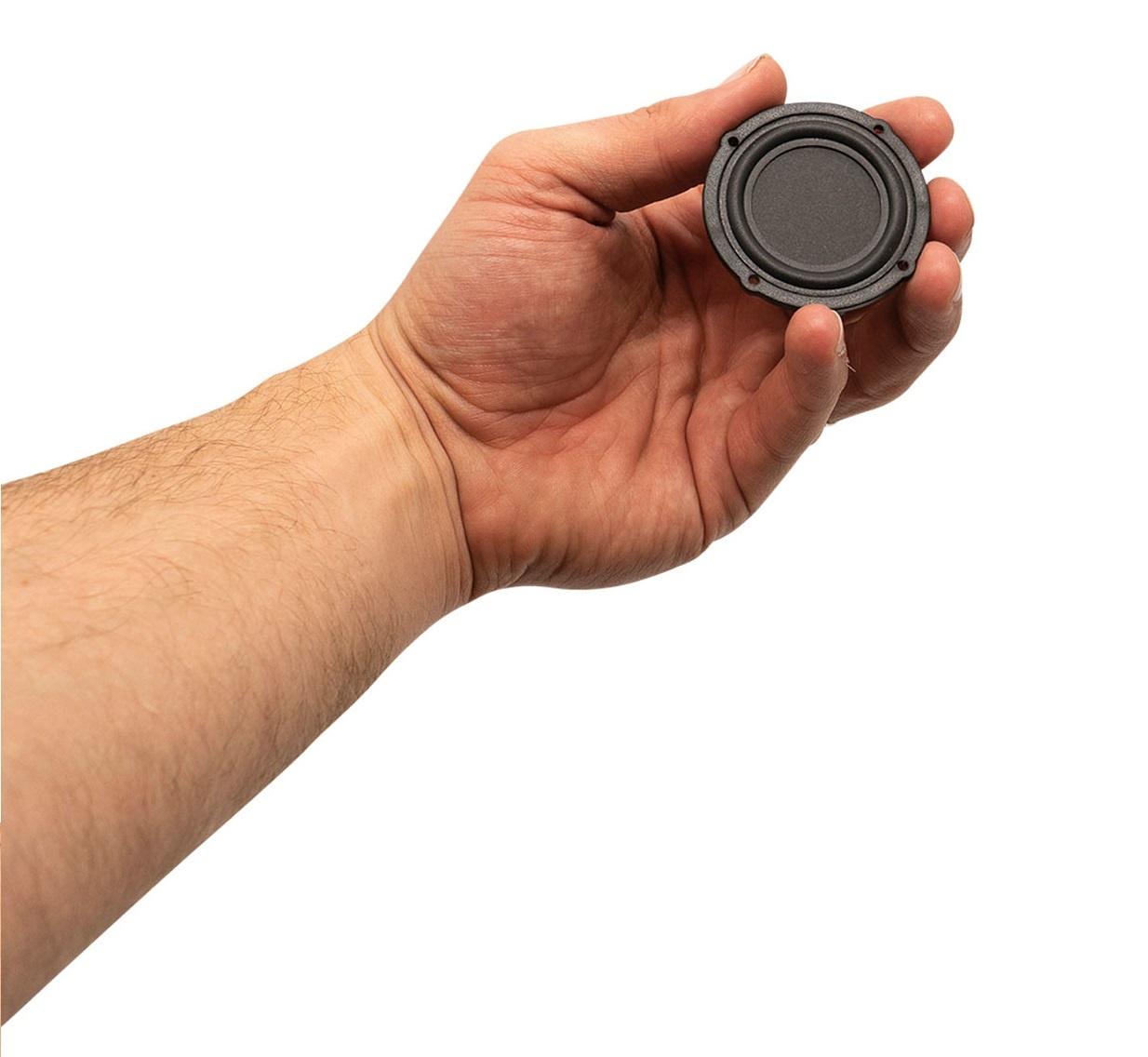

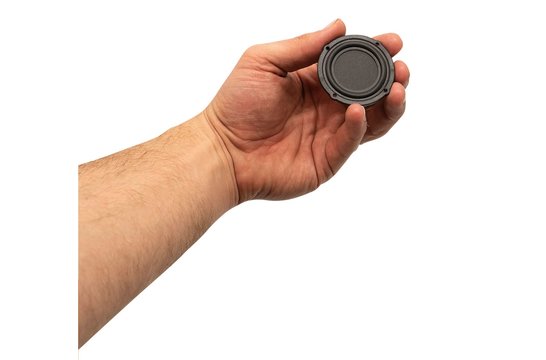

      • Only 2" diameter and 1" deep allows mounting almost anywhere



      Product details

      Tectonic Elements TEBM35C10-4 BMR 2" Full-Range Speaker 4 Ohm



      By combining the benefits of bending-wave technology and pistonic modes of operation, Tectonic Element's TEBM35C10-4 BMR 2" full-range delivers extended frequency response and extremely wide directivity. The small form-factor is ideally suited for compact products that require a full-range drive unit, room filling sound and a high performance acoustic solution. The small size, extended response, and low cost also make the TEBM35C10-4 an excellent choice for use in higher output line array designs. This unique driver can be used for anything from small handheld speakers, toys and displays to larger TV speaker bars, Wi-Fi speaker systems, and even compact sound reinforcement systems.

      Show more

      Specifiche

      Numero dell'articolo:
      TEBM35C10-4
      EAN
      0848864043845
      Diametro nominale
      2"
      Gestione della potenza (RMS)
      10 Watts
      Gestione della potenza (max)
      20 Watts
      Impedenza (Z)
      4 ohms
      Sensibilità (SPL a 1m / 2,83V)
      83 dB
      Risposta in frequenza
      100 to 20,000 Hz
      Diametro della bobina mobile
      0.80"
      Resistenza DC (Re)
      4.2 ohms
      Induttanza della bobina mobile (Le)
      0.05 mH
      Frequenza di risonanza (Fs)
      145 Hz
      Fattore di merito meccanico (Qms)
      3.84
      Fattore di merito elettromagnetico (Qes)
      1.06
      Fattore di merito totale (Qts)
      0.83
      Massa del diaframma incl. la massa dell'aria (Mms)
      1.11g
      Cedevolezza meccanica della sospensione (Cms)
      1.085 mm/N
      Superficie del cono (Sd)
      11.04 cm²
      Prodotto BL (BL)
      2.0 Tm
      Volume equivalente di cedevolezza (Vas)
      0.0063 ft.³
      Escursione lineare massima (Xmax)
      2.5 mm
      Materiale della sospensione
      Rubber
      Materiale del cestello / telaio
      Polymer
      Materiale del magnete
      Neodymium
      Diametro esterno complessivo
      2.04"
      Profondità complessiva
      0.98"
      Diametro del ritaglio del pannello frontale
      1.69"
      Diametro del cerchio dei fori di montaggio
      1.9"
      # Numero di fori di montaggio
      4
      Volume per cassa sigillata
      0.016 ft.³
      Frequenza di risonanza della cassa sigillata (F3)
      154 Hz
      Volume per cassa reflex
      0.026 ft.³
      Frequenza di risonanza della cassa reflex (F3)
      85 Hz
