Name: Tang Band T1-2121SD Modulo Altoparlante
Brand: Tang Band
SKU: T1-2121SD
Price: 39.95 EUR
Availability: BackOrder
Rating: 4.85 (6 reviews)

138 x 56 mm | 4 Ω

€ 33,02€ 39,95 Esaurito

Backorder

Spedizione gratuita a partire da € 199
Presto di nuovo disponibile
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Tang Band T1-2121SD Modulo Altoparlante

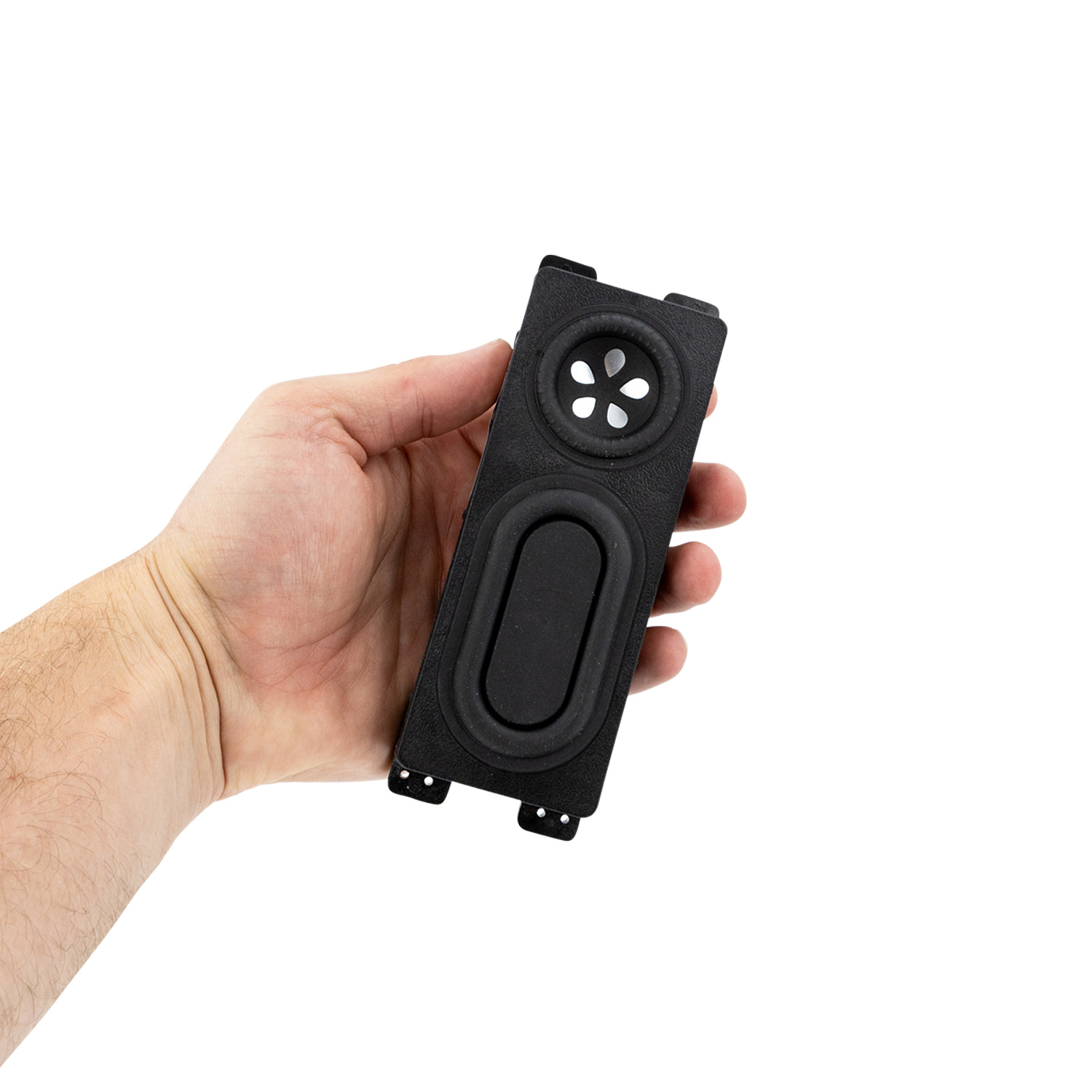

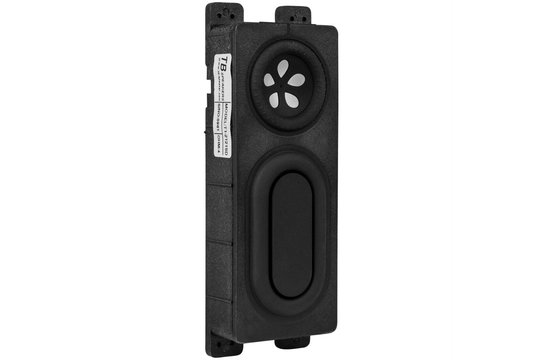

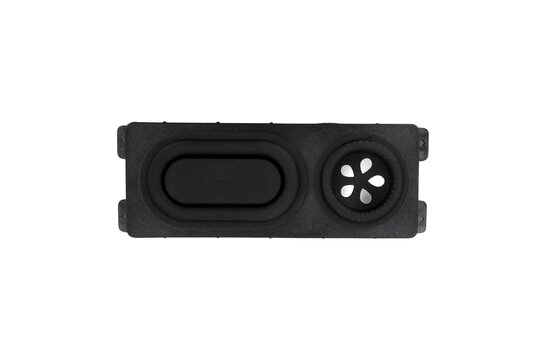

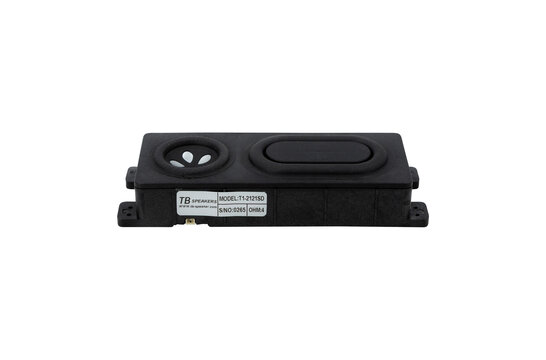

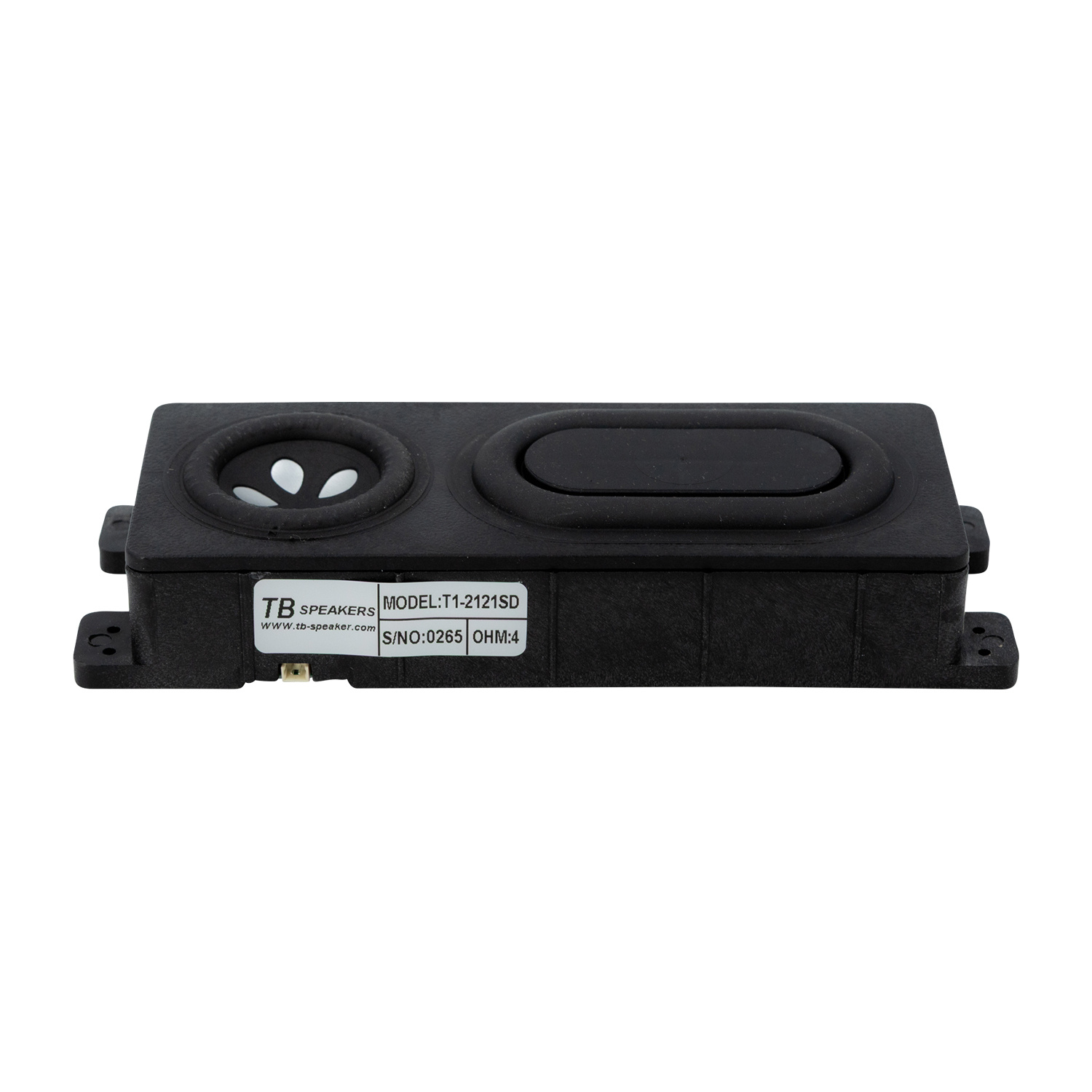

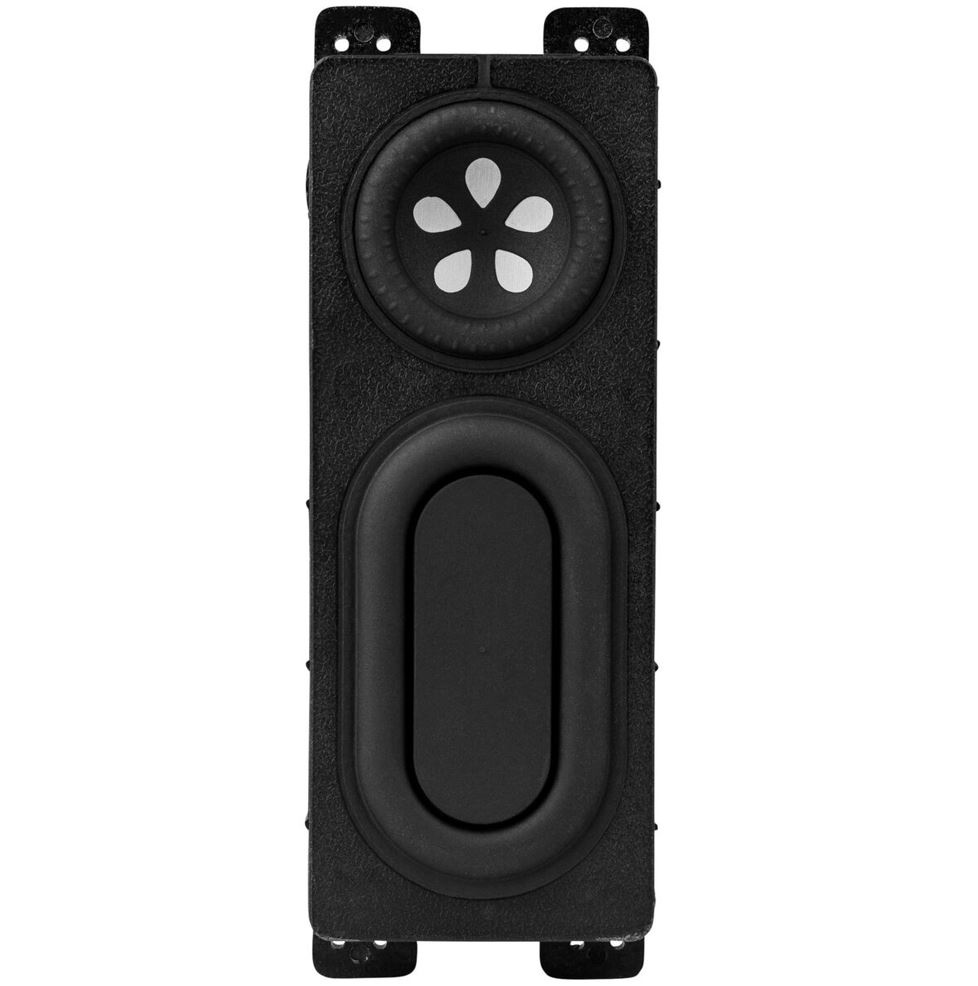

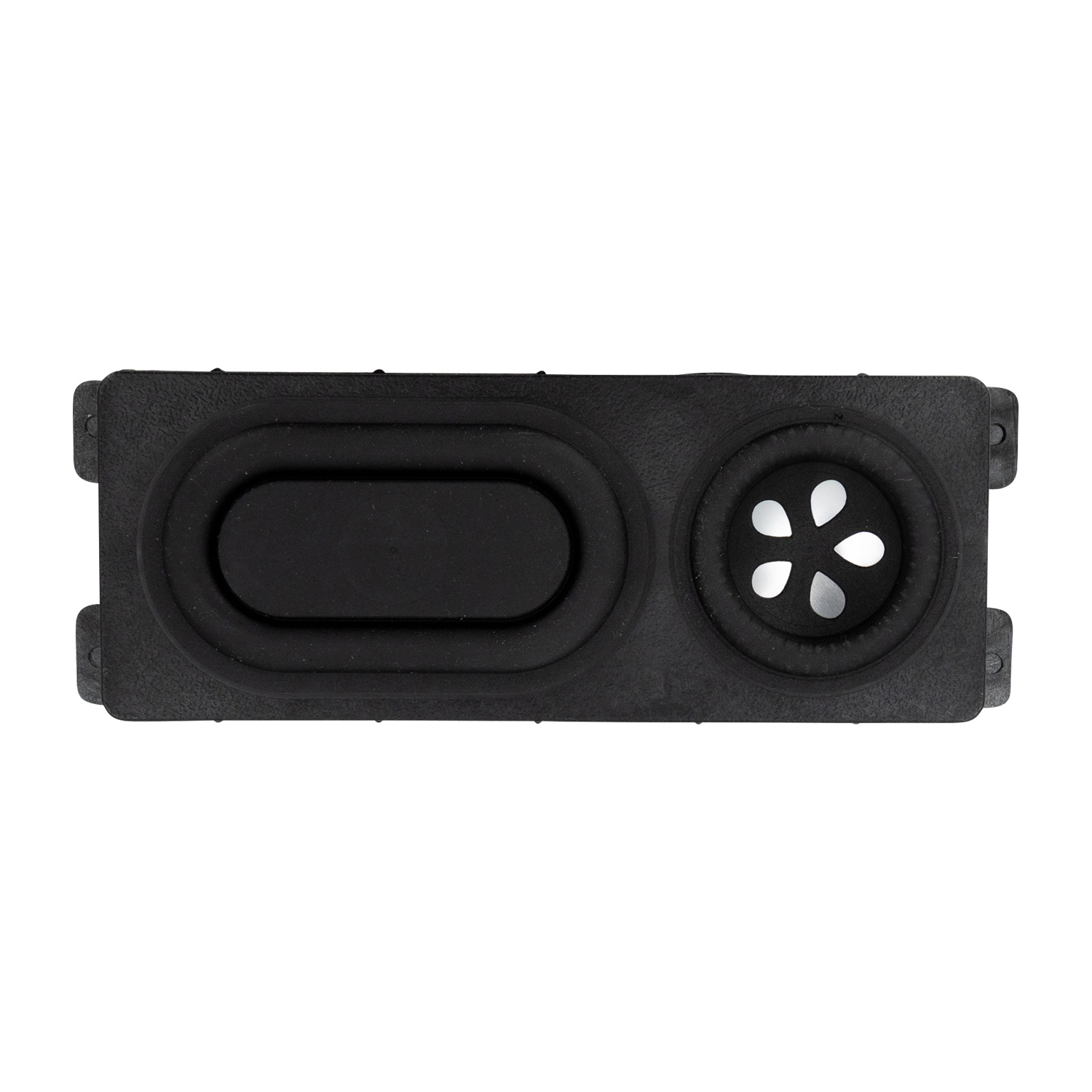

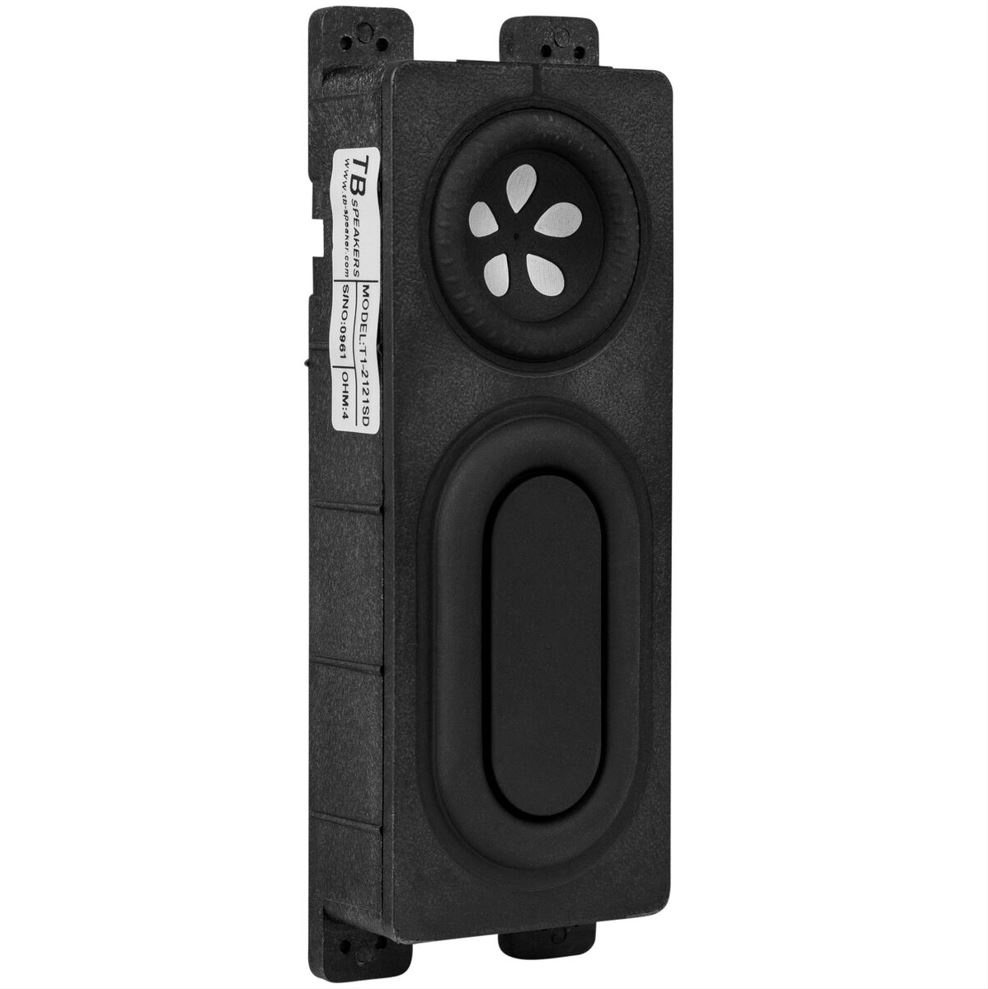

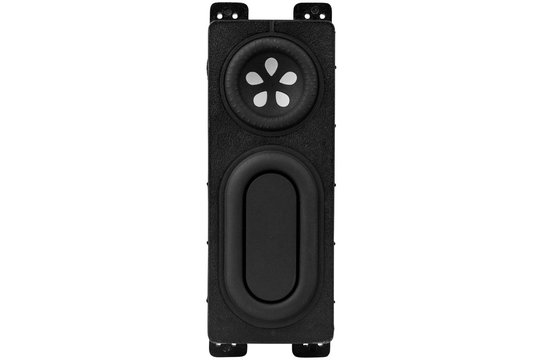

Tang Band's T1-2121SD speaker module makes designing ultra-small speaker systems easy. With a 46 mm inverted aluminum dome driver mounted in a polypropylene enclosure with a passive radiator, most of the work has been done for you.

Highlights

Self-contained 6.125" H x 2.125" W x 1" D design
Smooth response to under 100 Hz for easy transition to a subwoofer
Wide band response through the use of a passive radiator

Product details

Tang Band T1-2121SD Speaker Module 5-7/16" x 2-3/16"

The T1-2121SD speaker module is a passive radiator assisted, aluminum composite 46 mm inverted dome driver. This allows for a very full frequency response from a single, small driver. Advantages of this type of speaker design include the elimination of crossover components in the critical midrange, superb off-axis response due to the use of a small driver (without hot spots), and perfect time-alignment.

Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel tv speakers, and portable audio systems where small size is of utmost importance. Don't let Tang Band's diminutive driver modules fool you; each is built with a passive radiator that extends midbass frequency response, allowing these to mate to a subwoofer system quite easily.

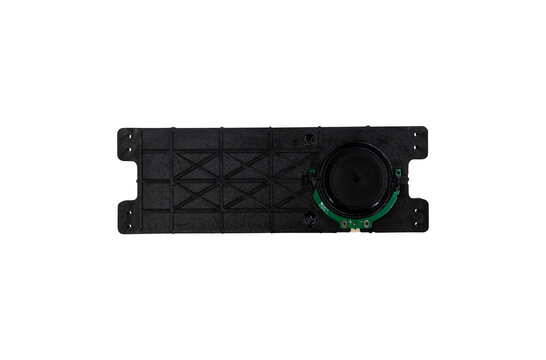

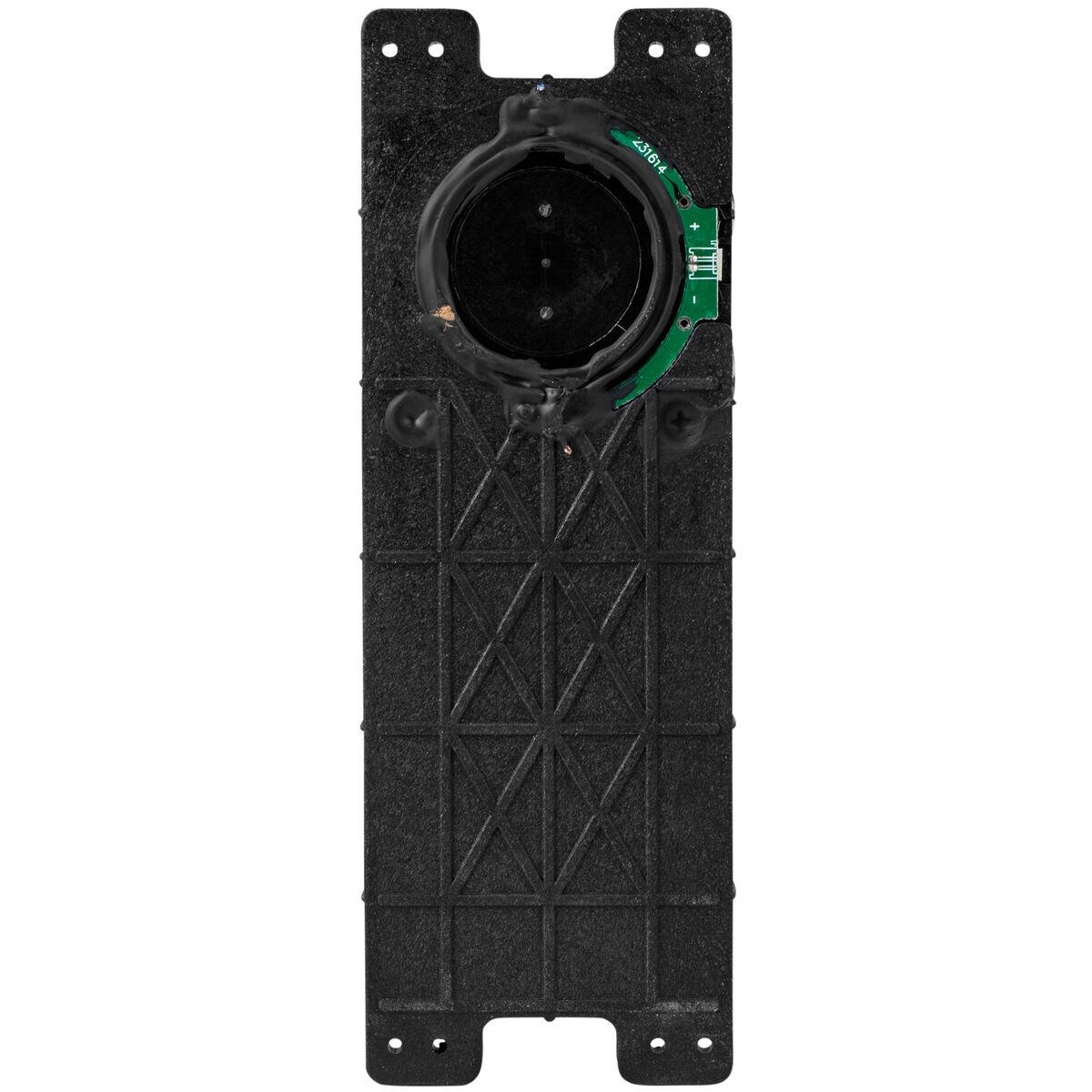

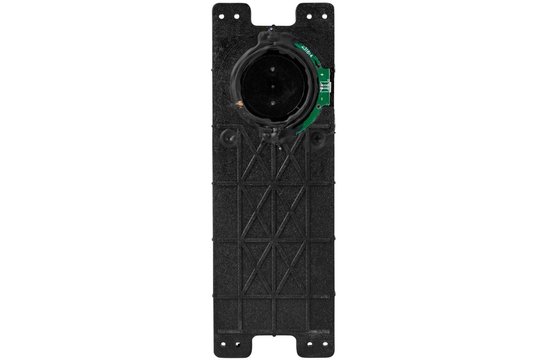

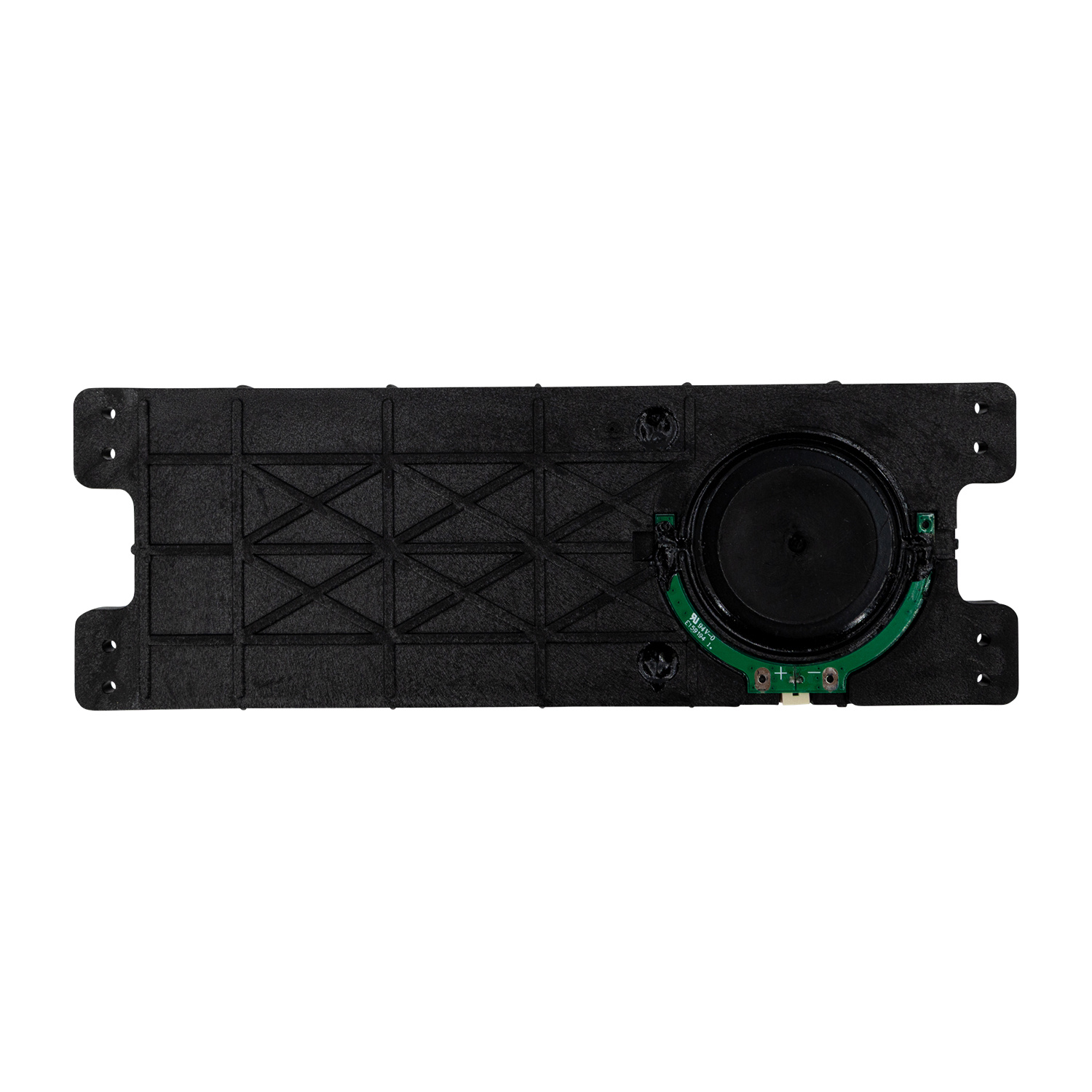

Tang Band incorporated mounting tabs and a two-pin wiring harness jack into the T1-2121SD to facilitate mounting. For custom applications, two polarity-indicated solder points are built onto the driver PCB.

Note: Tang Band recommends the use of a 2nd order (-12 dB/octave) 87 Hz high pass filter for the best possible sound. Higher power handling and output (SPL) is possible using multiple modules.
