Acquista Sure Electronics AA-JA33285 Modulo Amplificatore?

4 x 30 W

€ 53,68€ 64,95 4 In magazzino10+ Arrivo previsto il 19-12-2025

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Sure Electronics AA-JA33285 Modulo Amplificatore

Highlights

9.14cm x 6.86cm PCB Size
Integrated with Bluetooth 5.0
Integrated with ADAU1701 DSP
4x30W / 2x30W+1x60W / 2 x 60W
Suitable for Audio 4.0 / 2.1 / 2.0 / 0.2 System
Bluetooth & Line Input Supported
I2S Signal Output
Bluetooth Pairing Cancellation
Four External Potentiometers
Supporting Programming & PC UI Control
Signal Level Sensor System
Power Management System

Product details

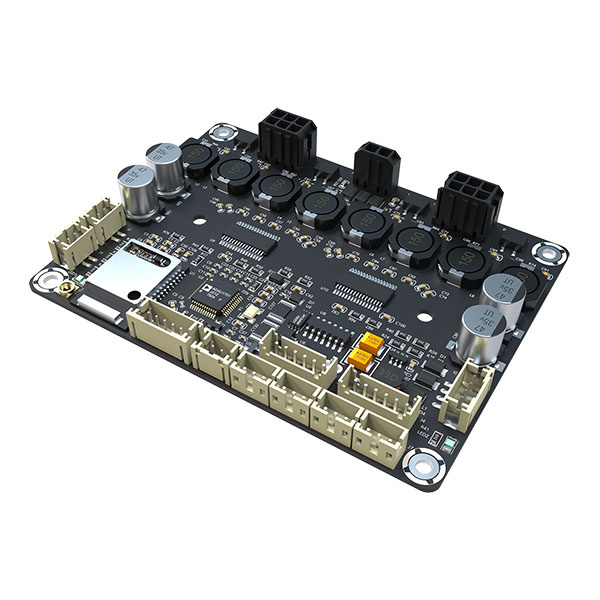

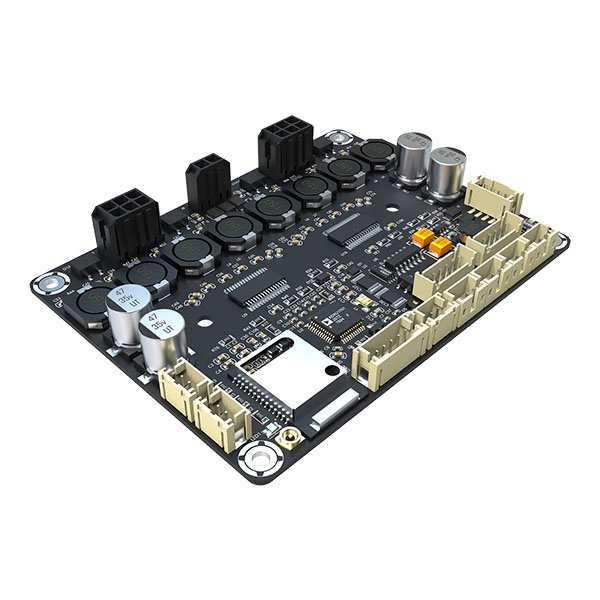

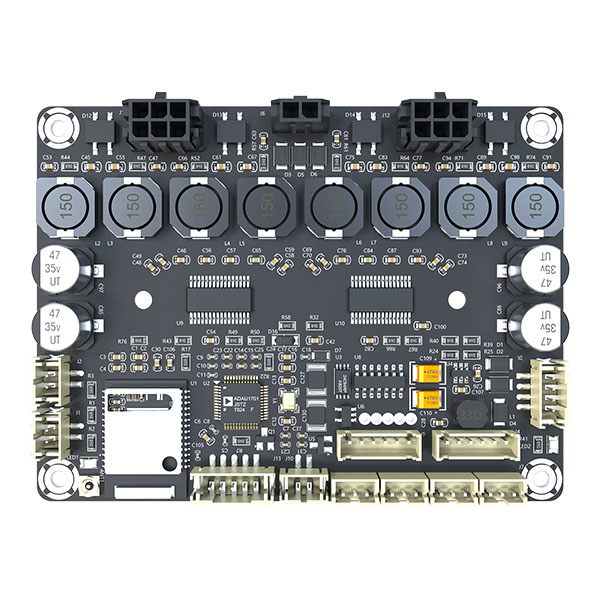

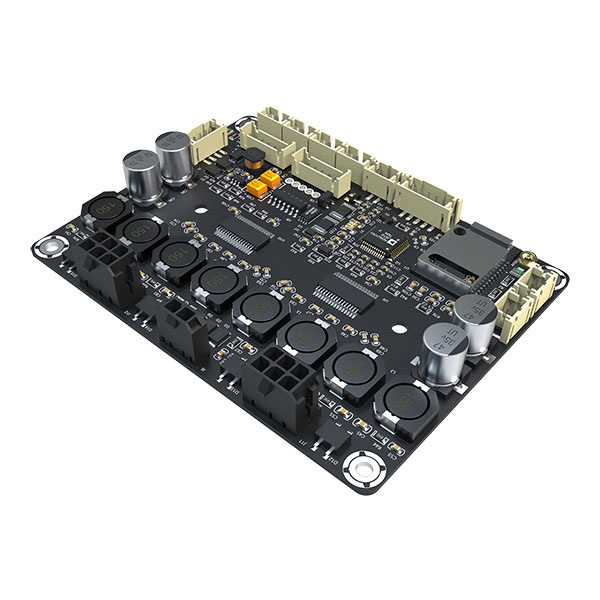

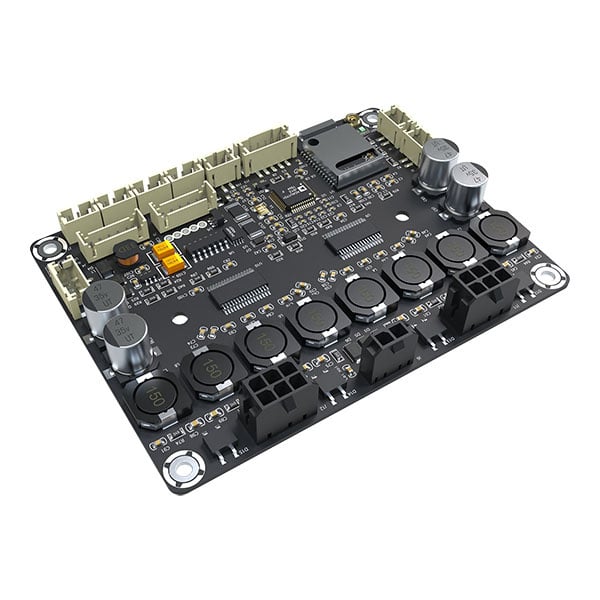

Sure Electronics AA-JA33285 4 x 30 Watt Watt Class D Audio Amplifier Board w ADAU1701 DSP & Bluetooth Ver5.0 for Audio 4.0/2.1/2.0 System - JAB4

The Wondom JAB3+ is an amplifier module capable of developing a power of 2x50W, supporting Bluetooth 5.0 (aptX HD) and integrating an ADAU1701 DSP for an all-in-one audio solution. Thanks to the latter, the JAB3+ can be programmed with SigmaStudio and AppControl via an intuitive graphical interface (requires the use of a Wondom ICP5 module, not supplied). In addition to its speaker output, the JAB3+ has an additional mixed audio output that can be used with another amplifier module to create a 2.1 or 4.0 system. The PC interface then allows the amplifier to be configured in mono or stereo mode. In addition, the JAB3+ can be battery-powered to create a portable, high-performance audio system. The JAB3+ uses a Bluetooth 5.0 module as input, supporting AAC, SBC, aptX, aptX LL and aptX HD codecs and enjoying a high reception sensitivity of up to 9dB and -90dBm. This makes it possible to pair the JAB3+ with an audio source. An external antenna port is also available in case the JAB3+ is installed in a box. The JAB3+ therefore embeds an ADAU1701 DSP chip for audio signal processing. Four ports allow to mount external potentiometers (sold separately). These will allow you to control volume, gain, bass and treble levels. When used with a Wondom ICP5 module (sold separately), you can adjust many audio parameters via the SigmaStudio software or a control application. In addition to the Bluetooth input, the JAB3+ offers a line input. The signal from both inputs can be mixed before being transmitted to the amplifier circuit.

Specifications: Style: Boards • Number Of Channel(s): 4 • Output Power: 30 • Size: 3.6 x 2.7 inches (91.44mm x 68.58mm) • Chipset: TPA31xx • Heat Dissipation: No Heat Sink & FAN • Supported Parallel Bridge Tied Load Mode: YES • input: Bluetooth, Single ended Line-in • Power Voltage: 10V-26V.

Recensioni

3 reviews

Recensisci questo prodotto

5 di 5

Kompakt und Leistungstark

Da Jason on 8 Gennaio 2025

Best choice for small 2.0 speakers with active crossover. Onboard DSP offers limitless possibilities and board has more than enough power for something like Dayton ND90/91. Unlike Arylic, software for DSP programming is for free and is actually very well made and pretty well documented. Unlike Arylic though, DSP programmer is not included and needs to be bought separately (once programmed, it doesn't need to stay connected, so one can be used to ...

Da Tomas Kuruc on 26 Agosto 2024
