Descrizione del prodotto Sure Electronics Audio Digital Signal Processor Kernal Board - ADAU1701

This Audio DSP Board comes with all the necessary components installed and demonstration firmware, all that customers need to do is to connect it and play.

Highlights

Speaker Equalization
Active Crossovers
Subwoofer Integration
Noise Cancellation System
Digital Car Audio System
Home Theater, Karaoke, Musical Instruments

Product details

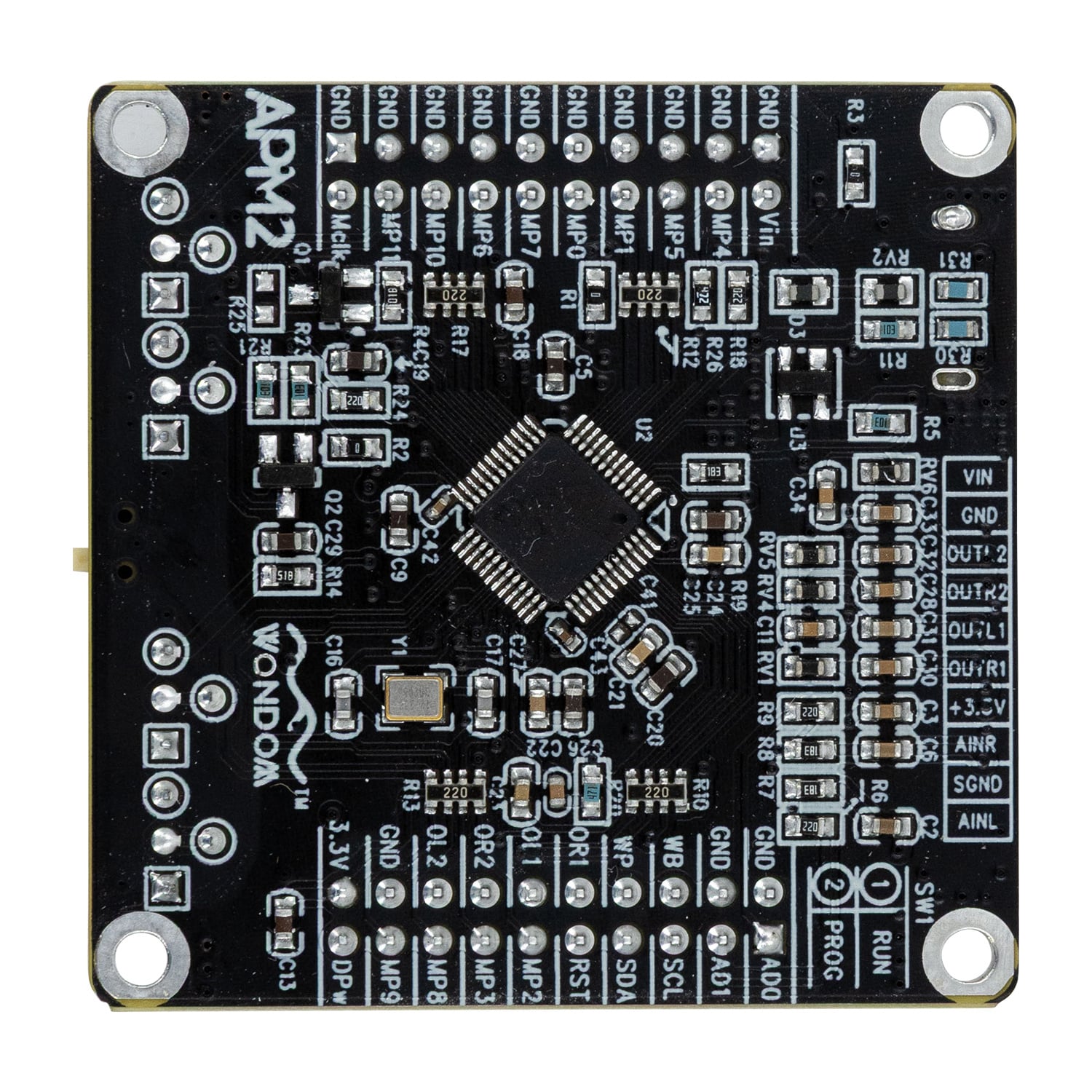

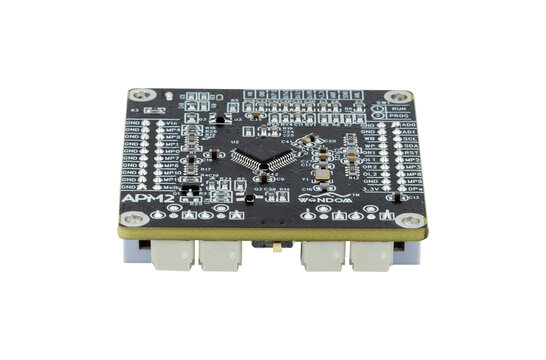

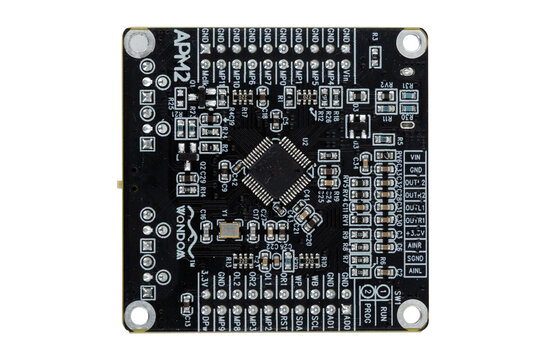

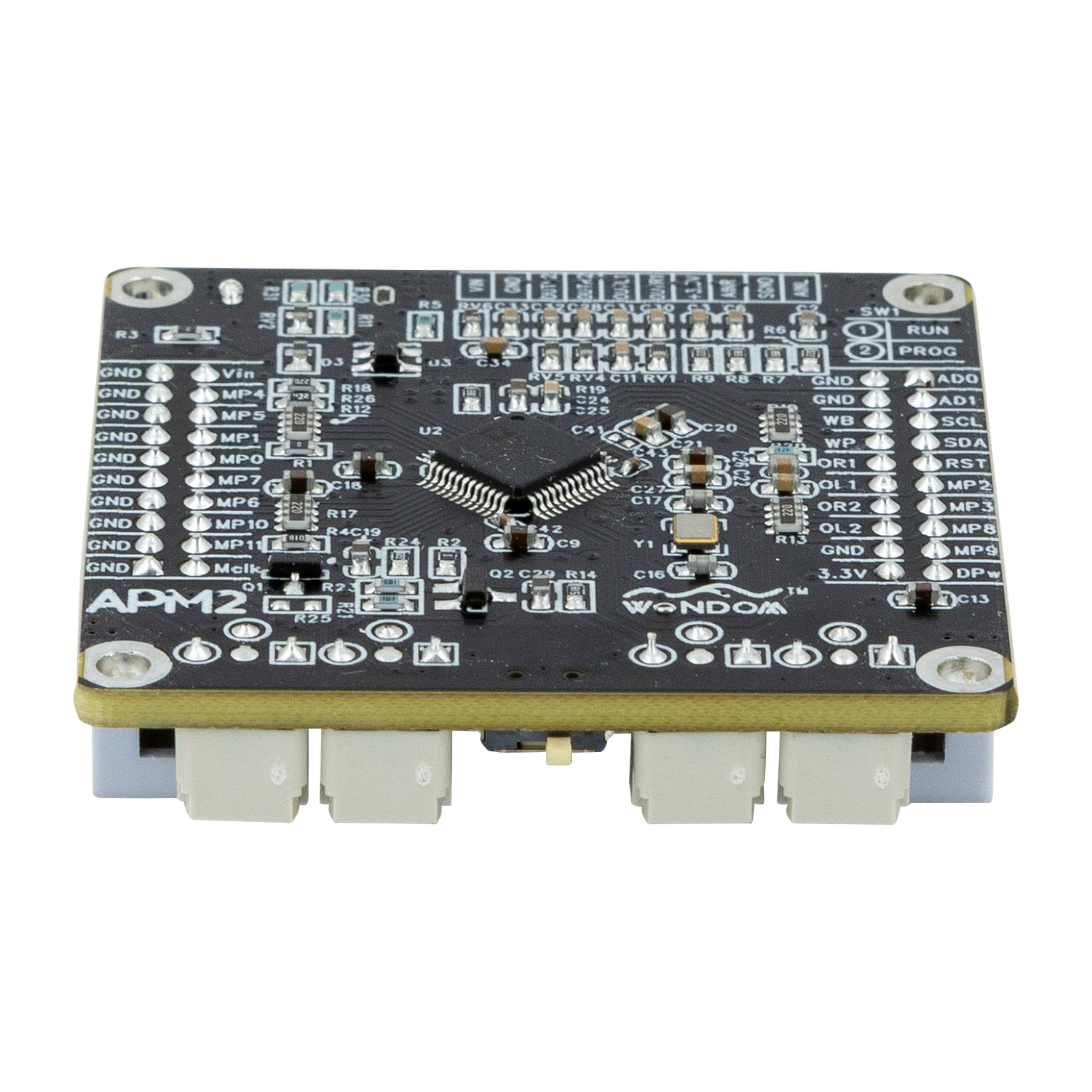

Sure Electronics Audio Digital Signal Processor Kernal Board - ADAU1701

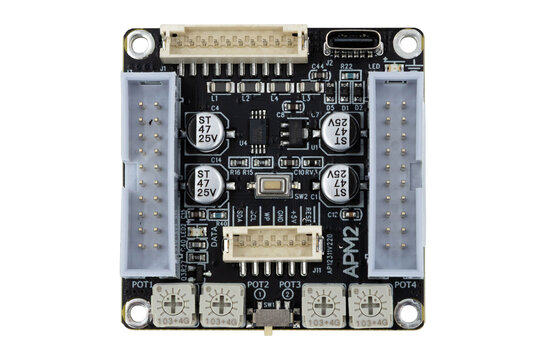

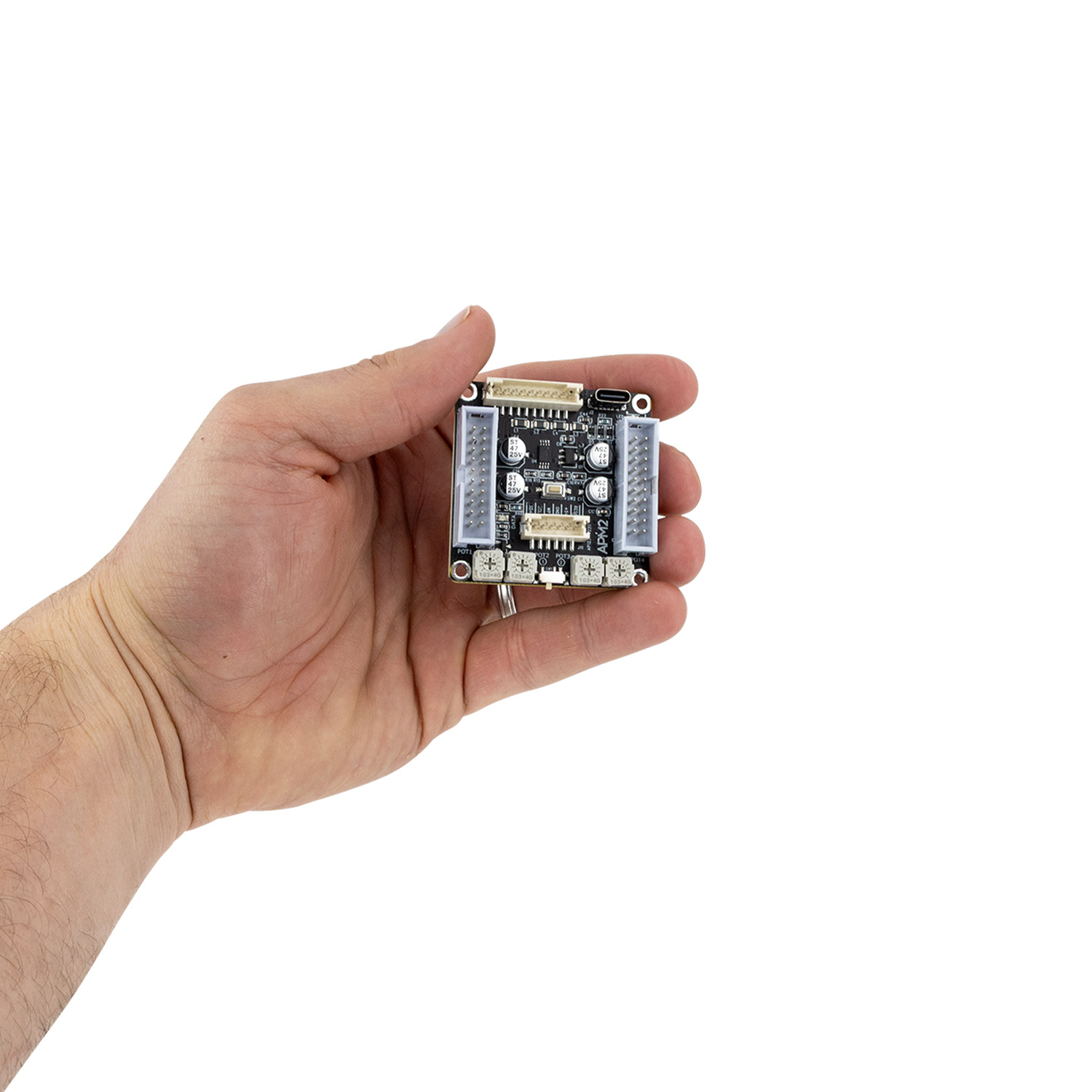

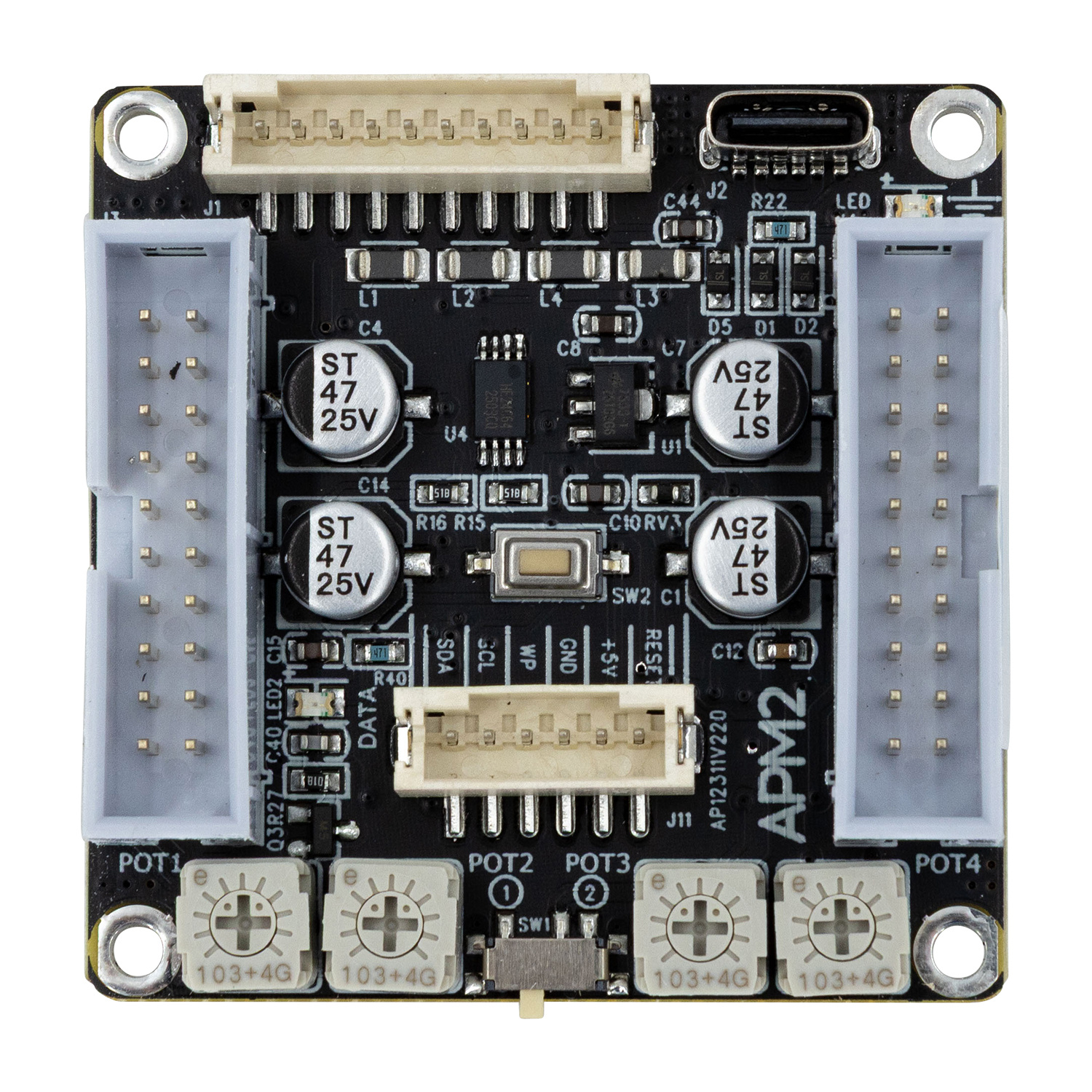

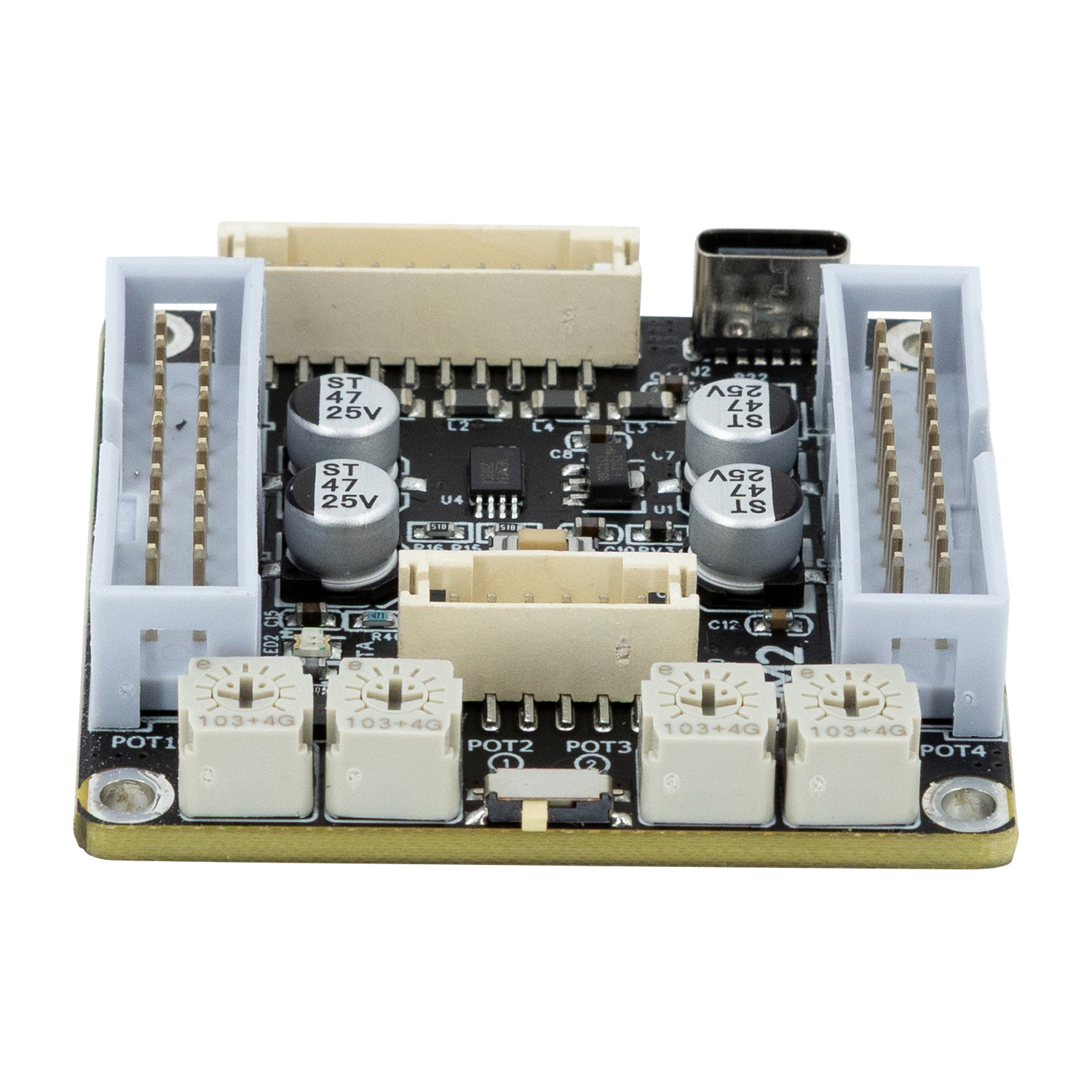

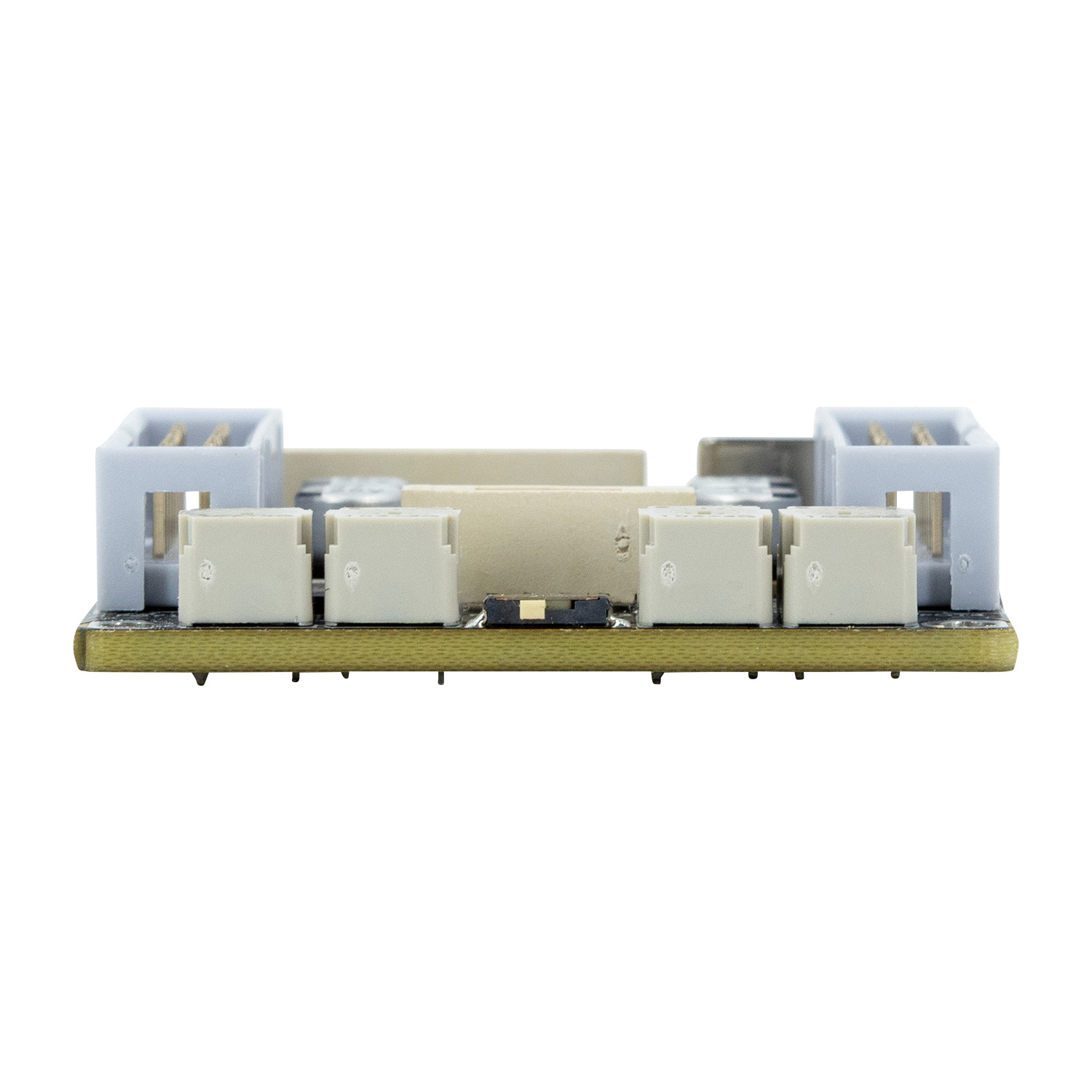

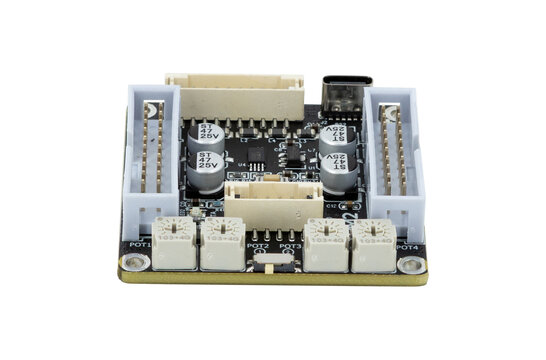

The ADAU1701 employs the flexible audio DSP connector (10Pin Extension cable attached with Extension board). After connecting the Kernal board with interface extension board, just power up the Kernal board with a universal microUSB cable, and then turn the potentiometers on board to adjust main volume, treble volume, bass volume and cut off frequency, while also toggling the slide switch on the board to mute or enable the audio output.

Select AA-AA11428 to get this interface extension board.

This Audio DSP board employs the Analog Device ADAU1701 whose signal processing is comparable to that found in high end studio equipment. The dynamic range of its two Σ-Δ ADCs and four Σ-Δ DACs reaches high up to 98.5dB. Each ADC has a THD + N of -83 dB, and each DAC has a THD + N of -90 dB. Besides that, the optimal PCB layout of power filtering and signal loop as well as the capacitive components also contribute to the high sound quality.

Thanks to all the available interface of the Audio DSP, including analogue and digital audio input and output, control IOs and I2C programming interface, this Audio DSP board can provide a platform with the ADAU1701 for easy integration of digital audio applications with an affordable price.

Recensioni

10 reviews

Recensisci questo prodotto

5 di 5

Da Jc on 12 Settembre 2025

Alles wie erwartet. Empfehlenswert

Da Robin on 17 Giugno 2025

If you know what you're doing this little friend is simply amazing. The heaps of money you can save with this is incomparable to other diy solutions.

Da Moritz der Echte on 9 Gennaio 2024

4 di 5

Da maurizio on 25 Settembre 2023

1 di 5

As written, only usable with the i2s Interface. But it's not usable as master. The analoge converters produce a lot of noise and steel the stereo imagination. The calculation and handling is instable and can produce unwanted instillations which destroy your driver's. The interface is not working stable. But a great product and a great software...

Da Torsten Jaeckel on 5 Agosto 2021

When you know the quirks of this board it's an exceptionally versatile piece of kit. De audio quality is great especially when used with a digital input as source which is possible given the MCLK input allowing synchronous I2S audio.

Da Pascal v. on 14 Maggio 2020

Fantastisches Preis / Leistungsverhältnis

Da Thorsten H. on 20 Novembre 2019

zeer net kernboard, word dagelijks gebruikt als DSP in combinatie met 2 x In, 3 x Out Extension Board van sure electronics voor het aansturen van Class D amplifier 4x100W, dagen aan een stuk in gebruik en tot op heden zeer te vrede. gebruiksvriendelijk, te gebruiken met WONDOM In-circuit Programmer - ICP3 voor het programmeren van de DSP.

Da M. de Leeuw on 15 Novembre 2019

3 di 5

Very neat board when it works. It did for two days, and then either the DACs or the ADCs died, after feeding the digital pins with I2S. Now no analog in, or output seems to work.

Da Alexander M. on 1 Giugno 2019

No description was given

Da Antti T. on 11 Gennaio 2019
