Descrizione del prodotto Sure Electronics AA-AB41147 | VC04 | Electronic Volume Control Board

Highlights

Single-Ended Audio Signal Input and Output
LED Status Indicator
Flexible Connection and Easy Installation
Wide Control Range: -107.5dB to 10dB

Product details

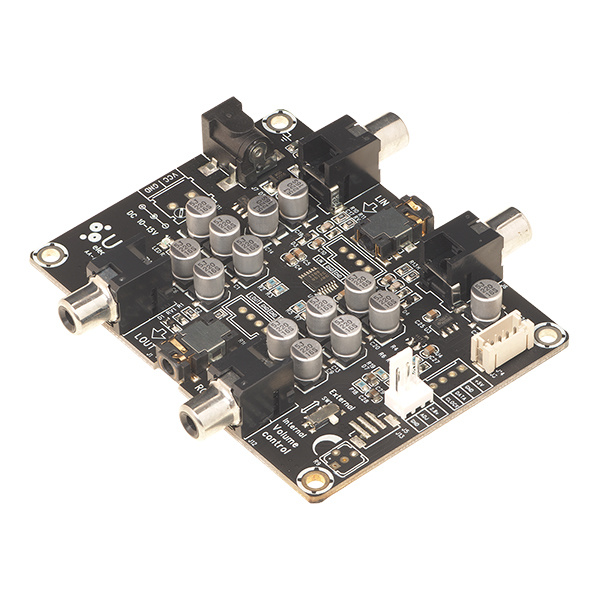

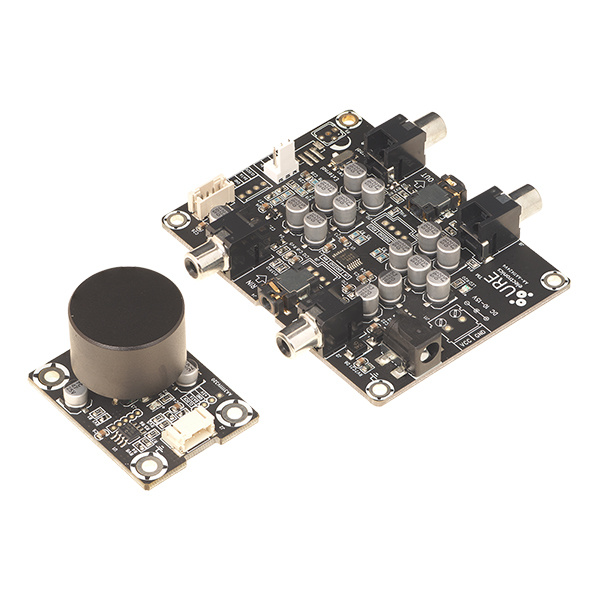

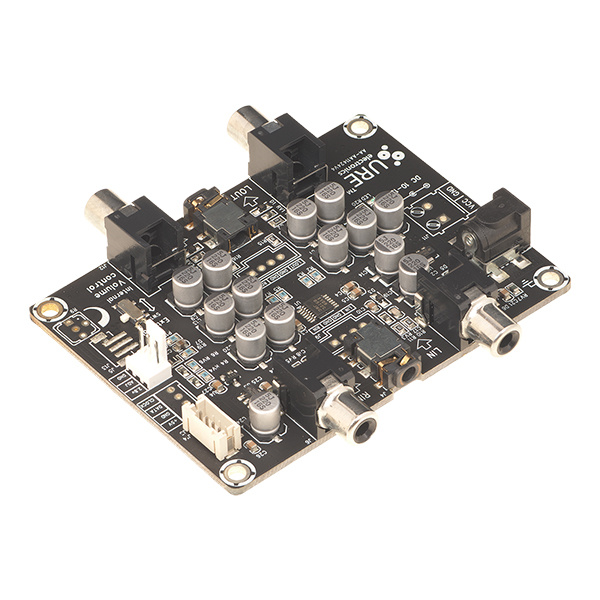

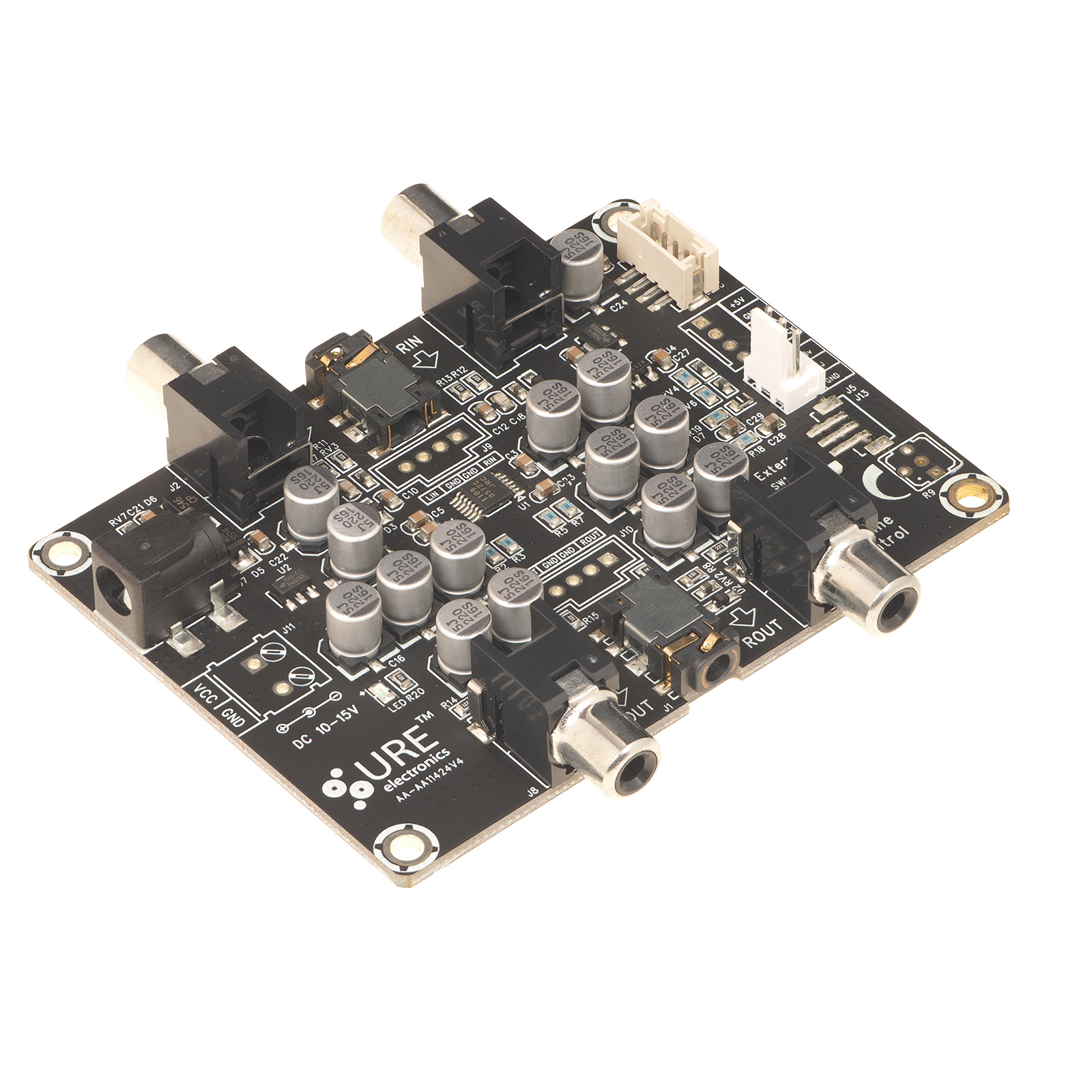

Sure Electronics AA-AB41147 Digitally Controlled Stereo Electronic Audio Volume Control Board - VC04

This is a digitally controlled stereo electronic audio volume board with a gorgeous appearance. It features a mature volume adjustable module and external power and signals output connector. Several wiring methods such as 3.5 mm Socket (Default) facilitate connection. Analog and digital section powers are used independently to minimize interference. Excellent heat dissipation eliminates the need for an extra heatsink. Over temperature, over current protection, and power supply, anti-reverse protection is included to extend the longevity of the board.

Specifications: Board Type: Board • input: 3.5mm AUX, • outputRCA, 3.5mm AUX, • Control InterfaceHardware • Size3.6 x 2.7 inches (91.44mm x 68.58mm) • Power Voltage8V-15V • Volume Control Board: 3.6 x 2.7 inches • Decode Board: 2 x 1.5 x1.7 inches • Accuracy: 1dB/step • Output Noise Voltage: 15.89μV • THD+N: 0.0327% • SNR: 92.2dB.
