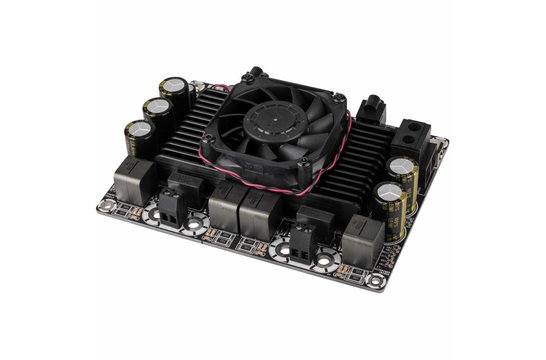

Name: Sure Electronics AA-AB32314 2x400W Class D Audio Scheda Amplificatore - T-Amp
Brand: Sure Electronics
SKU: AA-AB32314
Price: 99.95 EUR
Availability: InStock

2 x 400 W

€ 82,60€ 99,95 1 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Sure Electronics AA-AB32314 Modulo Amplificatore

Design your own powered subwoofer, powered speaker or audio amplifier with Sure's 2 x 400 watt stereo amp board. It's ready to handle mid power demanding audio projects.

Highlights

Temperature controlled cooling fan
Over-engineered protection circuits
Versatile 3-ohm stability
Perfect size for use as a subwoofer amplifier for home or vehicle
Up to 800 watts max power
Requires 24 to 44 VDC power supply

Product details

Sure Electronics AA-AB32314 2x400W Class D Audio Amplifier Board - T-Amp

This mid power stereo amplifier board means serious business! This audio amplifier board cranks out 800 watts of power using Sure Electronics T-AMP technology, featuring low distortion and low noise level. For do-it-yourselfers, looking for an audio amp for your home or vehicle.

Temperature controlled cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. This amp board has three fixed gain settings or you can use Sure's plug in volume control option. A 24 to 44 VDC power supply is required.

Note: The minimum recommended wire gauge to be used for power is 16 AWG.

Connections:

width=

Typical Performance Graphs:

Frequency response:

Noise Floor:

width=

THD+N VS Frequency:

width=

Thermal Image:

width=

All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.
