      DS20 Portable DAC and Headphone Amplifier CS43131

      SMSL DS20 Portable DAC and Headphone Amplifier CS43131

      €189,95

      4 In magazzino

      Aggiungi al carrello

      SMSL DS20 Portable DAC and Headphone Amplifier CS43131

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SMSL
      Mostra tutti Convertitori Digitali Analogici
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      € 156,98€ 189,95 4 In magazzino
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato prima delle 16:00, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131
      DS20 Portable DAC and Headphone Amplifier CS43131

      Descrizione del prodotto SMSL DS20 Portable DAC | Headphone Amplifier

      The S.M.S.L DS20 is a compact yet powerful high-resolution digital-to-analog converter (DAC) and headphone amplifier designed for audiophiles seeking excellent performance in a minimal footprint. Engineered with premium components and advanced circuitry, the DS20 delivers transparent, detailed sound from a wide range of digital sources via USB, optical, and coaxial inputs.



      Highlights of the S.M.S.L DS20

      • High-performance ES9039Q2M DAC chip supporting up to 32-bit/768kHz PCM and DSD512
      • XMOS XU316 USB interface for ultra-low jitter and high compatibility with Windows, macOS, and Linux
      • Fully balanced headphone output with 2 gain levels and 2-step digital filters
      • Supports MQA full decoding for studio-quality streaming audio



      Product details S.M.S.L DS20

      S.M.S.L DS20 High-Resolution DAC & Headphone Amplifier



      The S.M.S.L DS20 is a high-performance DAC and headphone amplifier that combines top-tier audio components and compact design, ideal for desktop audiophile setups. At the heart of the DS20 lies the ES9039Q2M DAC chip from ESS Technology, capable of decoding high-resolution audio up to 32-bit/768kHz PCM and native DSD512. This ensures unmatched clarity, dynamic range, and precision in audio playback.



      The unit features an XMOS XU316 USB interface, providing excellent jitter control and broad OS compatibility. In addition to USB, the DS20 includes optical and coaxial digital inputs, making it highly versatile for a range of digital sources including computers, streamers, CD players, and gaming consoles. It also supports full MQA decoding, delivering master-quality streaming from platforms like TIDAL.

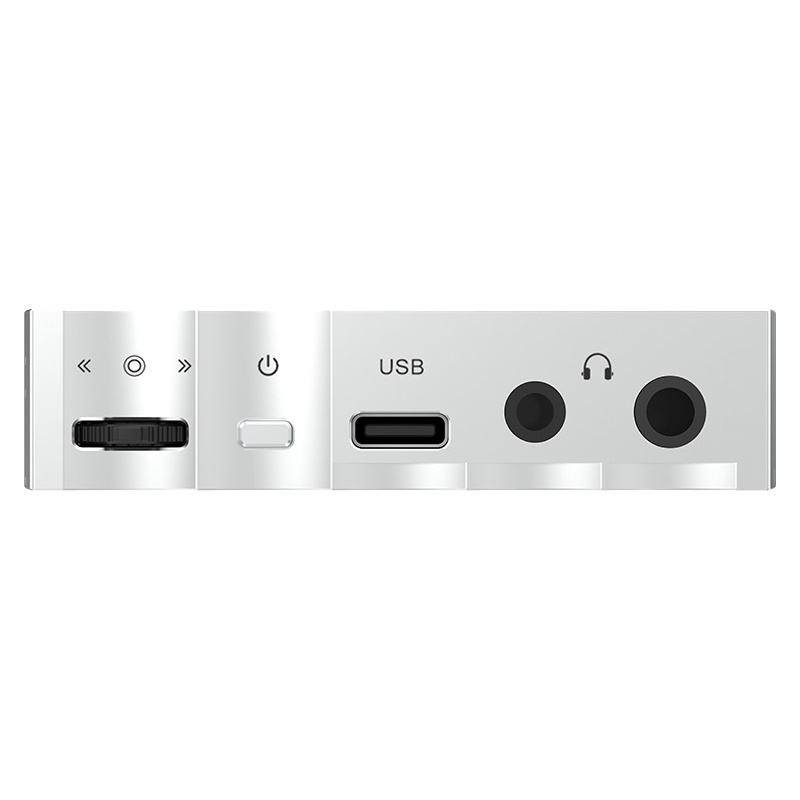

      The DS20 offers both single-ended (3.5mm) and balanced (4.4mm) headphone outputs with adjustable gain settings, making it suitable for a wide range of headphones from IEMs to high-impedance audiophile cans. The sleek all-aluminum chassis, intuitive front-facing controls, and OLED display round out a product that balances form and function seamlessly.



      Whether you're upgrading a PC audio chain or building a space-efficient desktop setup, the S.M.S.L DS20 offers premium sound quality in a minimal footprint.

      Show more

      Specifiche

      Numero dell'articolo:
      DS20
      EAN
      6970141850557
      Potenza di uscita nominale (RMS)
      32 Ω 2 x 500 mW, 300 Ω 2 x 60 mW
      Carico minimo
      16 Ω
      Rapporto segnale/rumore (SNR)
      4.4 mm HP output 126 dB, 3.5 mm HP output 126 dB
      Distorsione
      300 Ω 0.0002%
      DAC
      MQA full decoding, PCM 44.1-768kHz, DSD 2.8224-11.2896Mhz
      Frequenza di campionamento massima
      Sampling rate PCM 44.1-768 Khz, DSD 2.8224-11.2896 Mhz
      USB
      Input
      Jack cuffie
      3.5 mm HP Output 3 Vrms, 4.4 mm HP Output 6 Vrms
      Requisiti di alimentazione
      Battery capacity 6000 mAh (22.2 Wh)

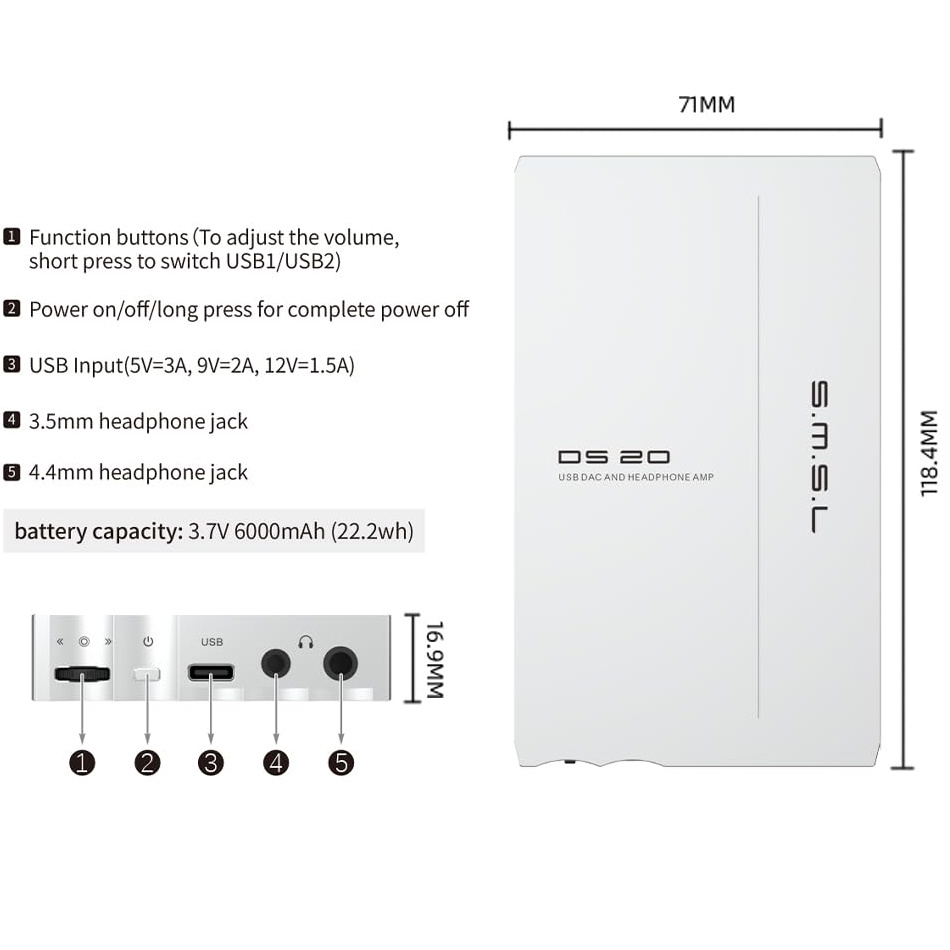

      Dimensioni (L x P x H)
      118.5 x 71 x 17 mm
