      Descrizione del prodotto SEAS Excel W26FX002 - E0046-08S Woofer

      Highlights

      • Long term power handling (RMS) is 100 Watts
      • Unique Nextel coating ensures smooth frequency response and low distortion
      • Reduced compression, increased long term power handling capacity and eliminated resonances in the cavity inside the voice coil former



      Product details

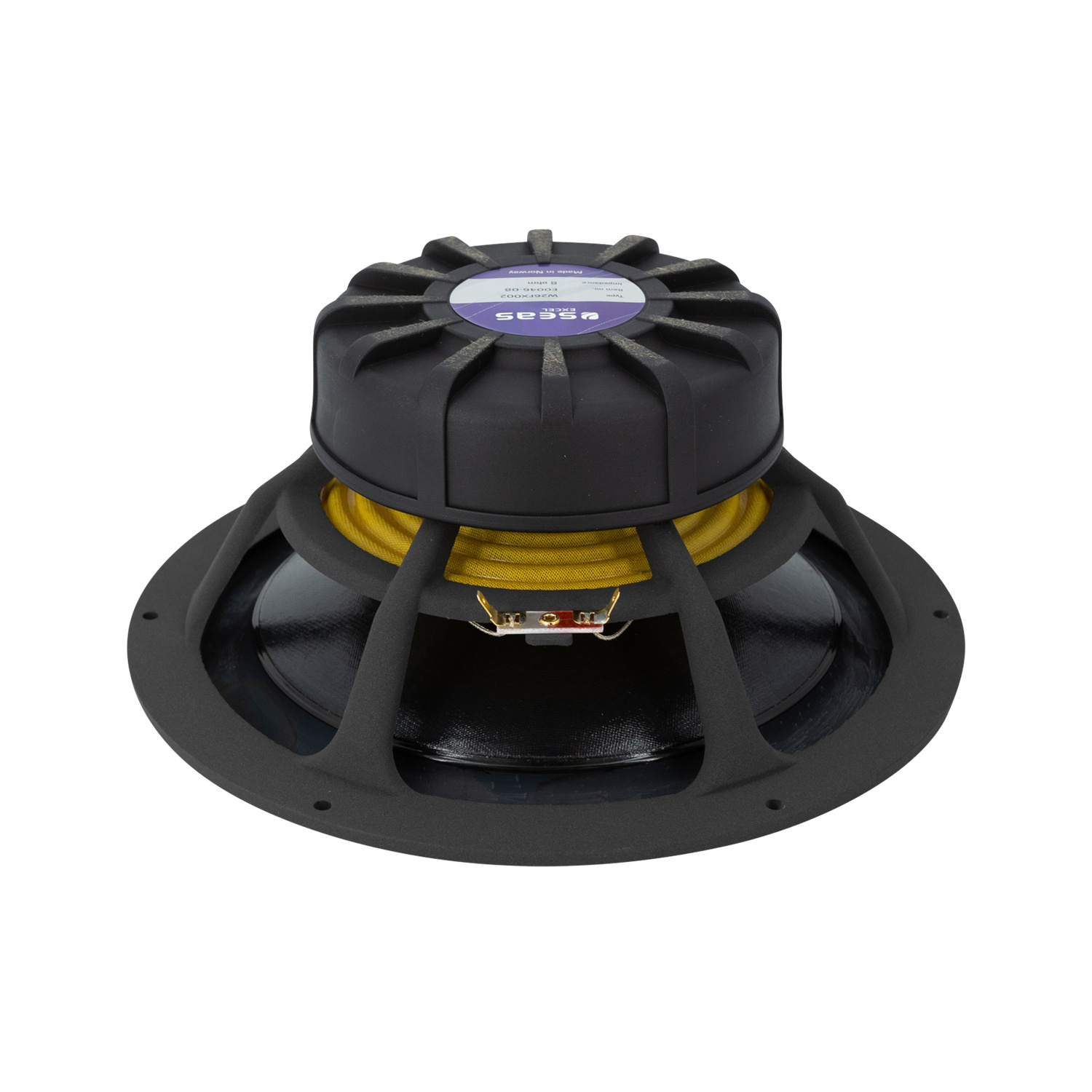

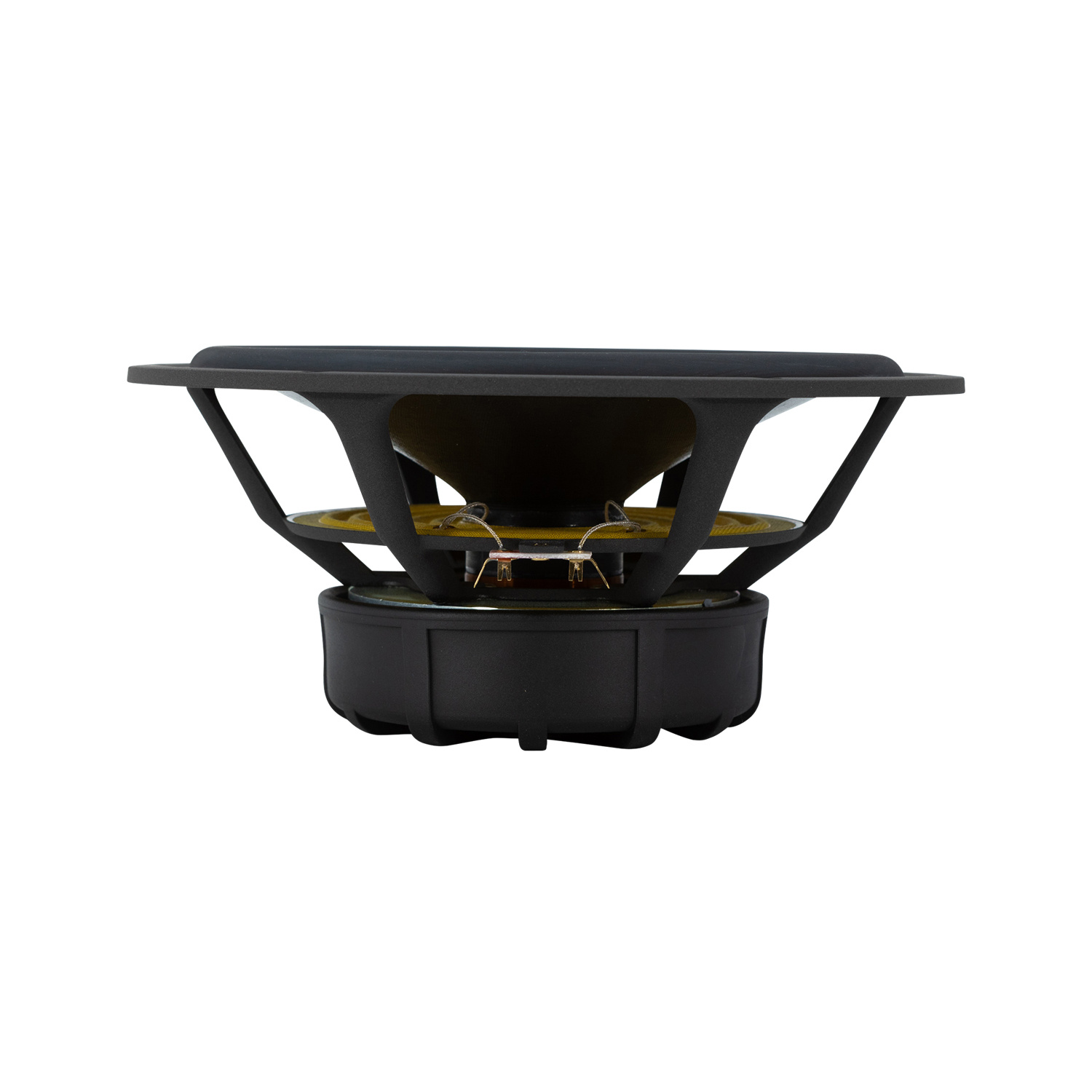

      Seas Excel W26FX002 - E0046-08S 10" Nextel Coated Paper Cone Woofer



      A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. 2” diameter high temperature voice coil with black anodized coil former for high power handling and reduced power compression.



      Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. A chrome plated brass phase plug reduces compression due to temperature variations in the voice coil, increases long term power handling capacity and eliminates resonances in the cavity inside the voice coil former.



      Extremely stiff and stable injection molded metal basket with Nextel paint keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

      Show more

      Specifiche

      Numero dell'articolo:
      W26FX002
      EAN
      0696277270231
      Serie del woofer
      Excel
      Tipo di woofer
      Midwoofer
      Diametro nominale
      10 " | 269 mm
      Gestione della potenza (RMS)
      100 W
      Gestione della potenza (max)
      300 W
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      89.0 dB
      Risposta in frequenza
      30 - 1000 Hz
      Diametro della bobina mobile
      51 mm
      Peso del magnete
      1.3 kg
      Resistenza DC (Re)
      6.2 Ω
      Induttanza della bobina mobile (Le)
      0.81 mH
      Frequenza di risonanza (Fs)
      31 Hz
      Fattore di merito meccanico (Qms)
      2.55
      Fattore di merito elettromagnetico (Qes)
      0.47
      Fattore di merito totale (Qts)
      0.39
      Massa del diaframma incl. la massa dell'aria (Mms)
      42.4 g
      Cedevolezza meccanica della sospensione (Cms)
      0.6 mm/N
      Superficie del cono (Sd)
      330 cm²
      Prodotto BL (BL)
      10.9 N/A
      Volume equivalente di cedevolezza (Vas)
      87 L
      Escursione lineare massima (Xmax)
      7 mm
      Perdite meccaniche del driver (Rms)
      3.52 Ns/m
      Materiale del cono / diaframma
      Paper
      Materiale del cestello / telaio
      Injection moulded metal
      Diametro esterno complessivo
      269 mm
      Profondità complessiva
      109.5 mm
      Diametro del ritaglio del pannello frontale
      232.2 mm
      Diametro del cerchio dei fori di montaggio
      256 mm
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      5.0 mm
