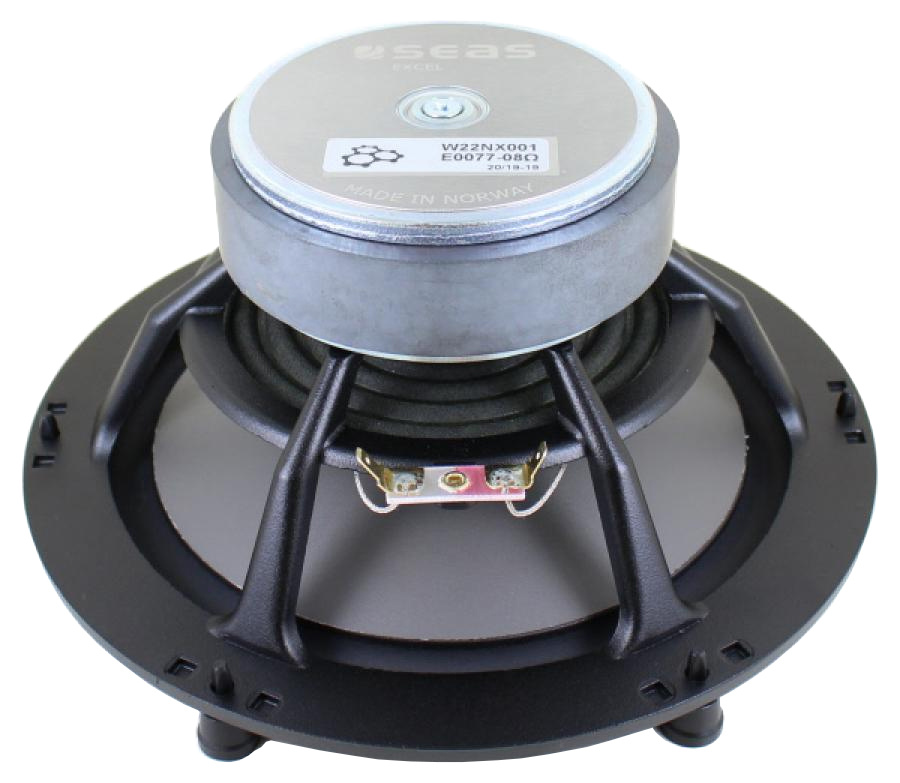

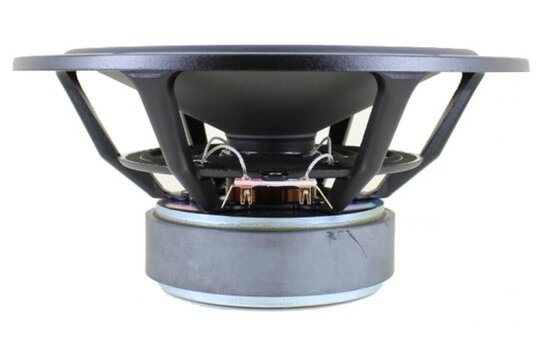

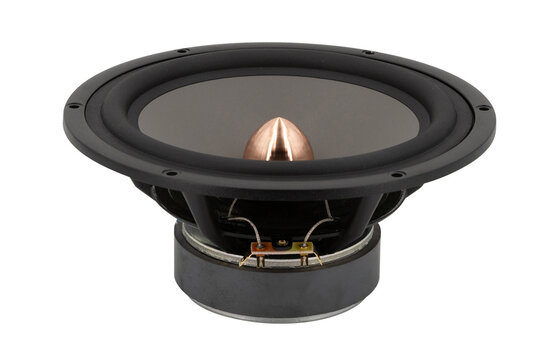

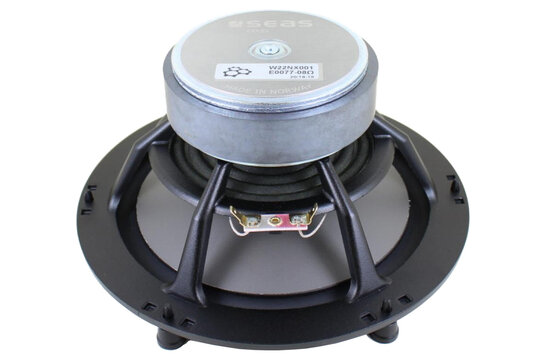

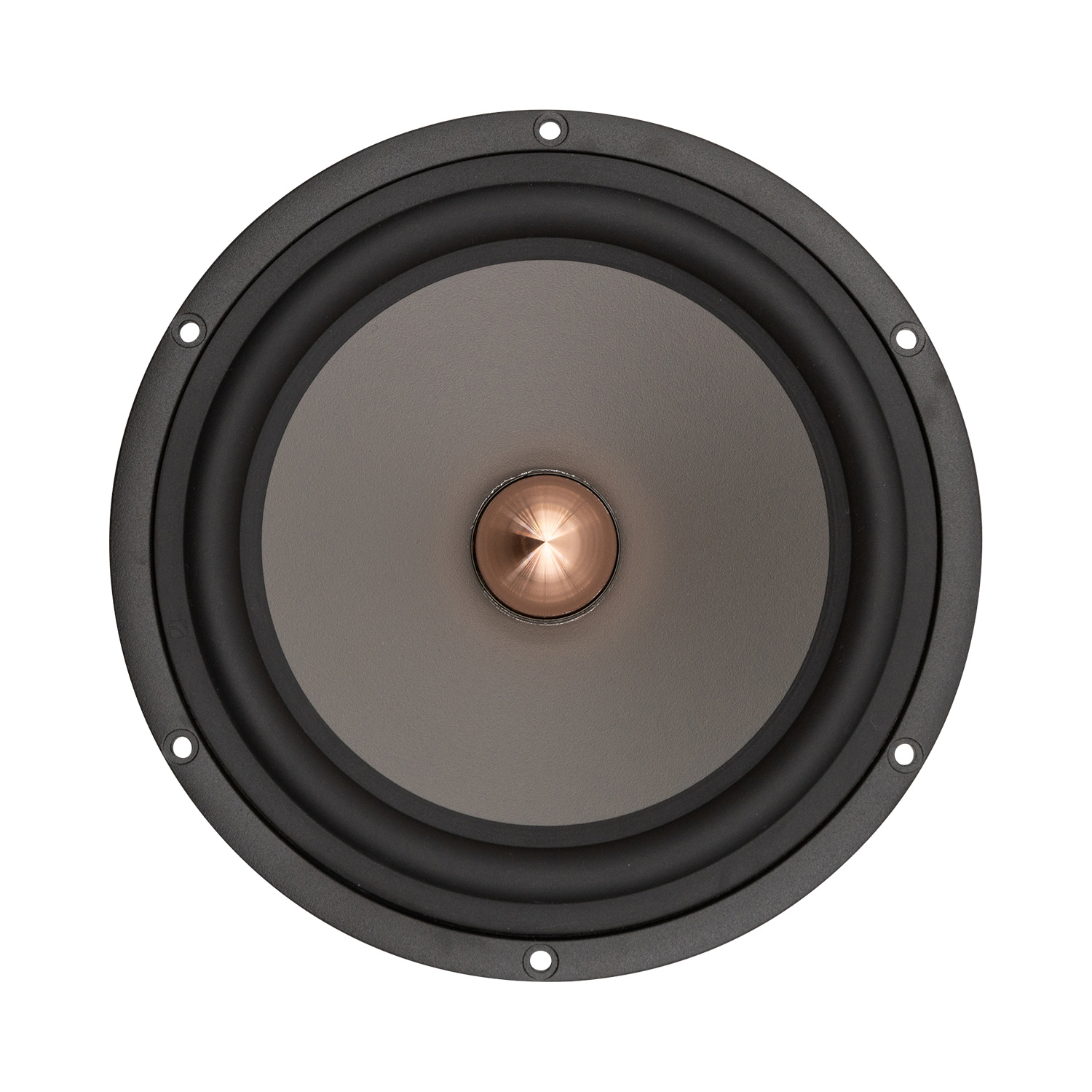

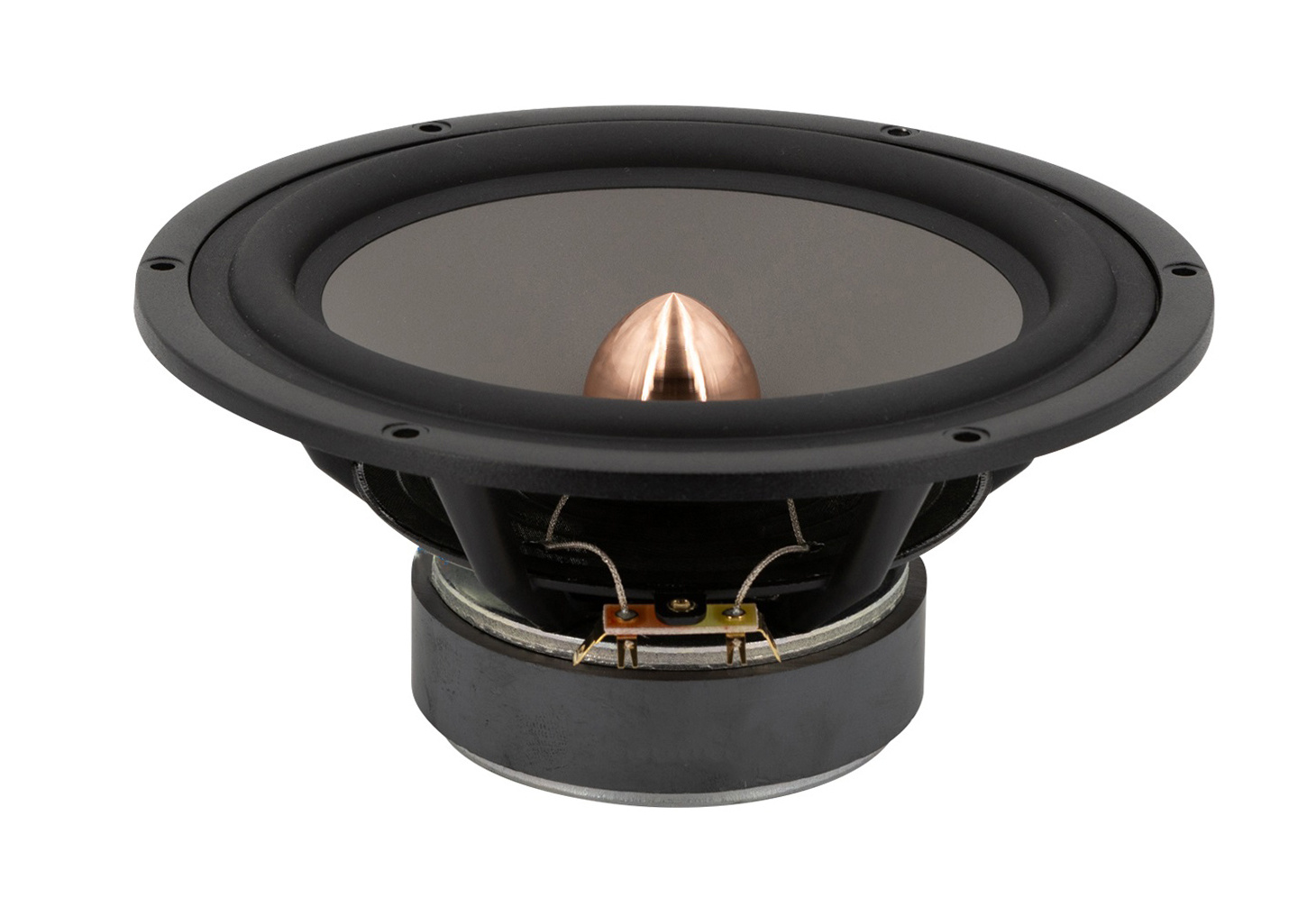

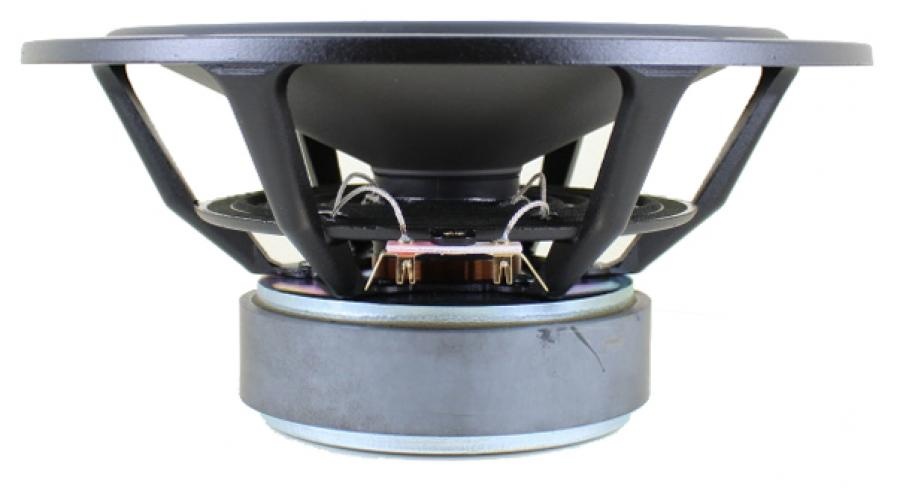

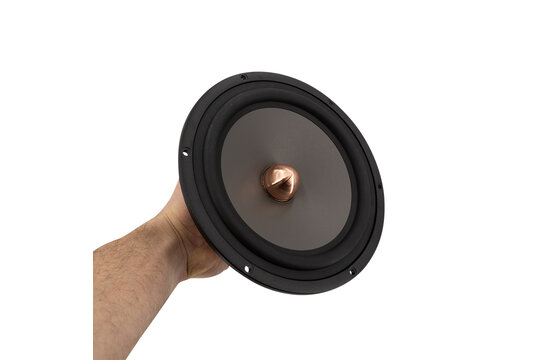

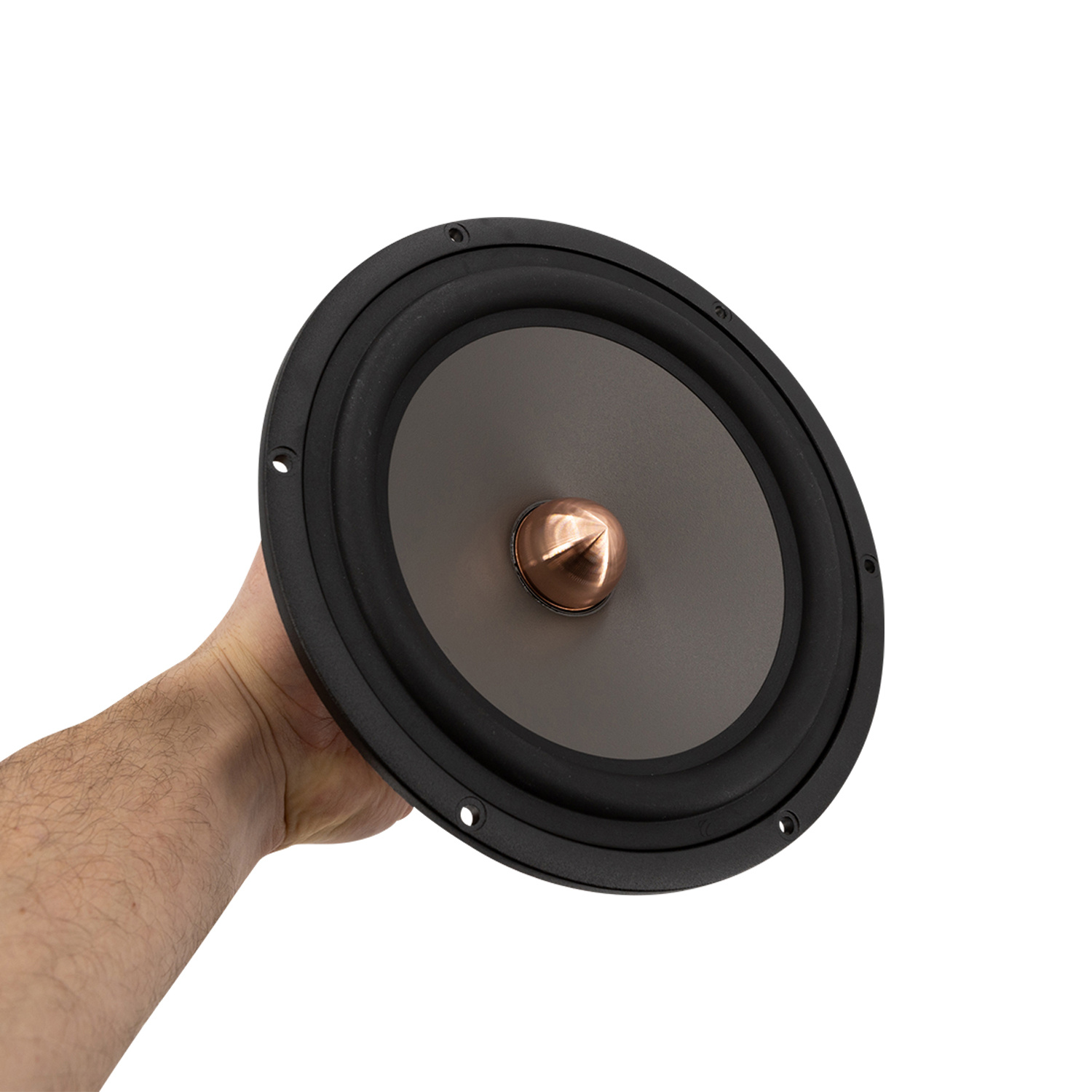

      W22NX001 - E0077-08 Woofer

      SEAS W22NX001 - E0077-08 Woofer

      €629,95

      2 In magazzino

      SEAS W22NX001 - E0077-08 Woofer

      0 klantbeoordelingen
      0 da 5
      0 klantbeoordelingen
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SEAS
      € 520,62€ 629,95 2 In magazzino
      • -5% Acquista 4 per soli € 598,45 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Titanium voice coil former and an FEA-optimized magnet system.
      • Flux density 1.3 T, Winding material is Copper and Surround material is Rubbe

      Descrizione del prodotto SEAS W22NX001 - E0077-08 Woofer

      The SEAS W22NX001 - E0077-08 is a high-performance 8-inch woofer that features a precision-cast, machined, and graphene-treated magnesium cone, a titanium voice coil former, and an FEA-optimized magnet system. This combination of components results in a woofer that is capable of producing accurate and detailed sound reproduction with excellent bass response.



      Highlights

      • Precision-cast, machined, and graphene-treated magnesium cone
      • Titanium voice coil former
      • FEA-optimized magnet system
      • Extremely stiff and stable injection-molded metal basket



      Product details

      SEAS Excel W22NX001 - E0077-08 Woofer



      The SEAS W22NX001 - E0077-08 includes a precision-cast, machined, and graphene-treated magnesium cone, its titanium voice coil former, and its FEA-optimized magnet system. The magnesium cone is extremely stiff and lightweight, which helps to reduce distortion and improve sound quality. The graphene treatment also helps to improve the cone's damping properties, which further reduces distortion. The titanium voice coil former is very strong and lightweight, which helps to improve the woofer's power handling and transient response. The titanium material also has excellent heat dissipation properties, which helps to prevent the voice coil from overheating. The FEA-optimized magnet system is designed to provide excellent linearity, high power handling, and low distortion. The precise fit of the copper parts in the magnet system helps to reduce air gaps and improve efficiency.

      Show more

      Specifiche

      Numero dell'articolo:
      W22NX001
      EAN
      8785256848744
      Serie del woofer
      Excel Graphene
      Diametro nominale
      8 " | 221 mm
      Gestione della potenza (RMS)
      200 W
      Gestione della potenza (max)
      500 W
      Potenza continua del programma
      500 Watt
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      87.3 dB
      Risposta in frequenza
      20 - 2000 Hz
      Diametro della bobina mobile
      39 mm
      Peso del magnete
      0.9 kg
      Resistenza DC (Re)
      6.3 Ω
      Induttanza della bobina mobile (Le)
      0.26 mH
      Frequenza di risonanza (Fs)
      25 Hz
      Fattore di merito meccanico (Qms)
      4.18
      Fattore di merito elettromagnetico (Qes)
      0.44
      Fattore di merito totale (Qts)
      0.39
      Massa del diaframma incl. la massa dell'aria (Mms)
      31.1 g
      Massa in movimento del diaframma (Mmd)
      31.1 g
      Cedevolezza meccanica della sospensione (Cms)
      1.35 mm/N
      Superficie del cono (Sd)
      220 cm²
      Prodotto BL (BL)
      8.3 N/A
      Volume equivalente di cedevolezza (Vas)
      93 L
      Escursione lineare massima (Xmax)
      7 mm
      Perdite meccaniche del driver (Rms)
      1.15 Ns/m
      Materiale del cono / diaframma
      Graphene treated magnesium
      Materiale del filo della bobina mobile
      Copper
      Supporto della bobina mobile
      Titanium
      Materiale del cestello / telaio
      Injection moulded metal
      Diametro esterno complessivo
      221 mm
      Profondità complessiva
      93 mm
      Diametro del ritaglio del pannello frontale
      186.4 mm
      Diametro del cerchio dei fori di montaggio
      209.5 mm
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      5.0 mm
