      W19NX001 - E0076-08 Woofer

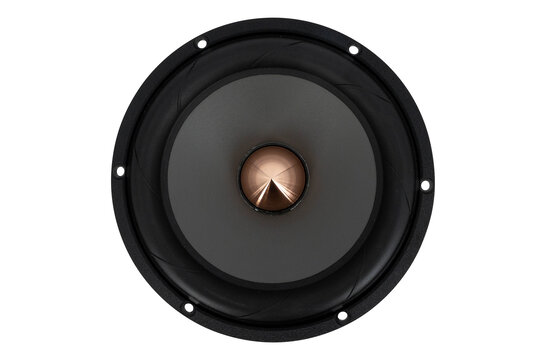

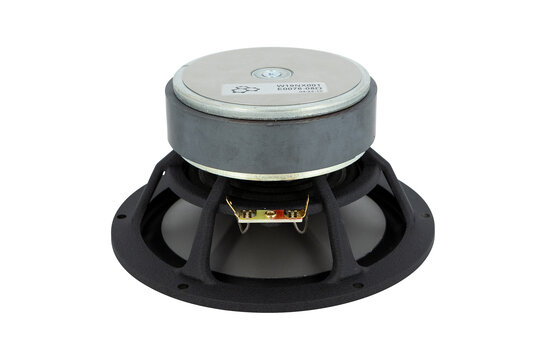

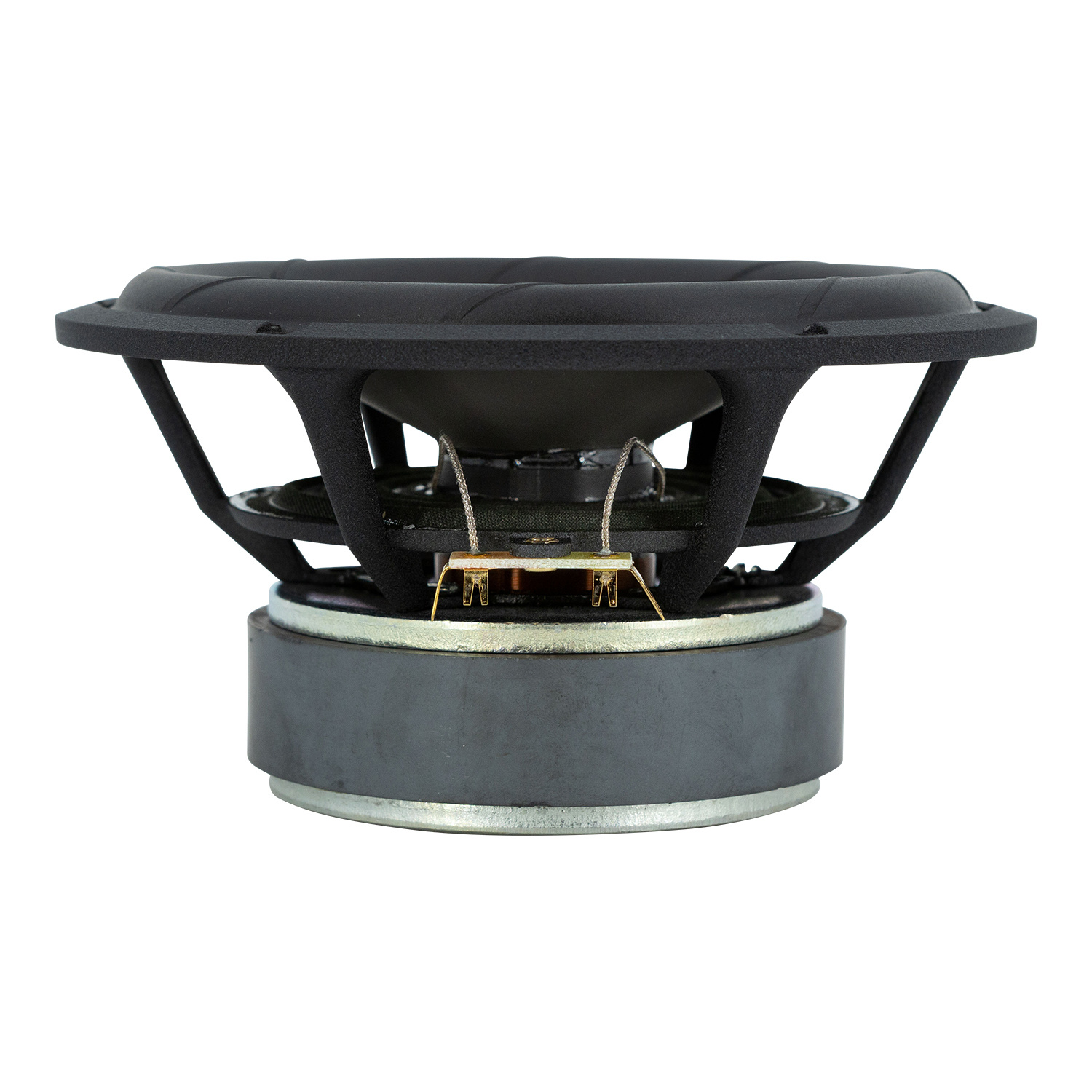

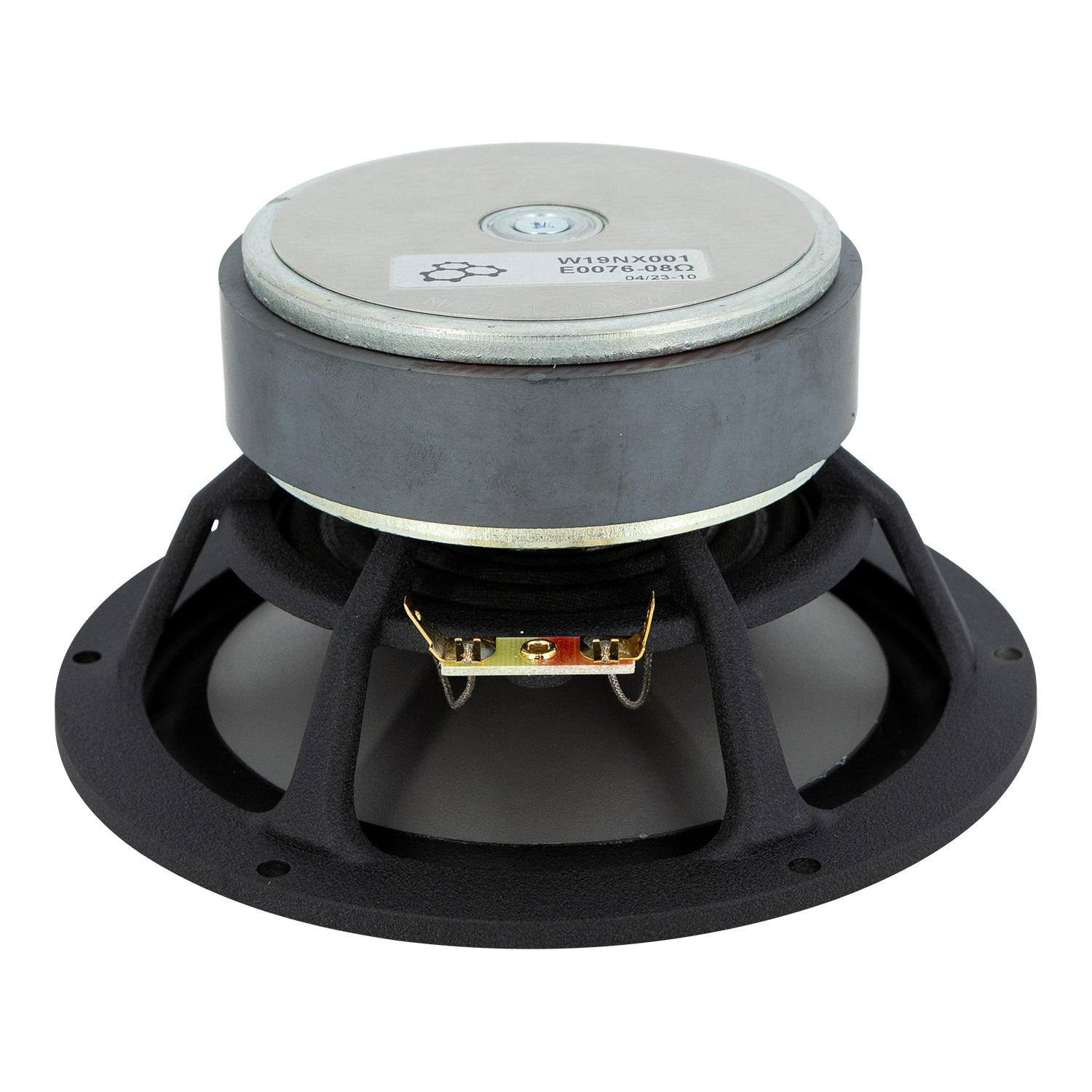

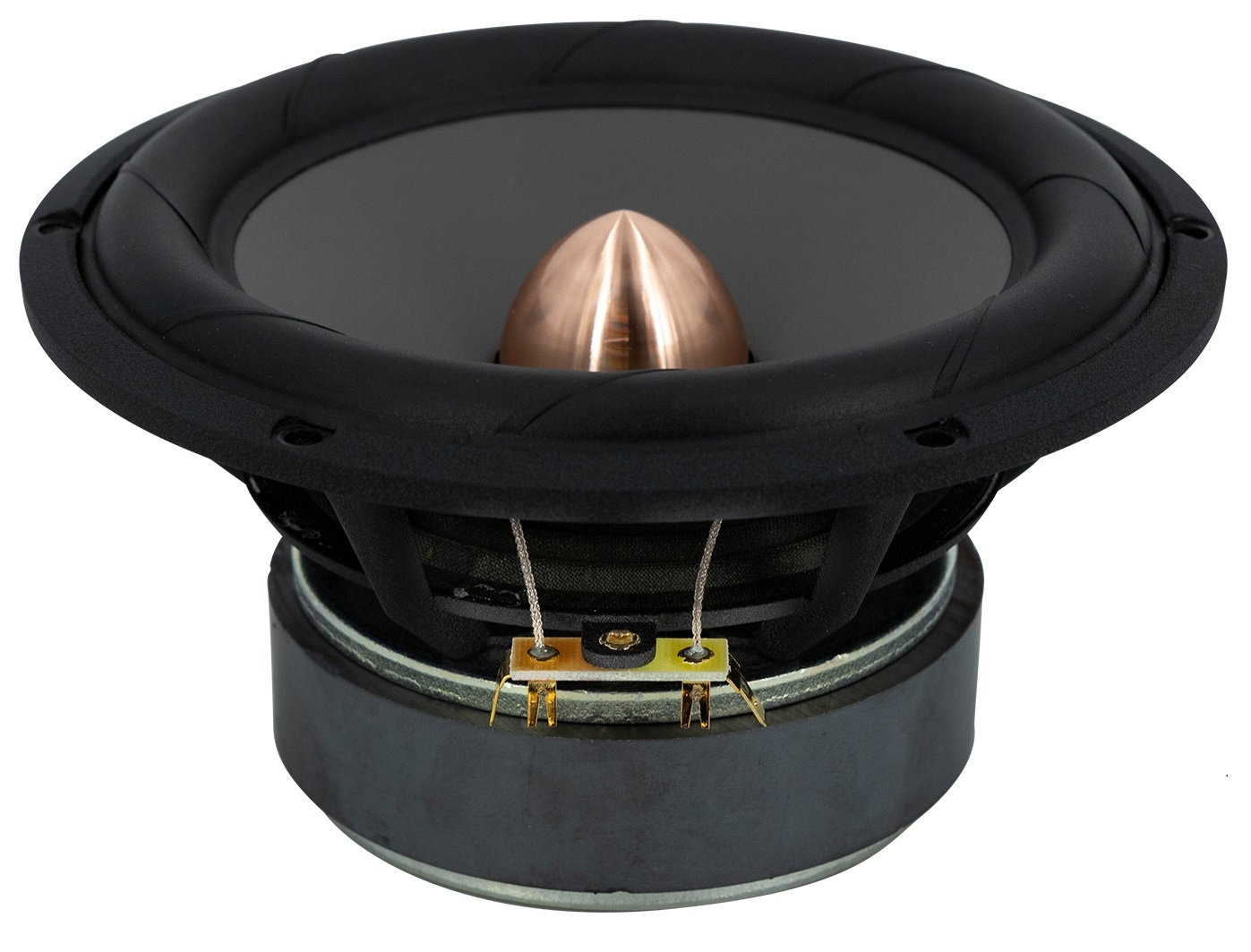

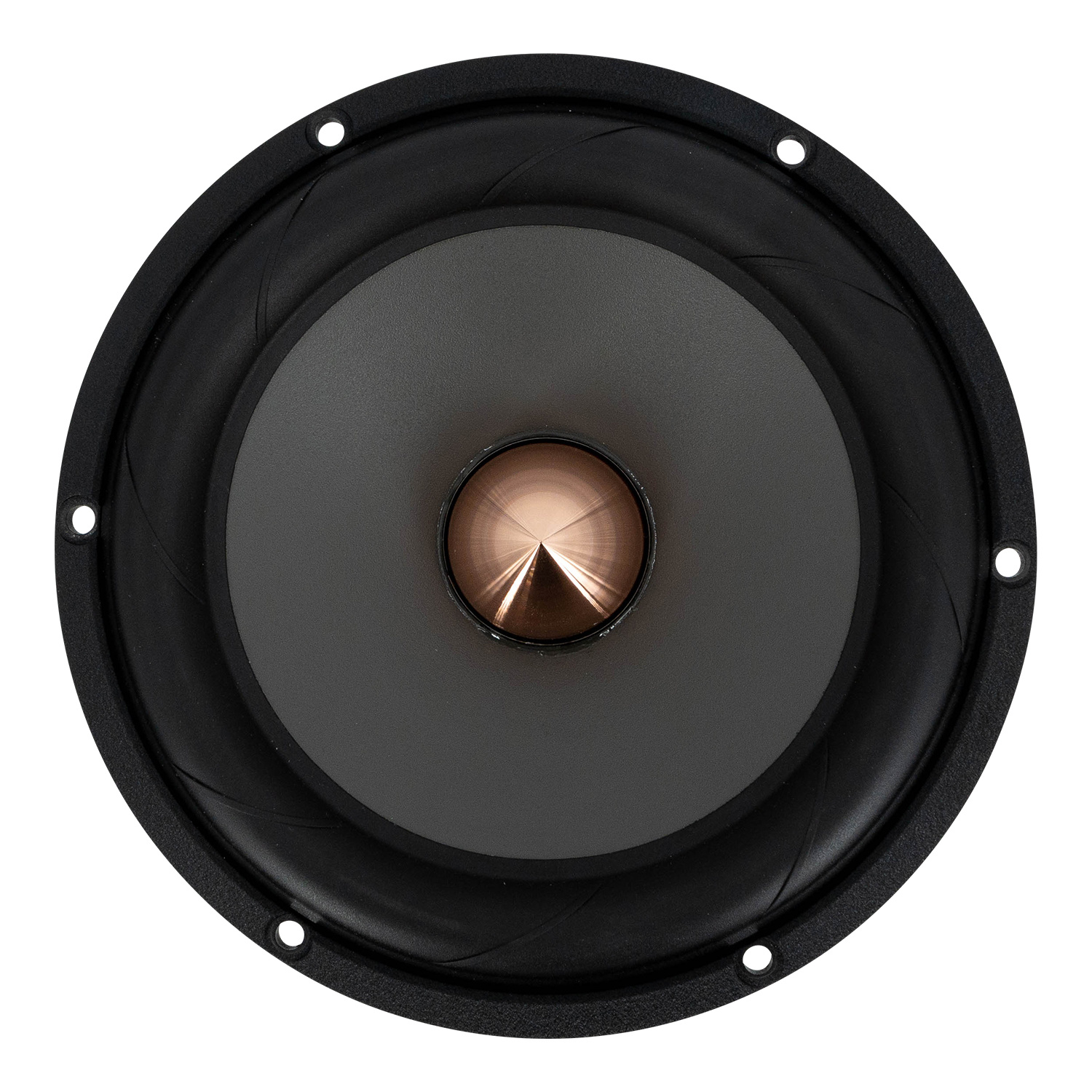

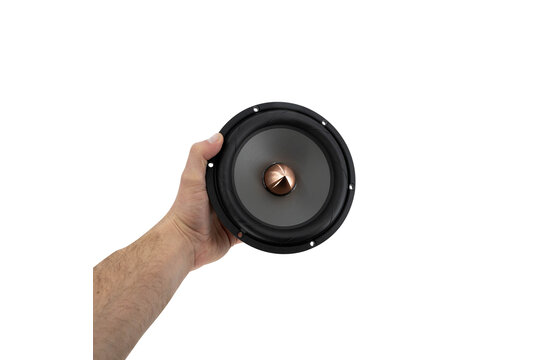

      SEAS W19NX001 - E0076-08 Woofer

      €699,95

      Non disponibile

      SEAS W19NX001 - E0076-08 Woofer

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SEAS
      € 578,47€ 699,95 Esaurito
      • -5% Acquista 4 per soli € 664,95 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Presto di nuovo disponibile
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • The precision cast, machined and Graphene treated magnesium cone acts as a piston through the working frequency band without showing any sign of midrange resonances
      • A unique radial reinforced rubber surround reduces radial resonances and prevents surround break up at large excursions

      Descrizione del prodotto SEAS W19NX001 - E0076-08 Woofer

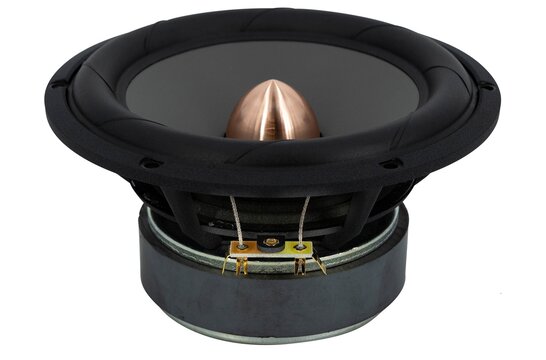

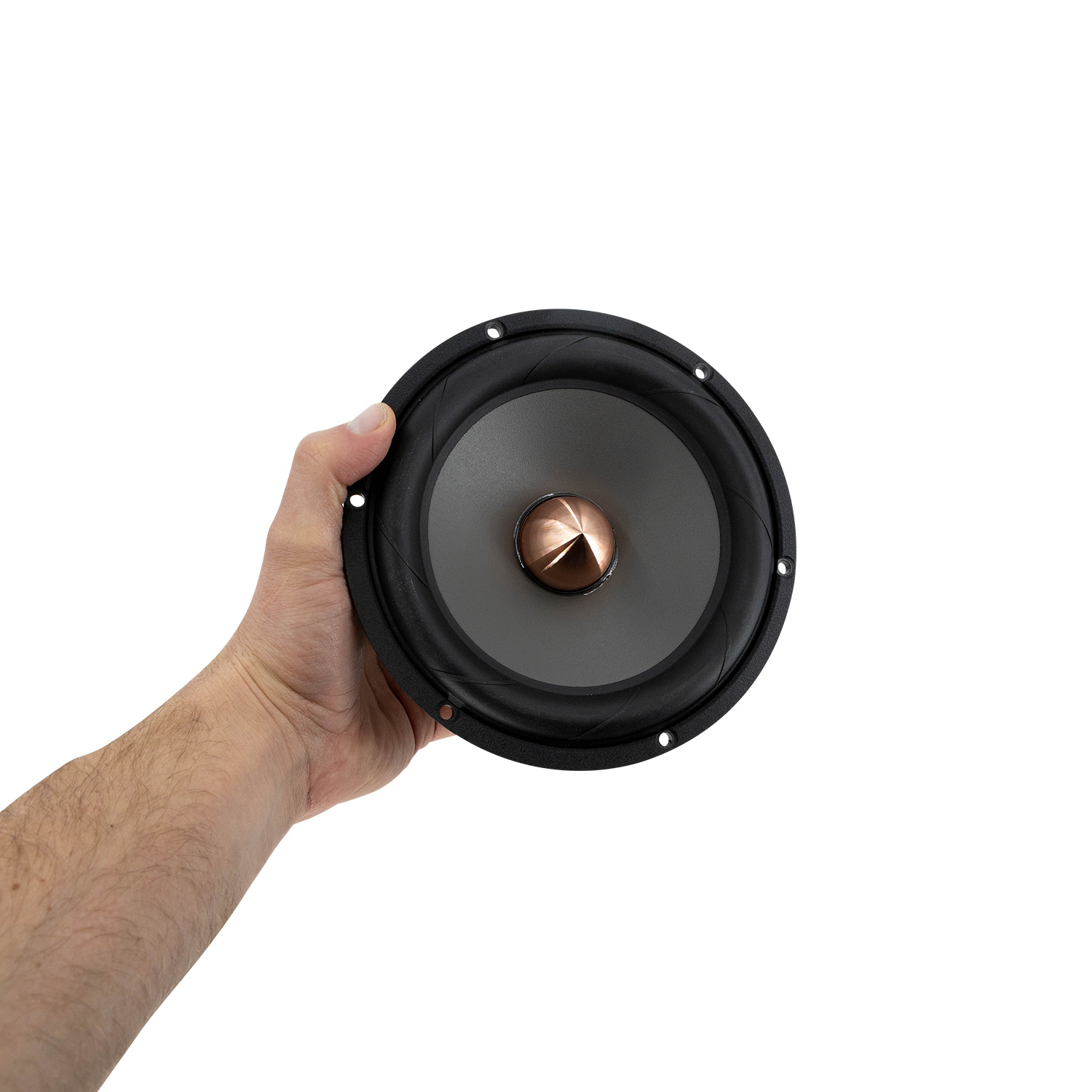

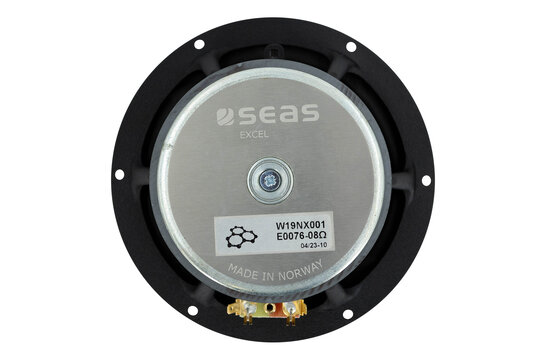

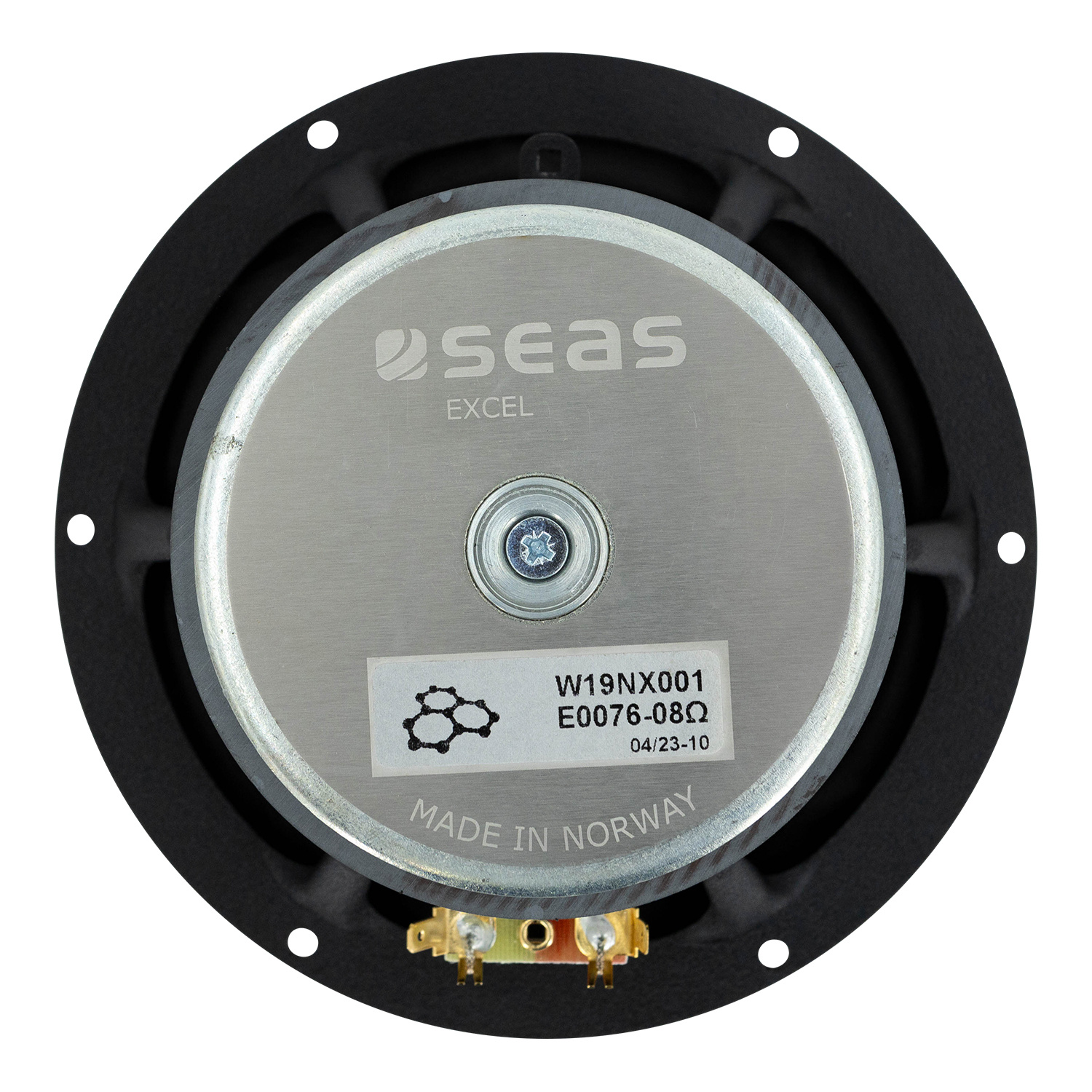

      The SEAS W19NX001 - E0076-08 Woofer is a high-performance woofer that features a precision cast, machined, and graphene-treated magnesium cone, a titanium voice coil former, and a unique radial reinforced rubber surround. This combination of components results in a woofer that is capable of producing accurate, detailed, and powerful bass response.



      Highlights

      • Precision cast, machined, and graphene-treated magnesium cone
      • Titanium voice coil former
      • Radial reinforced rubber surround
      • Nominal impedance of 8 ohms
      • Recommended frequency range of 30-3000 Hz
      • Short-term power handling of 360 watts
      • Long-term power handling of 200 watts
      • Sensitivity of 85.6 dB



      Product details

      SEAS Excel W19NX001 - E0076-08 Graphene Woofer



      The graphene-treated magnesium cone is very light and stiff, which helps to reduce resonances and improve clarity. The titanium voice coil former is also very light and strong, which helps to improve transient response. The radial reinforced rubber surround provides a good balance of damping and compliance, which helps to ensure that the woofer can produce deep, powerful bass without distorting.



      The SEAS W19NX001 - E0076-08 Woofer has a nominal impedance of 8 ohms and a recommended frequency range of 30-3000 Hz. It can handle up to 360 watts of short-term power and 200 watts of long-term power. The woofer is also relatively efficient, with a sensitivity of 85.6 dB.

      Show more

      Specifiche

      Numero dell'articolo:
      W19NX001
      EAN
      8785256848768
      Tipo di woofer
      Graphene Woofer
      Diametro nominale
      176 mm, 6.5 inch
      Gestione della potenza (RMS)
      200 Watts
      Gestione della potenza (max)
      360 Watt
      Impedenza (Z)
      8 Ohm
      Sensibilità (SPL a 1m / 2,83V)
      85.6 dB
      Risposta in frequenza
      20-2000 Hz
      Diametro della bobina mobile
      39 mm
      Peso del magnete
      0.90 kg
      Resistenza DC (Re)
      6.2 Ohm
      Induttanza della bobina mobile (Le)
      0.23 mH
      Frequenza di risonanza (Fs)
      34 Hz
      Fattore di merito meccanico (Qms)
      5.30
      Fattore di merito elettromagnetico (Qes)
      0.45
      Fattore di merito totale (Qts)
      0.41
      Massa in movimento del diaframma (Mmd)
      23.1 g
      Cedevolezza meccanica della sospensione (Cms)
      0.95 mm/N
      Superficie del cono (Sd)
      136 cm2
      Volume equivalente di cedevolezza (Vas)
      24 Litres
      Escursione lineare massima (Xmax)
      26 mm
      Materiale del filo della bobina mobile
      Copper
      Supporto della bobina mobile
      Titanium
      Diametro esterno complessivo
      176 mm
      Profondità complessiva
      80.7 mm
      Diametro del ritaglio del pannello frontale
      153 mm
      # Numero di fori di montaggio
      6

      Show more
