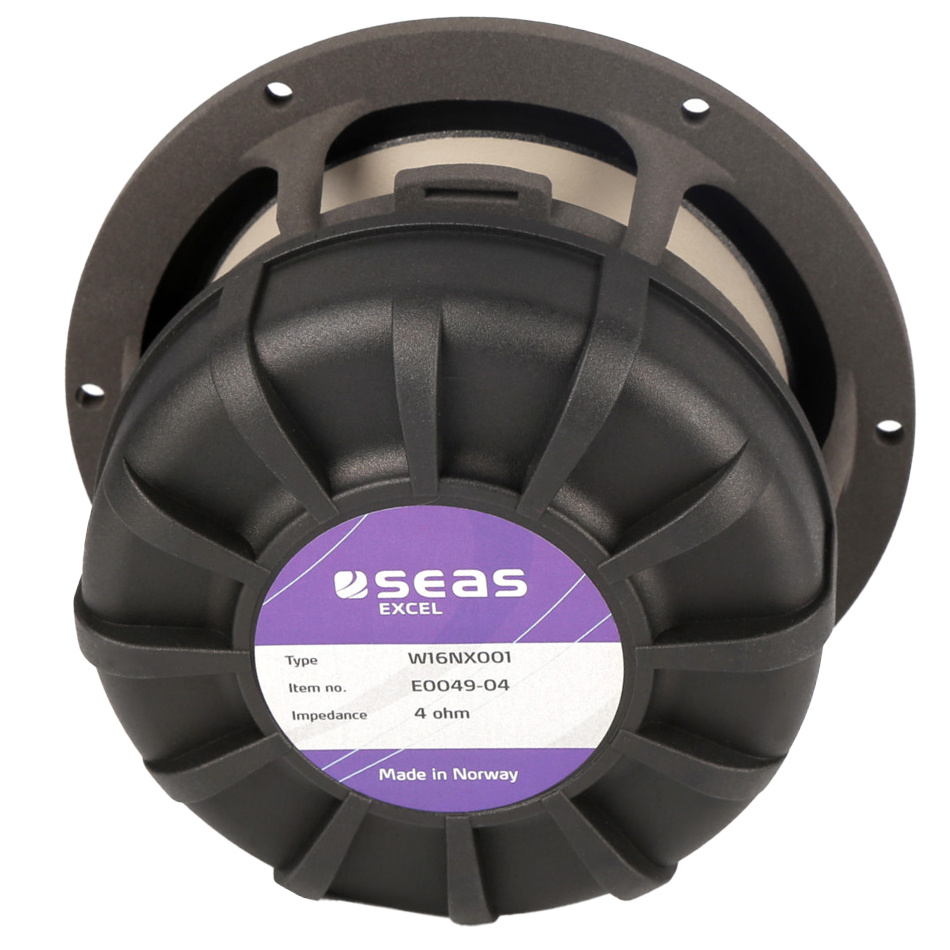

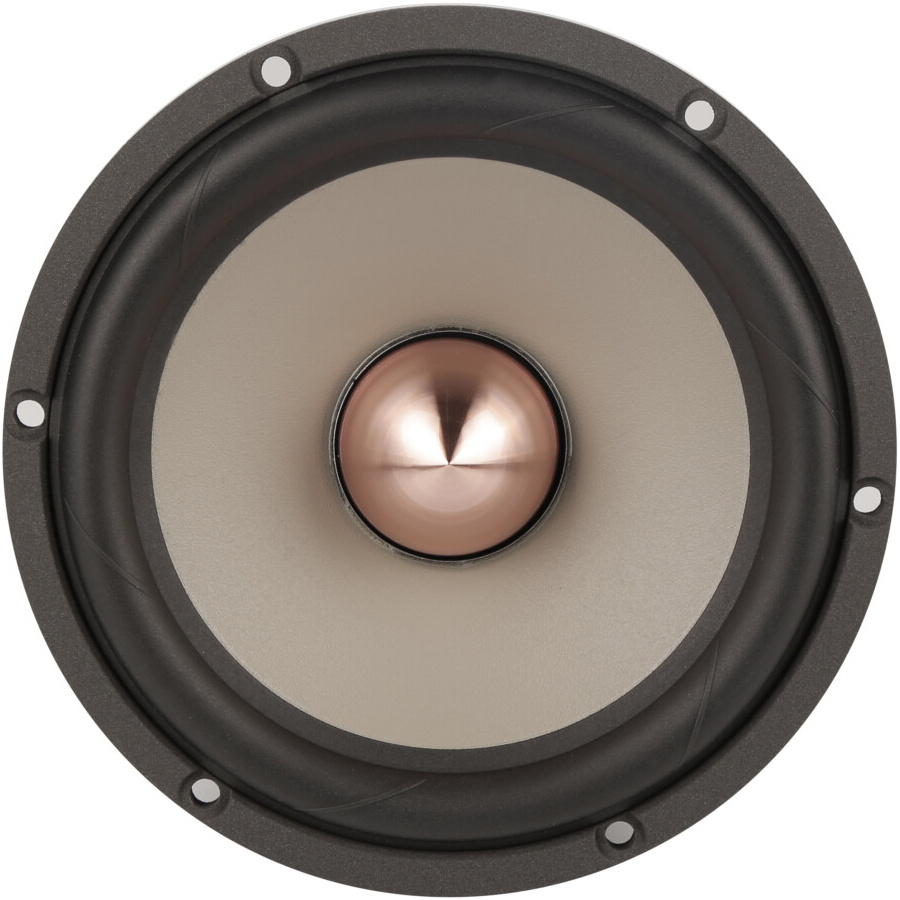

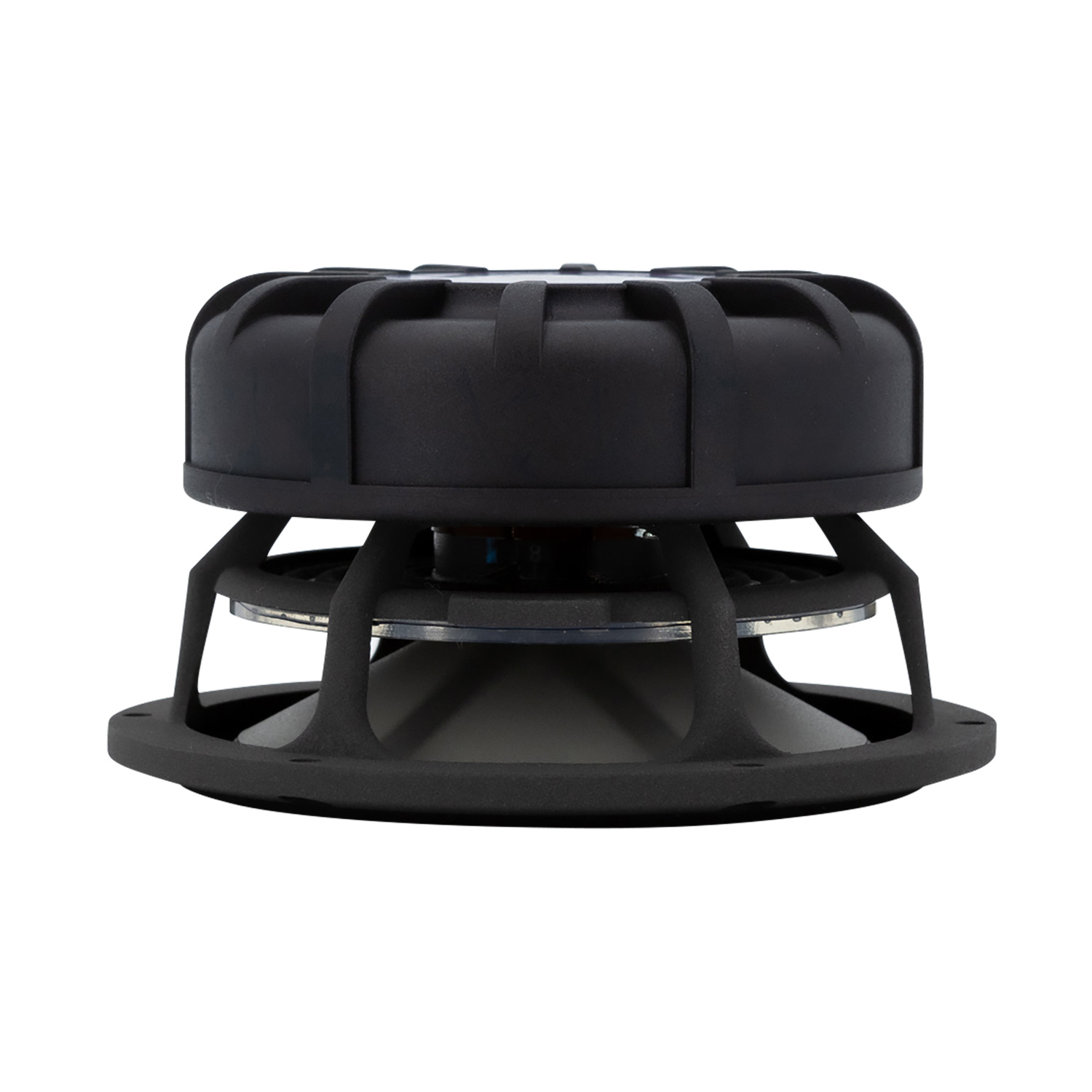

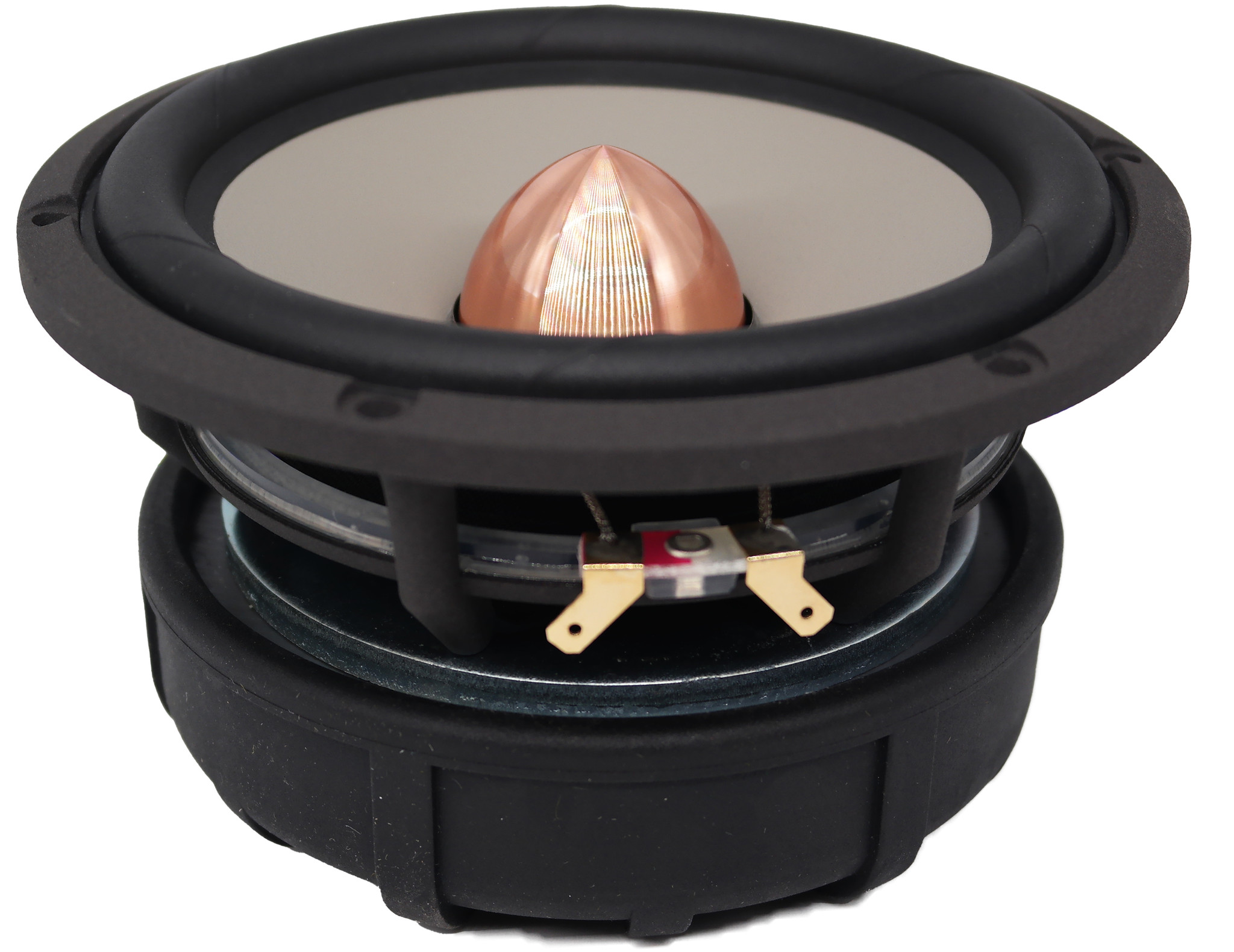

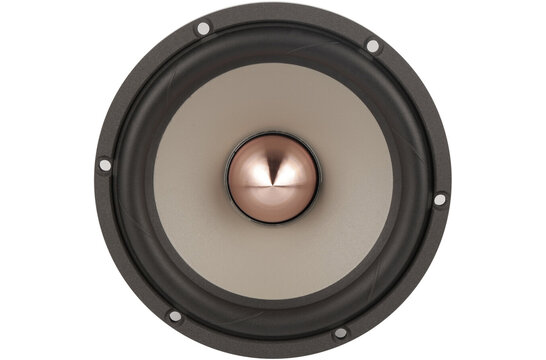

      Excel W16NX001 - E0049-04 Woofer Medio-Bassi

      SEAS Excel W16NX001 - E0049-04 Woofer Medio-Bassi

      €449,95

      10 In magazzino

      SEAS Excel W16NX001 - E0049-04 Woofer Medio-Bassi

      0 klantbeoordelingen
      0 da 5
      0 klantbeoordelingen
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SEAS
      € 371,86€ 449,95 10 In magazzino
      • -5% Acquista 4 per soli € 427,45 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto SEAS Excel W16NX001 - E0049-04 Woofer Medio-Bassi

      Highlights

      • Long term power handling (RMS) is 80 Watts
      • Unique radial reinforced rubber surround reduces radial resonances and prevents surround break up at large excursions
      • Reduced compression, increased long term power handling capacity and eliminated resonances in the cavity inside the voice coil former



      Product details

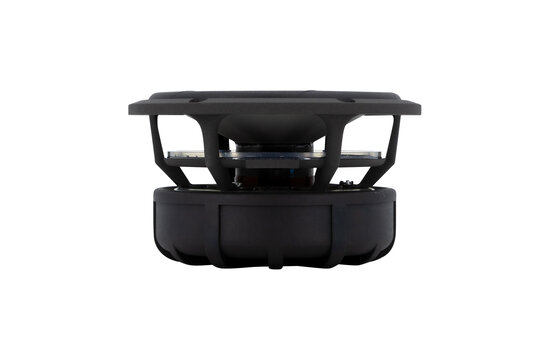

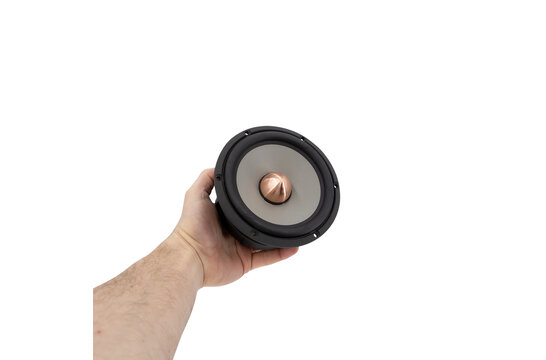

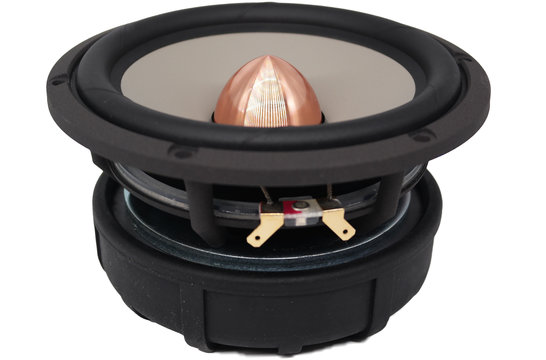

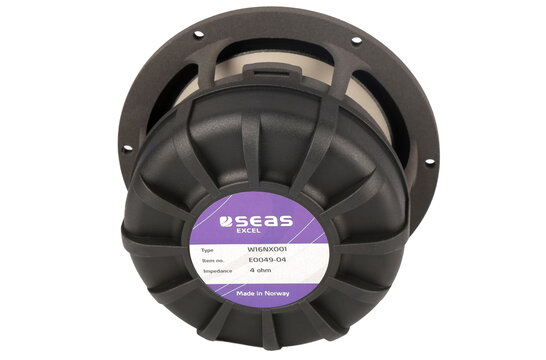

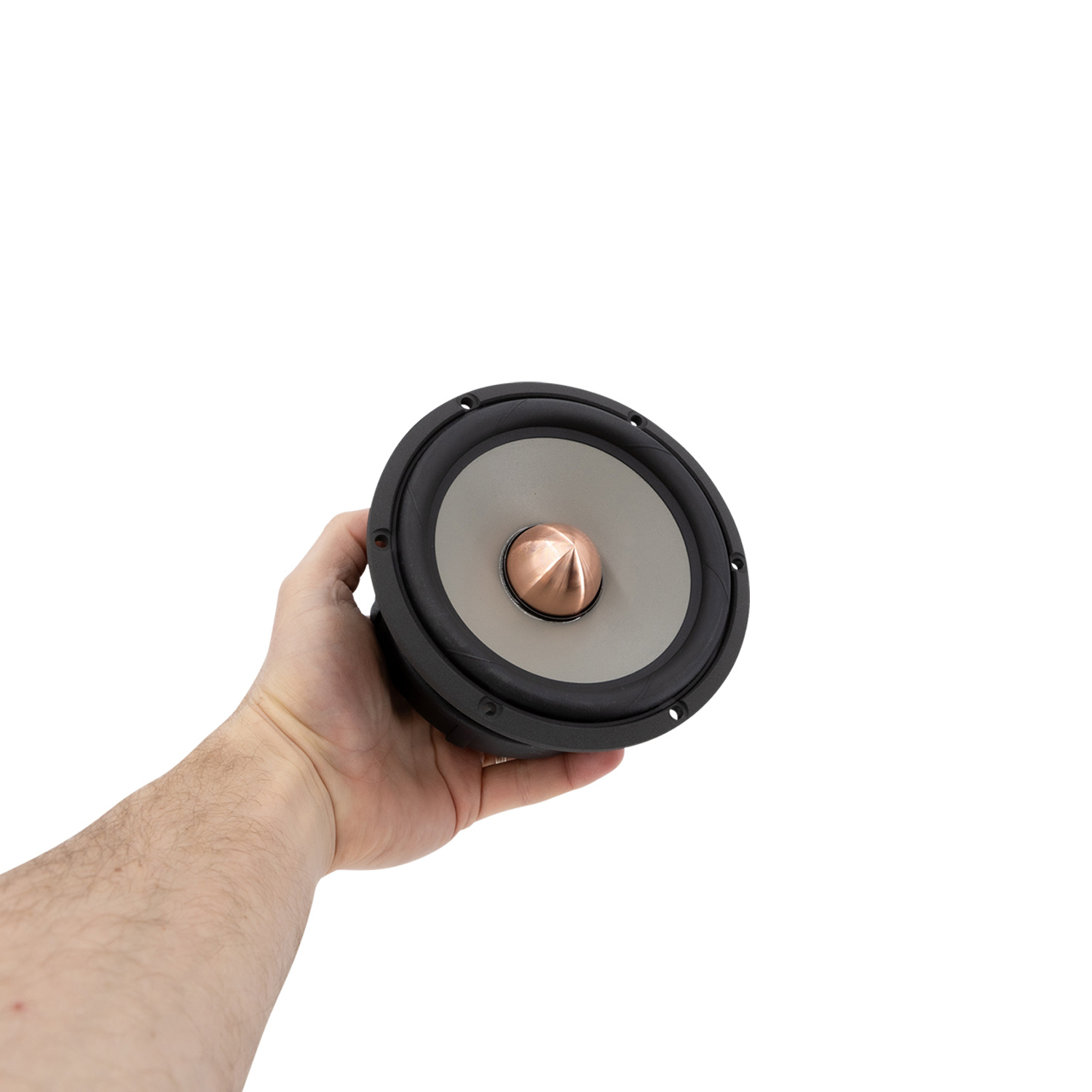

      Seas Excel W16NX001 - E0049-04 5.5" Magnesium Cone Woofer



      Precision cast, machined and surface treated magnesium cone acts as a piston through the audible frequency band without showing any sign of midrange resonances. A unique radial reinforced rubber surround reduces radial resonances and prevents surround break up at large excursions.



      Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. A copper phase plug reduces compression due to temperature variations in the voice coil, increases long term power handling capacity and eliminates resonances in the cavity inside the voice coil former.

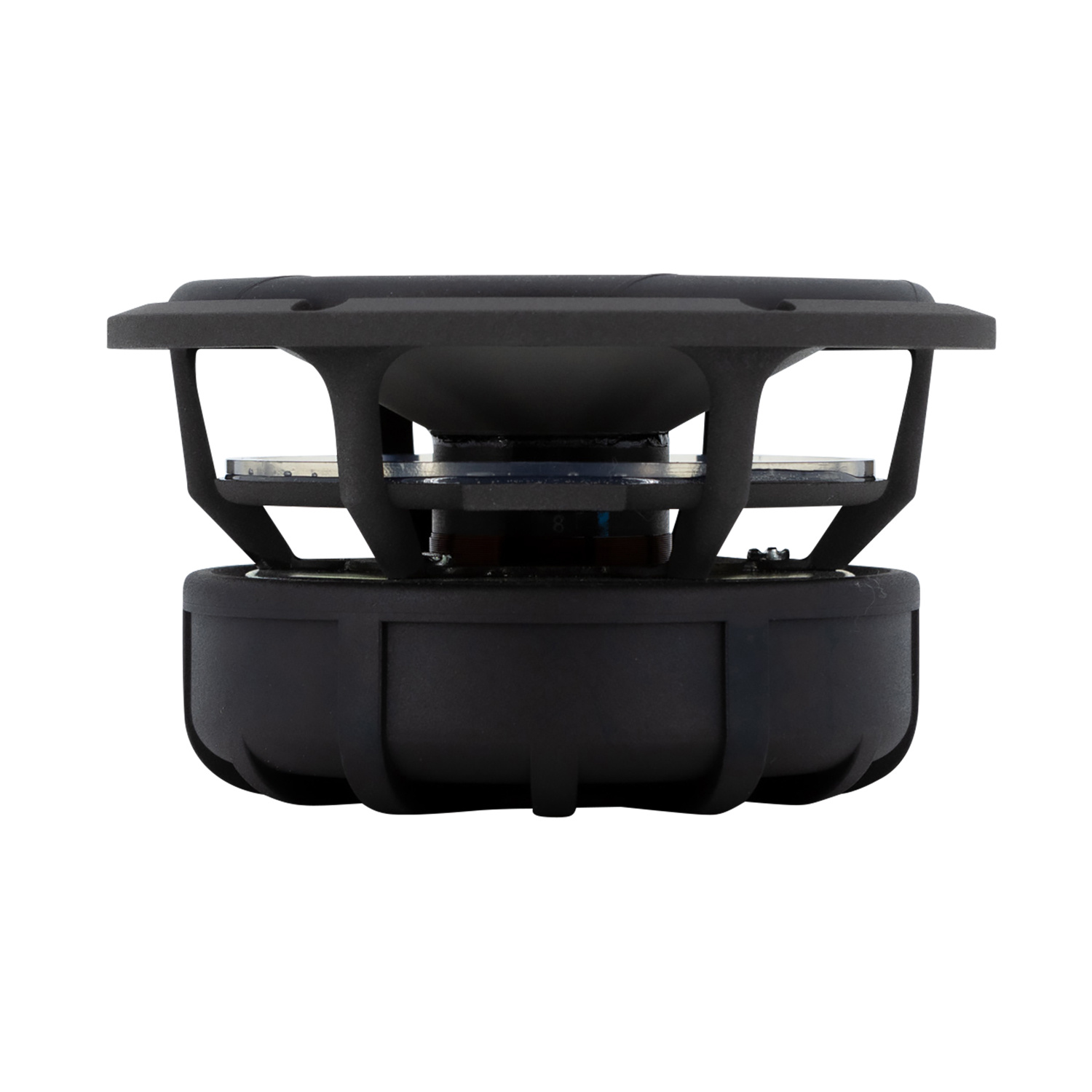

      The extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

      Show more

      Specifiche

      Numero dell'articolo:
      W16NX001
      EAN
      0696277270163
      Serie del woofer
      Excel
      Tipo di woofer
      Midwoofer
      Diametro nominale
      6.5 " | 146 mm
      Gestione della potenza (RMS)
      80 W
      Gestione della potenza (max)
      250 W
      Impedenza (Z)
      4 Ω
      Sensibilità (SPL a 1m / 2,83V)
      88.0 dB
      Risposta in frequenza
      45 - 2500 Hz
      Diametro della bobina mobile
      39 mm
      Peso del magnete
      0.64 kg
      Resistenza DC (Re)
      3.0 Ω
      Induttanza della bobina mobile (Le)
      0.25 mH
      Frequenza di risonanza (Fs)
      37 Hz
      Fattore di merito meccanico (Qms)
      2.66
      Fattore di merito elettromagnetico (Qes)
      0.38
      Fattore di merito totale (Qts)
      0.33
      Massa del diaframma incl. la massa dell'aria (Mms)
      14.8 g
      Cedevolezza meccanica della sospensione (Cms)
      1.3 mm/N
      Superficie del cono (Sd)
      94 cm²
      Prodotto BL (BL)
      5.3 N/A
      Volume equivalente di cedevolezza (Vas)
      15 L
      Escursione lineare massima (Xmax)
      7 mm
      Perdite meccaniche del driver (Rms)
      1.34 Ns/m
      Materiale del cono / diaframma
      Magnesium
      Materiale della sospensione
      Rubber
      Materiale del cestello / telaio
      Injection moulded metal
      Diametro esterno complessivo
      146 mm
      Profondità complessiva
      73.5 mm
      Diametro del ritaglio del pannello frontale
      126 mm
      Diametro del cerchio dei fori di montaggio
      137 mm
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      5.0 mm
