      Excel W15LY001 - E0041-08S Woofer Medio-Bassi

      SEAS Excel W15LY001 - E0041-08S Woofer Medio-Bassi

      €249,95

      10 In magazzino

      SEAS Excel W15LY001 - E0041-08S Woofer Medio-Bassi

      2 klantbeoordelingen
      5 da 5
      2 klantbeoordelingen
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SEAS
      € 206,57€ 249,95 10 In magazzino
      • -5% Acquista 4 per soli € 237,45 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto SEAS Excel W15LY001 - E0041-08S Woofer Medio-Bassi

      Highlights

      • Long term power handling (RMS) is 60 Watts
      • Paper cone with a unique Nextel coating ensures smooth frequency response and low distortion
      • Large magnet system with a very long and light weight CCAW voice coil allow good coil excursion with low distortion and excellent transient response



      Product details

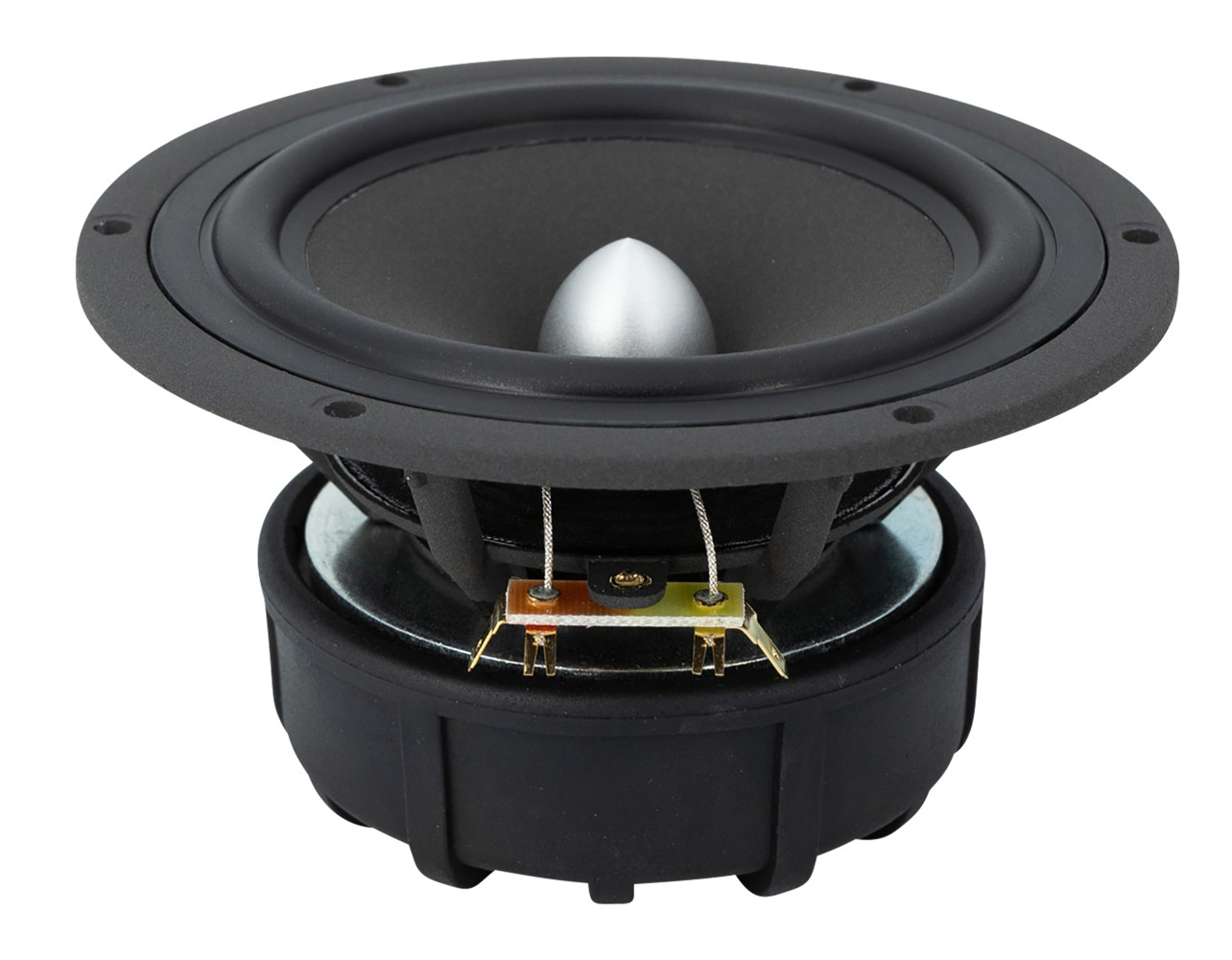

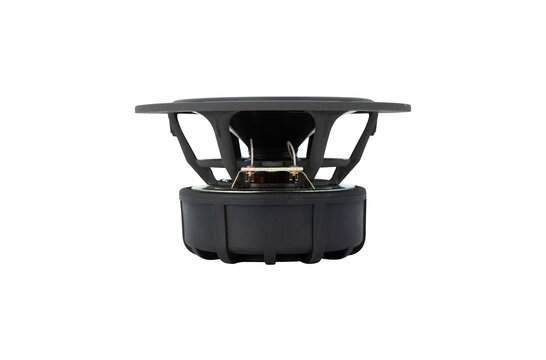

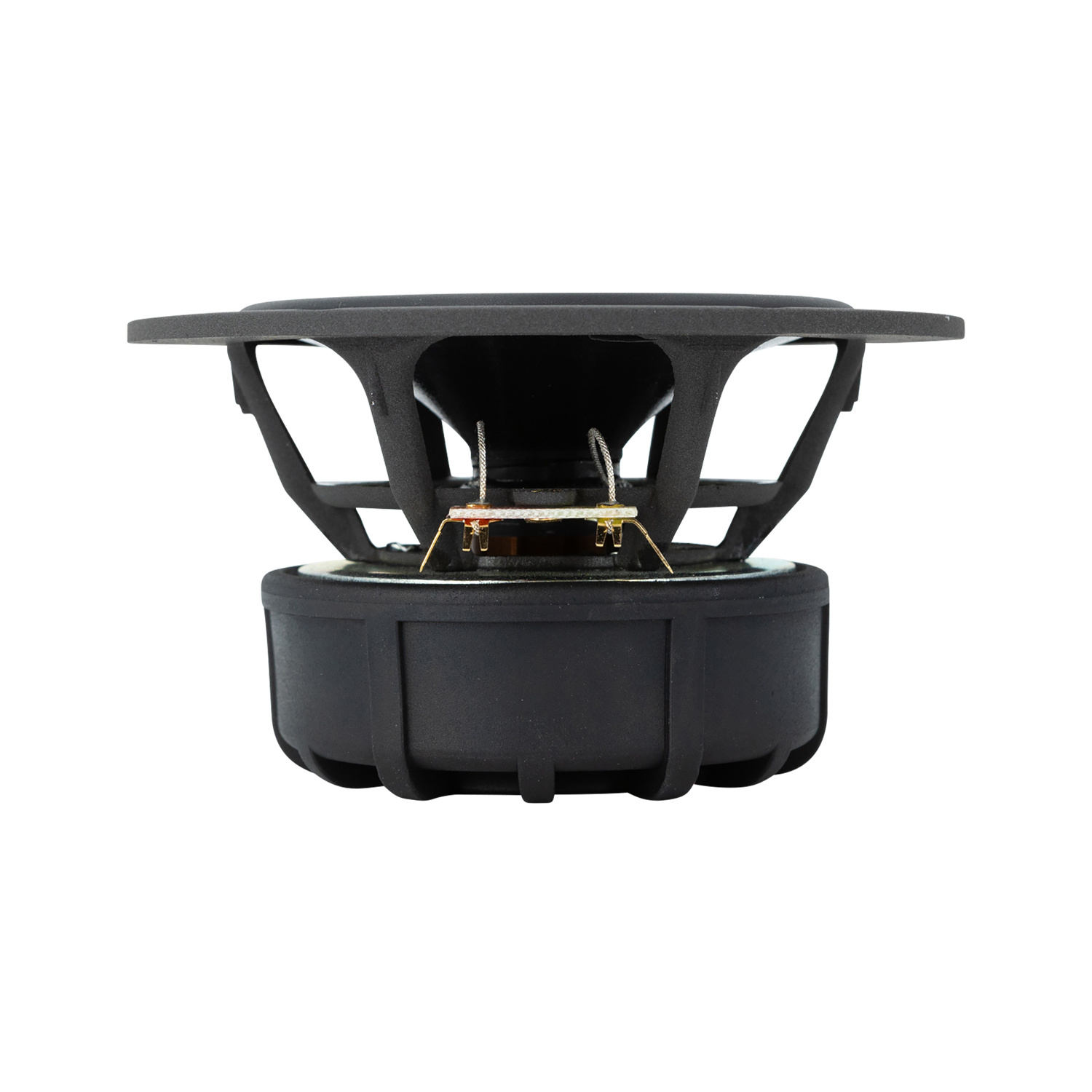

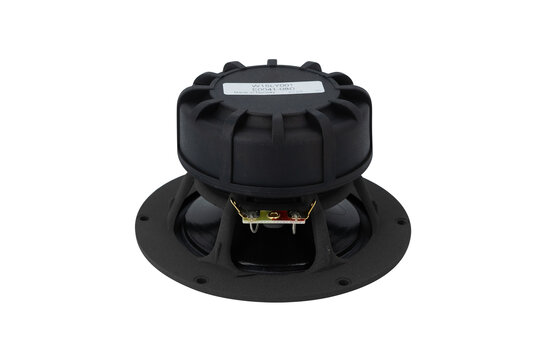

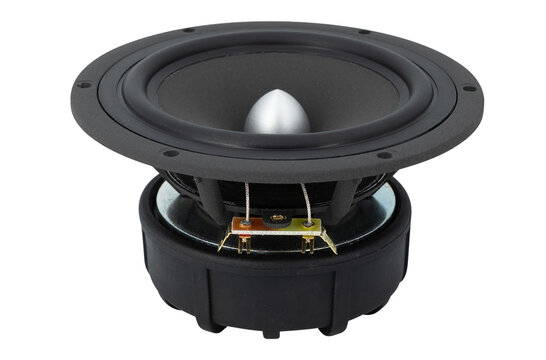

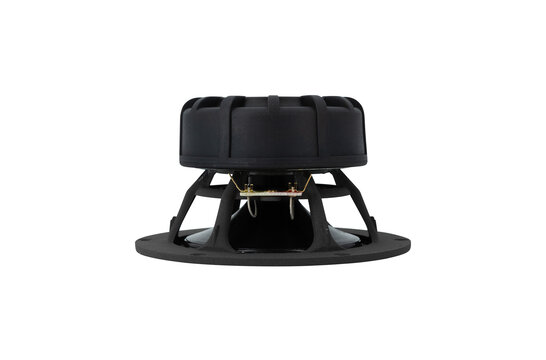

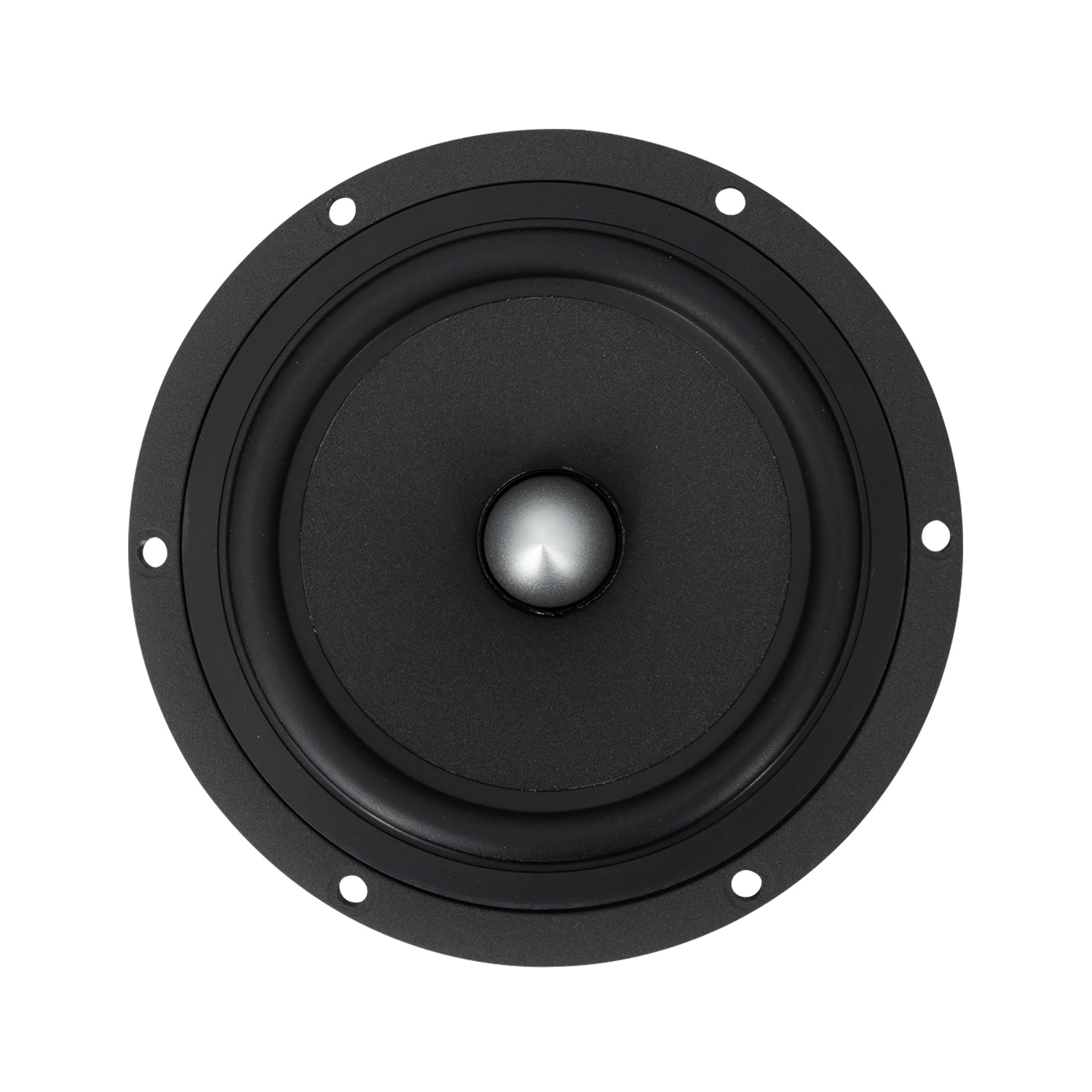

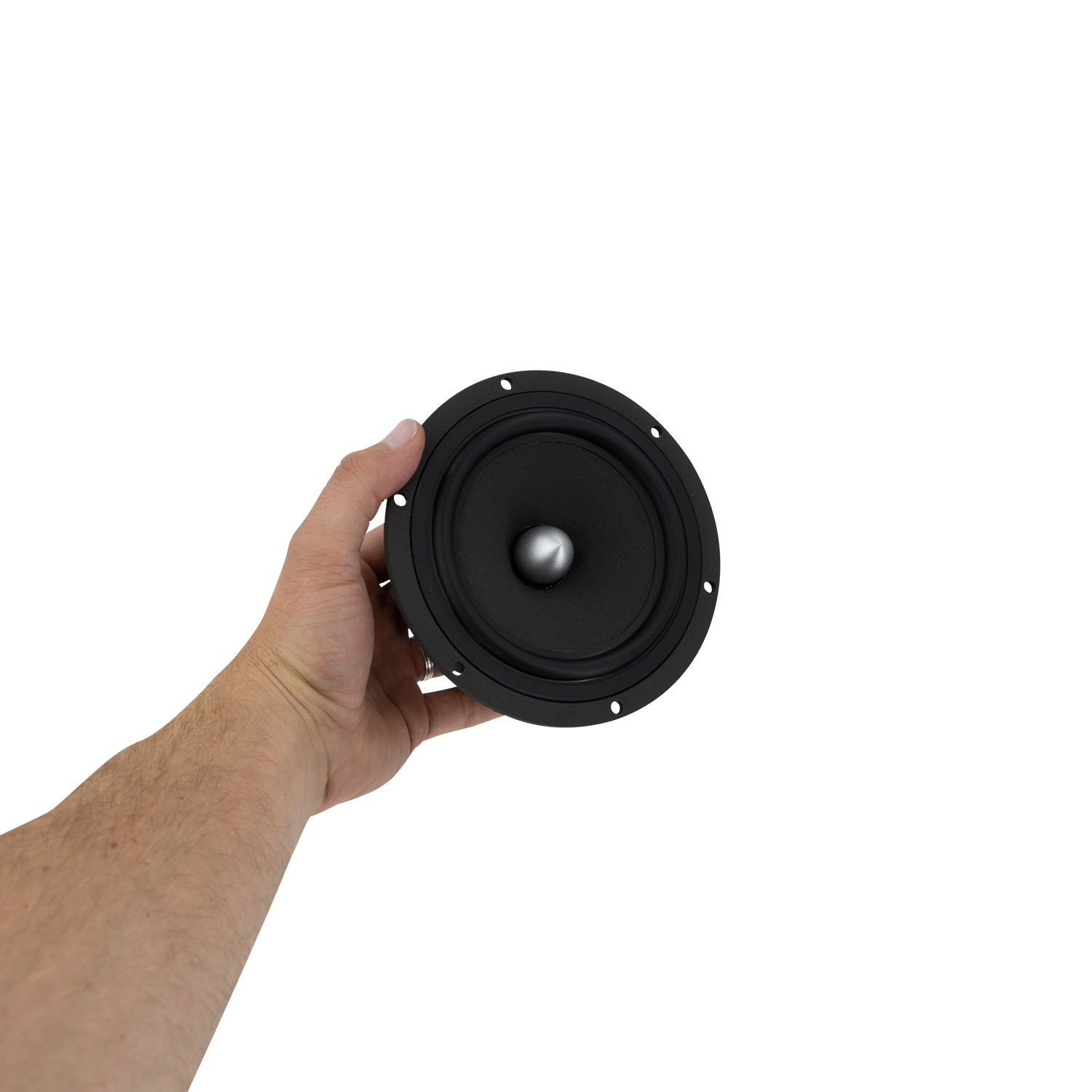

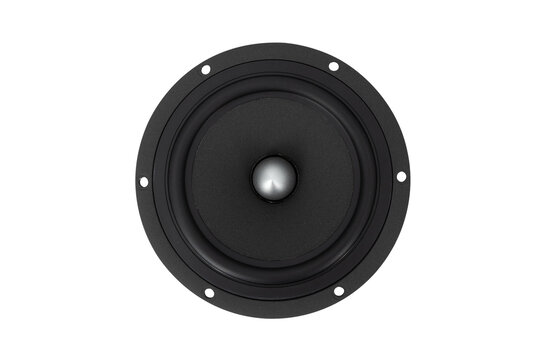

      Seas Excel W15LY001 - E0041-08S 5.5" Paper Cone Woofer



      An adaptive rubber surround provides an ideal match to the cone over the total frequency range. A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion.

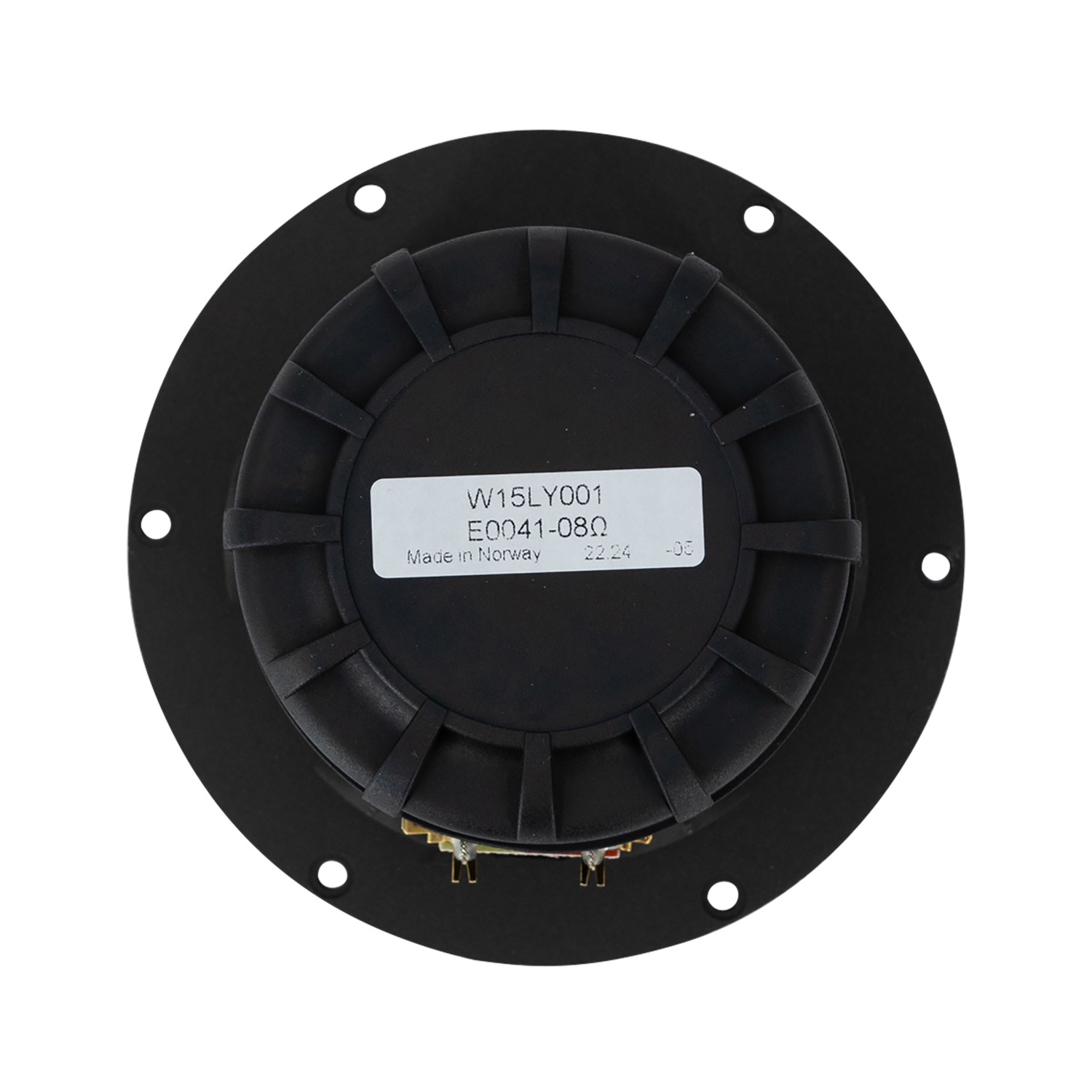

      A large magnet system, together with a very long and light weight CCAW voice coil allow good coil excursion with low distortion and excellent transient response. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.

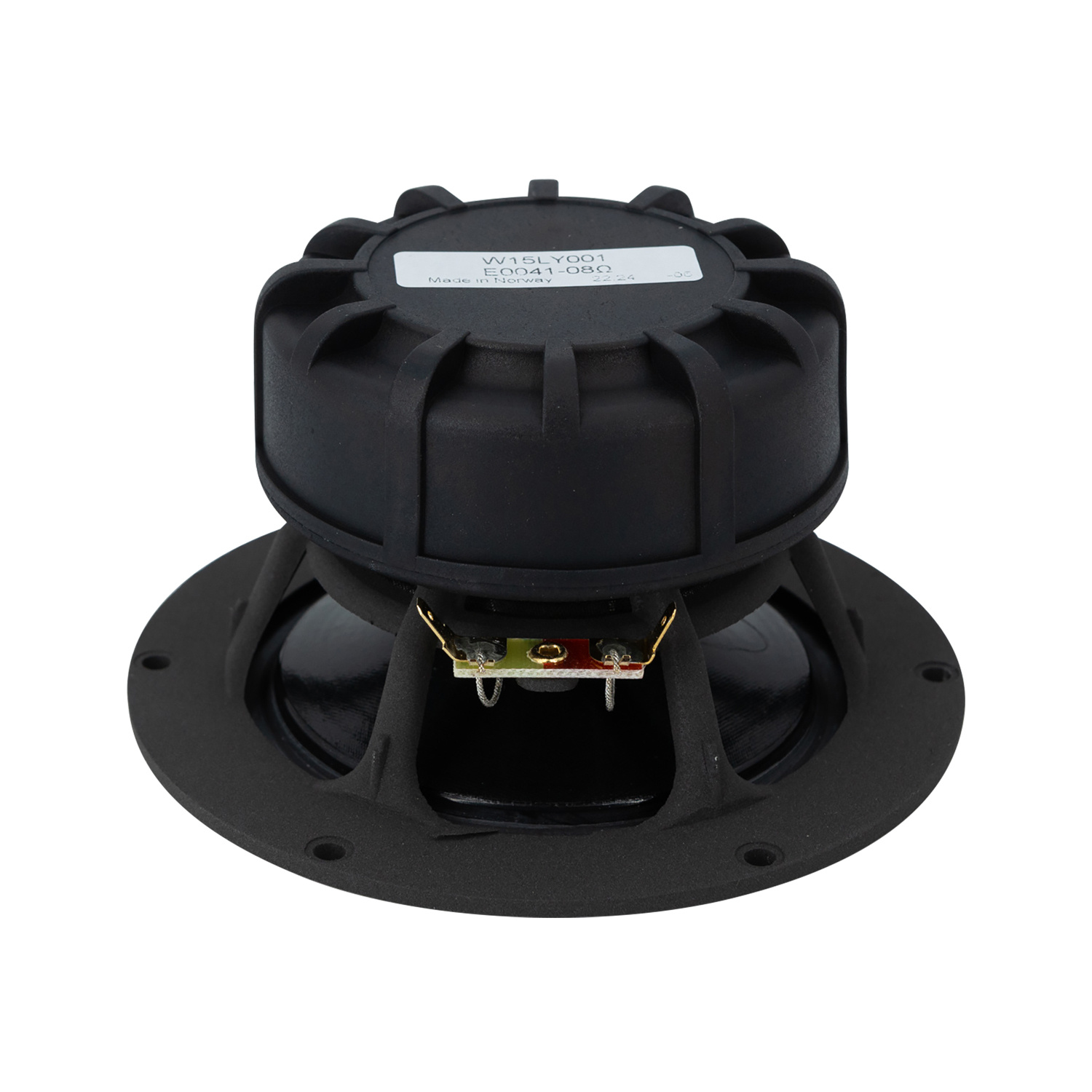

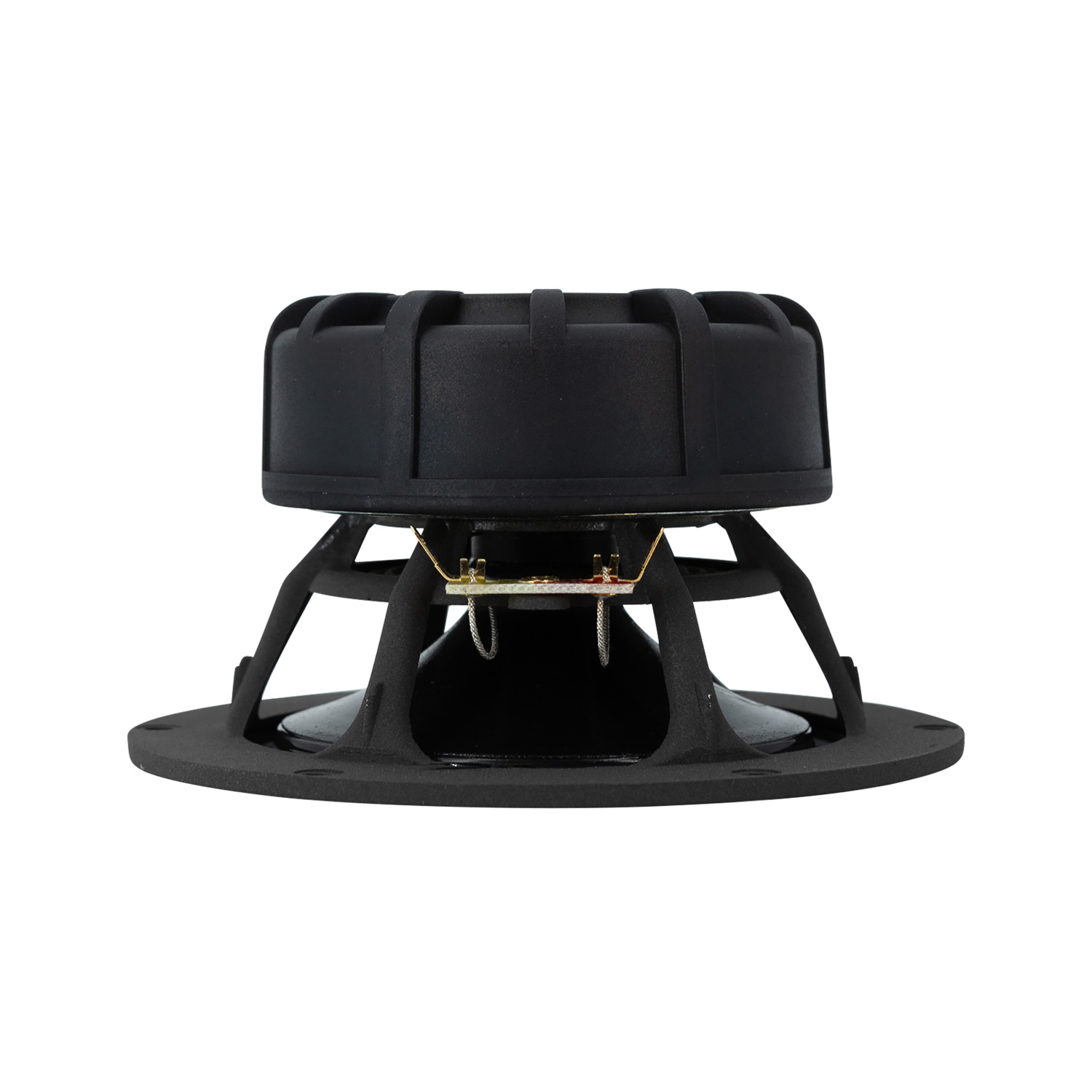

      Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

      Show more

      Specifiche

      Numero dell'articolo:
      W15LY001
      EAN
      0696277270156
      Serie del woofer
      Excel
      Tipo di woofer
      Midwoofer
      Diametro nominale
      5 " | 146 mm
      Gestione della potenza (RMS)
      60 W
      Gestione della potenza (max)
      250 W
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      86.5 dB
      Risposta in frequenza
      50 - 4000 Hz
      Diametro della bobina mobile
      26 mm
      Peso del magnete
      0.42 kg
      Resistenza DC (Re)
      5.7 Ω
      Induttanza della bobina mobile (Le)
      0.30 mH
      Frequenza di risonanza (Fs)
      49 Hz
      Fattore di merito meccanico (Qms)
      2.21
      Fattore di merito elettromagnetico (Qes)
      0.56
      Fattore di merito totale (Qts)
      0.45
      Massa del diaframma incl. la massa dell'aria (Mms)
      6.28 g
      Cedevolezza meccanica della sospensione (Cms)
      1.7 mm/N
      Superficie del cono (Sd)
      75 cm²
      Prodotto BL (BL)
      4.6 N/A
      Volume equivalente di cedevolezza (Vas)
      12 L
      Escursione lineare massima (Xmax)
      5 mm
      Perdite meccaniche del driver (Rms)
      0.93 Ns/m
      Materiale del cono / diaframma
      Paper
      Materiale della sospensione
      Rubber
      Materiale del filo della bobina mobile
      CCAW
      Materiale del cestello / telaio
      Injection moulded metal
      Diametro esterno complessivo
      146 mm
      Profondità complessiva
      75.5 mm
      Diametro del ritaglio del pannello frontale
      112 mm
      Diametro del cerchio dei fori di montaggio
      136.5 mm
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      5.0 mm

      Show more

      5 di 5
      -
      Da Alexey on 1 Maggio 2024
      5 di 5
      SEAS Speakers are a quality guarantee. The performance is very acceptable.
